DBL-18OZ-R: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size48KB，2 Pages; ManufacturerOn-Shore Technology ( OST ); Websitehttp://www.on-shore.com

Download Datasheet Parametric View All

DBL-18OZ-R Overview

Board Connector, 18 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug

DBL-18OZ-R Parametric

Parameter Name	Attribute value
Maker	On-Shore Technology ( OST )
Objectid	304413836
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.2 inch
subject depth	0.441 inch
body length	0.9 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	7 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1400VAC V
Durability	100 Cycles
Insulation resistance	1000000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DBL
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	18

Preview

Download Datasheet

View All

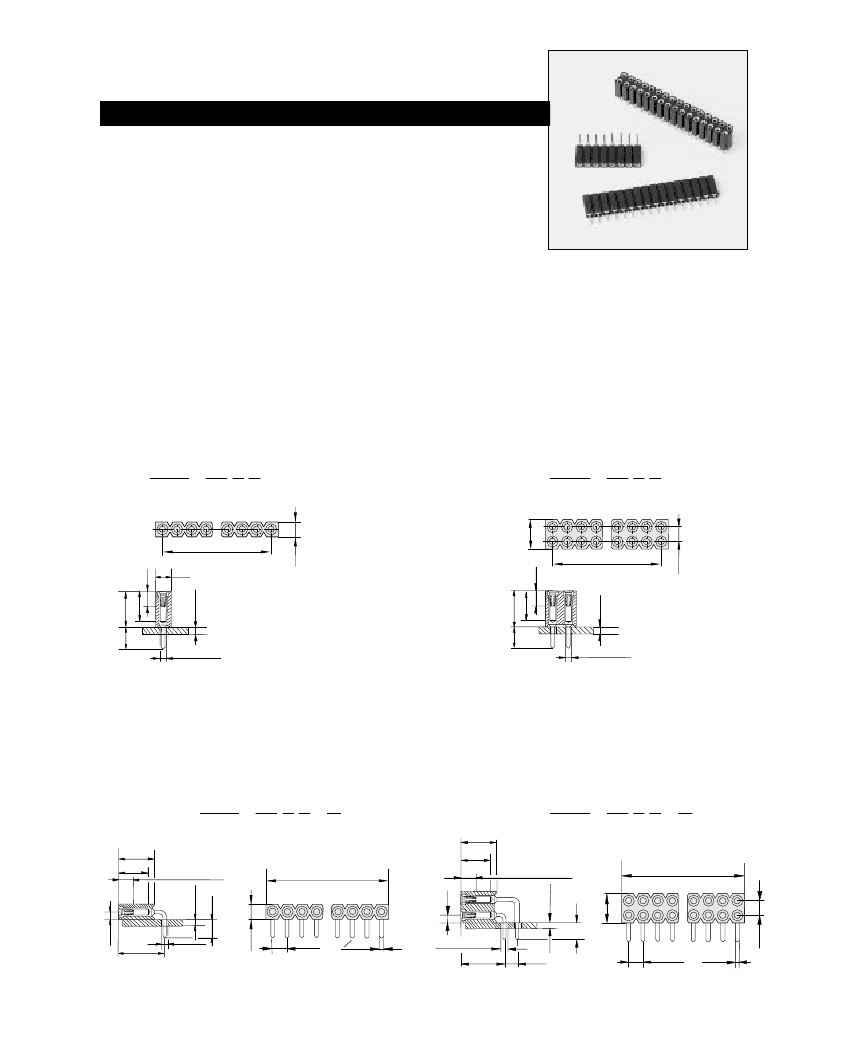

Series: SBL, DBL

High Profile Machined Female Header

v

Insertion depth, 2.4 mm

Insertion diameter, 0.65 mm min. - 0.85 mm max.

Insertion force, 1.2N

Withdrawal force, 0.6N

Mechanical life 500 cycles min.

Six finger clip with funnel design entry

Side and end stackable

Single row 1 - 36 positions

Dual row 4 - 72 positions

Ordering examples:

SBL - 36 0 Z

5.08

DBL - 72 0 Z

2.54

N - 1 x 2.54

2.4

2.54

1.4 - 2.0

N - 1 x 2.54

2.4

3.0

Ø 0.7 - 0.9

SBL - 36 0 Z - R

7.0

5.8

2.4 contact point

N - 1 x 2.54

1.27

5.8

DBL - 72 0 Z - R

1.4 - 2.0

7.0

5.8

2.4 contact point

N - 1 x 2.54

5.08

1.4 - 2.0

3.2

1.27

3.2

2.54

8.3

Ø 0.7 - 0.9

2.54

O 0.46

Ø 0.7 - 0.9

8.3

2.54

Ø 0.46

2.54
