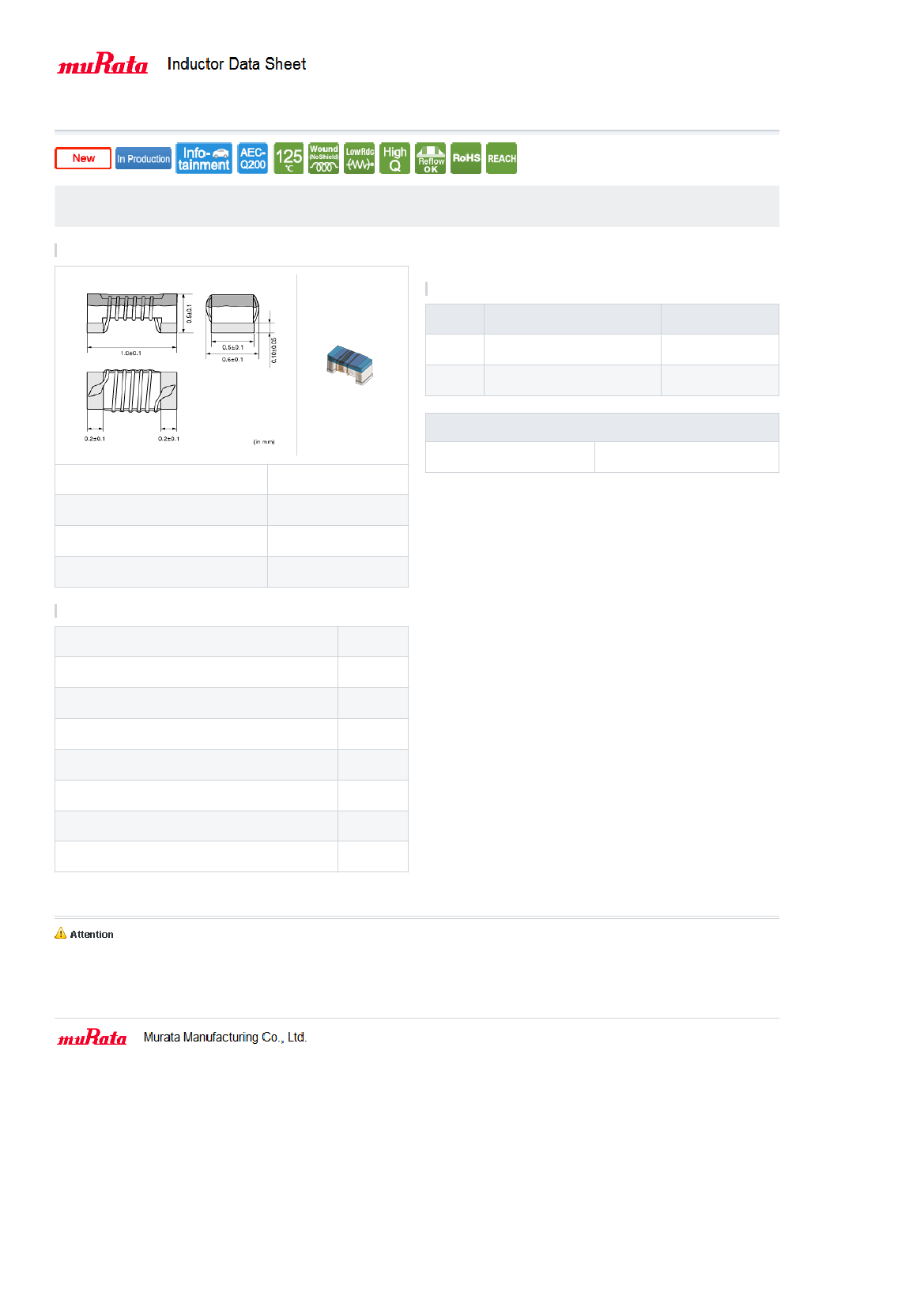

LQW15AN5N2D1Z#
# indicates a package specification code.
< List of part numbers with package codes >
LQW15AN5N2D1ZD , LQW15AN5N2D1ZB
Shape
References
Packaging
code
Specifications
φ180mm Paper taping
Packing in bulk
Minimum quantity
10000
500
Mass (Typ.)
1 piece
L size
W size
T size
Size code in inch (mm)
1.0 ±0.1mm
0.6 ±0.1mm
0.5 ±0.1mm
0402 (1005)
0.0008g
Specifications
Inductance
Inductance test frequency
Rated current (Itemp) (Based on Temperature rise)
Max. of DC resistance
Q (min.)
Q test frequency
Self resonance frequency (min.)
Operating temperature range (Self-temperature rise is not included)
5.2nH ±0.5nH
100MHz
800mA
0.051Ω
30
250MHz
8GHz
-55∼125℃
1 of 2
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
Last updated: 2016/04/21
Chart of characteristic data (The charts below may show another part number which shares its characteristics.)
Inductance-Frequency characteristics (Typ.)
Q-Frequency characteristics (Typ.)
2 of 2
This PDF data has only typical specifications because there is no space
for detailed specifications.
Therefore, please reviewour product specifications or consult the
approval sheet for product specifications before ordering.
Last updated: 2016/04/21
