DSF1-18-1.2-125/A datasheet, PDF

Datasheet> All Categories > Passive components> inductor> DSF1-18-1.2-125/A

DSF1-18-1.2-125/A: DescriptionGeneral Purpose Inductor, 125uH, 15%, 1 Element,; CategoryPassive components inductor; File Size183KB，1 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DSF1-18-1.2-125/A Overview

General Purpose Inductor, 125uH, 15%, 1 Element,

DSF1-18-1.2-125/A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SCHURTER
Reach Compliance Code	compli
ECCN code	EAR99
DC Resistance	0.09 Ω
Nominal inductance(L)	125 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum rated current	1.2 A
self resonant frequency	6.5 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal surface	Tin (Sn)
Terminal location	DUAL IN-LINE
Terminal shape	FLAT
Tolerance	15%
Base Number Matches	1

Preview

Download Datasheet

View All

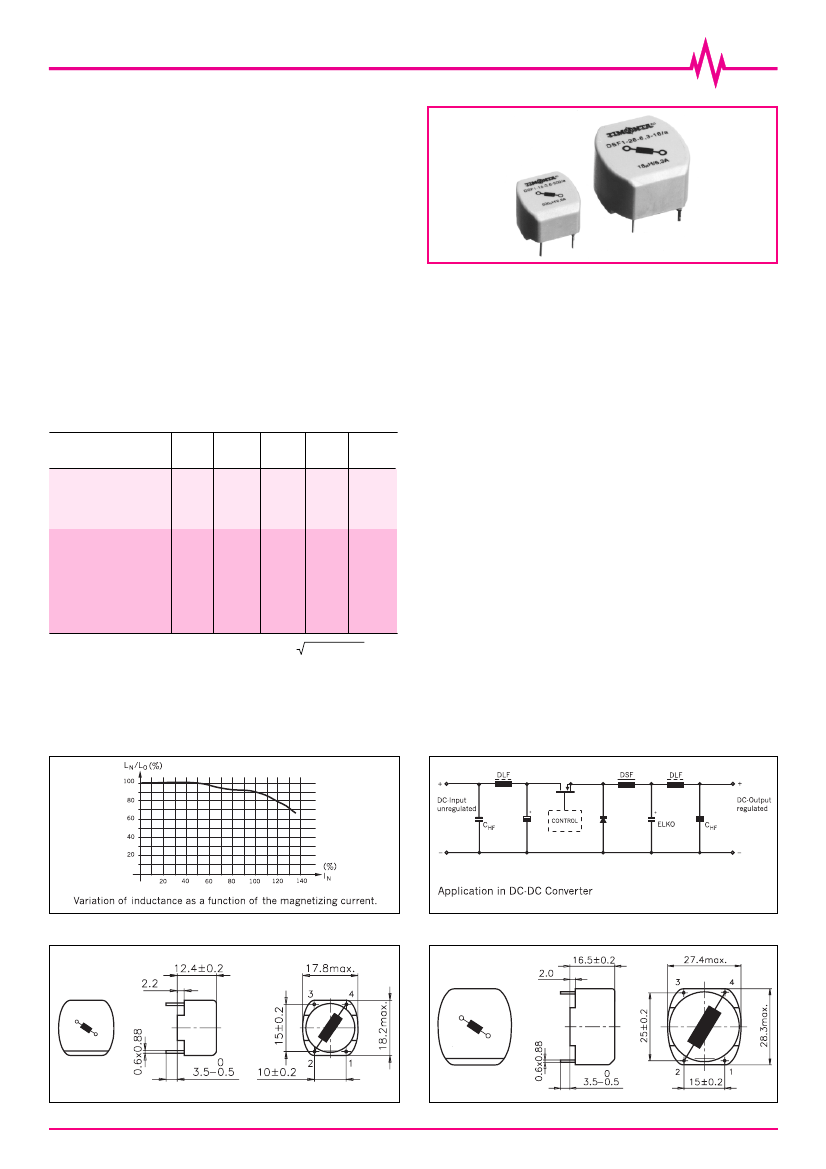

Storage Chokes

DSF

Series, flat housing

Nominal current:

Nominal inductance:

Max. working voltage:

Application range:

Isolation voltage:

Climatic category:

Plastic case:

Potting resin:

0.45 - 6.3 A @

a 70°C

11 - 3700 µH/ tol.

15%

600 VDC

up to 1 MHz

2 kV eff. / wdg.-ambient

40/125/21 acc. to IEC 60068-1

UL 94 V-0

This range of chokes enables horizontal mounting, thus reducing the

height of mounted circuit. Finest quality core materials allow the

highest electrical performance with minimum component volume.

Good design with easy assembly allows good cost/performance ra-

tio.

This type of choke is essential in the field of power electronics, e.g.

switching power supplies, chopper amplifiers, DC drives and stepper

motor controls.

DSF

Storage chokes are used as energy stores in switch mode

power supplies. Principle features:

- reduced magnetic reversal

- constant inductance at high alternating field modulation

and high DC magnetisation.

Environmental Ratings:

The

DSF chokes

can only be used with high frequency alternating

current or with HF-modulated direct current up to 1 MHz, under

consideration of their self heating (I

and

at f

) and of the ambi-

ent temperature (ϑa).

Technical Data

Type

DSF1-18-0.6-500/a

DSF1-18-1.2-125/a

DSF1-18-2.0-45/a

DSF1-18-4.0-11/a

DSF1-28-0.45-3700/a

DSF1-28-0.63-1800/a

DSF1-28-1.0-750/a

DSF1-28-1.8-230/a

DSF1-28-3.15-75/a

DSF1-28-4.5-37/a

DSF1-28-6.3-18/a

(1)

(2)

(3)

(1)

[A]

(2)

[µH]

(3)

[mΩ]

[MHz]

~ f

Res

Case

04-1

15-1

0.6

1.2

2.0

4.0

0.45

0.63

1.0

1.8

3.15

4.5

6.3

500

125

3700

1800

750

230

360

1900

900

360

125

2.5

6.5

0.6

1.8

3.5

Typical

Ambient temperature

Operating frequency

Nominal DC current

HF-Ripple

SMD-version upon request.

ϑa

70°C

50 kHz

as per table

20% I

ϑa

70°C; current derating over 70°C: I = I

x (125-ϑa)/55

Nominal inductance measured according to EN 138100,

see introduction of this catalog, paragraph 3.4

Resistance @

ϑa

25°C

Typical curve

Application

Case 04-1

Case 15-1

DSF1-18-1.2-125/A Related Products

	DSF1-18-1.2-125/A	DSF1-28-1.0-750/A	DSF1-28-3.15-75/A	DSF1-28-1.8-230/A
Description	General Purpose Inductor, 125uH, 15%, 1 Element,	General Purpose Inductor, 750uH, 15%, 1 Element,	General Purpose Inductor, 75uH, 15%, 1 Element,	General Purpose Inductor, 230uH, 15%, 1 Element,
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.09 Ω	0.36 Ω	0.045 Ω	0.125 Ω
Nominal inductance(L)	125 µH	750 µH	75 µH	230 µH
Inductor Applications	DC-DC CONVERTER	DC-DC CONVERTER	DC-DC CONVERTER	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3	e3	e3
Number of functions	1	1	1	1
Number of terminals	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rated current	1.2 A	1 A	3.15 A	1.8 A
self resonant frequency	6.5 MHz	1.8 MHz	7 MHz	3.5 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO
surface mount	NO	NO	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal location	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE
Terminal shape	FLAT	FLAT	FLAT	FLAT
Tolerance	15%	15%	15%	15%
Base Number Matches	1	1	1	1
