Smart - Control Modules
QC01: (24VDC) & QC02: (85-254VAC)
Description:
These FieldQ QC01 and QC02 Smart Control Modules offer
an integrated concept for "On/Off" valve automation. Its
compact and robust construction incorporates IPT technology
with auto-initialization for easy setting of feedback switches.
Construction:
The Control Module is mounted at the side of the Pneumatic
Module in front of the basic actuator housing. Inside are
terminals available for connecting control and feedback
wiring. Two cable entries are available for this purpose.
Features:
-
Supports both single and double acting actuators.
-
One entry for all wiring
(control and feedback).
-
IPT-technology
(Intelligent Position Tracking).
-
Automatic initialization
for easy setup of the actuator.
Pressing 4 seconds
simultaneously the "Open" and
"Closed" reassignment buttons starts auto-initialization
procedure and sets automatically the feedback limit
switches.
-
Readjustable or Reversible position feedback
using the
reassignment buttons.
-
Three indication LED's
for "Status", "Open" and "Closed"
position. Status LED indicates:
- Initialization procedure running
(blinking)
- Successful initialization procedure (LED is on)
- No or failed initialization
(flashing)
- Control Module
is easily plugged in
the Pneumatic
Module.
- Modular functionality for
easy update
towards present and
future bus systems.
-
The power supply and all inputs and outputs are
galvanic isolated
which offers greater flexibility for
systems connection.
General Specifications:
Material housing
Cable entries
Electrical connections
Enclosure
Finish
Operating media
Temperature
Dimensions
:
:
:
:
:
Aluminium alloy
2x M20x1.5 or 2x 1/2"NPT
Internal terminal strip.
IP65 / NEMA 4X
Polyester non-TGIC based powder
coating.
: Air or inert gasses, filtered at 50
micron
: -20° to +80°C / -4° to 176°F
: See 1.603.01 metric
See 1.603.04 imperial/UNC
See 1.603.02 DIN 3337

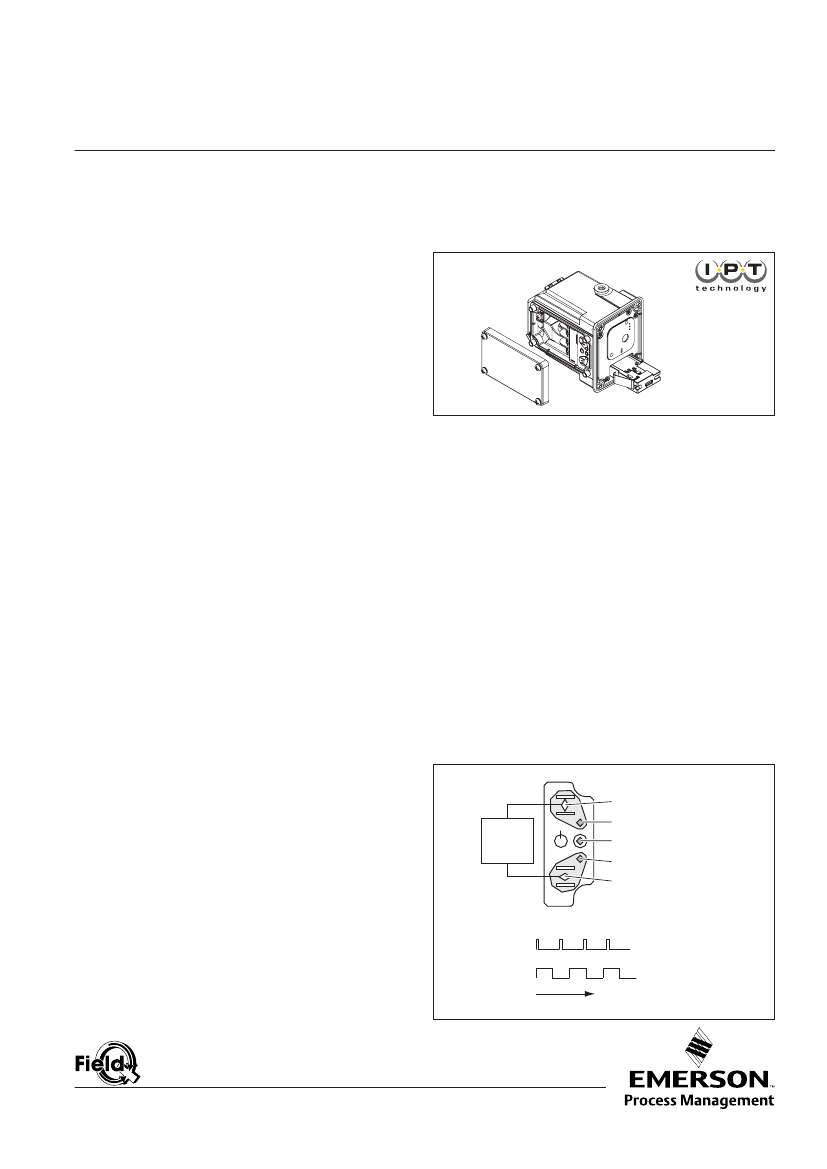

FieldQ Button board
Closed reassignment button
Push
4 sec.
Closed LED
Status LED
Open LED
Open reassignment button
Status LED:
on
off
on
off
Time
LED =
Flashing
LED =
Blinking
TM
www.FieldQ .com
Copyright © Emerson Process Management. The information in this document is subject to change without notice. Updated data sheets can
be obtained from our web site
www.Fieldq.com
or from your nearest Valve Automation Center:
America's:
+1 813 630 2255
(fax +1 630 9449)
Europe:
+31 74 256 10 10 (fax +31 74 291 09 38)
Asia/Pacific:
+65 626 24 515 (fax +65 626 80 028)
Product data sheet
Sheet No.: 1.604.01 - Rev: E - Page 2 of 3
October, 2006
Date:
FieldQ
Smart - Control Modules
QC01: (24VDC) & QC02: (85-254VAC)
Options:
Manual Control
- Can be added as kit or factory option in 2 versions,
“Push button” or a “Push and lock” button.
Glands and plugs
- FieldQ Control Modules QC01 or QC02 can be shipped
with plastic or metal glands (M20x1.5 or 1/2"NPT) and
rated IP65/NEMA4X or higher.
Hazardous area modules:
- Non-Incendive of Non-Sparking
- Control Modules QC01 and QC02 are available with
optional Non-Incendive of Non-Sparking approvals as
listed below:
-
ATEX
: II 3 GD EEx nA IIC T4 T90°C / IP65
: Certificate : KEMA 02ATEX1258X
: Ambient temperature:
- QC01: -20°C…+75°C (-4°F…167°F)
- QC02: -20°C…+73°C (-4°F…163°F)
-
FM
: Non-Incendive, Class I, II, III, Div.2,
Group ABCDFG T4, Type 4X/IP65
: Class I, Zone 2, IIC T4
: Ambient temperature:
- QC01: -20°C…+75°C (-4°F…167°F)
- QC02: -20°C…+73°C (-4°F…163°F)
-
CSA
: Non Incendive: Class I, II, III, Div.2,
Groups ABCDFG, T4
: Ex nA II T4 (Class I, Zone 2)
: Ambient temperature:
- QC01: -20°C…+75°C (-4°F…167°F)
- QC02: -20°C…+73°C (-4°F…163°F)
: Certificate: 1477696
- Intrinsically safe:
- For information about intrinsically safe Control Modules,
see 1.604.011
-
Short circuit monitoring and line break detection
- For information about Control Modules with short circuit
monitoring and line break detection (IEC 60947 part 5-6,
NAMUR switch characteristics), see 1.604.011
TM
www.FieldQ .com
Copyright © Emerson Process Management. The information in this document is subject to change without notice. Updated data sheets can
be obtained from our web site
www.Fieldq.com
or from your nearest Valve Automation Center:
America's:
+1 813 630 2255
(fax +1 630 9449)
Europe:
+31 74 256 10 10 (fax +31 74 291 09 38)
Asia/Pacific:
+65 626 24 515 (fax +65 626 80 028)
Product data sheet
Sheet No.: 1.604.01 - Rev: E - Page 3 of 3
October, 2006
Date:
FieldQ
Wiring & Electrical Specifications QC01 & QC 02
QC01
Field wiring Unit wiring
1-2
Feedback 2
0-30 VDC/VAC
0.5 A
max.
15VA
max.
3-4
Feedback 1
0-30 VDC/VAC
0.5 A
max.
15VA
max.
5-6
Control supply
voltage
7-8
Power supply
voltage
24 VDC +/- 15%
24 VDC +/- 15%
-
+
1
2
3
4
5
6
7
8
Electrical data QC01 : 24VDC
Power supply input :
Voltage
Maximum current
Power (nominal)
24 VDC (±15%)
125 mA
2.5 W
Control signal input :
Voltage
24 VDC (±15%)
Maximum current
5 mA
Contacts
Potential free
Feedback switches output:
Voltage
0-30 VDC
Current DC
Resistance (nom.)
Maximum power
Electric contacts
Polarity:
500 mA (maximum)
1 mA (advised minimum)
0.5 Ohm (On state)
15 W
Potential free
QC01, 24VDC electric connections, separate circuits
Field wiring Unit wiring
1-2
Feedback 2,
0.5 A
max.
15VA
max.
3-4
Feedback 1
0.5 A
max.
15VA
max.
5-6
Control
7-8
Power supply
voltage
24 VDC +/- 15%
-
+
1
2
3
4
5
6
7
8
Dependent
Power supply
Independent
Control signal + feedback switches.
- For Non-Incendive (Cl. I Div2) or Non-Sparking (Zone 2) hazardous
area applications, see Installation Guide : DOC.IG.QC01.1
QC01, 24VDC electric connections, common “-”
QC02
Field wiring Unit wiring
1-2
Power supply
voltage
3-4
Control supply
voltage
85-254 VAC
85-254 VAC
5-6
Feedback 1
0-254VAC/VDC
150mA
max.
15VA
max.
7-8
Feedback 2
0-254VAC/VDC
150mA
max.
15VA
max.
1 N
2 L
3
4
5
6
7
8
Electrical data QC02 - 85-254VAC
Power supply input :
Voltage
85-254V (rated mains 95-230V) 50/60Hz
Maximum current
(*
60 mA
Power (nominal)
2.8 W
Control signal input :
Voltage
Maximum current
Feedback output:
Voltage
Maximum current
(AC or DC)
Maximum power
Electric contacts
(*
85-254V 50/60Hz
2.5mA at 115 VAC
5mA at 230 VAC
0-254 Vac/dc 50/60Hz
150mA
15 W
Potential free
QC02, 85-254VAC electric connections, separate circuits
Field wiring Unit wiring
1-2
Power supply
voltage
3-4
Control supply
voltage
85-254 VAC
5-6
Feedback 1
150mA
max.
15VA
max.
7-8
Feedback 2
150mA
max.
15VA
max.
1 N
2 L
3
4
5
6
7
8
The QC02 module has a fuse in the supply live line. It is not
