51915-488 datasheet, PDF - EEWORLD Datasheet

51915-488: DescriptionBoard Connector, 29 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size248KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51915-488 Overview

Board Connector, 29 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.47 inch
subject depth	0.82 inch
body length	2.3 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S24P5
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
Dielectric withstand voltage	1000VDC V
Durability	200 Cycles
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51915
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Termination type	SOLDER
Total number of contacts	29
Evacuation force-minimum value	.1668 N

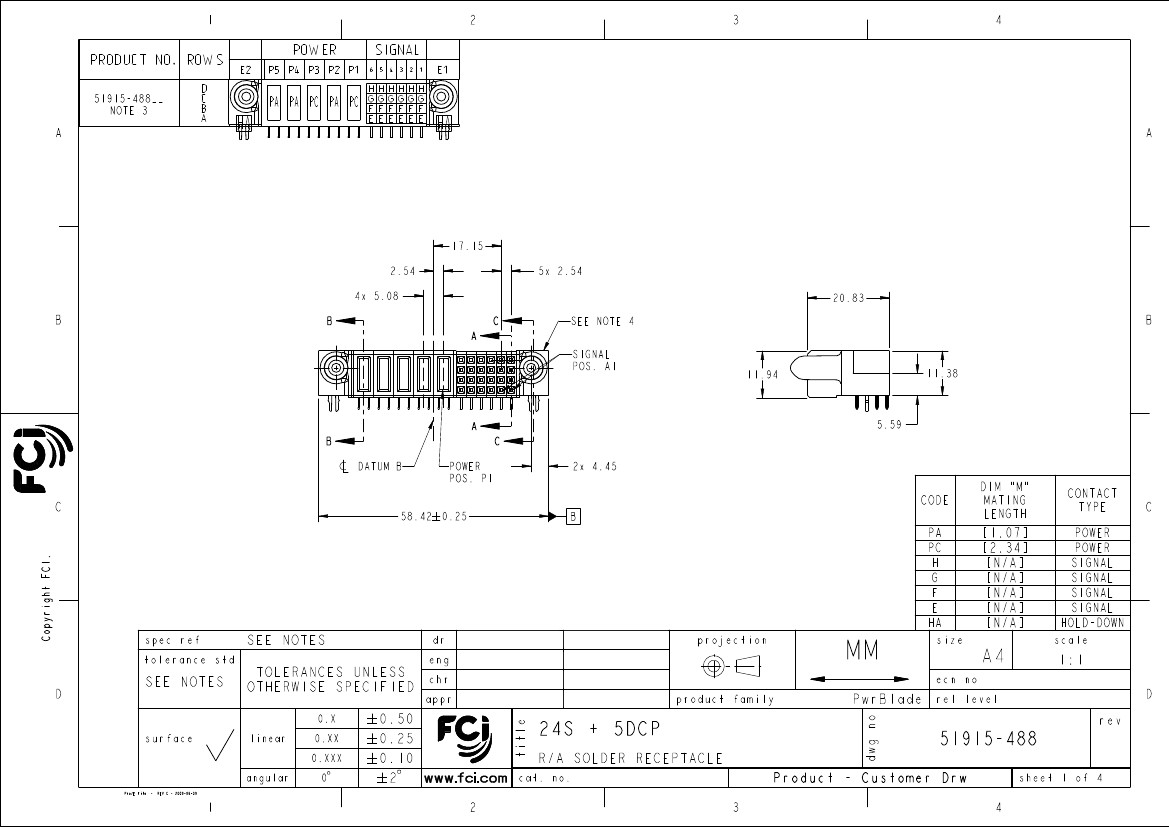

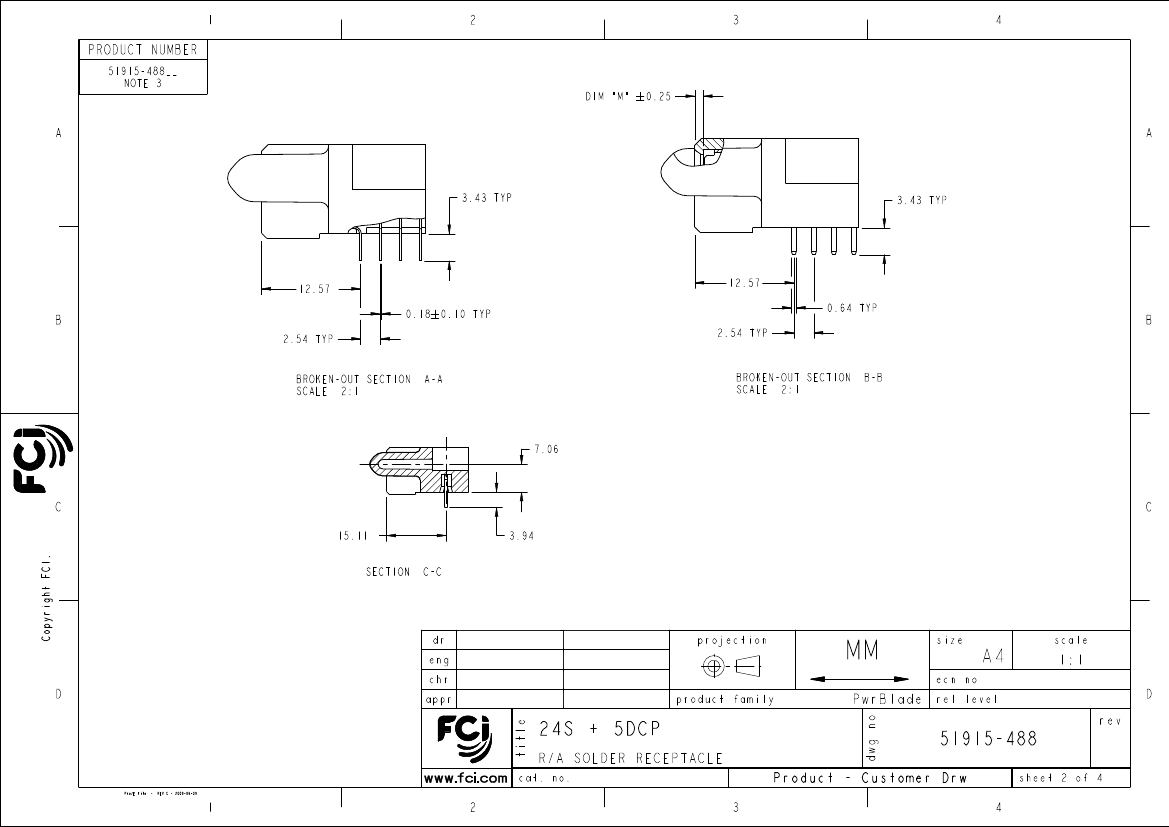

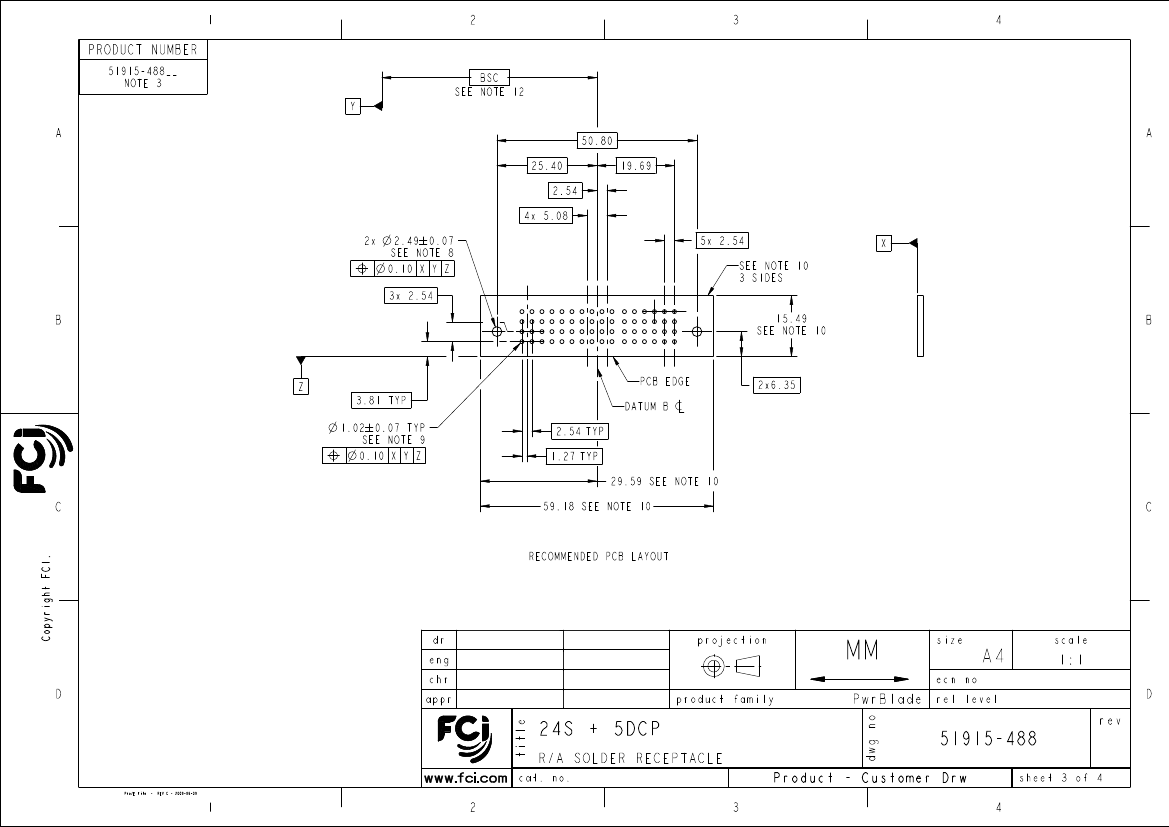

De-Ming Lu

Fancy Zhang

Pei-Ming Zheng

2015/04/01

2015/04/07

-

Released

A

PDS: Rev :A

STATUS:Released

Printed: Apr 08, 2015

	51915-488	51915-488LF
Description	Board Connector, 29 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Board Connector, 29 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
body width	0.47 inch	0.47 inch
subject depth	0.82 inch	0.82 inch
body length	2.3 inch	2.3 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S24P5	S24P5
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID
Dielectric withstand voltage	1000VDC V	1000VDC V
Durability	200 Cycles	200 Cycles
maximum insertion force	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51915	51915
Mixed contacts	YES	YES
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch
Termination type	SOLDER	SOLDER
Total number of contacts	29	29
Evacuation force-minimum value	.1668 N	.1668 N
