UPS1H222MHH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UPS1H222MHH

UPS1H222MHH: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 2200uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size61KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

UPS1H222MHH Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 2200uF, Through Hole Mount, RADIAL LEADED

UPS1H222MHH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	2200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	12.5 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	3.3 mA
Manufacturer's serial number	PS
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	2300 mA
series	PS
surface mount	NO
Delta tangent	0.14
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE

Preview

Download Datasheet

View All

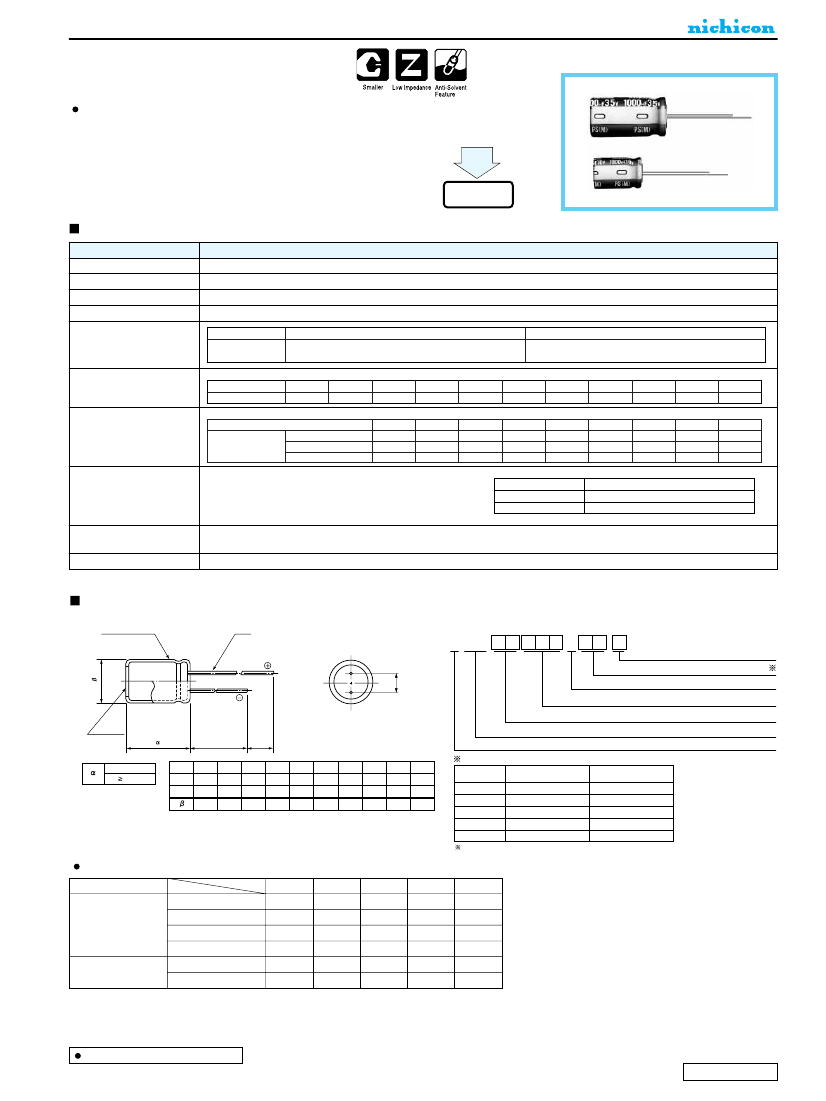

ALUMINUM ELECTROLYTIC CAPACITORS

Miniature Sized, Low Impedance,

For Switching Power Supplies

series

(Through 100V only)

Wide temperature range type, miniature sized.

Smaller

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Performance Characteristics

– 55 ~ +105˚C (6.3 ~ 100V), – 40 ~ +105˚C (160 ~ 400V), – 25 ~ +105˚C (450V)

6.3 ~ 450V

0.47 ~ 15000µF

± 20% at 120Hz, 20˚C

Rated voltage (V)

6.3 ~ 100

After 1 minute's application of rated voltage, leakage current

is not more than 0.03CV or 4 (µA) , whichever is greater.

160 ~ 450

CV < 1000 :

= 0.1CV+40 (µA)max. (1 minute's)

CV > 1000 :

= 0.04CV+100 (µA)max. (1 minute's)

Measurement frequency : 120Hz,

Temperature : 20˚C

Leakage Current

Leakage current

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF

tan

Rated voltage (

tan

(

MAX.

)

6.3

0.24

0.20

0.16

6.3 · 10

—

0.14

16 · 25

—

0.12

35 · 50

—

0.10

0.09

100

0.08

250

—

160 ~ 250 315 · 350 400 · 450

0.15

0.20

0.25

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Z– 25˚C / Z+20˚C

Z– 40˚C / Z+20˚C

Impedance ratio

Z– 55˚C / Z+20˚C

63 · 100 160 · 200

—

Capacitance change

tan

Leakage current

315 · 350

—

400

—

450

—

Endurance

After an application of D.C. bias voltage plus the rated ripple

current for 3000 hours (2000 hours for D = 5 ~ 10) at 105˚C the

peak voltage shall not exceed the rated D.C. voltage, capacitors

meet the characteristic requirements listed at right.

Within ±20% of initial value

200% or less of initial specified value

Initial specified value or less

Shelf Life

Marking

After leaving capacitors under no load at 105˚C for 1000 hours, they meet the specified

value for endurance characteristics listed above.

Printed with white color letter on dark brown sleeve.

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 25V 470

9 10 11

Size code

UP S 1 E 4 7 1 MPD

MAX

Configuration

0.5

φD

Capacitance tolerance (±20%)

Rated Capacitance (470µF)

Pressure

relief vent

(φ6.3up)

Rated voltage (25V)

Series name

L+

MAX

MIN

φD

φd

2.0

0.5

6.3

2.5

0.5

MIN

(mm)

Type

Configuration

6.3

8 · 10

12.5 ~ 18

20 ~ 25

Pb-free leadwire

Pb-free PET sleeve

Sn-Pb finished leadwire

PVC sleeve (containing Pb)

(L < 20) 1.5

(L 20) 2.0

3.5

0.6

0.5

5.0

0.6

0.5

12.5

5.0

0.6

0.5

7.5

0.8

0.5

7.5

0.8

0.5

10.0

1.0

0.5

10.0

1.0

12.5

1.0

Please contact to us if other configurations are required.

Frequency coefficient of rated ripple current

Cap.(µF)

Frequency

50Hz

—

0.30

0.57

0.75

0.80

0.90

120Hz

0.17

0.50

0.71

0.87

1.00

300Hz

0.40

0.65

0.82

0.96

1.25

1.10

1kHz

0.65

0.80

0.90

0.98

1.40

1.13

10kHz ~

1.00

1.60

1.15

~ 47

6.3 ~ 100

100 ~ 220.

330 ~ 680.

.1000

~ 15000

160 ~ 450

0.47 ~ 2200

330 ~ 470.

Please refer to page 19, 20, 21 about the formed or taped product spec.

Please refer to page 3 for the minimum order quantity.

Dimension table in next pages.

CAT.8100T
