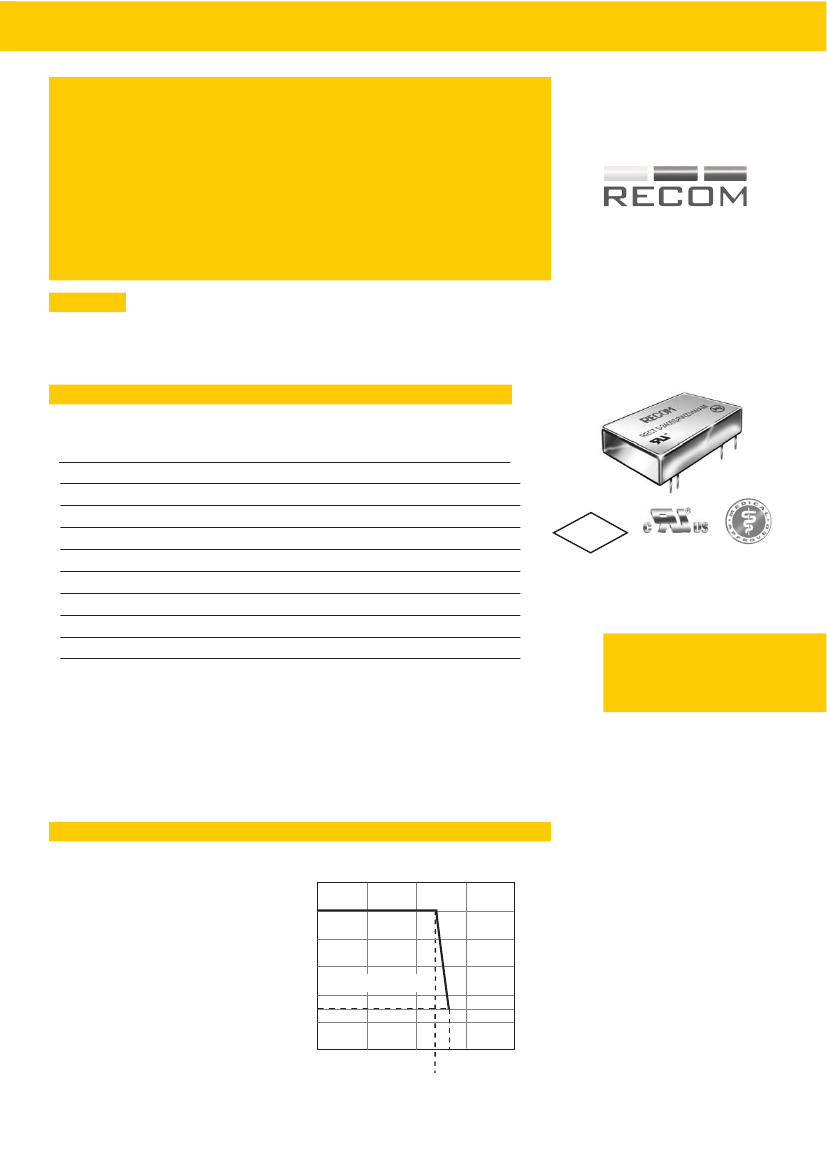

Features
Regulated
Converters
●
●
●
●
●
●
●
●
●
●
7.5W DIP24 Package
1KVDC, 2KVDC and 3kVDC Isolation Options
Approved for Medical Applications (/H3)
UL and EN Safety Approvals
Continuous Short Circuit Protection
(power limiting)
5 Side Shielded Metal Case
Full SMD design
2 Case Style Options
Remote Pin Option
Efficiency to 86 %
ECONOLINE
DC/DC-Converter
Description
The REC7.5-xxxxSRW/DRW-series offer single and dual regulated outputs in a DIP24 package with 1kV, 2kV or 3kV
options and are suitable for higher power industrial or medical applications. Remote on/off control is possible with the
/CTRL option and SMD pinning is offered with the /SMD option. The converters can deliver 140% rated power for short
periods of time to cope with applications with large capacitive loads or high start up currents.
7.5 Watt
DIP24
&
SMD
Single
&
Dual
Output
Selection Guide
Part
Number
REC7.5-xx3.3SRW/H*/A/M
REC7.5-xx05SRW/H*/A/M
REC7.5-xx09SRW/H*/A/M
REC7.5-xx12SRW/H*/A/M
REC7.5-xx15SRW/H*/A/M
REC7.5-xx05DRW/H*/A/M
REC7.5-xx09DRW/H*/A/M
REC7.5-xx12DRW/H*/A/M
REC7.5-xx15DRW/H*/A/M
2:1
xx = 9-18Vin = 12V,
xx = 18-36Vin = 24,
xx = 36-72Vin = 48
Input
Voltage
(VDC)
9-18, 18-36, 36-72
9-18, 18-36, 36-72
9-18, 18-36, 36-72
9-18, 18-36, 36-72
9-18, 18-36, 36-72
9-18, 18-36, 36-72
9-18, 18-36, 36-72
9-18, 18-36, 36-72
9-18, 18-36, 36-72
Output
Voltage
(VDC)
3.3
5
9
12
15
±5
±9
±12
±15
Output
Current
(mA)
1800
1500
833
625
500
±750
±417
±312
±250
Efficiency Max. Cap.
Load
(%)
78
79-82
81-84
82-85
83-86
79-82
81-84
82-85
83-86
3300µF
2200µF
680µF
330µF
220µF
±1000µF
±330µF
±160µF
±100µF
2002/95/EC
6/6
RoHS
E-224736
EN-60950-1 Certified
EN-60601-1 Certified
(Suffix H3)
UL-60950-1 Certified
* add suffix /H1 for 1kVDC Isolation, /H2 for 2kVDC isolation or /H3
for 3kVDC Isolation (not available in H3/A/M/SMD combination)
* add suffix “/SMD” for SMD package, e.g. REC7.5-2405DRW/H1/A/M/SMD
* add suffix “/CTRL” for Remote Pin option
* add suffix -R for Tape and Reel packaging
* no plastic case is available for REC7.5
REC 7.5
Derating
Derating-Graph
(Ambient Temperature)
100
80
Output Power (%)
60
40
30
20
0
Safe Operating Area
-40
0
50
85 100
71
150
Refer to Application Notes
E-115
Operating Temperature °C
www.recom-international.com
REV:0/2010
ECONOLINE
DC/DC-Converter
Input Voltage Range
Output Voltage Accuracy
Line Voltage Regulation
REC7.5-S_DRW/H*/A/M
Series
2:1
±2% max.
0.4% max.
0.8% max.
100mVp-p max.
50mVp-p max.
PI Network
Efficiency %
Efficiency / Load
100
80
60
40
20
0
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Single
2412
4805
Load Voltage Regulation (25% to 100% full load )
Output Ripple and Noise (at 20MHz BW)
3.3V output type
5, 9, 12 and 15V output types
Operating Frequency (Full Load)
Input Filter
Efficiency at Full Load
No Load Power Consumption
Isolation Voltage
H1 types
Isolation Voltage
H2 types
Isolation Voltage
H3 types
Rated Working Voltage
Isolation Capacitance
Isolation Resistance
Short Circuit Protection (Max temp. = 50°C during short circuit conditions)
Operating Temperature Range (free air convection)
Storage Temperature Range
Relative Humidity
Case Material
Thermal Impedance
Package Weight
Packing Quantity
(tested for 1 second)
(tested for 1 second)
(tested for 1 second)
(long term isolation)
150kHz min. / 240kHz max.
see Selection Guide
300mW max.
1000VDC min.
2000VDC min.
3000VDC min.
see Application Note
50pFtyp.
1 GΩ min.
Continuous, Auto Restart
-40°C to +71°C (see Graph)
-55°C to +125°C
95% RH
Nickel Plated Metal with Non-Conductive Base
Natural convection
12°C/W
Efficiency %
483.3
4812
0% 20%
40%
60%
Total Output current (%)
80%
100%
Dual
Efficiency / Load
100
80
60
40
20
0
2409D
4815D
2405D
2412D
16g
15 pcs per Tube
100 pcs per Reel
REC 7.5
MTBF (+25°C)
using MIL-HDBK 217F
Detailed Information see
(+71°C)
using MIL-HDBK 217F
Application Notes chapter "MTBF"
Certifications UL General Safety Report: E248550
}
800 x 10
3
hours
>200 x 10
3
hours
UL 60950-1 1st Ed.
C22.2 No. 60950-1-03
EN General Safety Report: LVD-2K05230
EN60950-1:2001
EN Medical Safety Report: ETS-060065 EN60601-1:1988 + A1: 1991 + A2: 1995
0% 20%
40%
60%
Total Output current (%)
80%
100%
Typical Characteristics
Overload Response
100
Vout (% nominal)
75
50
25
0
0
50
100
120
140
160
180
200
% of Rated Load
E-116
REV: 0/2010
www.recom-electronic.com
ECONOLINE
DC/DC-Converter
REC7.5-S_DRW/H*/A/M
Series
3rd angle
projection
Package Style and Pinning (mm) Wide Input 2:1
24 PIN DIP Package
32.00
10.50
3.81
4.60
0.51
20.30
Pin Connections DIP24
Pin #
1(Option)
2
15.24
3
9
11
14
16
22
23
2.54
Top View
Single
CTRL
–Vin
–Vin
NC
NC
+Vout
– Vout
+Vin
+Vin
Dual
CTRL
–Vin
–Vin
Com
–Vout
+Vout
Com
+Vin
+Vin
Recommended Footprint Details
1.00 ø+0.15/0
2 3
Bottom View
23 22
16
14
9
11
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
2.54
24 PIN SMD Package
32.00
31.40
11.20
/H3/A/M/SMD combination is not allowed
19.90
10.90
3.81
6.35
20.30
25.40
Pin Connections DIP24 SMD
Pin #
Single
CTRL
–Vin
–Vin
NC
NC
+Vout
– Vout
+Vin
+Vin
Dual
CTRL
2.54
1(Option)
2
3
9
11
14
2.03
16
22
23
1,4,5,10,12
REC 7.5
–Vin
–Vin
Com
–Vout
+Vout
Com
+Vin
+Vin
NC
NC
Recommended Footprint Details
Pin area
0.1 x 0.50
1 2 3 4 5
0.50
9 10 11 12
2.54
1.54
23.40
Bottom View
24 23 22 21 20
16 15 14 13
26.67
24.64
1
Top View
13,15,20,21,24
NC = No Connection
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
11 x 2.54
27.94
CTRL Option
Vin+
22,23
2,3
ON = Open or 0V< Vctrl <1.2V
OFF = 2.2V< Vctrl <12V
0V
RECx-xxxx/CTRL
CTRL
1
1kW
1N4148
TTL Input
Off
On
www.recom-international.com
REV:0/2010
E-117
MCU
