RJC097
Series
TOCOS
POTENTIOMETERS
®

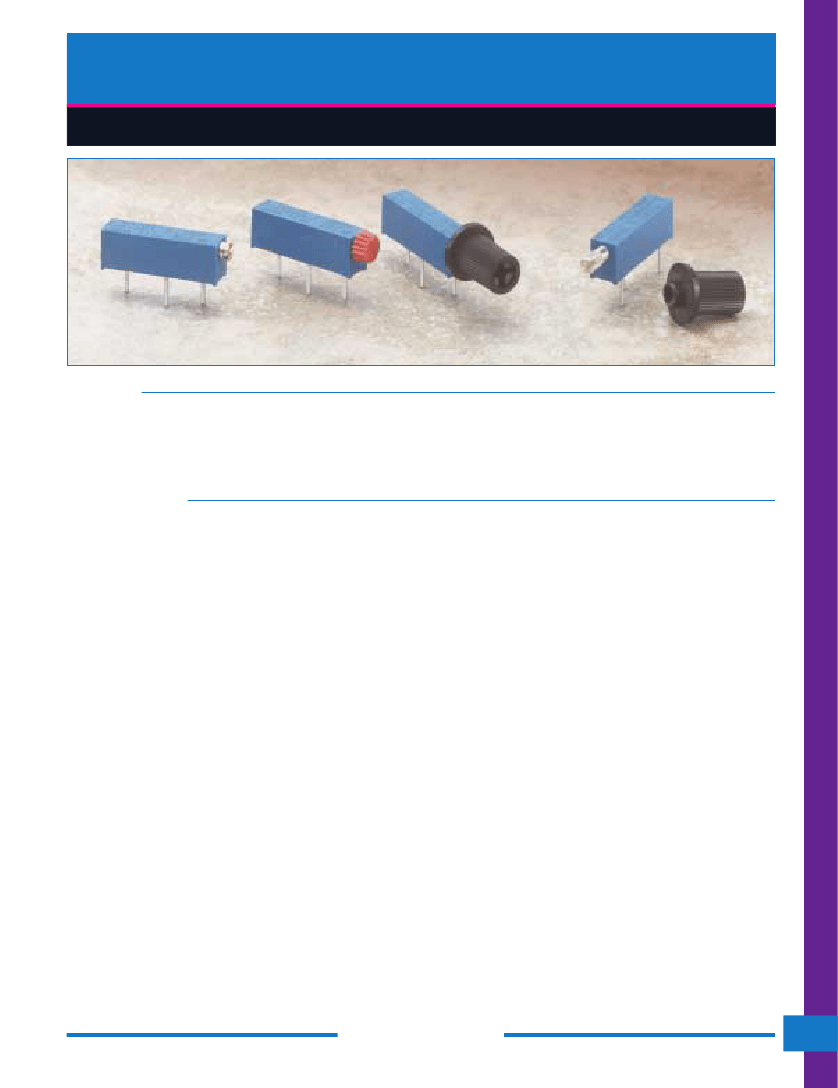

3/4’’ Rectilinear, 15-Turn, Through-Hole, Sealed Cermet Trimmers
Features
3/4” rectilinear, 15-turn, through-hole, sealed cermet trimmers
Miniature design for component density
Side adjust with single-slot standard or extended shaft
Knob styles available for easier adjustment
State-of-the-art brush contact design
Excellent stability and low noise
PC board solderable pins
Sealed to withstand wave soldering and immersion cleaning
Meets UL flammability standards
Specifications
Electrical
Standard Resistance Range
. . . . . . . . . . . . . . 10Ω to 1MΩ
(standard 1, 2 & 5 sequence )
Resistance Tolerance
. . . . . . . . . . . . . . .
10% and
20%
End Resistance
. . . . . . . . . . 1% or 3Ω, whichever is greater
Resistance Taper
. . . . . . . . . . . . . . . . . . . . . . . . . . . . Linear
Peak Noise (C.R.V.)
. . . . . . . 1% or 1Ω, whichever is greater
Power Rating
. . . . . . 0.75 watt at
70 C, 0 watt at
125 C
Maximum Input Voltage
. . . . . . . . 300VDC or power rating,
whichever is smaller
Temperature Coefficient
. . . .
100ppm / C, 200Ω to 1MΩ
250ppm / C, other values
Environmental
Temperature Range
. . . . . . . . . . . . . . . . .
Low Temperature Operation
. . . . . . . . .
55 C to
125 C
55 C, 0.75 watt,
45 minutes
)
3%, S.S.
)
1%
∆T/R
High Temperature Exposure
. . . . . . . . . 125 C, 250 hours
∆T/R
)
3%, S.S.
)
1%
Load Life
. . . . . . . . . . . . . . . .
70 C, 0.75 watt, 1,000 hours
∆T/R
)
3%, S.S.
)
3%
Thermal Shock
. . . . . . . . . . . . . . . . . . . . . . 55 C, 125 C,
30 minutes each, 5 cycles
∆T/R
)
2%, S.S.
)
1%
Shock
. . . . . . . . . . . . . 50G, 6ms, 6 directions, 3 times each
∆T/R
)
1%, S.S.
)
1%
Vibration
. . . . . . . . . . . . . . . . 10-2,000Hz, 1.5mm amplitude,
20G, 12 hours
∆T/R
)
1%, S.S.
)
1%
Humidity
. . . . . . . . . . . . . . . . . . . . . . . . 40 C, 90-95%RH,
0.75 watt, 1,000 hours
∆T/R
)
3%, S.S.
)
1%
Moisture Resistance
. . . . . . 10 C to 65 C, 80-98%RH,
0.75 watt, 10 cycles, 240 hours
∆T/R
)
3%
Soldering Heat Resistance
. . . . . . . . . . . 350 C, 3 seconds
∆T/R
)
1%
Seal Test
. . . . . . . . . . . . . . . . . 85 C, hot water for 1 minute
Rotational Life
. . . . . . . . . . 200 cycles without discontinuity
∆T/R
)
3%
∆T/R
= Total Resistance Change; S.S. = Setting Stability ( voltage ratio )
Insulation Resistance
. . . . . 1,000MΩ minimum at 500VDC
Dielectric Strength
. . . . . . . . . . . . . . . . . 900VAC, 1 minute
Adjustment Travel
. . . . . . . . . . . . . . . . . . . . . . . .15 3 turns
Mechanical
Mechanical Travel
. . . . . . . . . . . . . . . . . . . . . . . .15 3 turns
Shaft Torque
. . . . . . . . . . . . . . . 300 gf
•
cm (4.16 oz
•
in) max.
Stop Strength
. . . . . . . . . . . . . . . . . . . . . . . . . . Clutch action
Flammability of Plastic Materials
. . UL 94V-0 for housing;
UL 94HB for knob
Nominal Weight
. . . . . . . . . . . . . . . . . . . . 1.1g (P); 1.3g (PK )
1.7g (PK1 with knob attached & PK2)
Marking
. . . . . . . . . . . . . . . . . . . Resistance code, date code,
model type, wiring diagram
TOCOS
AMERICA, INC.
1177 East Tower Road, Schaumburg, IL 60173
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
107
RJC097 Series
RJC097P
Single-Slot, Short Shaft, Side Adjust

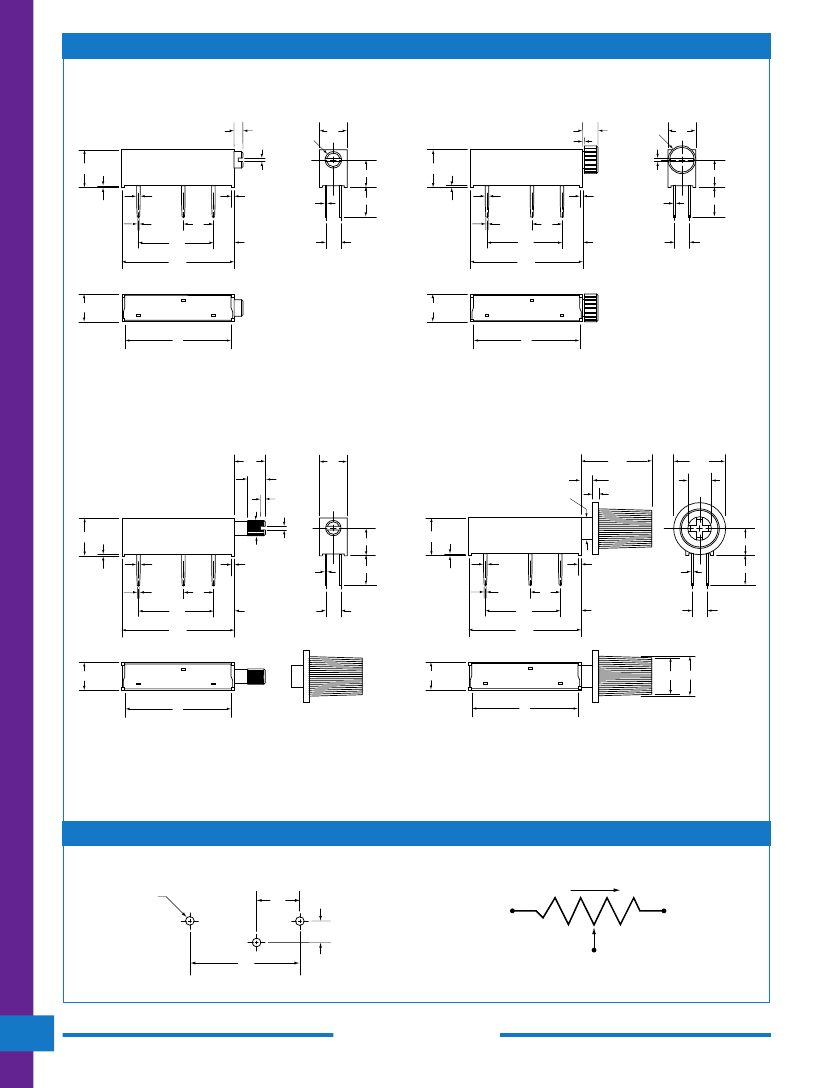

Dimensions
RJC097PK
Short Shaft, Permanent Small Knob, Side Adjust
Unit: mm
1.5
0.2
4.7
Ø
2.8
0.2
0.3
2.6
Ø
4.7
0.2
4.7
0.3
0.3
0.1
0.6
6.4
0.4
0.1
0.6
4.7
0.3
0.1
6.4
0.4
4.7
0.6
(3)
0.4
(3)
0.1
0.3
0.3
0.2
0.6
(3)
0.4
(3)
0.1
0.5
0.2
(4)
0.3
0.1
0.1
5.0
1.0
0.5
0.2
(4)
0.3
0.2
0.3
0.1
5.0
1.0
5.1
0.3
0.1
5.1
0.3
12.7
0.3
3.5
0.3
2.5
0.3
12.7
0.3
3.5
0.3
2.5
0.3
19.0
0.5
19.0
0.5
4.7
0.3
#1
#2
#3
4.7
0.3
#1
#2
#3
18
18

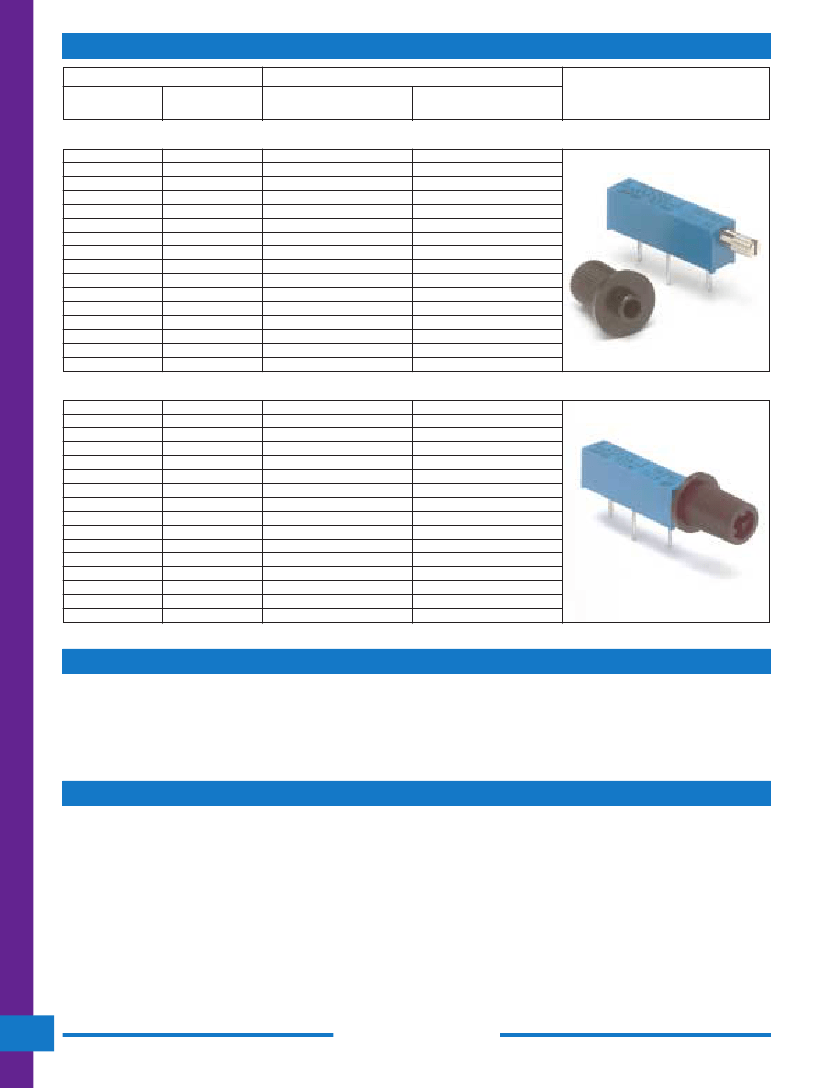

RJC097PK1
Single-Slot, Extended Shaft, Side Adjust,
Removable Large Knob
(same knob as PK2 )
RJC097PK2
Extended Shaft, Permanent Large Knob, Side Adjust
5.3
1.0
4.7
0.3
12.0
0.5
Ø
8.8
0.3
3.0
0.5
2.0
0.8
Ø
3.7
Ø
4.0
1.0
0.6
6.4
0.4
0.1
Ø
2.6
0.05
4.7
0.2
(4)
6.4
0.3
0.4
4.7
0.6
(3)
0.4
(3)
0.1
0.3
0.3
0.2
0.6
(3)
0.4
(3)
0.1
0.5
0.3
0.1
0.1
5.0
1.0
0.5
0.2
(4)
0.3
0.2
0.3
0.1
0.1
5.0
1.0
5.1
0.3
5.1
0.3
12.7
0.3
3.5
0.3
2.5
0.3
12.7
0.3
3.5
0.3
2.5
0.3
19.0
0.5
19.0
0.5
4.7
0.3
#1
#2
#3
4.7
0.3
#1
#2
#3
Ø
6.2
Ø
6.7
18
18
The knob shipped with the PK1 is the same style and size as
the PK2 knob. With the knob attached, the dimensions and
weight of PK1 are the same as the PK2 model.
Recommended PCB Layout
P, PK, PK1 & PK2
Pin-Out
Ø
1.0
Electrical Schematic
Unit: mm
clockwise
max.
(3 holes)
5.0
#1
#3
2.5
#2
12.7
ccw
#1
#3
cw
#2
wiper
108
1177 East Tower Road, Schaumburg, IL 60173
TOCOS
AMERICA, INC.
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
RJC097 Series
RJC097
P
K1
B
102
K
Part Numbering System
Resistance Tolerance: K =
10%; M =
20%
Resistance Code: Expressed in ohms. A three digit code where the first two digits
are significant figures, and the third digit indicates the number of zeros that follow
these figures (i.e., 100 = 10Ω; 101 = 100Ω; 102 = 1,000Ω; 105 = 1,000,000Ω ).
Resistance Taper: B = Linear.
Adjustment Knob: K = Permanent Small Knob, Short Shaft.
K1 = Removable Large Knob, Extended Shaft, Single-Slot.
K 2 = Permanent Large Knob, Extended Shaft.
Blank = No Knob, Short Shaft, Single-Slot.
Terminal Style: P = 3 -Lead Configuration.
TOCOS Series Name.

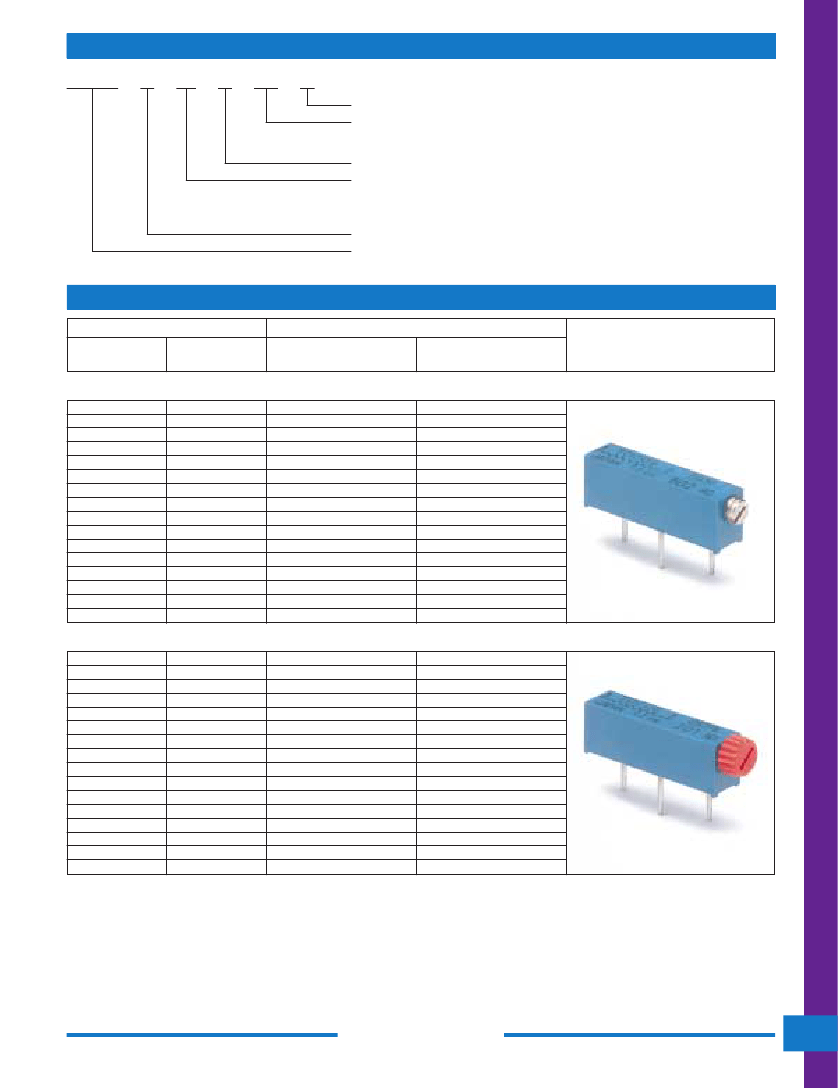

Part Numbers
Nominal Resistance
Value (
Ω
)
Code
Catalog No. Bulk
Resistance
Tolerance 10%
Resistance
Tolerance 20%
Potentiometer
Styles
RJC097P
Through-Hole, P Terminal Style, Single-Slot, Short Shaft, Side Adjust
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
50,000
100,000
200,000
500,000
1,000,000
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
RJC097P
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
RJC097P
RJC097PK
Through-Hole, P Terminal Style, Short Shaft, Permanent Small Knob, Side Adjust
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
50,000
100,000
200,000
500,000
1,000,000
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
RJC097PK
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
RJC097PK
TOCOS
AMERICA, INC.
1177 East Tower Road, Schaumburg, IL 60173
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
109
RJC097 Series
Nominal Resistance
Value (
Ω
)
Code
Part Numbers
Catalog No. Bulk
Resistance
Tolerance 10%
Resistance
Tolerance 20%
Potentiometer
Styles
RJC097PK1
