SPECIFICATIONS
Operating voltage:
Current rating:
Contact material:
Contact plating:
Solder pad material:
Contact resistance:
Insulation resistance:
Housing material:
Withstanding:
Operating temperature:
F
50 volts
0.5 amps
Copper alloy
Tin or gold over nickel
Copper alloy
30 milliohms max.
500 megohms min.
Glass-filled Nylon46, UL94V-0, white
500VAC rms for 1 min.
-55°C to +85°C
Series
Pitch
Type
CFPC
100
S123
FPC connector 050=0.50mm S123 type
030=0.30mm
100=1.00mm
125=1.25mm
RoHS compliant
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
D
E
Contacts
Style
Plating
Options
XX
RUB
XX
XX
4-30 (See R=Right angle
TN=Tin over nickel
[blank]=None
table, p. 2) V=Vertical
GD1=Gold 1µ” over nickel TR=Tape & reel
U=Upper contacts GD3=Gold 3µ” over nickel TB=Tube
B=Bottom contacts
Date
03/25/04
03/25/04
03/25/04 Part No.:
F
Rev.
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
CFPC-100-S123-XX-RUB-XX-XX
G
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

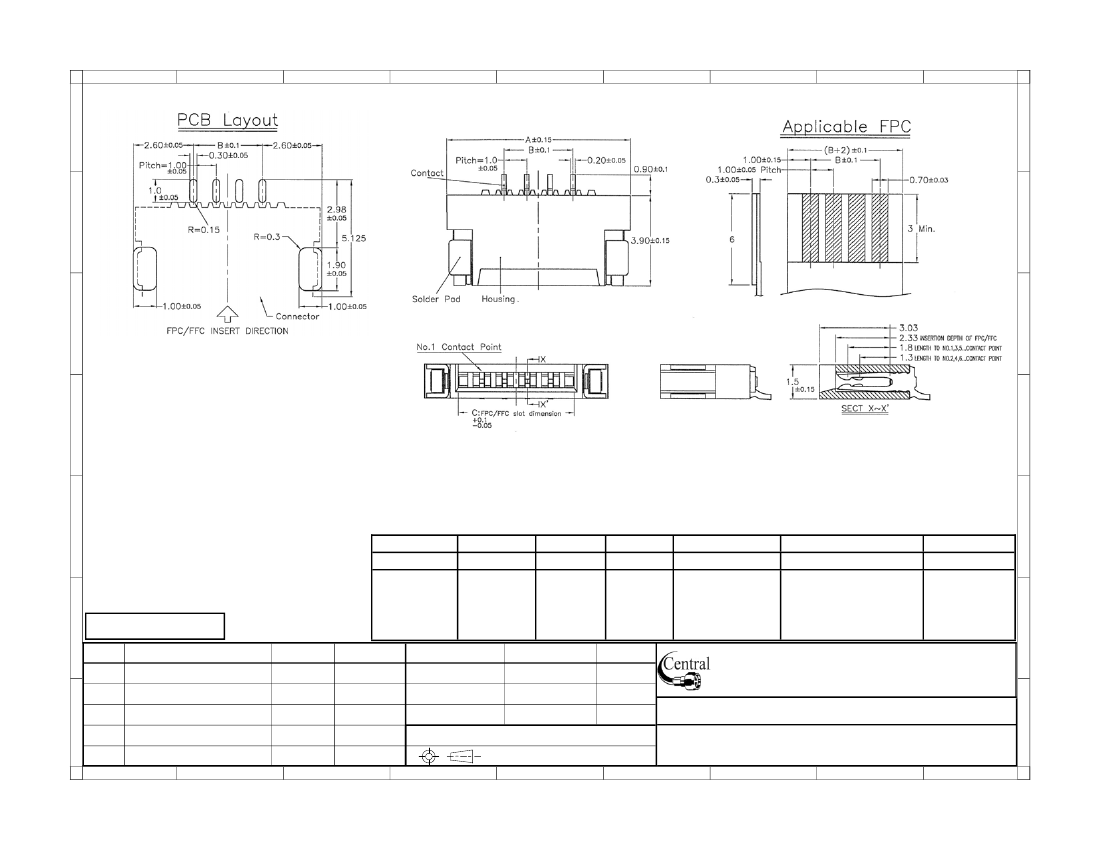

Description: 1.0mm Pitch FPC/FFC Connector
7
8
9
1
2
3
4
5
6
7
8
9
A
B
C
D
E
Dimensions
Pos.
A
B
4
8.03
3
5
9.03
4
6 10.03
5
7 11.03
6
8 12.03
7
9 13.03
8
10 14.03
9
11 15.03
10
12 16.03
11
13 17.03
12
14 18.03
13
15 19.03
14
16 20.03
15
17 21.03
16
18 22.03
17
19 23.03
18
20 24.03
19
21 25.03
20
22 26.03
21
23 27.03
22
24 28.03
23
25 29.03
24
26 30.03
25
27 31.03
26
28 32.03
27
29 33.03
28
30 34.03
29
C
5.07
6.07
7.07
8.07
9.07
10.07
11.07
12.07
13.07
14.07
15.07
16.07
17.07
18.07
19.07
20.07
21.07
22.07
23.07
24.07
25.07
26.07
27.07
28.07
29.07
30.07
31.07
Date
03/25/04
03/25/04
03/25/04 Part No.:
A
B
C
D
E
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
F
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
CFPC-100-S123-XX-RUB-XX-XX
G
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: 1.0mm Pitch FPC/FFC Connector
7
8
9
