SG5032CBN80.000000M-TDBA3

Description
CRYSTAL OSCILLATOR, CLOCK, 80MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4
CategoryPassive components    oscillator
File Size398KB,2 Pages
ManufacturerSeiko Epson Corporation
Environmental Compliance
Download Datasheet Parametric Compare View All

SG5032CBN80.000000M-TDBA3 Overview

CRYSTAL OSCILLATOR, CLOCK, 80MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4

SG5032CBN80.000000M-TDBA3 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknown
Other featuresSTANDBY; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time3 ns
Frequency Adjustment - MechanicalNO
frequency stability25%
JESD-609 codee4
Manufacturer's serial numberSG5032CBN
Installation featuresSURFACE MOUNT
Nominal operating frequency80 MHz
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
Oscillator typeCMOS
Output load15 pF
physical size5.0mm x 3.2mm x 1.1mm
longest rise time3 ns
Maximum supply voltage3.6 V
Minimum supply voltage1.6 V
surface mountYES
maximum symmetry55/45 %
Terminal surfaceGold (Au)

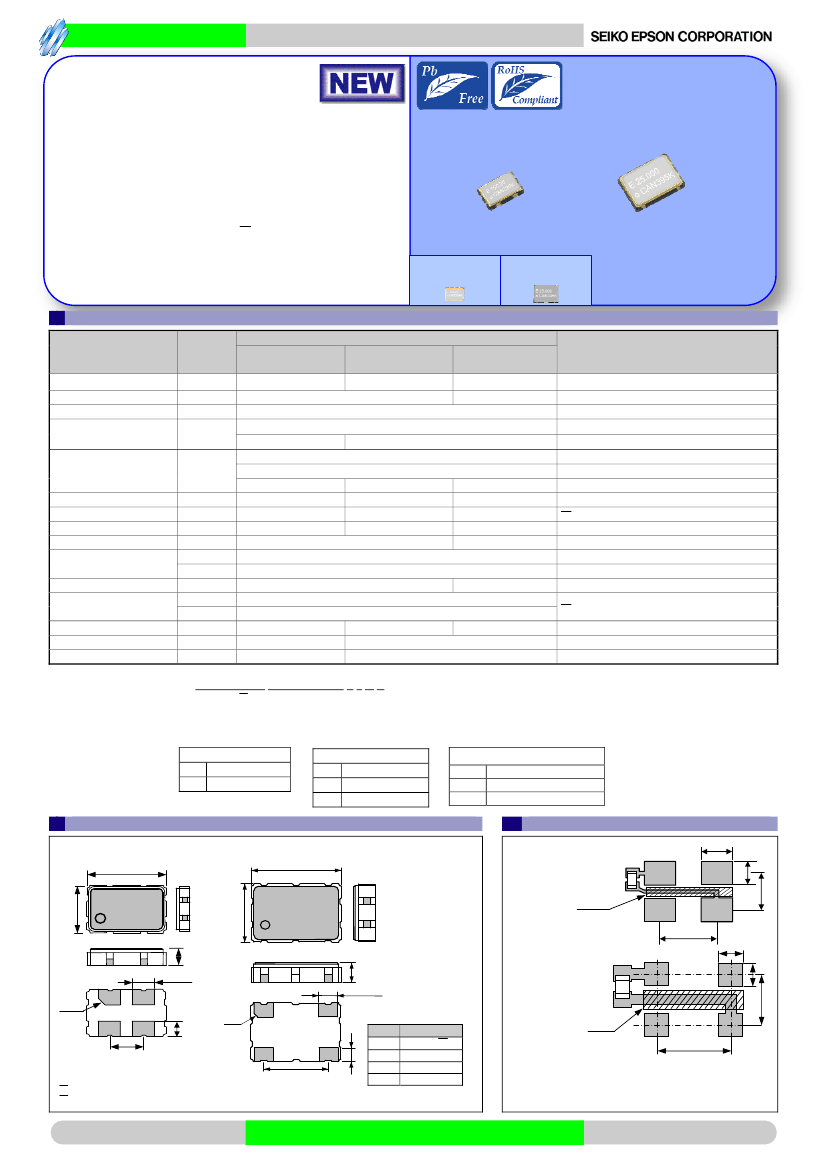

Crystal oscillator
CRYSTAL OSCILLATOR (SPXO)
OUTPUT : CMOS
Product Number (please contact us)
SG5032CAN
/
CBN
/
CCN
SG7050CAN
/
CBN
/
CCN
Frequency
range
Supply
voltage
Function
Output
:
:
:
:
:
1 MHz to 170 MHz (Fundamental mode)
1.8 V to 5.0 V
Standby(
ST
)
···SGxxxxCAN / CBN
Output enable(OE) ···SGxxxxCCN
CMOS
SG5032CAN/CBN/CCN
(5.0 × 3.2 × 1.1 mm)
Actual size
SG5032CAN
/CBN/CCN
SG7050CAN
/CBN/CCN
SG5032CAN: X1G004451xxxx00
SG5032CBN: X1G004461xxxx00
SG5032CCN: X1G004471xxxx00
SG7050CAN: X1G004481xxxx00
SG7050CBN: X1G004491xxxx00
SG7050CCN: X1G004501xxxx00
SG7050CAN/CBN/CCN
(7.0 × 5.0 × 1.3 mm)
Specifications (characteristics)
Item
Output frequency range
Supply voltage
Storage temperature
Operating temperature
Frequency tolerance
Current consumption
Stand-by current
Disable current
Symmetry
Output voltage
Output load condition
Input voltage
Rise time / Fall time
Start-up time
Frequency aging
Product Name
(Standard form)
Specifications
Symbol
SG5032CAN
SG5032CBN
SG5032CCN
SG7050CAN
SG7050CBN
SG7050CCN
f
0
1 MHz to 75 MHz 80 MHz to 170 MHz 2.5 MHz to 50 MHz
V
CC
T: 1.6 V to 3.6 V
H: 4.5 V to 5.5 V
T_stg
-40
C
to +125
C
B: -20
C
to +70
C,
G: -40
C
to +85
C
T_use
H: -40
C
to +105
C
-
-6
-6
D :
25 
10 , J :
50 
10
-6
f_tol
J :
50 
10
-6
L :
100 
10
-
-
I
CC
3.0 mA Max.
11 mA Max.
20 mA Max.
I_std
2.7
A
Max.
10
A
Max.
-
I_dis
-
-
10 mA Max.
SYM
45 % to 55 %
40 % to 60 %
V
CC
-0.4 Min.
V
OH
V
OL
0.4 V Max.
L_CMOS
15 pF Max.
50 pF Max.
V
IH
80 % V
CC
Min.
V
IL
20 % V
CC
Max.
t
r
/ t
f
4 ns Max.
3 ns Max.
5 ns Max.
t_str
3 ms Max.
5 ms Max.
-6
-6
f_aging
3 
10 / year Max.
5 
10 / year Max.
Conditions / Remarks
Please contact us about available frequencies.
Storage as single product.
-20
C
to +70
C
-40
C
to +85
C
-40
C
to +105
C
No load condition Maximum frequency.
ST
=GND
OE=GND
50 % V
CC
level, L_CMOS
15 pF
CMOS load
ST
,OE terminal
20 %
V
CC
to 80 %
V
CC
level, L_CMOS =15 pF
t=0 at 90 % V
CC
+85C,(+105C)
+25
C,
First year.
SG5032 C AN 25.000000MHz T J G A
(⑤⑥: DG, DH, JH, LB are not available)
④⑤⑥⑦
①Model
②Output
(C:CMOS)
③Frequency ④Supply voltage ⑤Frequency
tolerance
⑥Operating temperature range ⑦Internal
identification code (“A” is default)
④Supply voltage
⑤Frequency
tolerance
⑥Operating temperature range
T
H
1.6 to 3.6 V
4.5 to 5.5 V
D
J
L
±25 × 10
-6
±50 × 10
-6
±100 × 10
-6
B
G
H
(Unit:mm)
-20 to +70°C
-40 to +85°C
-40 to +105°C
External dimensions
●SG5032
type
5.0±0.2
#4
#3
3.2±0.2
5.0±0.2
Footprint (Recommended)
(Unit:mm)
1.6
#3
1.5
●SG7050
type
7.0±0.2
#4
#3
●SG5032
type
C ( ex. 0.01 µF)
C
Resist
#4
E 156.25
CBN395K
#1
1.1±0.2
#2
E 25.000
CAN395K
#1
#2
1.3±0.2
#1
2.54
#2
1.8
#3
2.0
●SG7050
type
C (ex. 0.01 µF)
C
#4
1.2
C0.4
C0.5
1.0
Pin map
Pin
1*
2
3
4
1.1
Connection
OE or ST
GND
OUT
V
CC
Resist
#1
5.08
#2
Note.
OE pin = "H" or "open" : Specified frequency output.
5.08
OE pin = "L" : Output is high impedance.
ST pin = "H" or "open" : Specified frequency output.
ST pin = "L" : Output is high impedance、oscillation stops.
2.54
*
OE function is only available SGxxxxCCN
To maintain stable operation, provide a 0.01uF to
0.1uF by-pass capacitor at a location as near as
possible to the power source terminal of the crystal
product (between Vcc - GND).
4.2
1.4
2.2

SG5032CBN80.000000M-TDBA3 Related Products

SG5032CBN80.000000M-TDBA3 SG7050CAN75.0000M-TDBA0 SG5032CAN75.0000M-TJBA0 SG5032CCN50.0000M-HJBA5 SG5032CCN50.0000M-HDBA3 SG5032CCN50.000000M-HDBA0 SG7050CAN75.000000M-TDBA3
Description CRYSTAL OSCILLATOR, CLOCK, 80MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4 CRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT CRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT CMOS Output Clock Oscillator CMOS Output Clock Oscillator CRYSTAL OSCILLATOR, CLOCK, 50MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4 CRYSTAL OSCILLATOR, CLOCK, 75MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to
Reach Compliance Code unknown unknow unknow compliant compliant unknown unknown
JESD-609 code e4 e4 e4 e4 e4 e4 e4
Oscillator type CMOS CMOS CMOS CMOS CMOS CMOS CMOS
Terminal surface Gold (Au) Gold (Au) - with Nickel (Ni) barrie Gold (Au) Gold (Au) Gold (Au) Gold (Au) Gold (Au) - with Nickel (Ni) barrier
Manufacturer's serial number SG5032CBN - SG5032CAN SG5032CCN SG5032CCN SG5032CCN -
Maker - Seiko Epson Corporation Seiko Epson Corporation Seiko Epson Corporation Seiko Epson Corporation - -
