RN73G2BTE1001A: DescriptionPrecision Thin Film Chip Resistors; File Size424KB，5 Pages; ManufacturerMeritek Electronics; Websitehttp://www.meritekusa.com

Download Datasheet View All

RN73G2BTE1001A Overview

Precision Thin Film Chip Resistors

Preview

Download Datasheet

View All

Precision Thin Film Chip Resistors

RN73 Series

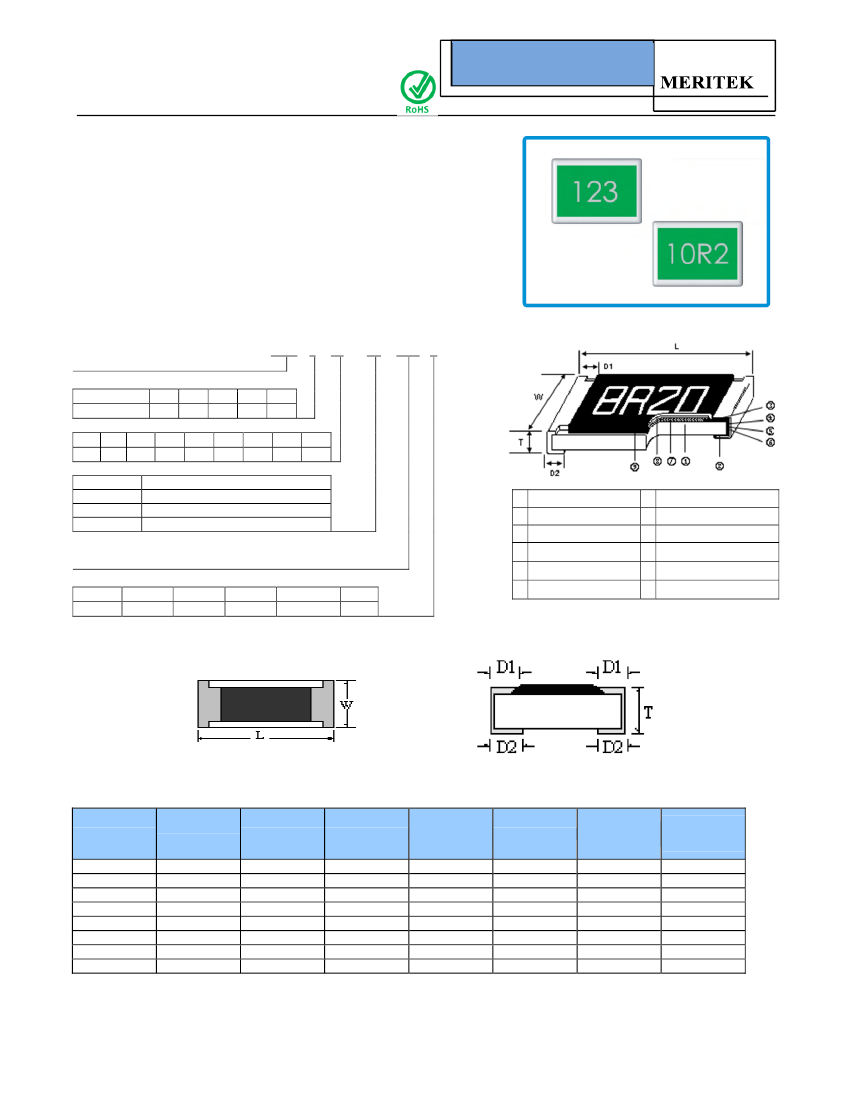

Feature



Advanced thin film technology

Very tight tolerance down to ±0.01%

Extremely low TCR down to ±5 PPM/°C

Wide resistance range 1 ohm ~ 3M ohm

Miniature size 0201 available

ART

UMBERING

YSTEM

RN73

Precision Thin Film Chip Resistors

Code

TCR(PPM/°C)

±5

±10

±15

±25

±50

1001 C

Code 1H 1E

Size 0201 0402 0603 0805 1206 1210 2010 2512

------

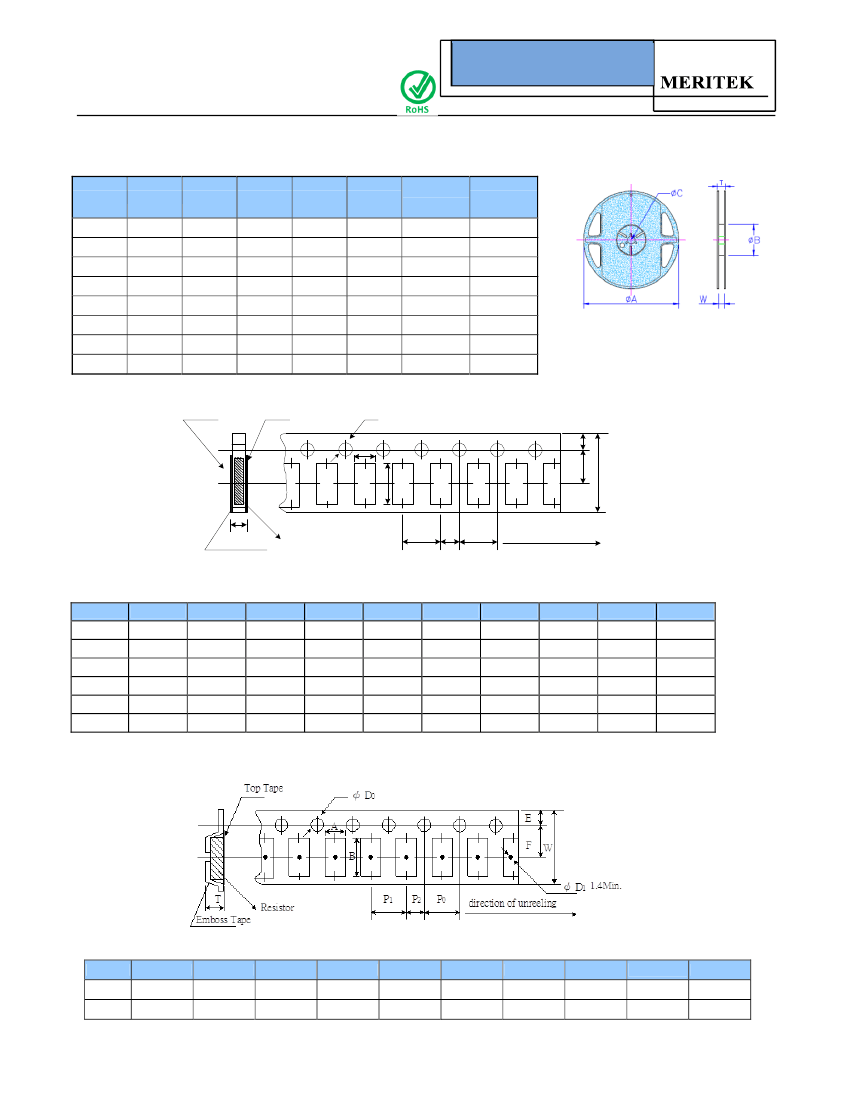

Bulk

Paper Tape(Reel) (1H,1E,1J,2A,2B,2E)

Plastic Tape(Reel) (2H,3A)

Paper Tape(1E)

Resistance Value

1% - 4 digits, First 3 are significant, Forth is multiplier (10 )

Resistance Tolerance

Code

Value

± 0.05%

± 0.1%

± 0.25%

± 0.5%

± 1%



Alumina Substrate



Resistor Layer (NiCr)



Bottom Electrode (Ag)



Overcoat (Epoxy)



Top Electrode (Ag-Pd)



Marking



Edge Electrode (NiCr)



Barrier Layer (Ni)



External Electrode (Sn)

Dimensions

Type

Size

(Inch)

0201

0402

0603

0805

1206

1210

2010

2512

0.58±0.05

1.00±0.05

1.55±0.10

2.00±0.15

3.05±0.15

3.10±0.15

4.90±0.15

6.30±0.15

0.29±0.05

0.50±0.05

0.80±0.10

1.25±0.15

1.55±0.15

2.40±0.15

3.10±0.15

0.23±0.05

0.30±0.05

0.45±0.10

0.55±0.10

0.12±0.05

0.20±0.10

0.30±0.20

0.42±0.20

0.40±0.20

0.60±0.30

0.15±0.05

0.20±0.10

0.30±0.20

0.40±0.20

0.35±0.25

0.55±0.25

0.50±0.25

Weight

(g)

(1000pcs)

0.14

0.54

1.83

4.71

9.02

23.61

38.06

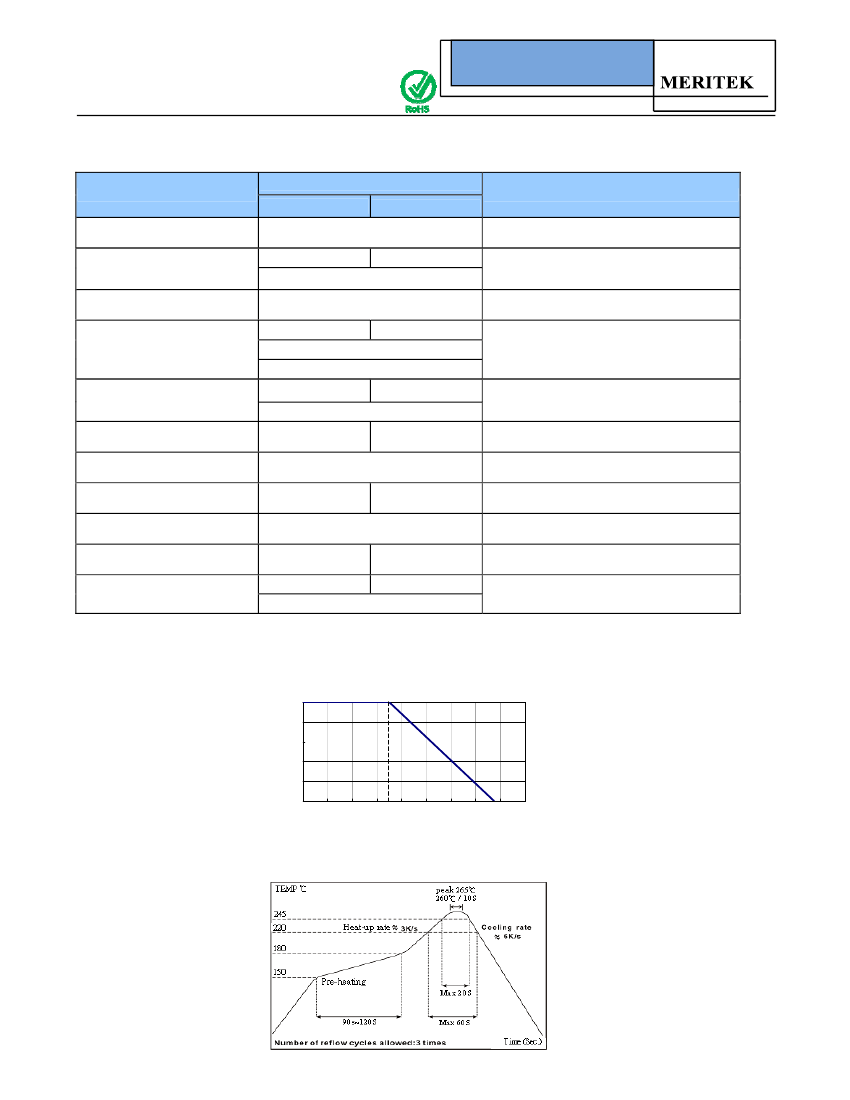

Rev. 7
