RT

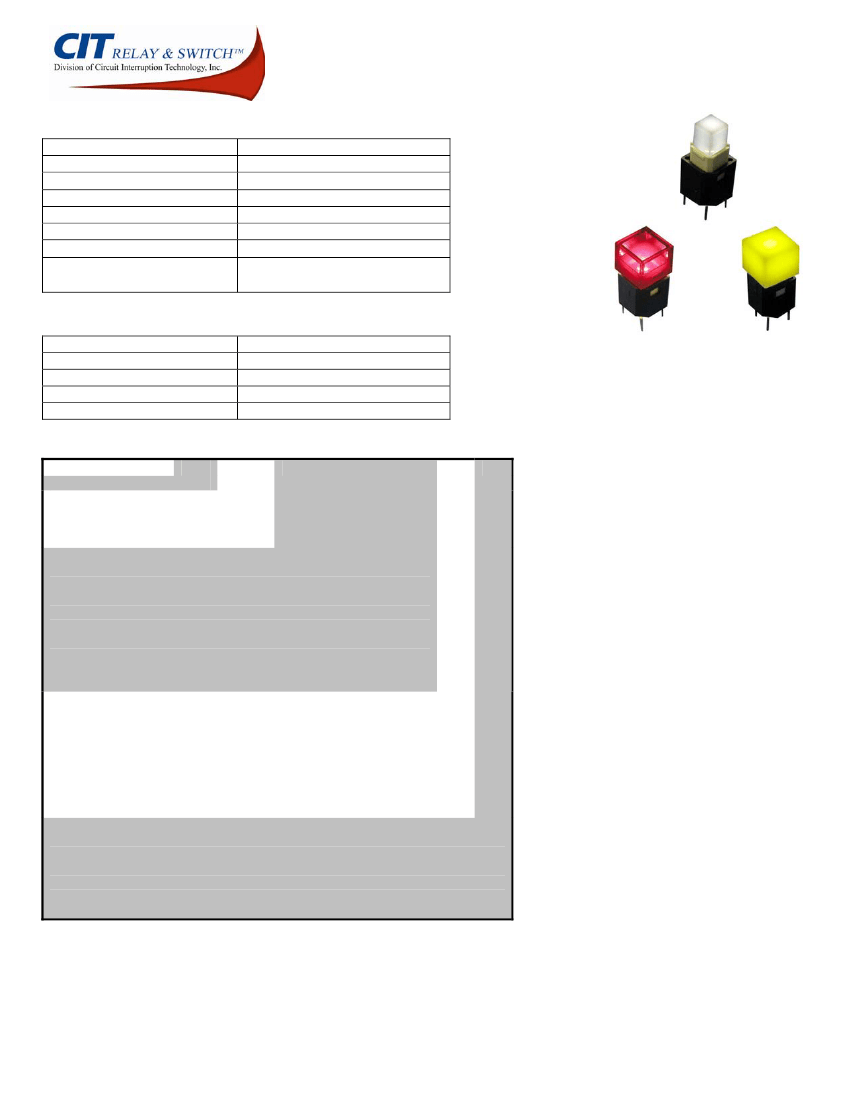

SPECIFICATIONS
Electrical Ratings
Electrical Life
Contact Resistance
Dielectric Strength
Actuation Force
Travel
Insulation Resistance
Operating Temperature
Storage Temperature
100mA @ 30VDC
300,000 cycles typical
< 50 mΩ max initial
250Vrms min
160 +/- 50gF
1.4 +/- .2mm
> 100MΩ min
-40°C to 85°C
-40°C to 85°C
MATERIALS
←
RoHS COMPLIANT
Actuator
Housing
Caps
Contacts
Terminals
6/6 Nylon
6/6 Nylon
PC
Conductive Rubber
Brass, Gold Plated
ORDERING INFORMATION
Series:
RT
A
1
W
RT
Actuator Style:
A
B
C
Actuator Color:
1 = White Semi-transparent
2 = Black, Opaque, for use with laser etching
3 = Red Semi-transparent, 3T = Red Transparent
4 = Yellow Semi-transparent, 4T = Yellow Transparent
5 = Green Semi-transparent, 5T = Green Transparent
7 = Blue Semi-transparent, 7T = Blue Transparent
9 = Dark Gray, Opaque, for use with laser etching
0 = Clear Semi-transparent
MS = Misty Silver, Opaque, for use with laser etching
LED Colors:
X = No LED
RY = Red/Yellow dual LED
R = Red
RG = Red/Green dual LED
Y = Yellow
RB = Red/Blue dual LED
G = Green
YG = Yellow/Green dual LED
PG = Pure Green YB = Yellow/Blue dual LED
B = Blue
GB = Green/Blue dual LED
**White & Pure Green are only available as a single
W = White
color LED
Laser Etching Styles:
Blank = No laser etching style
A
F
B
G
C
H
D
I
E
J
www.citswitch.com
phone – 763.535.2339 fax – 763.535.2194
RT

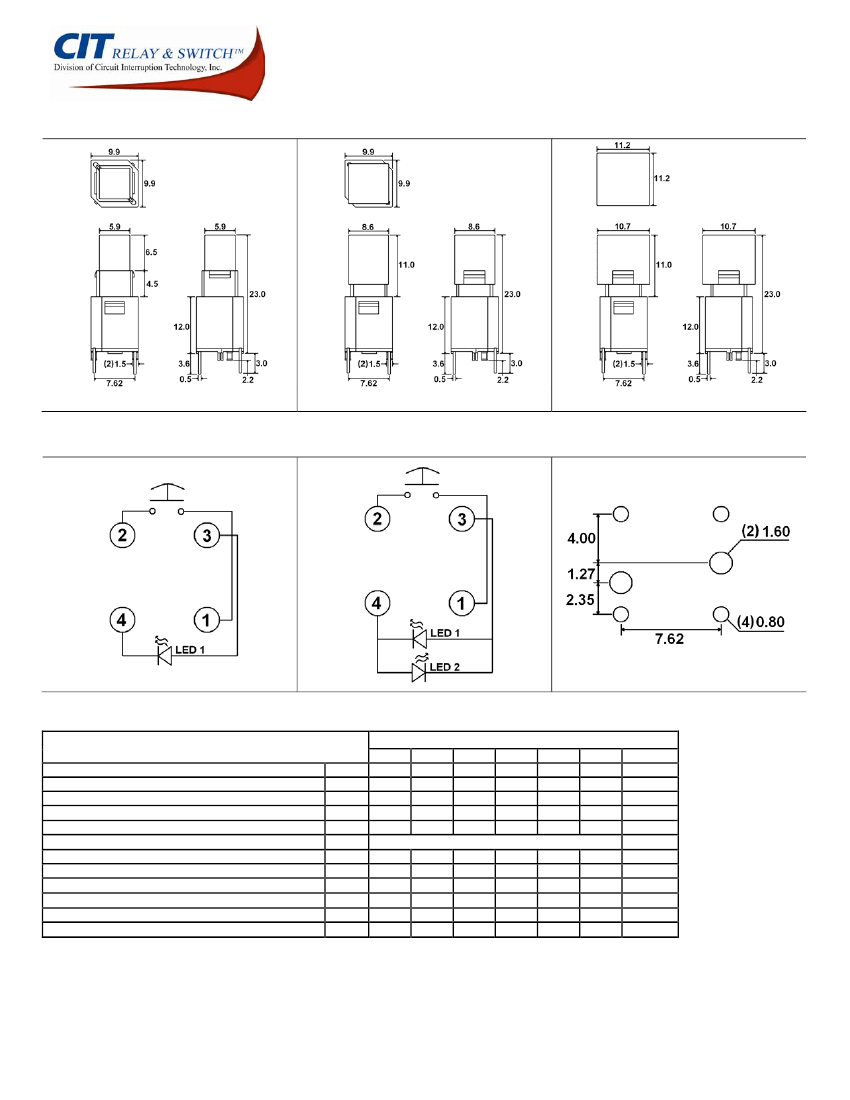

DIMENSIONS
A
B
C
SCHEMATICS & PC LAYOUT (BOTTOM VIEWS)
LED CHARACTERISTICS
LED Ratings
Reverse Voltage
Forward Current (avg)
Forward Current (peak)
Reverse Current V
R
= 5V
Power Dissipation
Operating & Storage Temperature
Forward Voltage (typ.), I
F
= 20mA
Forward Voltage (max.), I
F
= 20mA
Wavelength at Peak Emmission, I
F
= 20mA
Spectral Line Half-Width, I
F
= 20mA
Luminous Intensity, I
F
= 20mA
Viewing Angle
V
R
I
F
I
FS
I
R
P
T
T
A
V
F
V
F
λ
P
∆λ
LI
Θ
R
5
30
90
50
75
2.1
2.4
630
20
50
44
Y
5
30
60
10
75
1.7
2.6
590
20
350
40
COLORS
G
B
PG
5
5
5
30
30
30
120
100
100
10
50
50
100
120
120
-40~ +85
1.7
3.5
3.5
2.6
4.0
4.0
565
470
525
30
30
36
90
1500
1100
44
30
28
W
5
30
100
50
120
3.5
4.0
N/A
N/A
2700
40
Units
V
mA
mA
µA
mW
°C
V
V
nm
nm
mcd
Deg
www.citswitch.com
phone – 763.535.2339 fax – 763.535.2194
RT
LASER ETCHING STYLES
A
B
C
D
E
F
G
H
I
J
All laser etching styles will be orientated with the + terminal located on the right hand side with
respect to the legend.
www.citswitch.com
phone – 763.535.2339 fax – 763.535.2194
