T493A155K010AM61207280 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> T493A155K010AM61207280

T493A155K010AM61207280: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 10% +Tol, 10% -Tol, 1.5uF, Surface Mount, 1206, CHIP; CategoryPassive components capacitor; File Size1MB，26 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

T493A155K010AM61207280 Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 10% +Tol, 10% -Tol, 1.5uF, Surface Mount, 1206, CHIP

T493A155K010AM61207280 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	, 1306
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	ESR IS MEASURED AT 100 KHZ
capacitance	1.5 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	6000 mΩ
high	1.6 mm
JESD-609 code	e0
leakage current	0.0005 mA
length	3.2 mm
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, Embossed Plastic, 13 Inch
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	10 V
size code	1306
surface mount	YES
Delta tangent	0.06
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	J BEND
width	1.6 mm

T493A155K010AM61207280 Preview

Tantalum Surface Mount Capacitors – High Reliability

T493 High Reliability Alternative MnO

(CWR11 Style)

Overview

The KEMET T493 is designed for the High Reliability

Series (HRA) requirements of military and aerospace

applications. The T493 is a surface mount product,

offering various lead-frame plating options, Weibull grading

options, surge current testing, F-Tech (an improved anode

manufacturing process), and Simulated Breakdown Voltage

(SBDV) screening options to improve long term reliability.

Standard, low, and ultra-low ESR options are available.

All lots of T493 are conditioned with MIL-PRF-55365

Group A testing. This series is also approved for DLA

drawing 07016 (please see part number list specific to this

drawing).

KEMET’s F-Tech eliminates hidden defects in the dielectric,

which continue to grow in the field, causing capacitor

failures. Based on the fundamental understanding of

degradation mechanisms in tantalum and niobium

capacitors, F-Tech incorporates multiple process

methodologies. Some minimize the oxygen and carbon

content in the anodes, which become contaminants

and can lead to the crystallization of the anodic oxide

dielectric. This process methodology reduces the

contaminants, improving quality of the dielectric. An

additional technology provides a stronger mechanical

connection point between the tantalum lead wire and

tantalum anode, enhancing robustness and product

reliability. The benefit of F-Tech is illustrated by a 2,000

hour, 85°C, 1.32 X rated voltage accelerated life test.

F-Tech parts see no degradation while standard tantalums

have 1.5 orders of magnitude degradation in leakage

current. F-Tech is currently available for T493 Series

(select D and X case capacitance values in 25 V and

higher rated voltage). Please contact KEMET for details on

ordering other part types with these capabilities.

The KEMET patented Simulated Breakdown Screening (SBDS)

is a nondestructive testing technique that simulates the

breakdown voltage (BDV) of a capacitor, without the damage

to its dielectric or to the general population of capacitors.

This screening identifies hidden defects in the dielectric,

providing the highest level of dielectric testing. SBDS is

based on the simulation of breakdown voltage (BDV), the

ultimate test of the dielectric in a capacitor.

Low BDV indicates defects in the dielectric, and therefore, a

higher probability of failure in the field. High BDV indicates

a stronger dielectric and high-reliability performance in the

field. This new screening method allows KEMET to identify

the breakdown voltage of each individual capacitor and

provide only the strongest capacitors from each lot.

SBDS is currently available on select part types in the T493

and T497. Please contact KEMET for details on ordering other

part types with these capabilities.

KEMET offers these technologies per the following options:

• F-Tech only

• SBDS only

• Combination of both F-Tech and SBDS for the ultimate

protection

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

One world. One KEMET

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

T2007_T493 • 8/20/2019

Tantalum Surface Mount Capacitors – High Reliability

T493 High Reliability Alternative MnO

(CWR11 Style)

Benefits

• F-Tech and Simulated Breakdown Voltage (SBDS)

screening options available

• Tape & Reel standard packaging per EIA 481

• Symmetrical, compliant terminations

• Laser-marked case

• 100% surge current test available on all case sizes

• Termination options B, C, H, K, T, N, and M

• Weibull failure options B and C

•• All parts tested per Group A of MIL–PRF–55365

• Approved for DLA Drawing 07016 applications*

* Defense Logistics Agency (DLA), previously identified as DSCC

Applications

Typical applications include decoupling and filtering in military and aerospace applications.

Environmental Compliance

RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder.

K-SIM

For a detailed analysis of specific part numbers, please visit ksim.kemet.com to access KEMET’s K-SIM software. KEMET

K-SIM is designed to simulate behavior of components with respect to frequency, ambient temperature, and DC bias levels.

Ordering Information

Capacitor

Class

Tantalum

493

227

006

Surge

61 = None

62 = 10 Cycles after

Weibull, 25°C

63 = 10 cycles after

Weibull, −55°C and

85°C after Weibull

64 = 10 cycles

before Weibull,−55°

and +85°C

ESR

10 = ESR

– standard

20 = ESR

– low

30 = ESR

– ultra-low

Rated

Series Case Capacitance Capacitance Voltage Failure Rate/ Termination Finish

Size Code (pF)

Tolerance

Design

(VDC)

Military

COTS

First two

digits

represent

significant

figures.

Third digit

specifies

number of

zeros.

J = ±5%

K = ±10%

M = ±20%

004 = 4

006 = 6.3

010 = 10

016 = 16

020 = 20

025 = 25

035 = 35

050 = 50

063 = 63

A = N/A

B = 0.1%/

1,000 hours

C = 0.01%/

1,000 hours

C = Hot solder dipped

H = Standard solder-

coated (SnPb 5% Pb

minimum)

B = Gold-plated

K = Solder fused

T = 100% tin

N = Non-magnetic

100% tin (Sn)

M = Non-magnetic

(SnPb)

Packaging

(C-Spec)

Blank = 7"

reel

7280 = 13"

reel

7610 = Bulk

Bag

7640 = Bulk

plastic box

WAFL =

Waffle pack

For detailed part number offerings, please refer to: Table 1A – COTS, Table 1B – DLA Drawing 07016

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

T2007_T493 • 8/20/2019

Tantalum Surface Mount Capacitors – High Reliability

T493 High Reliability Alternative MnO

(CWR11 Style)

Ordering Information – DLA Drawing 07016

07016-

Drawing Number

001

Dash Number

See Part Number

Table

Capacitance

Tolerance

J = ±5%

K = ±10%

M = ±20%

Reliability Grade

B = 0.1%/1,000 hours

C = 0.01%/1,000 hours

Termination Finish

C = Hot solder dipped

H = Standard solder coated

(SnPb 5% Pb minimum)

B = Gold-plated

Surge

A = +25°C after Weibull

B = −55°C and +85°C

after Weibull

C = −55°C and +85°C

before Weibull

Z or no option= No test

required

For detailed part number offerings, please refer to: Table 1A – COTS, Table 1B – DLA Drawing 07016

Ordering Information – F-Tech & Simulated Breakdown Screening (SBDS)

Capacitor

Class

Tantalum

493

Series

Military

COTS

226

020

Failure Rate/

Design

A = N/A

B = 0.1%/

1,000 hours

C = 0.01%/

1,000 hours

Termination Finish

C = Hot solder dipped

H = Standard solder-

coated (SnPb 5% Pb

minimum)

B = Gold-plated

K = Solder fused

T = 100% tin

N = Non-magnetic

100% tin (Sn)

M = Non-magnetic

(SnPb)

Surge

61 = None

62 = 10 Cycles

after Weibull,

25°C

63 = 10 cycles

after Weibull,

−55°C and 85°C

after Weibull

64 = 10 cycles

before Weibull,

−55° and +85°C

Screening/ESR

11 = F-Tech + SBDS *

12 = SBDS

13 = F-Tech *

21 = Low ESR + 11

22= Low ESR + 12

23 = Low ESR + 13

31= Ultra-low ESR + 11

32 = Ultra-low ESR + 12

33 = Ultra-ow ESR + 13

Packaging

(C-Spec)

Blank = 7" Reel

7280 = 13" Reel

7610 = Bulk bag

7640 = Bulk

plastic box

WAFL = Waffle

pack

Rated

Case Capacitance Capacitance

Voltage

Tolerance

Size Code (pF)

(VDC)

First two

digits

represent

significant

figures.

Third digit

specifies

number of

zeros.

J = ±5%

K = ±10%

M = ±20%

025 = 25

035 = 35

050 = 50

063 = 63

* Select "C", "D" and "X" case sizes in 20 V and higher rated voltage

For detailed part number offerings, please refer to: Table 1A – COTS, Table 1B – DLA Drawing 07016

Performance Characteristics

Item

Operating Temperature

Rated Capacitance Range

Capacitance Tolerance

Rated Voltage Range

DF (120 Hz)

ESR (100 kHz)

Leakage Current

−55° C to 125° C

0.1 – 470 μF at 120 Hz/25°C

J tolerance (5%), K tolerance (10%), M tolerance (20%)

4 – 63 V

Refer to Part Number Electrical Specification Table

≤ 0.01 CV (µA) at rated voltage after 5 minutes

Performance Characteristics

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

T2007_T493 • 8/20/2019

Tantalum Surface Mount Capacitors – High Reliability

T493 High Reliability Alternative MnO

(CWR11 Style)

Qualification

Test

Endurance

Condition

Δ C/C

85°C at rated voltage, 2,000 hours

125°C at 2/3 rated voltage, 2,000 hours

DCL

ESR

Δ C/C

DCL

ESR

Δ C/C

MIL–STD–202, Method 107, Condition B, mounted,

−55°C to 125°C, 1,000 cycles

DCL

ESR

+25°C

Extreme temperature exposure at a

succession of continuous steps at +25°C,

−55°C, +25°C, +85°C, +125°C, +25°C

Δ C/C

DCL

25°C and 85°C, 1.32 x rated voltage 1,000 cycles

(125°C, 1.2 x rated voltage)

IL*

Δ C/C

DCL

ESR

Δ C/C

DCL

Characteristics

Within ±10% of initial value

Within initial limits

Within 1.25 x initial limit

Within initial limits

Within ±10% of initial value

Within initial limits

Within 1.25 x initial limit

Within initial limits

Within ±5% of initial value

Within initial limits

Within 1.25 x initial limit

Within initial limits

−55°C

±10%

N/A

+85°C

±10%

1.5 x IL

10 x IL

+125°C

±15%

1.5 x IL

12 x IL

Storage Life

125°C at 0 volts, 2,000 hours

Thermal Shock

Temperature Stability

Within ±5% of initial value

Within initial limits

Within ±10% of initial value

Within initial limits

Surge Voltage

Mechanical Shock/

Vibration

*IL = Initial limit

MIL–STD–202, Method 213, Condition I, 100 G peak

MIL–STD–202, Method 204, Condition D, 10 Hz to

2,000 Hz, 20 G peak

Certification

MIL–PRF–55365/8

DLA Drawing 07016

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

T2007_T493 • 8/20/2019

Tantalum Surface Mount Capacitors – High Reliability

T493 High Reliability Alternative MnO

(CWR11 Style)

Electrical Characteristics

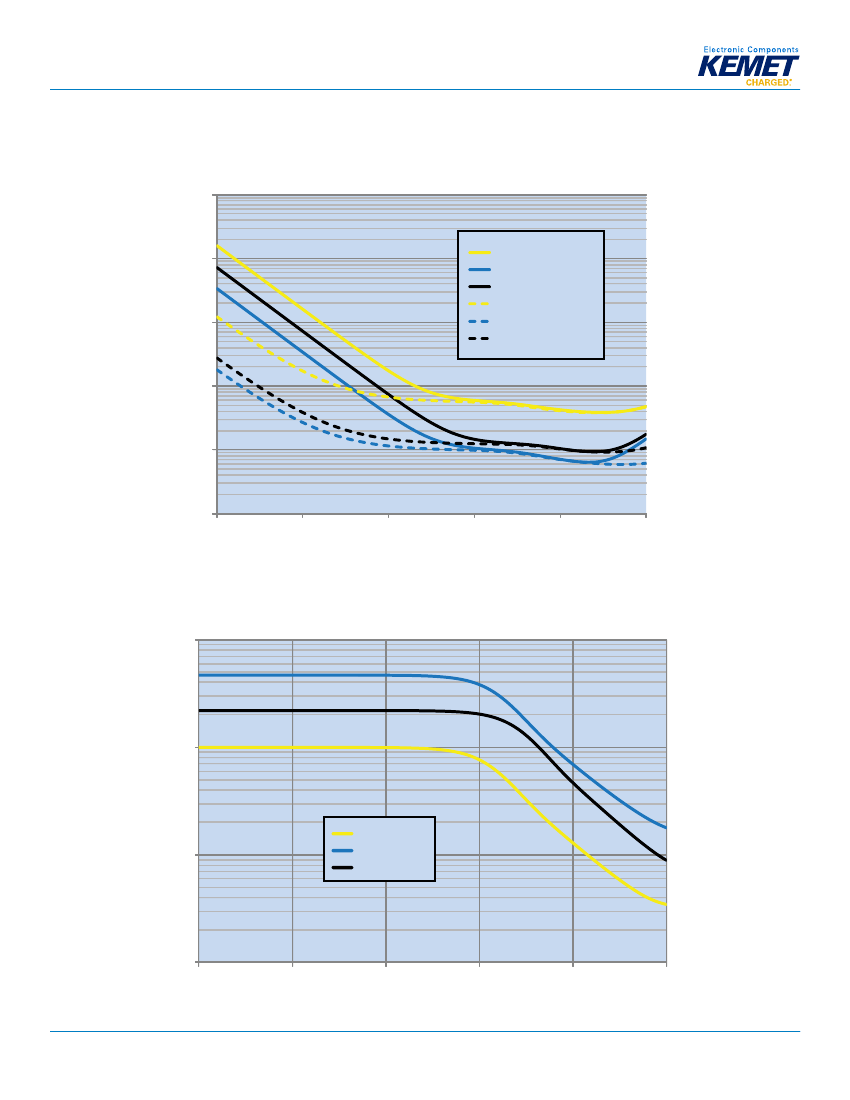

ESR vs. Frequency

1,000

100

Impedance, ESR (Ohms)

T493B106/020_IMP

T493E476/035_IMP

T493X226/035_IMP

T493B106/020_ESR

T493E476/035_ESR

T493X226/035_ESR

0.1

0.01

100

1,000

10,000

Frequency (Hz)

100,000

1,000,000

10,000,000

Capacitance vs. Frequency

100

Capacitance (µF)

T493B106/020

T493E476/035

T493X226/035

0.1

100

1,000

10,000

Frequency (Hz)

100,000

1,000,000

10,000,000

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

T2007_T493 • 8/20/2019

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Protective ground circuit

Thyristor disconnection overvoltage protection circuit

Fluorescent lamp electronic ballast circuit diagram

Lie detector circuit diagram

Online resistance test circuit

555 sine wave generator circuit

If you want to argue again, then turn on the light first.: Well, it is a bit painful to use Linux to light a lamp when there is a good IDE under Windows. The previous post built a development environment, and the author of this post will use it to light a lam...; RCSN stm32/stm8

Stepper motor controller with encoder: The stepper motor is one of the commonly used motors. Since it is an open-loop control unit, sometimes the motor travel error will occur because the number of control pulses sent by the controller and...; hjf2002 Renesas Electronics MCUs

STM32F407 network communication routine problem: Dear experts, I found it very troublesome when using the official routine. I just wanted to realize the data sending function of the development board. I modified the routine and found that the routin...; xiaofeixia stm32/stm8

Brainstorm for 5 minutes: What do you think of when it comes to embedded systems?: After discussing with the moderator, we really want to do something more helpful for everyone? When talking about embedded systems, or when learning embedded systems, what is the first thing that come...; soso Embedded System

I drew a Micro USB 5P package myself and share it with you: [i=s]This post was last edited by Ashley_Zhai on 2016-8-10 10:09[/i] This is my first time drawing. Please point out any deficiencies. Thank you! (Let’s make progress together)...; Ashley_Zhai PCB Design

CPLD and DSP pin connection problem: As shown in the figure, the CPLD pins TEA6, TEA7, TEA8, TEA9 are connected to the address lines of the DSP. If Quartus is used to program OUT0<=TEA6, OUT1<=TEA7, OUT2<=TEA8, OUT3<=TEA9, then are the O...; JasonnLee FPGA/CPLD

Shortcut: E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components
