59132-H2224-037RLF

Description
Board Connector, 48 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator
CategoryThe connector    The connector
File Size145KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

59132-H2224-037RLF Overview

Board Connector, 48 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator

59132-H2224-037RLF Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.157 inch
subject depth0.146 inch
body length1.89 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage910VAC V
Durability100 Cycles
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
Manufacturer's serial number59132
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thicknessFLASH inch
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts48

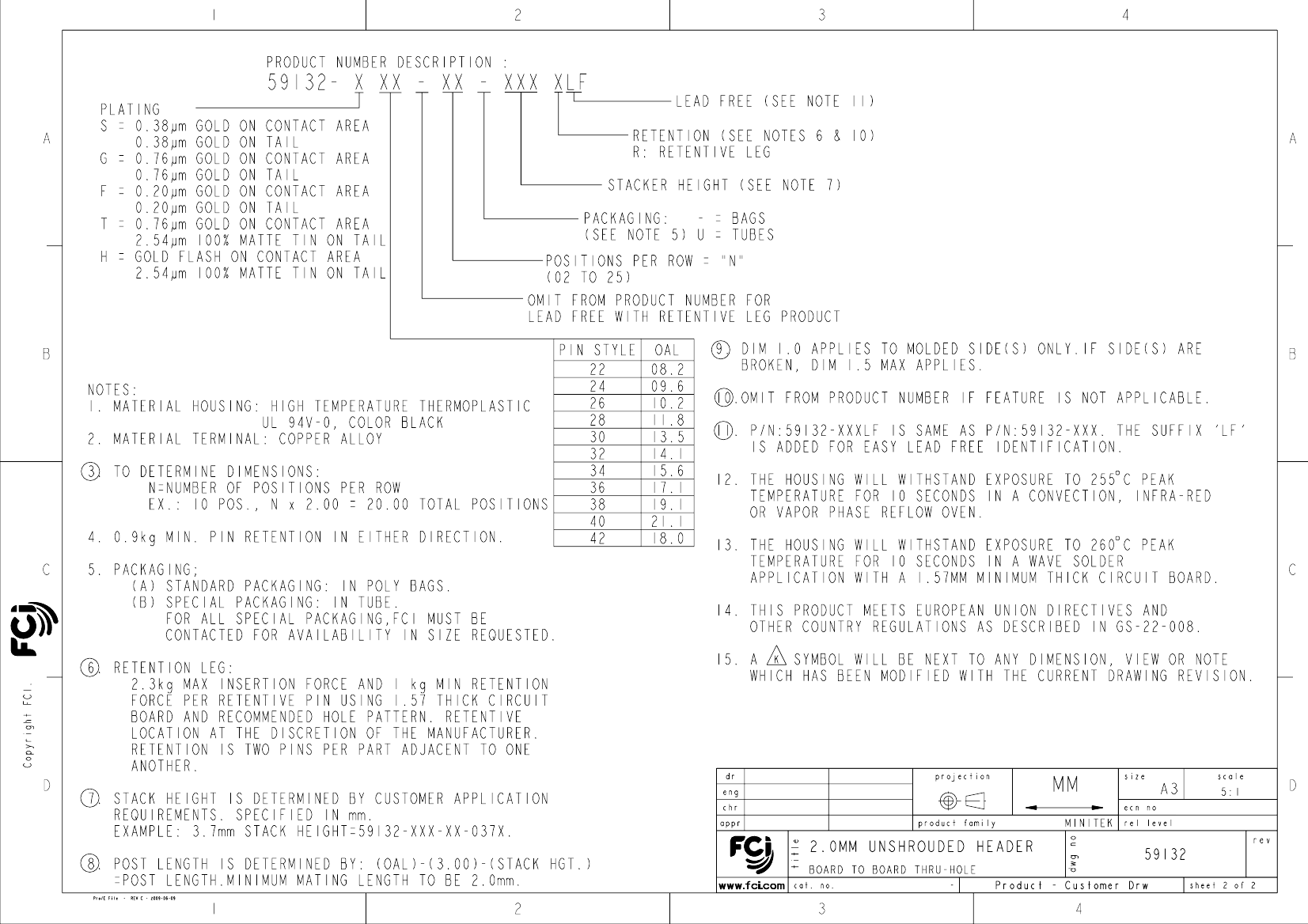

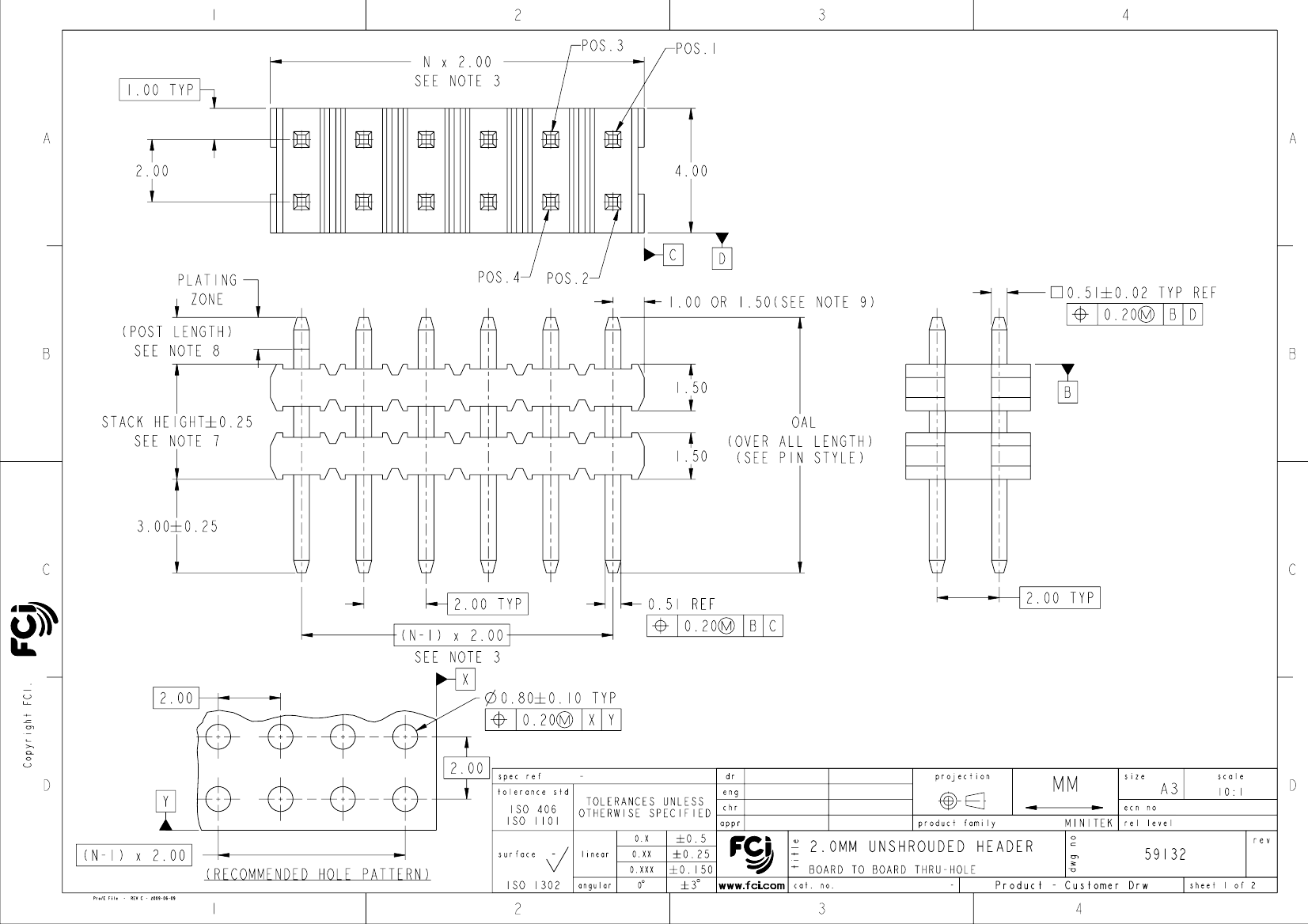

w wcadmin
Guo-Min Sun
-
Feagle Pan
2010/10/31
2014/10/29
-
2014/10/29
ELX-N-19241-1
Released
K
PDS: Rev :K
STATUS:Released
Printed: Nov 04, 2014
