0603X5R225MTAAB: DescriptionCeramic Capacitor, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 2.2uF, 0603,; CategoryPassive components capacitor; File Size197KB，2 Pages; ManufacturerATC [American Technical Ceramics]; Environmental Compliance

Download Datasheet Parametric Compare View All

0603X5R225MTAAB Overview

Ceramic Capacitor, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 2.2uF, 0603,

0603X5R225MTAAB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	, 0603
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	2.2 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.89 mm
JESD-609 code	e3
length	1.6 mm
Manufacturer's serial number	X5R
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	Strip Pack
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
series	X5R
size code	0603
Temperature characteristic code	X5R
Temperature Coefficient	-/+15ppm/Cel ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
width	0.8 mm

Preview

Download Datasheet

View All

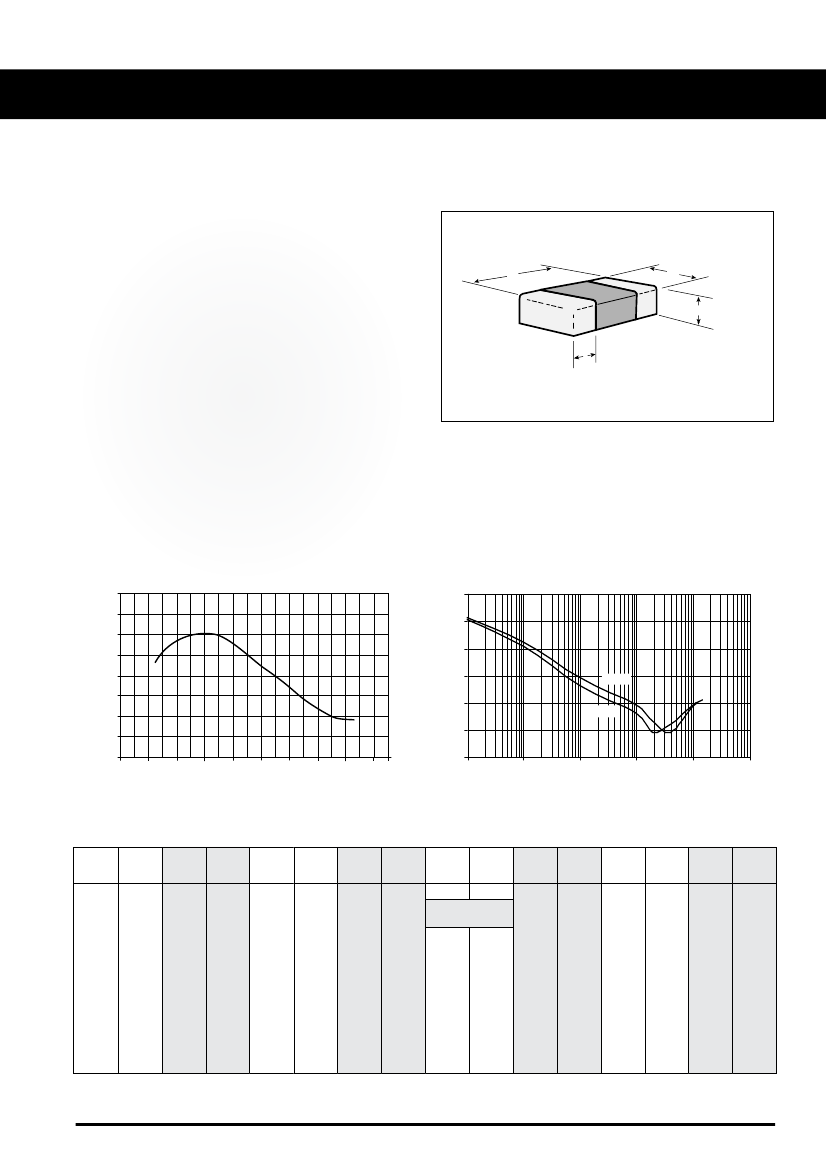

ATC G E NE R A L P U R P O S E C A PA C I T ORS : X5 R DI ELE CT RI C

Electrical Characteristics

Capacitance Range:

0.1 µF to 33 µF

Temperature Coefficentof Capacitance:

± 15% with 0 Vdc applied

Operating Temperature Range:

-55°C to +85°C

Dissipation Factor:

5% (max.) @ + 25°C, @1 KHz @1.0 +/- 0.2 VRMS

See Page 9 for DF Exceptions for X5R

Insulation Resistance:

@ + 25°C and rated Vdc:10,000 megohms (min.) or

500 ohm-farads (min.), whichever is less

Aging:

3% (max.) per decade hr.

Dimension Drawing

L

W

T (MAX.)

MB

Dielectric Withstanding Voltage:

250% WVDC for WVDC < 200V

150% WVDC for 200V < WVDC

≤

500V

120% WVDC for WVDC > 500V

Applied for 5 ±1 sec.

Note:

Unless otherwise specified all test data is at + 25°C.

20

X5R Temperature Coefficient of Capacitance

X5R Impedance vs. Frequency

1000

100

% Capacitance Change

15

10

5

0

-5

-10

-15

-20

-80

-60

-40

-20

0

20

40

60

80

100

Impedance (Ohms)

10

1

0.1

10 µF

4.7 µF

0.01

0.001

1

10

100

1000

10000

100000

Temperature °C

Frequency (KHz)

Standard EIA Capacitance Values Reference Chart

Cap.

Code

0R5

1R0

1R2

1R5

1R8

2R2

2R7

3R3

3R9

4R7

5R6

6R8

Cap.

pF

0.5

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

Cap.

Code

8R2

100

120

150

180

220

270

330

390

470

560

680

Cap.

pF

8.2

10

12

15

18

22

27

33

39

47

56

68

Cap.

Code

820

101

121

151

181

221

271

331

391

471

561

681

Cap.

pF

82

100

120

150

180

220

270

330

390

470

560

680

Cap.

Code

821

102

122

152

182

222

272

332

392

472

562

682

Cap.

pF

820

1000

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

Cap.

Code

822

Cap.

Code

103

123

153

183

223

273

333

393

473

Cap.

pF

8200

Cap.

µF

.010

.012

.015

.018

.022

.027

.033

.039

.047

Cap.

Code

563

683

823

104

124

154

184

224

274

334

394

474

Cap.

µF

.056

.068

.082

.10

.12

.15

.18

.22

.27

.33

.39

.47

Cap.

Code

564

684

824

105

125

155

185

225

275

335

395

475

Cap.

µF

.56

.68

.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

Cap.

Code

565

685

825

106

126

156

186

226

276

336

Cap.

µF

5.6

6.8

8.2

10.0

12.0

15.0

18.0

22.0

27.0

33.0

A M E R I C A N

5

ATC North America

sales@atceramics.com

T E C H N I C A L

ATC Europe

saleseur@atceramics.com

C E R A M I C S

ATC Asia

sales@atceramics-asia.com

w ww.a t c er a m ic s .co m

0603X5R225MTAAB Related Products

	0603X5R225MTAAB	0603X5R225MWAAB	0603X5R225MTASB	0603X5R225MWASB	1206X5R106KT7AB	1206X5R106KW7AB
Description	Ceramic Capacitor, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 2.2uF, 0603,	Ceramic Capacitor, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 2.2uF, 0603,	Ceramic Capacitor, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 2.2uF, 0603,	Ceramic Capacitor, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 2.2uF, 0603,	Ceramic Capacitor, Ceramic, 16V, 10% +Tol, 10% -Tol, X5R, -/+15ppm/Cel TC, 10uF, 1206,	Ceramic Capacitor, Ceramic, 16V, 10% +Tol, 10% -Tol, X5R, -/+15ppm/Cel TC, 10uF, 1206,
Is it Rohs certified?	conform to	incompatible	conform to	incompatible	conform to	incompatible
package instruction	, 0603	, 0603	, 0603	, 0603	, 1206	, 1206
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	2.2 µF	2.2 µF	2.2 µF	2.2 µF	10 µF	10 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
high	0.89 mm	0.89 mm	0.89 mm	0.89 mm	1.83 mm	1.83 mm
JESD-609 code	e3	e0	e3	e0	e3	e0
length	1.6 mm	1.6 mm	1.6 mm	1.6 mm	3.18 mm	3.18 mm
Manufacturer's serial number	X5R	X5R	X5R	X5R	X5R	X5R
negative tolerance	20%	20%	20%	20%	10%	10%
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	SMT	SMT	SMT	SMT	SMT	SMT
method of packing	Strip Pack	Strip Pack	Strip Pack	Strip Pack	Strip Pack	Strip Pack
positive tolerance	20%	20%	20%	20%	10%	10%
Rated (DC) voltage (URdc)	10 V	10 V	10 V	10 V	16 V	16 V
series	X5R	X5R	X5R	X5R	X5R	X5R
size code	0603	0603	0603	0603	1206	1206
Temperature characteristic code	X5R	X5R	X5R	X5R	X5R	X5R
Temperature Coefficient	-/+15ppm/Cel ppm/°C	-/+15ppm/Cel ppm/°C	-/+15ppm/Cel ppm/°C	-/+15ppm/Cel ppm/°C	15% ppm/°C	15% ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
width	0.8 mm	0.8 mm	0.8 mm	0.8 mm	1.6 mm	1.6 mm
