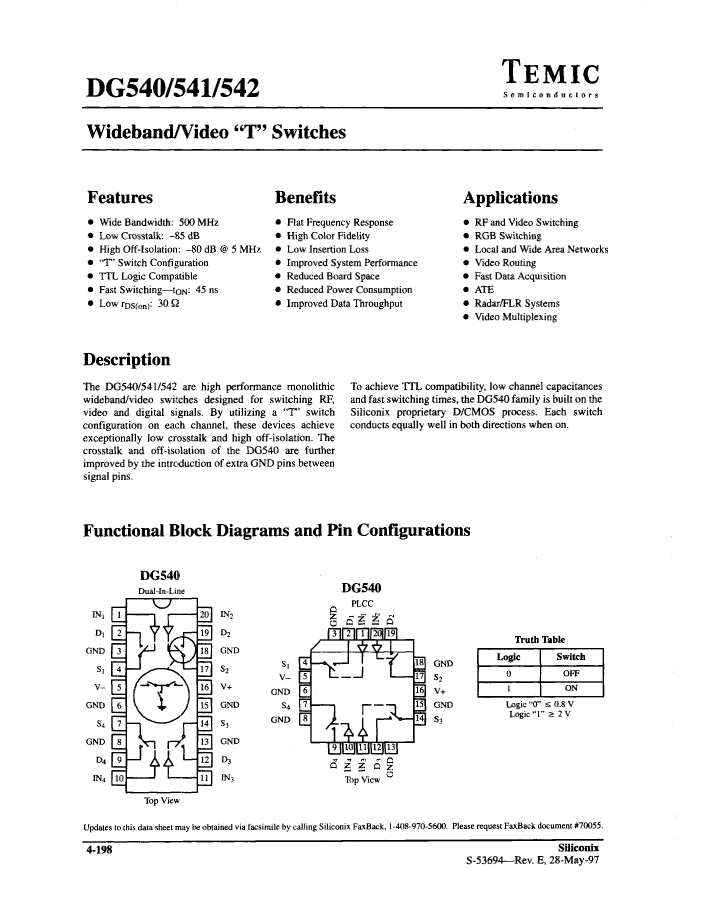

DG541DY-T1 datasheet, PDF - EEWORLD Datasheet

DG541DY-T1: DescriptionAudio/Video Switch, 4 Func, 1 Channel, NMOS, PDSO16,; CategoryAnalog mixed-signal IC The signal circuit; File Size315KB，10 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

DG541DY-T1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG541DY-T1	-	-	View	Buy Now

Audio/Video Switch, 4 Func, 1 Channel, NMOS, PDSO16,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	AUDIO/VIDEO SWITCH
JESD-30 code	R-PDSO-G16
Nominal Negative Supply Voltage (Vsup)	-3 V
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	60 dB
On-state resistance matching specifications	2 Ω
Maximum on-state resistance (Ron)	60 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply current (Isup)	9 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	50 ns
Maximum connection time	70 ns
technology	NMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL

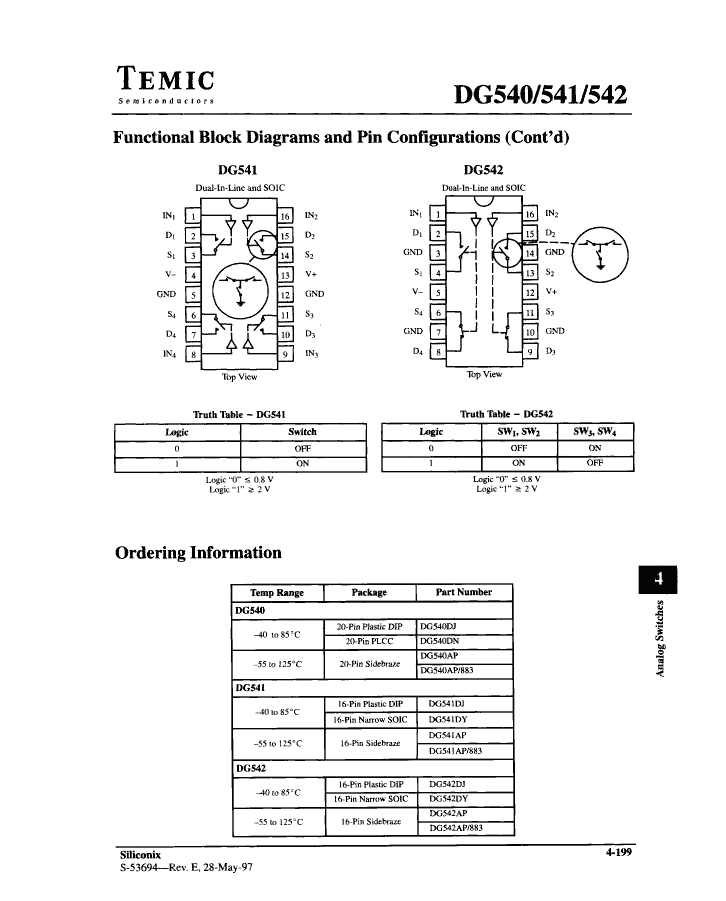

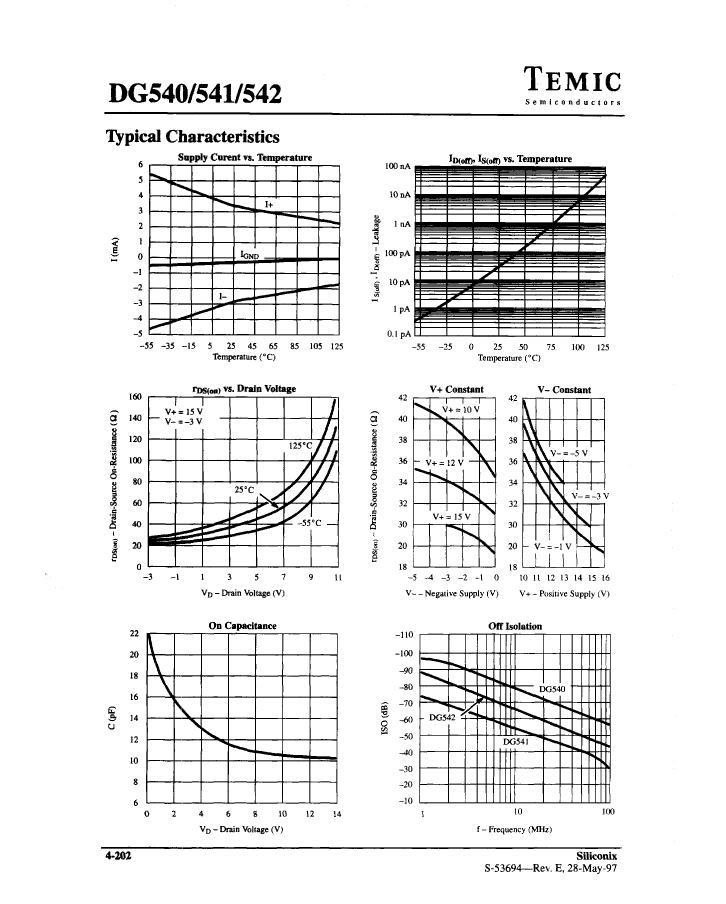

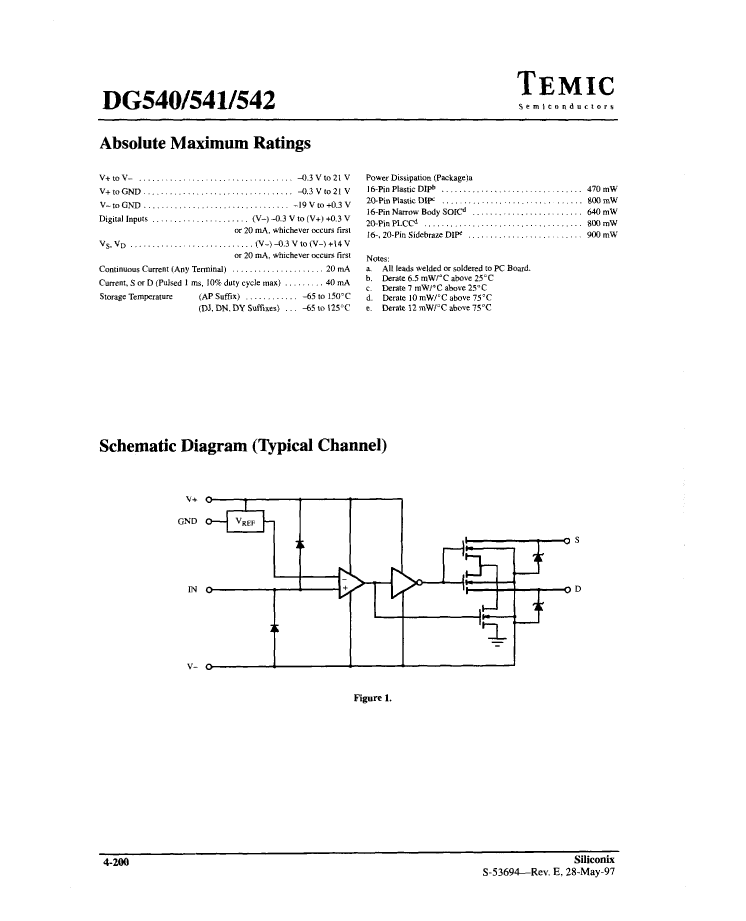

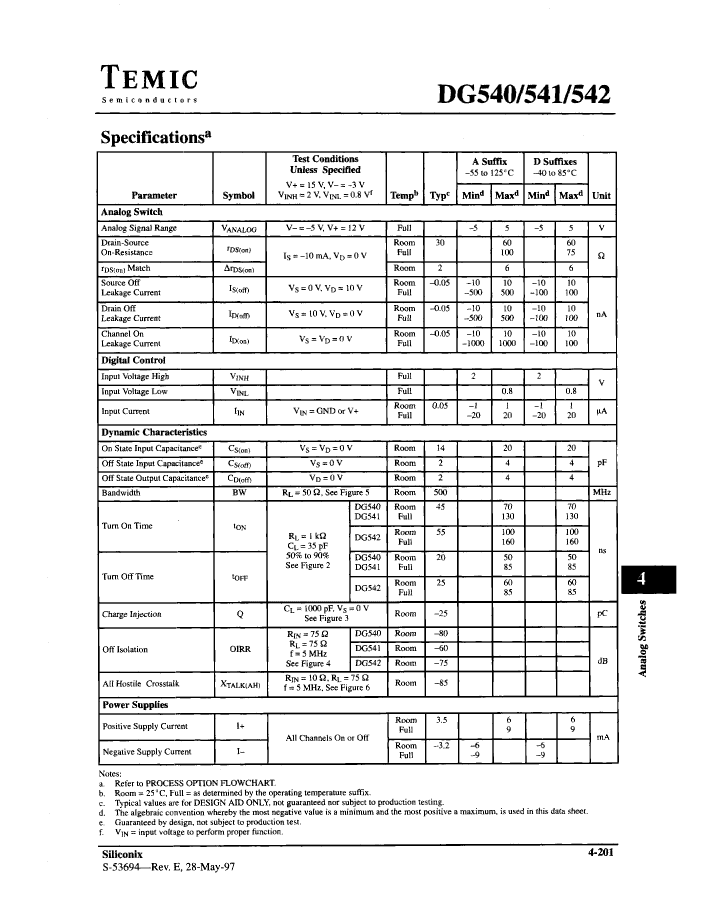

	DG541DY-T1
Description	Audio/Video Switch, 4 Func, 1 Channel, NMOS, PDSO16,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	AUDIO/VIDEO SWITCH
JESD-30 code	R-PDSO-G16
Nominal Negative Supply Voltage (Vsup)	-3 V
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	60 dB
On-state resistance matching specifications	2 Ω
Maximum on-state resistance (Ron)	60 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply current (Isup)	9 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	50 ns
Maximum connection time	70 ns
technology	NMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
