BI20U-CA40-ADZ30X2-B1131W/BS2.1 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The sensor> BI20U-CA40-ADZ30X2-B1131W/BS2.1

Preview

BI20U-CA40-ADZ30X2-B1131W/BS2.1: DescriptionInductive Sensor,; CategoryThe sensor; File Size358KB，2 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric View All

BI20U-CA40-ADZ30X2-B1131W/BS2.1 Overview

Inductive Sensor,

BI20U-CA40-ADZ30X2-B1131W/BS2.1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	IP 67, REVERSE POLARITY PROTECTION; SHORT-CIRCUIT PROTECTION, IT ALSO OPERATES AT 20 TO 250 V AC SUPPLY VOLTAGE
body width	40 mm
body height	40 mm
shell	METAL
Installation features	FLUSH MOUNT
Maximum working current	400 mA
Maximum operating temperature	70 °C
Minimum operating temperature
Output interface type	2-WIRE INTERFACE
Package Shape/Form	RECTANGULAR
Sensor/temperature sensor type	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	300 V
Minimum supply voltage	10 V
surface mount	NO
Termination type	CONNECTOR

Preview

Download Datasheet

View All

BI20U-CA40-ADZ30X2-B1131 W/BS 2.1

Inductive Sensor – With Extended Switching Distance

Features

■

Rectangular, height 40 mm

■

Variable orientation of active face in 5 directions

■

Sensor housing GD-ALSI 12

■

Plastic, PA6-GF30

■

Factor 1 for all metals

■

Resistant to magnetic fields

■

High switching frequency

■

AC 2-wire, 20…250 VDC

■

DC 2-wire, 10…300 VDC

■

NO contact

■

7/8" male connector

Technical data

Type

Ident. no.

Rated switching distance

Mounting conditions

Secured operating distance

Repeat accuracy

Temperature drift

Hysteresis

Ambient temperature

Operating voltage

AC rated operational current

DC rated operational current

Frequency

Residual current

Isolation test voltage

Surge current

Short-circuit protection

Voltage drop at

Wire breakage/Reverse polarity protection

Output function

Smallest operating current

Insulation class

Switching frequency

BI20U-CA40-ADZ30X2-B1131 W/BS 2.1

4283290

20 mm

Flush

≤ (0,81 x Sn) mm

≤ 2 % of full scale

3…15 %

0…+70 °C

20…250 VAC

10…300 VDC

≤ 400 mA

≤ 300 mA

≥ 50…≤ 60 Hz

≤ 1.7 mA

≤ 1.5 kV

≤ 3 A (≤ 20 ms max. 5 Hz)

yes / Latching

≤ 6 V

yes / Complete

2-wire, NO contact

≥ 3 mA

÷

0.01 kHz

BI20U-CA40-ADZ30X2-B1131 W/BS 2.1| 09/15/2019 16-51 | technical changes reserved

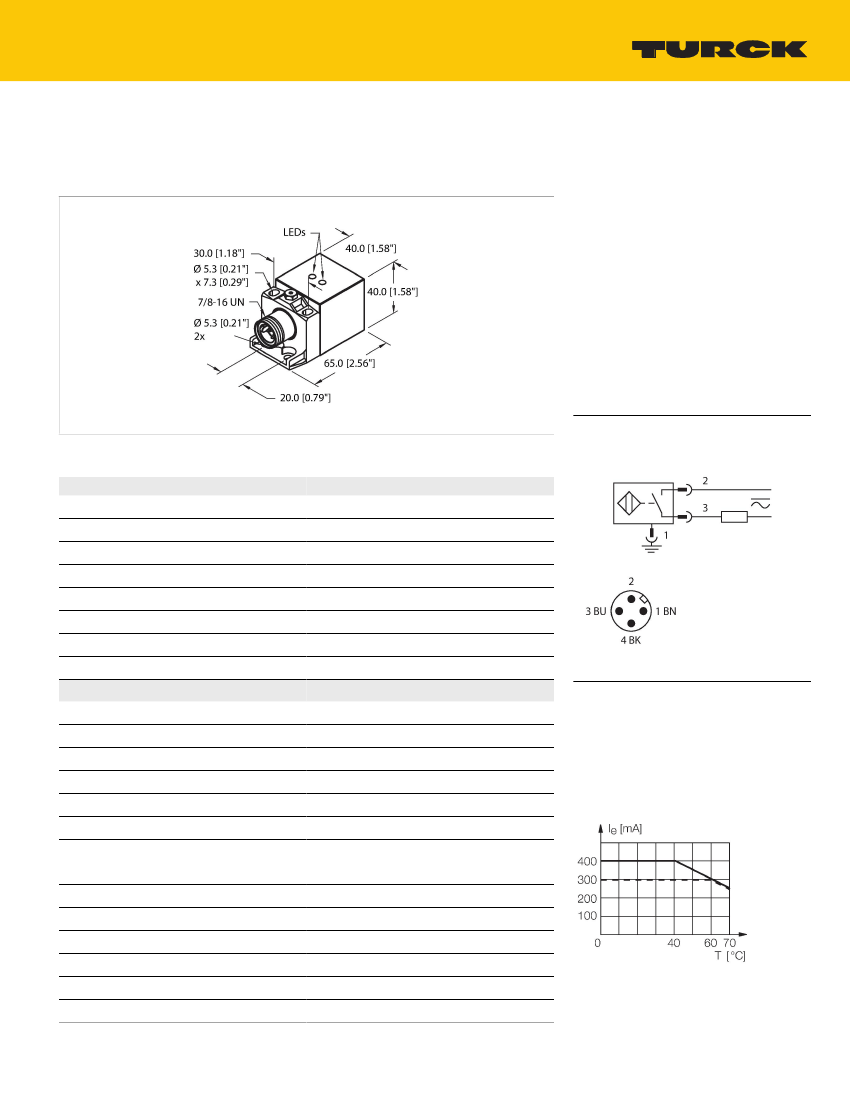

Wiring diagram

≤ ± 10 %

Functional principle

Inductive sensors detect metal objects contactless

and wear-free.

uprox®

Factor 1 sensors have

significant advantages due to their patented

ferrite-coreless multicoil system. They detect all

metals at the same large switching distance and

are resistant to magnetic fields.

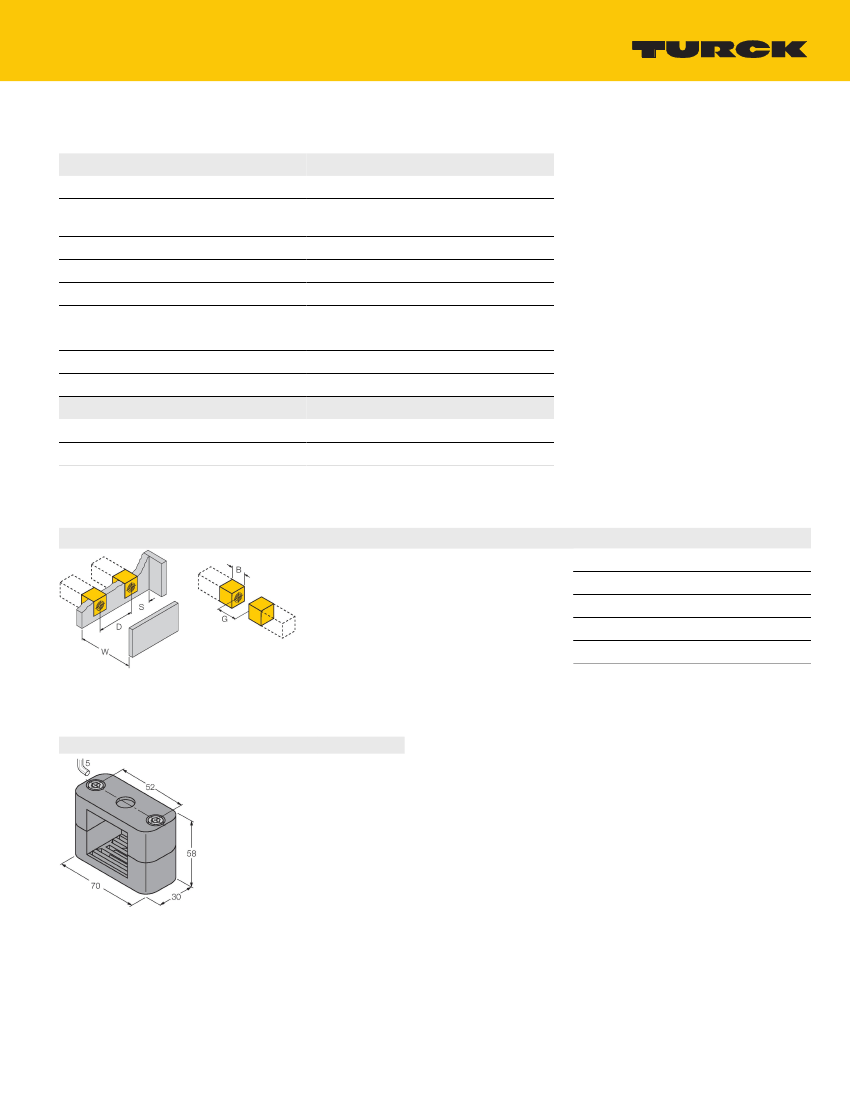

1|2
