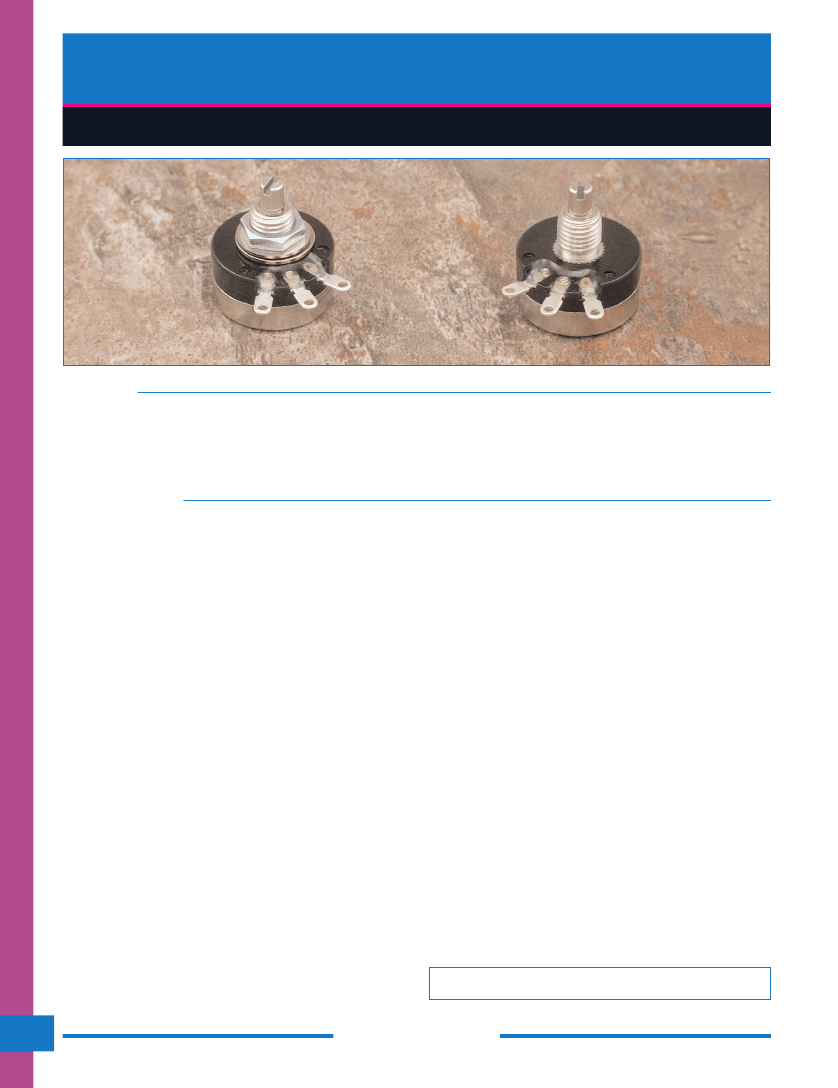

RVQ16YN
Series
TOCOS
PA N E L C O N T R O L S
®
Long Life 16mm Diameter, Single-Turn, Carbon Panel Controls
Features
Long life 16mm diameter, single-turn industrial panel controls
Carbon film element
100,000 cycle rotational life
Single unit, single shaft
Linear taper
Metal shaft and bushing
Suitable for automotive applications
3.2mm diameter metal shafts in slot, flat or round end styles
Wide total resistance range of 1kΩ to 500kΩ
Standard 10mm or 15mm shaft length
Panel mount style
Right angle ear-lug terminals
Specifications
Electrical
Standard Resistance Range
. . . . . . . . . . . . . 1kΩ to 500kΩ
Resistance Tolerance
. . . . . . . . . . . . . . . . .
10% standard
End Resistance
. . . . . . . . . . . . . . . . . . . . . . . . . . . 10Ω max.
Resistance Taper
. . . . . . . . . . . . . . . . . . . . . . . . . . B = linear
Independent Linearity
. . . . . . . . . . . . . . . . . . . .
Power Rating
. . . . . . . . . 0.1 watt at
4% max.
85 C
Peak Noise (C.R.V.)
. . . . . . . . . . . . . . . . . . . . . . . . 3% max.
40 C, 0 watt at
Maximum Input Voltage
. . . . . . . . 224VDC or power rating,
whichever is smaller
Insulation Resistance
. . . . . . . 100MΩ minimum at 500VDC
Dielectric Strength
. . . . . . . . . . . . . . . . . . 500VAC, 1 minute
Adjustment Travel
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Environmental
Temperature Range
. . . . . . . . . . . . . . . . . .
Temperature Characteristics
. . . . . . . . . . .
10 C to
85 C
80 C, 5 hours
∆T/R
)
12%
Temperature Cycle
. . . . . . . . . . . . . . . . . . . . 10 C , 85 C,
30 minutes each, 5 cycles
∆T/R
)
10%
Load Life
. . . . . . . . . . . . . . . . . .
40 C, 0.1 watt, 1,000 hours
∆T/R
)
15%
40 C, 90-95%RH,
0.1 watt, 500 hours
∆T/R
)
20%, 10%
Moisture and Load Life
. . . . . . . . . . . .
Vibration
. . . . . . . . .10-55Hz, 1.5mm amplitude, 3 directions
∆T/R
)
5%
Soldering Heat Resistance
. . . . . . . 350 C 5 C, 3 seconds
∆T/R
)
2%
Rotational Life
. . . . . . . . . . . . . .100,000 cycles without load
∆T/R
)
10%
∆T/R
= Total Resistance Change
Mechanical
Mechanical Travel
. . . . . . . . . . . . . . . . . . . . . . . . . 260
10
Shaft Torque
. . . . . . . . . . . . . . 50 gf
•
cm (0.693 oz
•
in) max.
Stop Strength
. . . . . . . . . . . . . . 3 kgf
•
cm (41.59 oz
•
in) min.
Shaft Strength (push)
. . . . . . . . . . . . . . . 50 N (5.1 kgf ) min.
Shaft Strength (tensile)
. . . . . . . . . . . . . . 50 N (5.1 kgf ) min.
Shaft End Play
. . . . . . . .
0.4
(shaft length/30) mm max.
Mounting Nut Torque
. . . . . . . 15 kgf
•
cm (0.208 oz
•
in) min.
Marking
. . . . . . . . . . . . . Model type, taper, resistance code,
shaft type, terminal identification, date code
Note: A long life panel control should only be used in a circuit
as a potentiometer (3-terminal voltage divider ).
92
1177 East Tower Road, Schaumburg, IL 60173
TOCOS
AMERICA, INC.
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
RVQ16YN Series

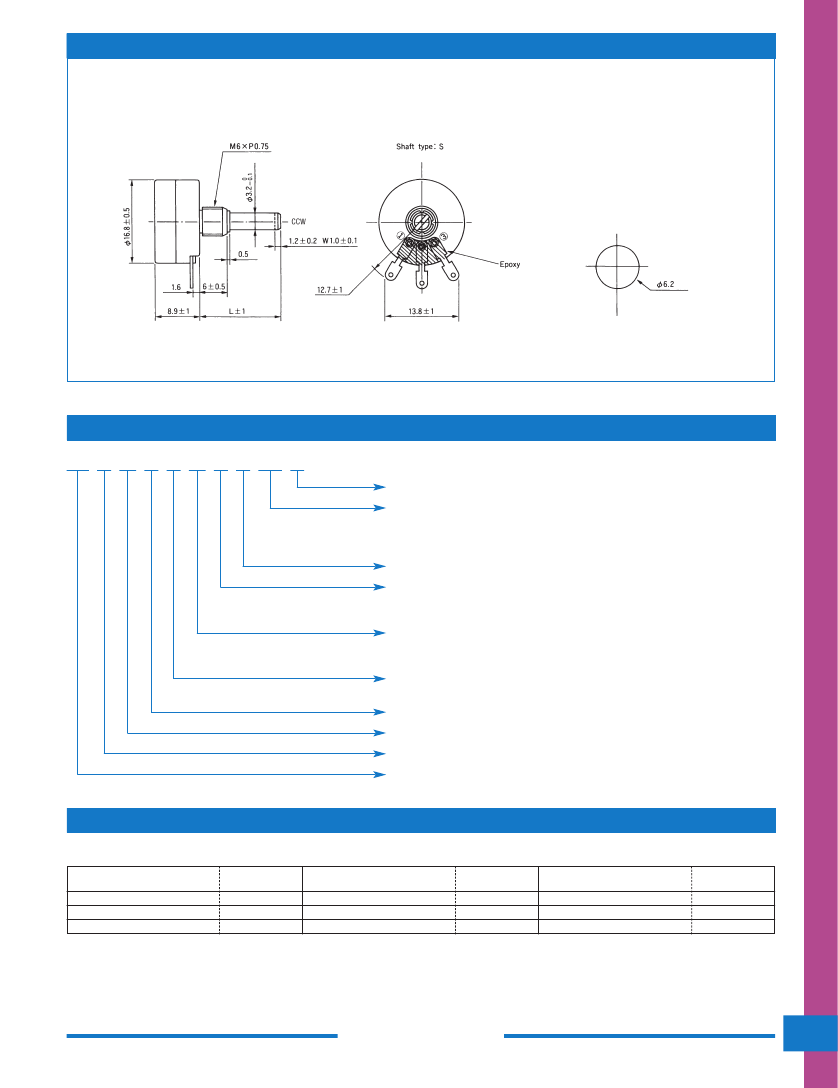

RVQ16YN
Panel Mount, Single Unit, Single Shaft
Right Angle Ear-Lug Terminals
Dimensions
Unit: mm
Recommended
Panel Mounting Hole
Part Numbering System
RV Q 16 Y N 15 S B 103 K
NOTE: FMS = From Mounting Surface
Resistance Tolerance: K
=
10% (standard).
Resistance Code:
Expressed in ohms. A three digit code where the first
two digits are significant figures, and the third digit indicates the number
of zeros that follow these figures (i.e., 100 = 10Ω; 101 = 100Ω; 102 = 1,000Ω;
103 = 10,000Ω; 104 = 100,000Ω ).
See table for standard resistance values.
Resistance Taper: B
= Linear.
Shaft End Style: S
= Slotted.
F
= Flatted.
R
= Round.
Standard Shaft Length: 10
= 10mm FMS.
15
= 15mm FMS.
Up to 30mm shaft length available (special order ).
Style: N
= Panel Mount, Single Unit, Single Shaft, Right Angle Ear-Lug
Terminals.
Operating Temperature Range: Y
=
Size: 16
= 16mm Diameter.
Rotational Life: Q
= Long Life, 100,000 cycles.
TOCOS Series Name: RV
= Carbon Film Element.
10 C to
85 C.
Standard Resistance Values and Part Numbering Codes
Standard Nominal Total Resistance Values and Part Numbering Codes
Resistance (
Ω
)
1,000
2,000
5,000
Code
102
202
502
Resistance (
Ω
)
10,000
20,000
50,000
Code
103
203
503
Resistance (
Ω
)
100,000
200,000
500,000
Code
104
204
504
Refer to Shaft End Styles Specifications and Hardware Specifications for details and availability.
For additional information, refer to Guidelines and Precautions for Using Panel Controls.
