UB15KKG01C-JF datasheet, PDF - EEWORLD Datasheet

UB15KKG01C-JF: DescriptionPushbutton Switch, SPDT, On-(on), Momentary, Solder Lug Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size931KB，6 Pages; ManufacturerNKK Switches; Environmental Compliance

Download Datasheet Parametric View All

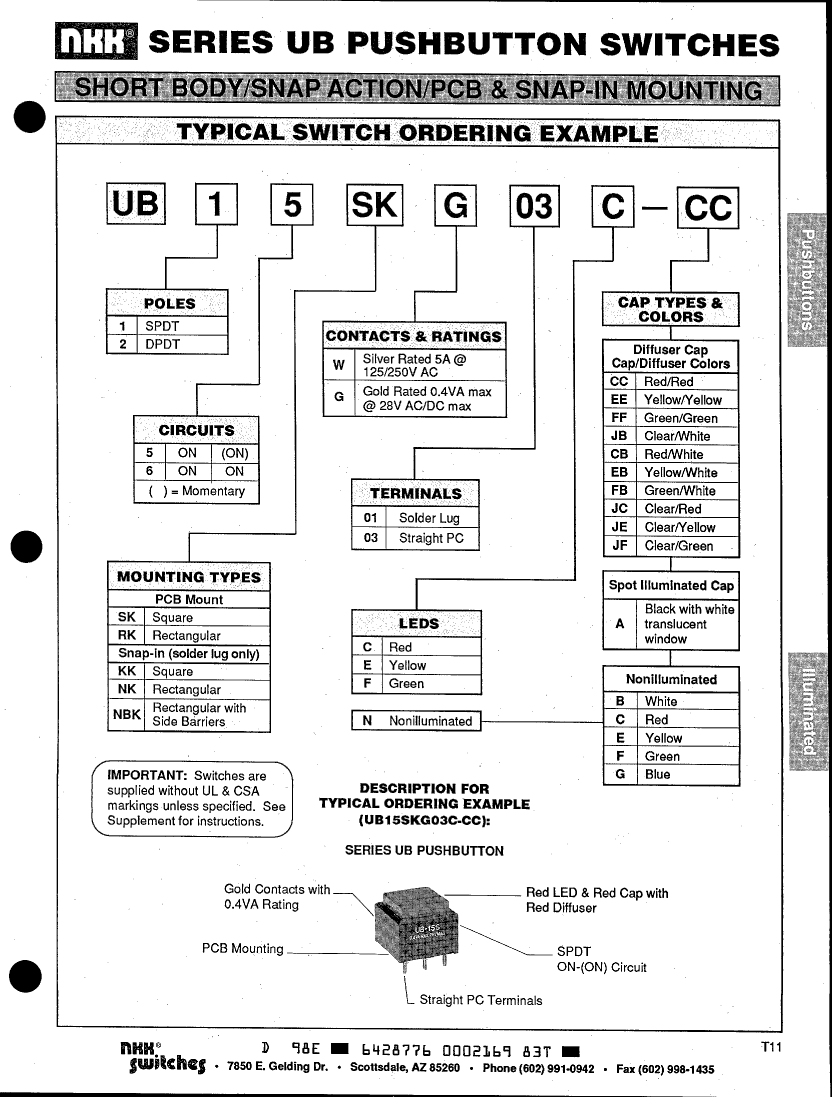

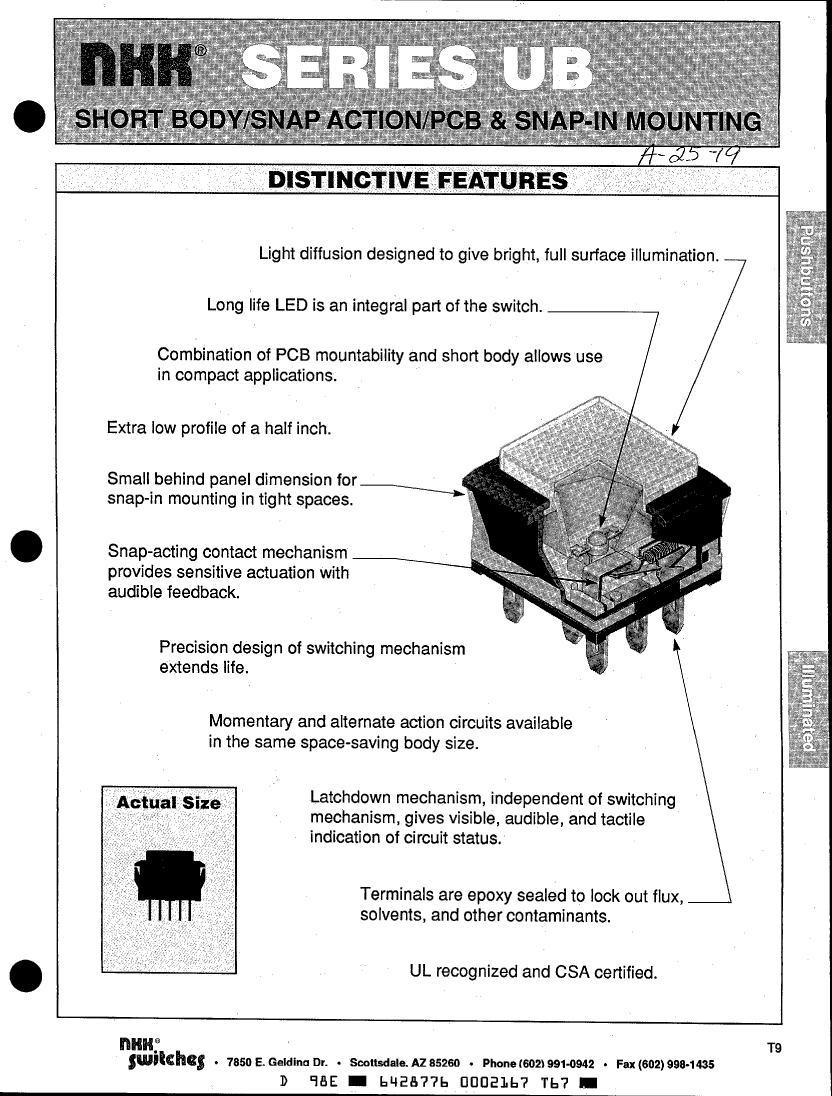

UB15KKG01C-JF Overview

Pushbutton Switch, SPDT, On-(on), Momentary, Solder Lug Terminal, Panel Mount

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle

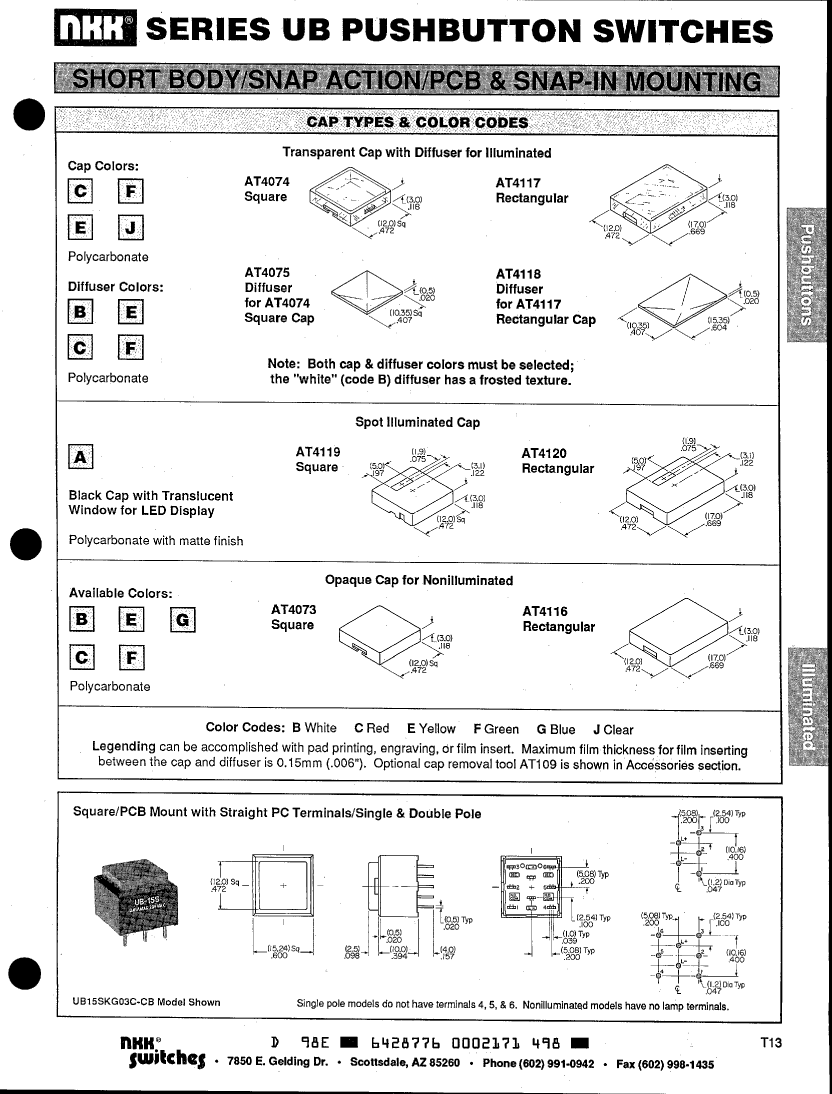

Actuator color	CLEAR-GREEN
Actuator length	0.098 inch
Actuator material	POLYCARBONATE
Actuator stroke	2.3114 mm
Actuator type	PUSHBUTTON
Other features	RED LED

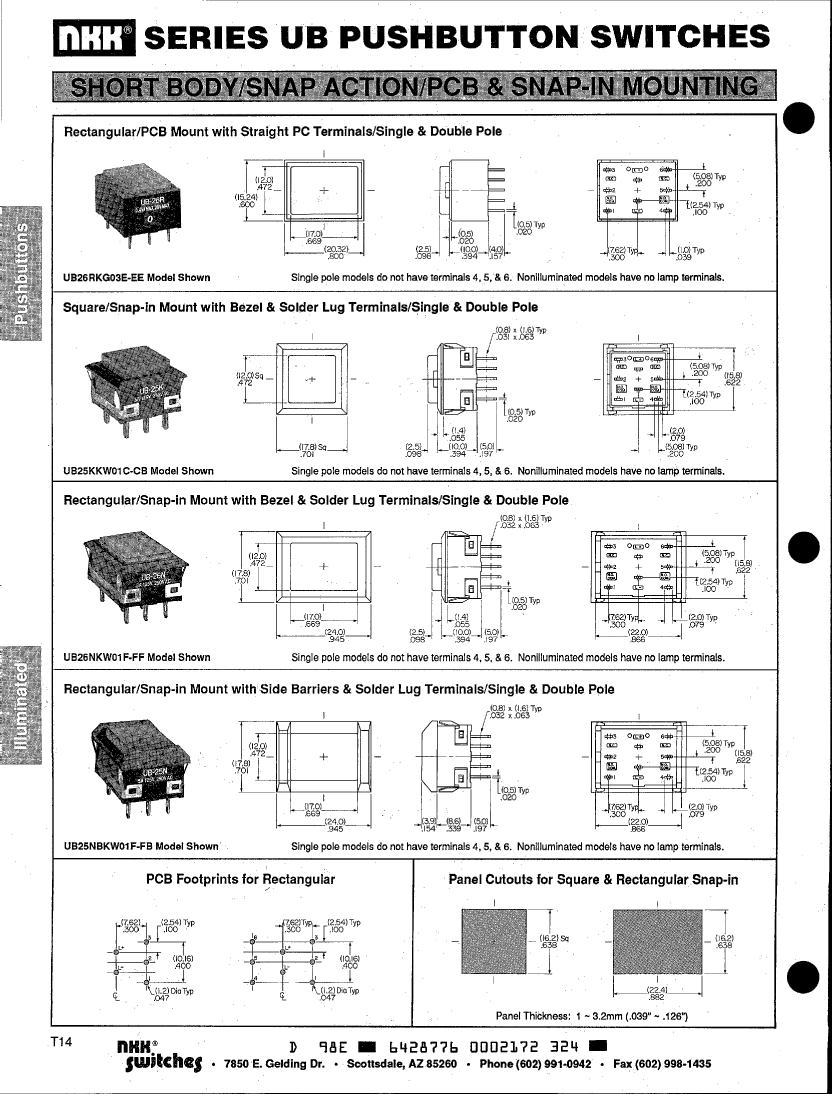

body width	15.7988 mm
body height	17.5006 mm
Body length or diameter	15.7988 mm

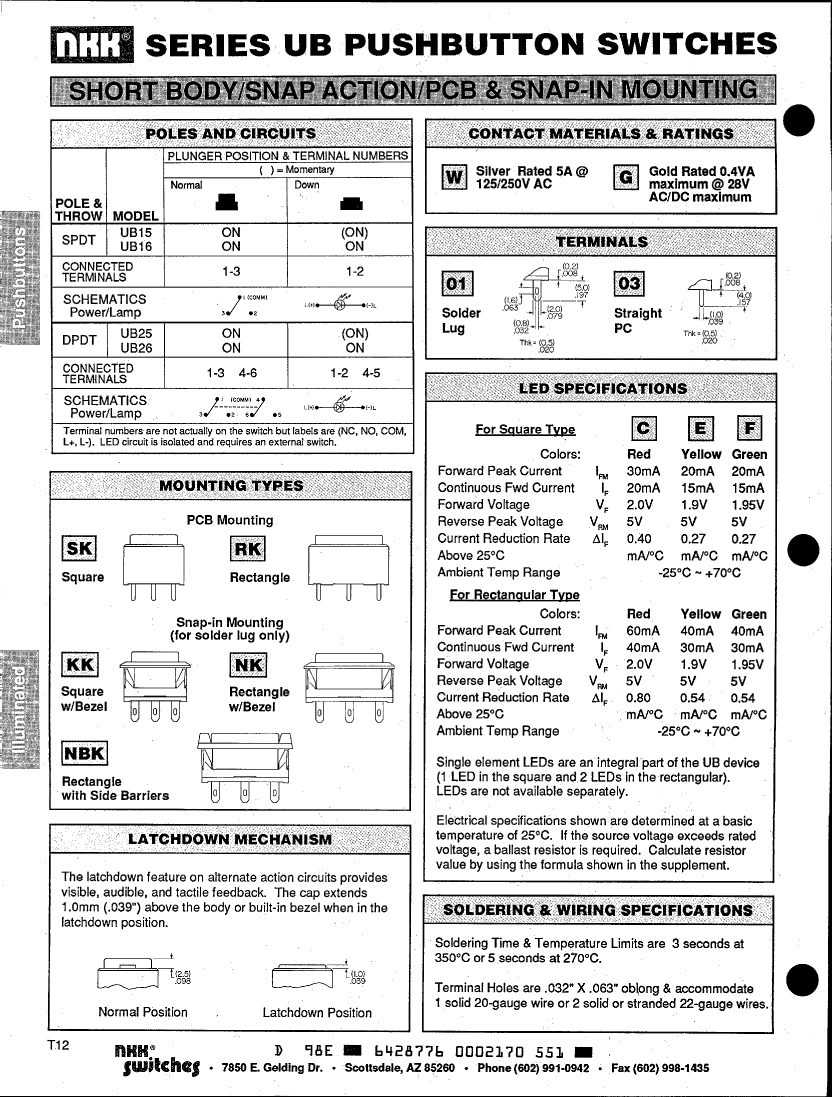

Center contact plating	GOLD OVER NICKEL
Contact (DC) maximum rated power R load	0.4VA@28VDC
Contact function	ON-(ON)
Contact resistance	0.1 mΩ
contact time	QUICK-MAKE/-BREAK
Dielectric withstand voltage	1500VAC V
Electrical life	200000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Shell material	GLASS FILLED REINFORCED NYLON
illumination	LED
Insulation resistance	200000000 Ω
insulator material	GLASS FILLED DIALLYL PHTHALATE
JESD-609 code	e4
Manufacturer's serial number	UB
Installation features	PANEL MOUNT
Maximum operating temperature	50 °C
Minimum operating temperature	-20 °C
seal	EPOXY
Solderability	WAVE
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au)
Terminal length	0.197 inch
Terminal material	BRASS
Termination type	SOLDER LUG
