UPTF2512-2W-N-2491UT datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> UPTF2512-2W-N-2491UT

UPTF2512-2W-N-2491UT: DescriptionFixed Resistor, Thin Film, 0.5W, 2490ohm, 150V, 0.01% +/-Tol, 10ppm/Cel, Surface Mount, 2512, CHIP; CategoryPassive components The resistor; File Size390KB，4 Pages; ManufacturerVENKEL LTD; Environmental Compliance

Download Datasheet Parametric View All

UPTF2512-2W-N-2491UT Overview

Fixed Resistor, Thin Film, 0.5W, 2490ohm, 150V, 0.01% +/-Tol, 10ppm/Cel, Surface Mount, 2512, CHIP

UPTF2512-2W-N-2491UT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ULTRA PRECISION
structure	Chip
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.55 mm
Package length	6.3 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	3.1 mm
method of packing	TR, EMBOSSED, 7 INCH
Rated power dissipation(P)	0.5 W
Rated temperature	70 °C
resistance	2490 Ω
Resistor type	FIXED RESISTOR
size code	2512
surface mount	YES
technology	THIN FILM
Temperature Coefficient	10 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	0.01%
Operating Voltage	150 V

Preview

Download Datasheet

View All

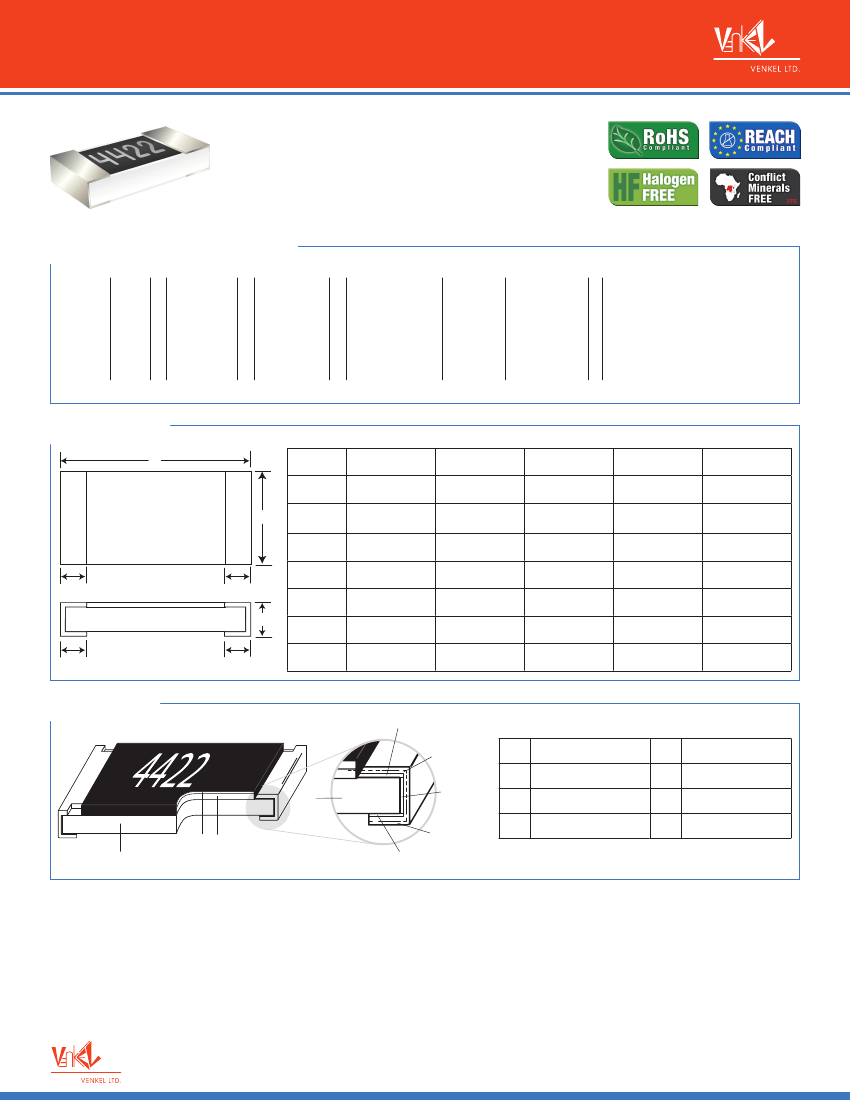

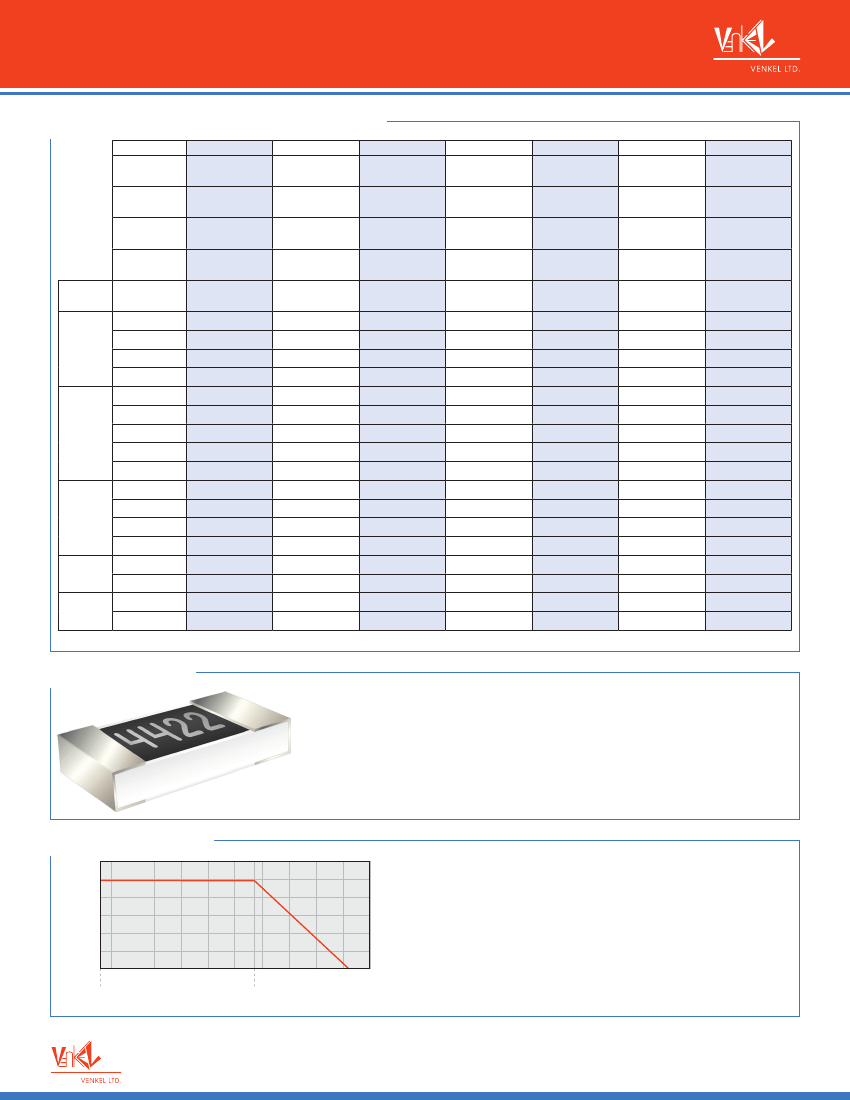

UPTF

ULTRA PRECISION THIN FILM RESISTORS

FEATURES:

• TCR as low as ±2ppm

• Excellent characteristics at higher frequencies

• Tolerance as low as ±0.01%

SERIES

PART NUMBER STRUCTURE

UPTF

Series

0805 -

Size

0402

0603

0805

1206

1210

2010

2512

10W

Power Rating

16W = 0.063W

10W = 0.10W

8W = 0.125W

5W = 0.20W

4W = 0.25W

2W = 0.50W

TCR

2 = ±2ppm/˚C

3 = ±3ppm/˚C

P = ±5ppm/˚C

N = ±10ppm/˚C

E = ±25ppm/˚C

1001

Resistance Code

1001 = 1kΩ

39R9 = 39.9Ω

49R9 = 49.9Ω

Tolerance

U = ±0.01%

A =±0.05%

B = ±0.1%

C = ±0.25%

D = ±0.50%

Packaging

T = Tape & Reel

☐

Optional Reel Identifier

Leave blank for standard quantity.

Add "-1K" if 1000 piece reel is required

Example P/N:

UPTF0805-10W-P-1001AT

Standard Termination is 100% matte Tin over Nickel.

DIMENSIONS

SIZE

(INCHES)

0402

0.040 ± 0.002

(1.0 ± 0.05)

0.063 ± 0.008

(1.6 ± 0.20)

0.079 ± 0.008

(2.0 ± 0.20)

0.126 ± 0.008

(3.2 ± 0.20)

0.126 ± 0.008

(3.2 ± 0.20)

0.197 ± 0.008

(5.0 ± 0.20)

0.248 ± 0.008

(6.30 ± 0.20)

0.020 ± 0.002

(0.5 ± 0.05)

0.031 ± 0.008

(0.8 ± 0.2)

0.050 ± 0.008

(1.25 ± 0.20)

0.063 ± 0.008

(1.6 ± 0.20)

0.098 ± 0.006

(2.50 ± 0.15)

0.098 ± 0.006

(2.50 ± 0.15)

0.122 ± 0.006

(3.10 ± 0.15)

0.014 ± 0.002

(0.35 ± 0.05)

0.017 ± 0.004

(0.45 ± 0.10)

0.021 ± 0.004

(0.55 ± 0.10)

0.021 ± 0.004

(0.55 ± 0.10)

0.021 ± 0.004

(0.55 ± 0.10)

0.021 ± 0.004

(0.55 ± 0.10)

0.021 ± 0.004

(0.55 ± 0.10)

Unit: inches (mm)

0.008 ± 0.004

(0.2 ± 0.10)

0.010 ± 0.006

(0.25 ± 0.15)

0.016 ± 0.008

(0.4 ± 0.20)

0.018 ± 0.008

(0.45 ± 0.20)

0.018 ± 0.008

(0.45 ± 0.20)

0.236 ± 0.012

(0.60 ± 0.30)

0.236 ± 0.012

(0.60 ± 0.30)

0.008 ± 0.004

(0.2 ± 0.10)

0.010 ± 0.006

(0.25 ± 0.15)

0.012 ± 0.008

(0.3 ± 0.20)

0.012 ± 0.008

(0.3 ± 0.20)

0.012 ± 0.008

(0.3 ± 0.20)

0.02 ± 0.010

(0.50 ± 0.25)

0.02 ± 0.010

(0.50 ± 0.25)

0603

0805

1206

1210

2010

2512

STRUCTURE

Ceramic Substrate

Backside Electrode

Top Electrode

Edge Electrode

Nickel Plating

Tin Plating

Resistive layer

Overcoat

Email:

sales@venkel.com

Phone:

512.794.0081

Toll Free:

800.950.8365

Web:

www.venkel.com

Rev: 07/2020-A
