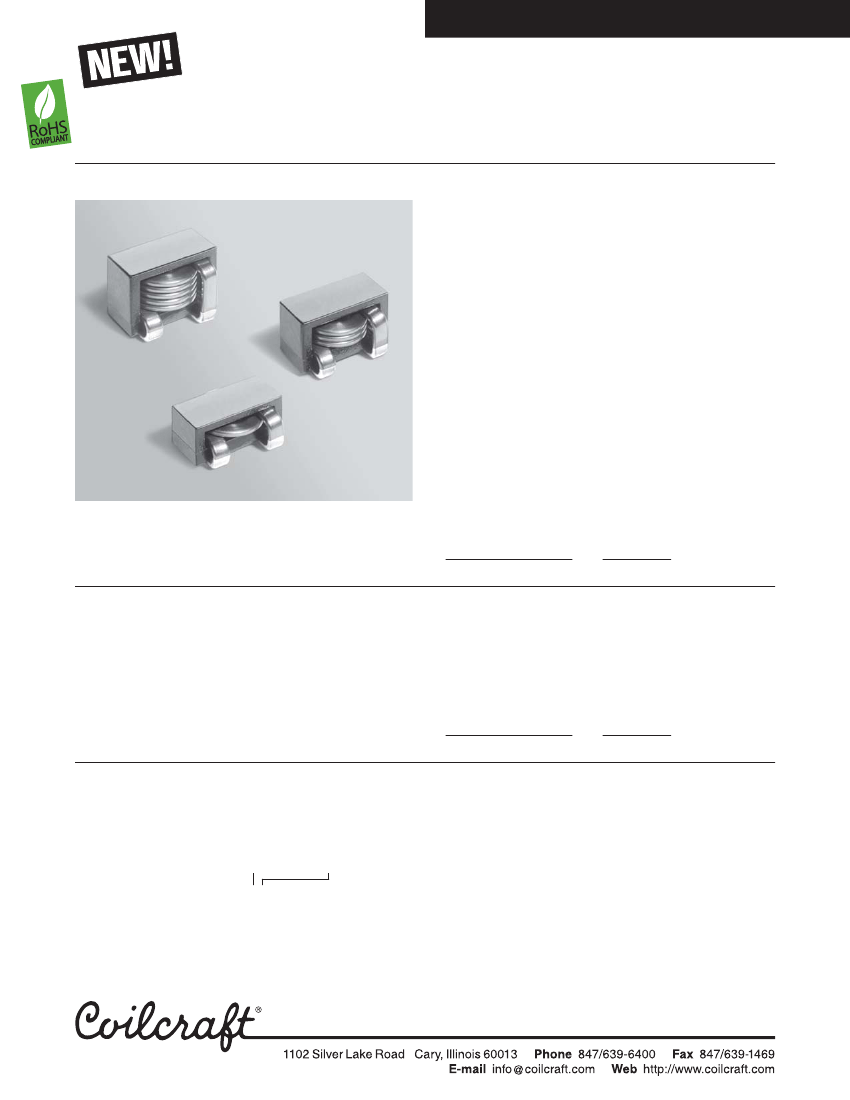

SMT Power Inductors – SER1400 Series
•
•
•
•
•
Designed for high current power supply applications
Flat wire windings provide exceptionally low DCR
Specially formed terminations provide small footprint
Isat
ratings as high as 85 A
Other inductance, DCR, height combinations are possible
Designer’s Kit C427
contains 3 each of all values
Core material
Ferrite
Terminations
RoHS compliant tin-silver over copper. Other
terminations available at additional cost.
Ambient temperature
–40°C to +125°C with
Irms
current, +125°C
to +165°C with derated current
Storage temperature
Component: –40°C to +125°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
PCB washing
Only pure water or alcohol recommended
High Isat for high Isat applications
Inductance
2
Part number
1
±20% (µH)
SER1412-301ME_
0.30
SER1412-501ME_
0.50
SER1412-681ME_
0.68
SER1412-102ME_
1.0
SER1412-152ME_
1.5
SER1412-202ME_
2.0
SER1412-362ME_
3.6
DCR typ
3
(mOhms)
1.30
1.30
1.30
1.30
1.30
1.30
1.30
DCR max
3
(mOhms)
1.43
1.43
1.43
1.43
1.43
1.43
1.43
SRF
typ
4
(MHz)
154
122
100
78
62
50
35
10%
drop
85.0
52.0
40.0
29.0
22.0
17.0
11.0
Isat
(A)
5
20%
drop
85.0
54.5
41.0
31.5
24.0
19.0
12.1
30%
drop
85.0
55.5
42.3
32.5
25.0
20.0
12.1
Irms
(A)
6
20°C
40°C
rise
rise
30
37
30
37
30
37
30
37
30
37
30
37
30
37
Height max
(inches / mm)
0.498 / 12,66
0.498 / 12,66
0.498 / 12,66
0.498 / 12,66
0.498 / 12,66
0.498 / 12,66
0.498 / 12,66
Low DCR for high Irms applications
Inductance
2
Part number
1
±20% (µH)
SER1408-301ME_
0.30
SER1408-501ME_
0.50
SER1408-681ME_
0.68
SER1408-102ME_
1.0
SER1410-152ME_
1.5
SER1410-202ME_
2.0
DCR
typ
3
(mOhms)
0.48
0.48
0.48
0.48
0.90
0.90
DCR
max
3
(mOhms)
0.55
0.55
0.55
0.55
0.99
0.99
SRF
typ
4
(MHz)
140
83
63
48
53
45
10%
drop
38.0
25.5
20.0
11.2
17.0
12.0
Isat
(A)
5
20%
drop
39.5
29.5
22.2
14.0
19.0
15.0
30%
drop
40.5
30.5
22.8
15.5
20.5
16.0
Irms
(A)
6
20°C
40°C
rise
rise
38
42
38
42
38
42
38
42
33
39
33
39
Height max
(inches / mm)
0.325 / 8,26
0.325 / 8,26
0.325 / 8,26
0.325 / 8,26
0.416 / 10,56
0.416 / 10,56
1. When ordering, please specify
termination
and
packaging
codes:
SER1410-202MED
Termination: E
= RoHS compliant tin-silver over copper.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape.
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter D instead.
2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP
4263B LCR meter or equivalent.
3. DCR measured on a Keithley 580 micro-ohmmeter or equivalent.
4. SRF measured using an Agilent/HP 8753D network analyzer and a
Coilcraft SMD-D test fixture.
5. DC current at which the inductance drops the specified amount from its
value without current.
6. Current that causes the specified temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Specifications subject to change without notice.
Please check our website for latest information.
Document 609-1
Revised 01/22/10
© Coilcraft, Inc. 2010

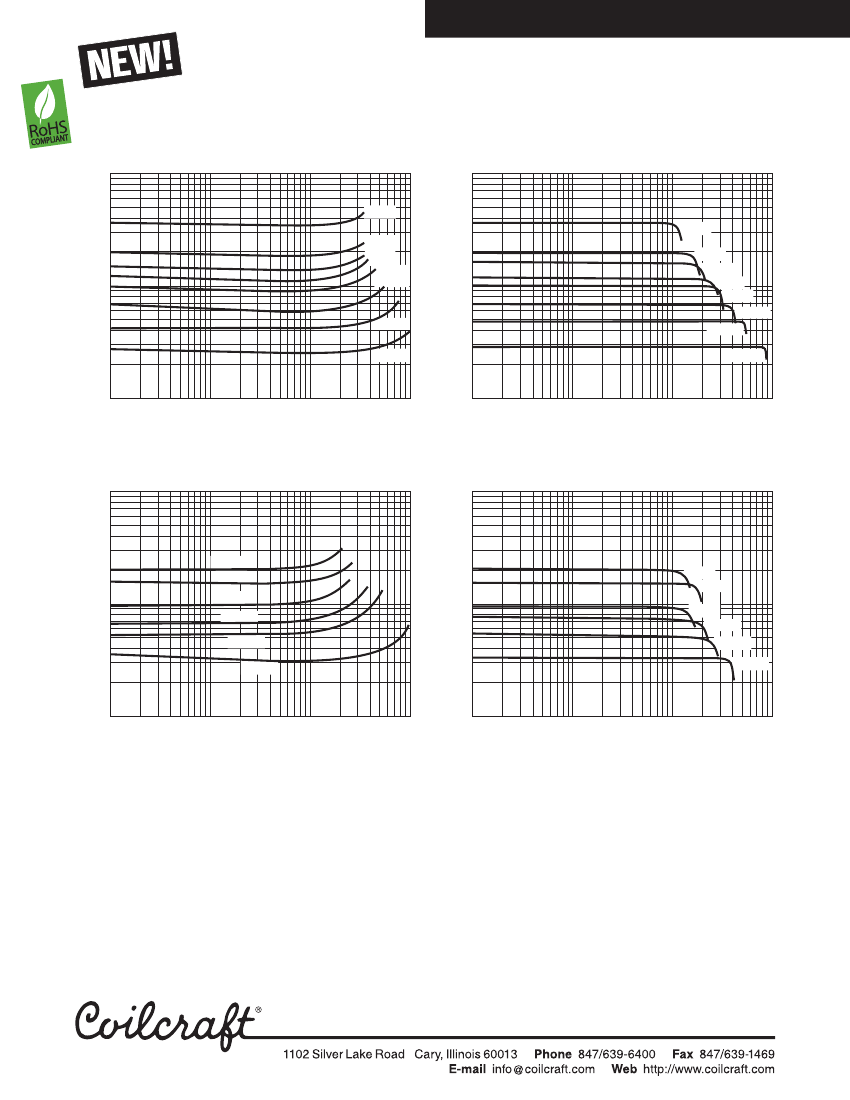

Document 609-2

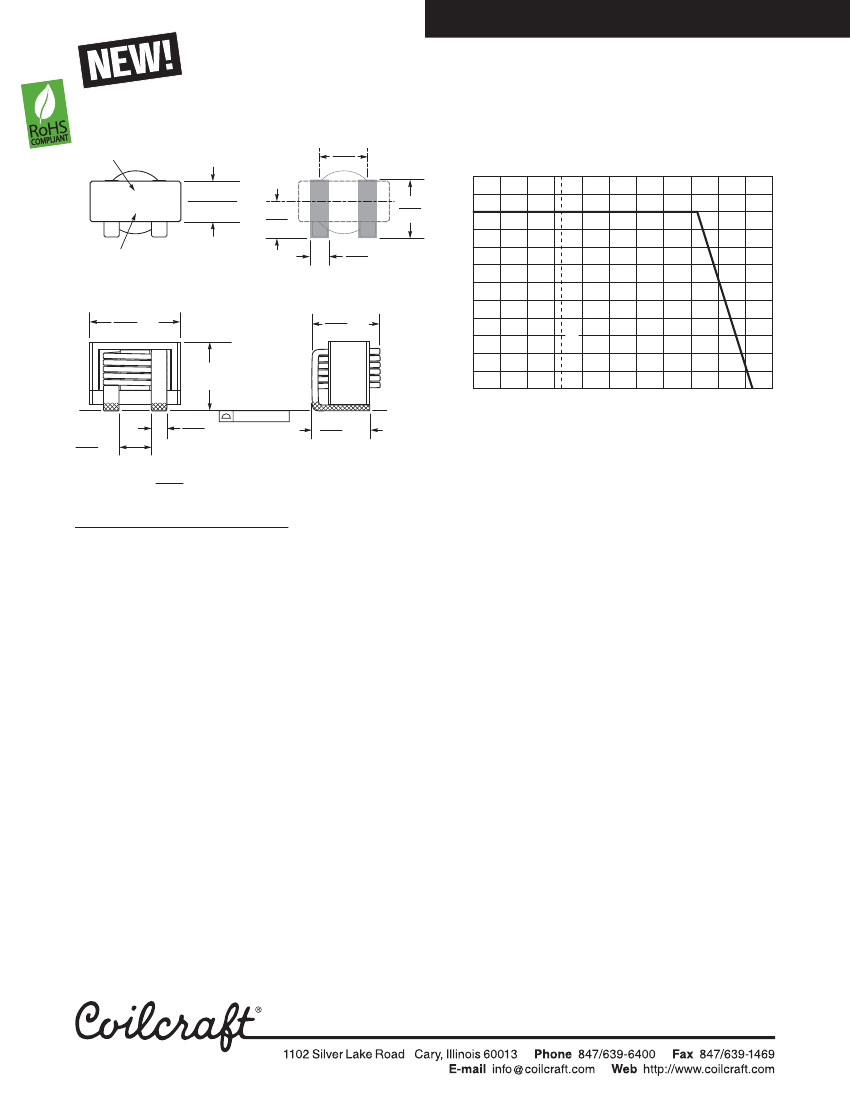

SMT Power Inductors - SER1400 Series
Part number
0.348
8,83
Irms Derating
120
0.355
9,02
SER14XX-XXX
CCI XXXX
0.271 ±0.01
6,88 ±0,256
Percent of rated
I
rms
C
L
0.221
5,60
0.130
3,30
110
100
90
80
70
60
50
40
30
20
25°C
Internal code
Recommended
Land Pattern
0.60 max
15,24
0.473
max
12,00
Height
(see table)
10
0
-40 -20
0
20
40
60
80
100
120
140
160 180
0.004/0,102
Ambient temperature (°C)
0.397
max
10,09
0.218
min
5,53
0.100
2,54
Dimensions are in
inches
mm
Weight
3.5 – 3.8 g
4.8 – 5.2 g
6.1 – 6.7 g
Series
SER1408
SER1410
SER1412
Height max
(inches/ mm)
0.325 / 8,26
0.416 / 10,56
0.498 / 12,66
Packaging
SER1408
350/13″ reel Plastic tape: 32 mm wide,
0.5 mm thick, 20 mm pocket spacing, 8.6 mm pocket depth
SER1410
300/13″ reel Plastic tape: 32 mm wide,
0.5 mm thick, 20 mm pocket spacing, 10.8 mm pocket depth
SER1412
250/13″ reel Plastic tape: 32 mm wide,
0.5 mm thick, 20 mm pocket spacing, 12.8 mm pocket depth
Specifications subject to change without notice.
Please check our website for latest information.
Document 609-2
Revised 01/22/10
© Coilcraft, Inc. 2010
