ECA1EXS330 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25V, 33uF, THROUGH HOLE MOUNT, RADIAL LEADED

ECA1EXS330 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	33 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.00825 mA
Manufacturer's serial number	NXS
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	59 mA
surface mount	NO
Delta tangent	0.14
Terminal shape	WIRE

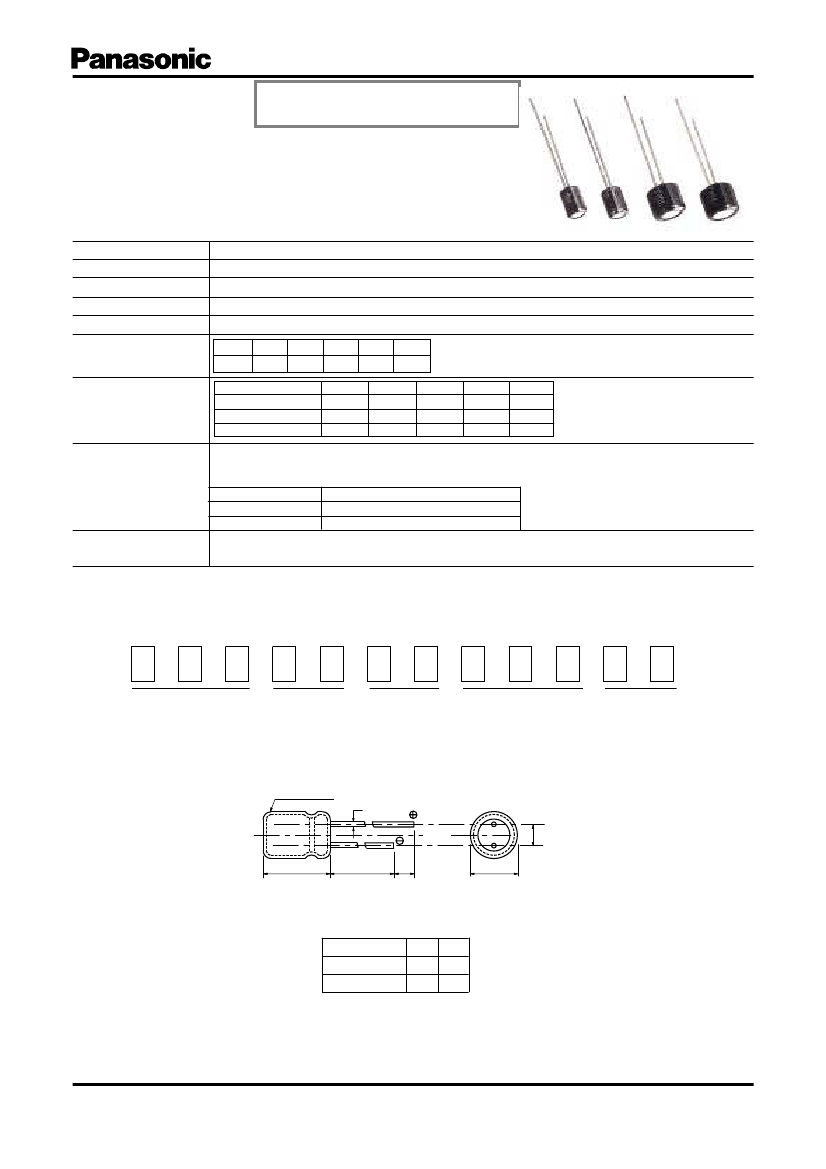

ECA1EXS330 Preview

Aluminum Electrolytic Capacitor/NXS

Radial lead type

Series:

NXS

Feature

Type :

Discontinued

Endurance :105°C 5000h

Specification

Operating temp. range

Rated W.V. range

Nominal cap. range

Capacitance tol.

DC leakage current

tan

-55 to + 105°C

10 to 50 V .DC

0.1 to 68 µ F

±20 % (120Hz/+20°C)

0.01 CV or 3 (µ A) 2 minutes (Whichever is the greater)

W.V. 10

25 35

tan

0.20 0.16 0.14 0.12 0.12

W.V

Z(-25°C) / Z(+20°C)

Z(-40°C) / Z(+20°C)

Z(-55°C) / Z(+20°C)

(max.)

(120Hz /+20°C)

Characteristics

at Low Temperature

(max.)

Endurance

After 5000 hours with DC voltage and specified ripple current value applied at +105±2°C (The

sum of DC and ripple peak voltage shall not exceed the rated working voltage ), the capacitor

shall meet the following limits.

Capacitance change

±20% of initial measured value

200% of initial specified value

tan

DC leakage current

initial specified value

Shelf life

After storage for 1000 hours at +105°C with no voltage applied and then being stabilized at +20°C,

capacitor shall meet the limits specified in “Endurance”.

Part Numbering System

W.V. code

Capacitance code

Suffix

Common code/shape

Series code

Dimensions

Vinyl sleeve

φd±

0.05

P± 0.5

(mm)

L+1 max

14 min

3 min

φD+0.5

max

Body Dia.

φD

Lead Dia.

φd

Lead space P

1.5

6.3

2.0

0.45 0.45

Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.

Whenever a doubt about safety arises from this product, please inform us immediately for technical consulation without fail.

Mar. 2005

– EE10 –

Aluminum Electrolytic Capacitor/NXS

Discontinued

Case size table

W.V.(V.DC)

Cap.(µF)

0.1

0.15

0.22

0.33

0.47

0.68

1.5

2.2

3.3

4.7

6.8

(0R1)

(R15)

(R22)

(R33)

(R47)

(R68)

(010)

(1R5)

(2R2)

(3R3)

(4R7)

(6R8)

(100)

(220)

(330)

(470)

(680)

10(1A)

16(1C)

25(1E)

35(1V)

50(1H)

4 x 5

6.3 x 5

φD

x L(mm)

→

6.3 x 5

x 5

→

6.3 x 5

x 5

→

6.3 x 5

x 5

→

6.3 x 5

Standard products table

W.V.

(V.DC)

Cap.

(µF)

Case size

Specification

tan

Length

Ripple current

Dia.

(120Hz/105°C) (120Hz/20°C)

(mm)

(mA)

6.3

1.1

2.3

3.5

0.20

0.16

0.14

0.12

Part No.

ECA1AXS680

ECA1CXS100

ECA1CXS470

ECA1EXS6R8

ECA1EXS330

ECA1VXS4R7

ECA1VXS220

ECA1HXS0R1

ECA1HXSR15

ECA1HXSR22

ECA1HXSR33

ECA1HXSR47

ECA1HXSR68

ECA1HXS010

ECA1HXS1R5

ECA1HXS2R2

ECA1HXS3R3

ECA1HXS4R7

ECA1HXS6R8

ECA1HXS100

6.8

4.7

0.1

0.15

0.22

0.33

0.47

0.68

1.5

2.2

3.3

4.7

6.8

Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.

Whenever a doubt about safety arises from this product, please inform us immediately for technical consulation without fail.

Mar. 2005

– EE11 –

Aluminum Electrolytic Capacitor

Application Guidelines

1. Circuit Design

E n s u r e t h a t operational and mounting conditions

follw the specified conditions detailed in the catalog

and specification sheets.

1.2 Operating Temperature and Life Expectancy

(1) Expected life is affected by operating temperature.

Generally, each 10°C reduction in temperature

will double the expected life. Use capacitors at

the lowest possible temperature below the

maximum guaranteed temperature.

(2) I f o p e ra t i n g c o n d i t i o n s ex c e e d t h e m a x i m u m

guaranteed limit, rapid eIectrical parameter

deterioration will occur, and irreversible damage

will result.

Check for maximum capacitor operating tempera-

tures including ambient temperature, inter nal

capacitor temperature rise caused by ripple current,

a n d t h e e f fe c t s o f r a d i a t e d h e a t f r o m p ow e r

transistors, IC?s or resistors.

Avoid placing components which could conduct

heat to the capacitor from the back side of the circuit

board.

(3)The formula for calculating expected Iife at lower

operating temperatures is as fllows;

= L

x 2

1.1 Operating Temperature and Frequency

E l e c t r o l y t i c c a p a c i t o r e l e c t r i c a l p a ra m e t e r s a r e

normally specified at 20°C temperature and 120Hz

frequency. These parameter s var y with changes in

t e m p e r a t u r e a n d f r e q u e n c y. C i r c u i t d e s i g n e r s

should take these changes into consideration.

(1) Effects of o p e ra t i n g t e m p e ra t u r e on electrical

parameters

a ) A t h i g h e r t e m p e ra t u r e s, l e a k a g e c u r r e n t a n d

c a p a c i t a n c e i n c r e a s e while equivalent series

resistance(ESR) decreases.

b)At l o w e r t e m p e r a t u r e s , l e a k a g e c u r r e n t a n d

c a p a c i t a n c e decrease while equivalent series

resistance(ESR) increases.

(2) Effects of fr e q u e n c y on e l e c t r i c a l p a r a m e t e r s

a)At higher frequencies, capacitance and

impedance decrease while tan

increases.

b)At lower frequencies, r ipple current generated

heat will ri s e d u e t o a n increase in equivalent

series resistance (ESR).

where,

: Guaranteed life (h) at temperature, T

: Expected life (h) at temperature,T

°C

: Maximum operating temperature (°C)

: Actual operating temperature, ambient

temperature + temperature rise due to

ripple currentheating(°C)

A quick eference capacitor guide for estimating

exected life is included for your reference.

Expected Life Estimate Quick Reference Guide

Capacitor Ambient Temperature

120

110

100

Failure rate curve

1. 85°C2000h

2.105°C1000h

3.105°C2000h

4.105°C5000h

Initial failure period

Random failure period

Wear failure period

Failure rate

Life Time

24h

(h)

2000

5000

10,000

20,000

50,000 100,000 200,000

4 5

operat-

Years

ion

Time

8h/d

Years

15 20

Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.

Whenever a doubt about safety arises from this product, please inform us immediately for technical consulation without fail.

Mar. 2005

–

EE16

–

Aluminum Electrolytic Capacitor

Typical failure modes and their factors

Faliure mode

Faliure mechanism (internal phenomenon)

Production factor

Application factor

Overvoltage applied

Vent operates

Increase in

internal pressure

•

Increase in inter-

•

nal temperature

•

Capacitance

reduction

•

tan

increase

•

Reduced cathode

foil capacitance

Reduced anode foil

capacitance

•

Excessive ripple current

•

Reverse voltage applied

•

Severe charging-discharging

AC voltage applied

•

Deterioration of

oxide film

Leakage current

increase

•

Electrolyte evapora-

tion

•

Short circuit

Insulation breakdown of film

or electrolytic paper

•

Burr(s) on foil leads

Metal particles

in capacitor

Stress applied to leads

•

Insufficient

electrolyte

Used for a long period of time

Defect of oxide film

•

Used for a high temperature

Leads improperly

connected

Leads improperly connected

•

Mechanical stress

Open

•

Use of Halogenated solvent

Corrosion

Infiltration of Cl

•

Use of adhesive

Use of coating material

Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.

Whenever a doubt about safety arises from this product, please inform us immediately for technical consulation without fail.

Mar. 2005

–

EE17

–

Aluminum Electrolytic Capacitor

1.3 Common Application Conditions to Avoid

The following misapplication load conditions will

cause rapid deter ioration to capacitor electr ical

p a r a m e t e r s. l n a d d i t i o n , ra p i d h e a t i n g a n d g a s

generation within the capacitor can occur causing

the pressure relief vent to operate and resuItant

leakage of electrolyte. Under extreme conditions,

explosion and fire could result. Leakinq electrolyte

is combustible and electrically conductive.

The vinyl sleeve of the capacitor can be damaged

i f s o l d e r p a s s e s t h r o u g h a l e a d h o l e for

subsequently processed parts. Special care when

locating hole positions in proximity to capacitors is

recommended.

(3) Circuit Board Hole Spacing

The circuit board holes spacing should match the

capacitor lead wire spacing within the specified

tolerances. Incorrect spacing can cause excessive

lead wire stress during the insertion process. This

may resuIt in premature capacitor failure due to

short or open circuit, increased leakage current,

or electrolyte leakage.

(1) Reverse Voltaqe

DC capacitors have polarity. Verify correct polarity

before inser tion. For circuits with changing or

uncertain polarity,use DC bipolar capacitors. DC

bipolar capacitors are not suitable for use in AC

circuits.

(4)Land/Pad Pattern

The circuit board land/pad pattern size for chip

capacitors is specified in the following table.

(2) Charqe/Discharqe Applications

Standard capacitors are not suitable for use in

repeating charge/discharge applications. For

charqe/discharqe applications consult us and advise

actual conditions.

[ Table of Board Land Size vs. Capacitor Size ]

(3) Overvoltage

Do not appIy voltaqes exceeding the maximum

specified rated voltages. Voltage up to the surge

voltage rating are acceptable for short periods of

time. Ensure that the sum of the DC voltage and

the superimposed AC ripple vo l t a g e does not

exceed the rated voltage.

Board land part

(mm)

1.5

1.6

2.0

(4) Ripple Current

Do not apply ripple currents exceeding the maximum

specified value. For high ripple current applications,

use a capacitor designed for high rippIe currents

or contact us with your requirements.

Ensure that allowable ripple currents superimposed

on low DC bias voltages do not cause reverse voltage

conditions.

Size

A(φ3)

B(φ4)

C(φ5)

D(φ6.3)

E(φ8 x 6.2L)

F(φ8 x 10.2L)

G(φ10 x 10.2L)

0.6

1.0

1.5

1.8

2.2

3.1

4.6

2.2

2.5.

2.8

3.2

4.0

4.1

1.4 Using Two or More Capacitors in Series

or Parallel

(1) Capacitors Connected in Parallel

The circuit resistance can closely approximate the

ser ies resistance of the capacitor causing an

imbalance of ripple current loads w i t h in the

capacitors. Careful design of wiring methods can

minimize the possibility of excessive ripple currents

applied to a capacitor.

Among others, when the size a is wide , back fillet can

not be made, decreasing fitting strength.

Decide considering mounting condition, solderability

and fitting strength, etc. based on the design

standards of your company.

(2) Capacitors Connected in Series

Normal DC leakage current differences among

capacitors can cause voltage imbalances. The use

of voltage divider shunt resistors with consideration

to leakage currents, can prevent capacitor voltage

imbaIances.

1.5 Capacitor Mounting Considerations

(1) DoubIe - Sided Circuit Boards

Avoid wiring Pattern runs which pass between

the mounted capacitor and the circuit board. When

dipping into a solder bath, excess solder may collect

u n d e r t h e c a p a c i t o r by c a p i l l a r y a c t i o n a n d

shortcircuit the anode and cathode terminals.

(2) Circuit Board Hole Positioning

Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.

Whenever a doubt about safety arises from this product, please inform us immediately for technical consulation without fail.

Mar. 2005

–

EE18

–

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Circuit diagram using a single probe to test cable breaks

Three-way power supply mutually backup and automatic switching circuit

LCD backlight power supply circuit

Pascal driver small subwoofer

Building corridor lights automatically turn off with delay

I can do whatever I want in my spare time. . . .: [p=30, 2, left] My spare time is mainly two hours before work and two hours after get off work. During these times, I like to do a lot of things, mainly depending on my mood, such as: watching tutoria...; zhaojun_xf Talking

Has anyone used the DS2784 fuel gauge chip?: My system platform is PXA270+WINCE5.0. Now I want to use DS2784 to read the power. This DS2784 uses 1 wire bus. I have never used it before. How can I use it to read the power? Has anyone used it befo...; 老乐 Embedded System

Terasic DE2I-150 Hello PCIex (Part 2): After playing with SDRAM FLASH VGA SD card running lights with FPGA, some people must be confused about what FPGA can do and how to learn the next step. High-speed interface is a threshold of FPGA. In...; CMika FPGA/CPLD

Upper Page and Lower Page: Reprinted from [url=http://mp.weixin.qq.Solving different problems according to the different characteristics of Lower page and Upper page will bring excellent results in actual applications, such as ...; 白丁 FPGA/CPLD

【Book Collection】Design, production, debugging and maintenance of integrated switching power supplies: ...; wzt Power technology

There is a problem with setting fonts under MDK: There is a problem with setting fonts under MDKDownload (51.9 KB) 15 minutes agoAfter setting it to Kaiti, the font of the c file is not Kaiti.Download (38.16 KB) 13 minutes agoIt can be said that it ...; tpcore stm32/stm8

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components
