6424.0250.30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 6424.0250.30

6424.0250.30: DescriptionMains Power Connector, ROHS COMPLIANT; CategoryThe connector The connector; File Size577KB，6 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

6424.0250.30 Overview

Mains Power Connector, ROHS COMPLIANT

6424.0250.30 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	MAINS POWER CONNECTOR

Preview

Download Datasheet

View All

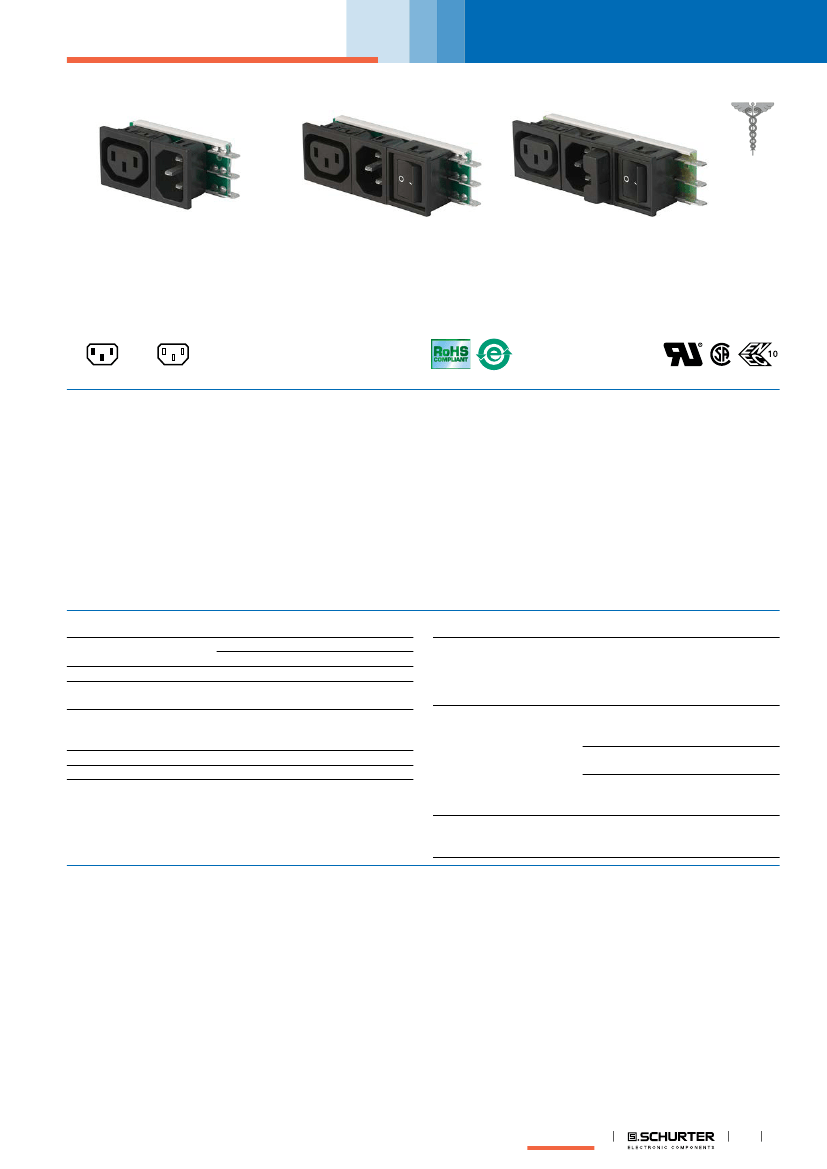

Power entry modules without line filter

www.schurter.com/PG05

IEC Appliance Inlet C14 with modular extended Components

Felcom 64

Plug removal necessary for fuse

replacement

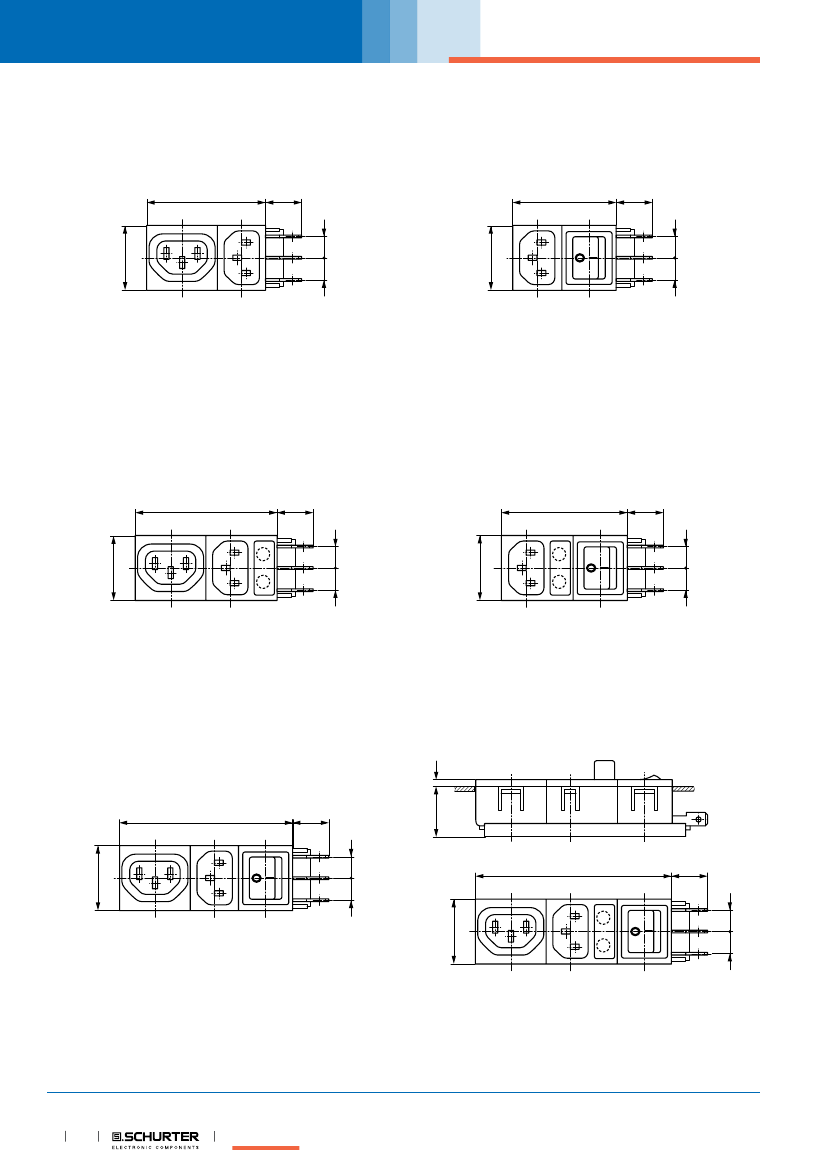

6421.005X.XX

Appliance inlet

Appliance outlet

6431.005X.XX

Appliance inlet

Switch

Appliance outlet

6432.0X5X.XX

Appliance inlet

Fuseholder

Switch

Appliance outlet

C14

70° C

Description

- Panel Mount:

Snap-in version, from front side

- 2 - 5 Functions:

Appliance Inlet, Protection class I, Outlet, Line Switch 2-pole, Fusehol-

der for fuse-links 5 x 20 mm 1- or 2-pole, Solder terminals 3.5 x 0.8

mm or quick connect terminals 6.3 x 0.8 mm

Characteristics

Modular component selection

Individual components soldered on a printed circuit board

Plug removal necessary for fuse-link replacement

Fully insulated from the rear

Suitable for use in equipment according to IEC/UL 60950

Other versions on request

References

Weblinks

Approvals

- Line switch with other rocker marking

Alternative: version with line filter

Felcom 54

pdf-datasheet, html-datasheet, General Product Information, Approvals,

CE declaration of conformity, RoHS, CHINA-RoHS, REACH, Mating

Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-Stock-

Check, CAD-Drawings, Accessories, Detailed request for product

VDE Certificate Number: 40028094

ENEC File Number: 101307

UL File Number: E103791, E96454

CSA File Number: 38456

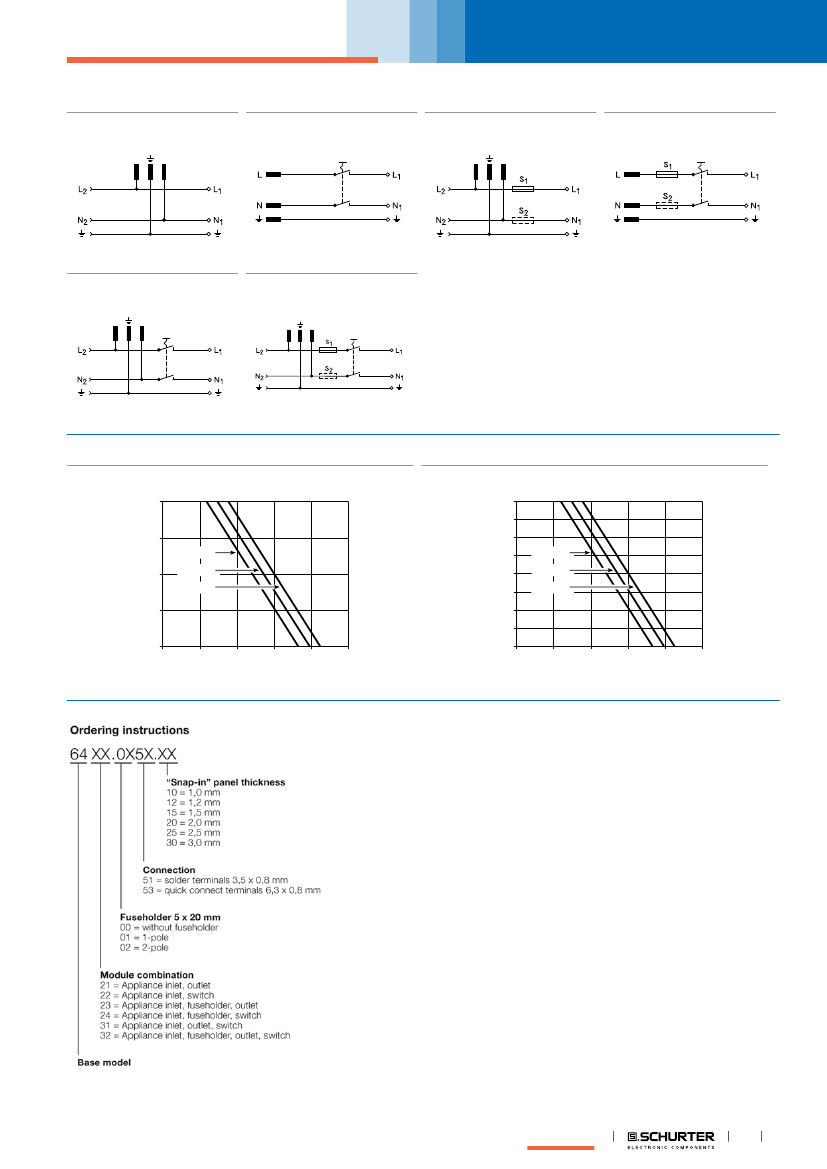

Technical Data

Ratings IEC

Ratings UL/CSA

Allowable Operation Temp.

Protection Class

Terminal

10 A / 250 VAC; 50 Hz

10 A / 125/250 VAC; 60 Hz

-25 °C to 70 °C

Suitable for appliances with protection

class I acc. to IEC 61140

Solder terminals 3.5 x 0.8 mm or quick

connect terminals 6.3 x 0.8 mm , tin-

plated

Snap-in: 1/1.2/1.5/2/2.5/3 mm

Thermoplastic, black, UL 94V-0

Appliance Inlet / Appliance

Outlet

C14 acc. to IEC 60320

and F acc. to IEC 60320,

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class I

1 or 2 pole, Shocksafe category PC2

acc. to IEC 60127-6,

for fuse-links 5 x 20 mm

5 x 20: 2 W (1 pole)/ 1.6 W (2-pole) per

pole

Admissible power acceptance at higher

ambient temperature see derating cur-

ves

Rocker switch 2-pole, non-illuminated,

IEC 61058-1

Technical Details

Fuseholder

Panel Thickness s

Material: Housing

Rated Power Acceptance @

Ta 23 °C

Power Acceptance @ Ta >

23°C

Line Switch

Connectors

6424.0250.30 Related Products

	6424.0250.30	6455.0051.15
Description	Mains Power Connector, ROHS COMPLIANT	Mains Power Connector, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
Connector type	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR
