IRFBC40AS, SiHFBC40AS
www.vishay.com
Vishay Siliconix
Power MOSFET
PRODUCT SUMMARY
V
DS
(V)
R
DS(on)
()
Q
g
max. (nC)
Q
gs
(nC)
Q
gd
(nC)
Configuration
V
GS
= 10 V
42
10
20
Single
D
FEATURES
600
1.2
• Low gate charge Q
g
results in simple drive
requirement
• Improved gate, avalanche and dynamic dV/dt
ruggedness
• Fully characterized capacitance and avalanche
voltage and current
• Effective C
oss
specified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details.
Available
Available
D
2
PAK (TO-263)
G
G D
S
S
N-Channel MOSFET
APPLICATIONS
• Switch mode power supply (SMPS)
• Uninterruptible power supply
• High speed power switching
TYPICAL SMPS TOPOLOGIES
• Single transistor forward
ORDERING INFORMATION
Package
Lead (Pb)-free and Halogen-free
Lead (Pb)-free
Note
a. See device orientation.
D
2
PAK (TO-263)
SiHFBC40AS-GE3
IRFBC40ASPbF
SiHFBC40AS-E3
D
2
PAK (TO-263)
SiHFBC40ASTRL-GE3
a
IRFBC40ASTRLPbF
a
SiHFBC40ASTL-E3
a
D
2
PAK (TO-263)
SiHFBC40ASTRR-GE3
a
IRFBC40ASTRRPbF
a
SiHFBC40ASTR-E3
a
ABSOLUTE MAXIMUM RATINGS
(T
C
= 25 °C, unless otherwise noted)
PARAMETER
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
e
Pulsed Drain Current
a, e
Linear Derating Factor
Single Pulse Avalanche Energy
Repetitive Avalanche Current
a
Repetitive Avalanche Energy
Maximum Power Dissipation
Peak Diode Recovery dV/dt
c, e
Operating Junction and Storage Temperature Range
Soldering Recommendations (Peak temperature)
d
for 10 s
Notes
a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11).
b. Starting T
J
= 25 °C, L = 29.6 mH, R
g
= 25
,
I
AS
= 6.2 A (see fig. 12).
c. I
SD
6.2 A, dI/dt
88 A/μs, V
DD
V
DS
, T
J
150 °C.
d. 1.6 mm from case.
e. Uses IRFBC40A, SiHFBC40A data and test conditions.
S16-0763-Rev. D, 02-May-16
Document Number: 91113
1
For technical questions, contact:
hvm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
a
b
SYMBOL
V
DS
V
GS
V
GS
at 10 V
T
C
= 25 °C
T
C
= 100 °C
I
D
I
DM
E
AS
I
AR
E
AR
T
C
= 25 °C
P
D
dV/dt
T
J
, T
stg
LIMIT
600
± 30
6.2
3.9
25
1.0
570
6.2
13
125
6.0
-55 to +150
300
UNIT
V
A
W/°C
mJ
A
mJ
W
V/ns
°C
IRFBC40AS, SiHFBC40AS
www.vishay.com
Vishay Siliconix
THERMAL RESISTANCE RATINGS
PARAMETER
Maximum Junction-to-Ambient
Maximum Junction-to-Case (Drain)
SYMBOL
R
thJA
R
thJC
TYP.
-
-
MAX.
40
1.0
UNIT
°C/W
SPECIFICATIONS
(T
J
= 25 °C, unless otherwise noted)
PARAMETER
Static
Drain-Source Breakdown Voltage
V
DS
Temperature Coefficient
Gate-Source Threshold Voltage
Gate-Source Leakage
Zero Gate Voltage Drain Current
Drain-Source On-State Resistance
Forward Transconductance
Dynamic
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Output Capacitance
Output Capacitance Effective
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Gate Input Resistance
Drain-Source Body Diode Characteristics
Continuous Source-Drain Diode Current
Pulsed Diode Forward Current
Body Diode Voltage
Body Diode Reverse Recovery Time
Body Diode Reverse Recovery Charge
Forward Turn-On Time
a
SYMBOL
V
DS
V
DS
/T
J
V
GS(th)
I
GSS
I
DSS
R
DS(on)
g
fs
C
iss
C
oss
C
rss
C
oss
C
oss
eff.
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
R
g
TEST CONDITIONS
V
GS
= 0 V, I
D
= 250 μA
Reference to 25 °C, I
D
= 1 mA
d
V
DS
= V
GS
, I
D
= 250 μA
V
GS
= ± 30 V
V
DS
= 600 V, V
GS
= 0 V
V
DS
= 480 V, V
GS
= 0 V, T
J
= 125 °C
V
GS
= 10 V
I
D
= 3.7 A
b
V
DS
= 50 V, I
D
= 3.7 A
MIN.
600
-
2.0
-
-
-
-
3.4
-
-
-
-
-
-
-
TYP.
-
0.66
-
-
-
-
-
-
1036
136
7.0
1487
36
48
-
-
-
13
23
31
18
-
MAX.
-
-
4.0
± 100
25
250
1.2
-
-
-
-
-
-
-
42
10
20
-
-
-
-
3.9
UNIT
V
V/°C
V
nA
μA
S
V
GS
= 0 V,
V
DS
= 25 V,
f = 1.0 MHz, see fig. 5
V
DS
= 1.0 V, f = 1.0 MHz
V
GS
= 0 V
V
DS
= 480 V, f = 1.0 MHz
V
DS
= 0 V to 480
V
c
pF
V
GS
= 10 V
I
D
= 6.2 A, V
DS
= 480 V,
see fig. 6 and 13
b
-
-
-
nC
V
DD
= 300 V, I
D
= 6.2 A,
R
g
= 9.1
,
R
D
= 47
see fig. 10
b
f = 1 MHz, open drain
MOSFET symbol
showing the
integral reverse
p - n junction diode
-
-
-
0.6
ns
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
D
-
-
-
-
-
-
-
-
431
1.8
6.2
A
25
1.5
647
2.8
V
ns
μC
G
S
T
J
= 25 °C, I
S
= 6.2 A, V
GS
= 0 V
b
T
J
= 25 °C, I
F
= 6.2 A, dI/dt = 100 A/μs
b
Intrinsic turn-on time is negligible (turn-on is dominated by L
S
and L
D
)
Notes
a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11).
b. Pulse width
300 μs; duty cycle
2 %.
c. C
OSS
eff. is a fixed capacitance that gives the same charging time as C
oss
while V
DS
is rising from 0 % to 80 % V
DS
.
d. Uses IRHFBC40A, SiHFBC40A data and test conditions.
S16-0763-Rev. D, 02-May-16
Document Number: 91113
2
For technical questions, contact:
hvm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
IRFBC40AS, SiHFBC40AS
www.vishay.com
TYPICAL CHARACTERISTICS
(25 °C, unless otherwise noted)
Vishay Siliconix

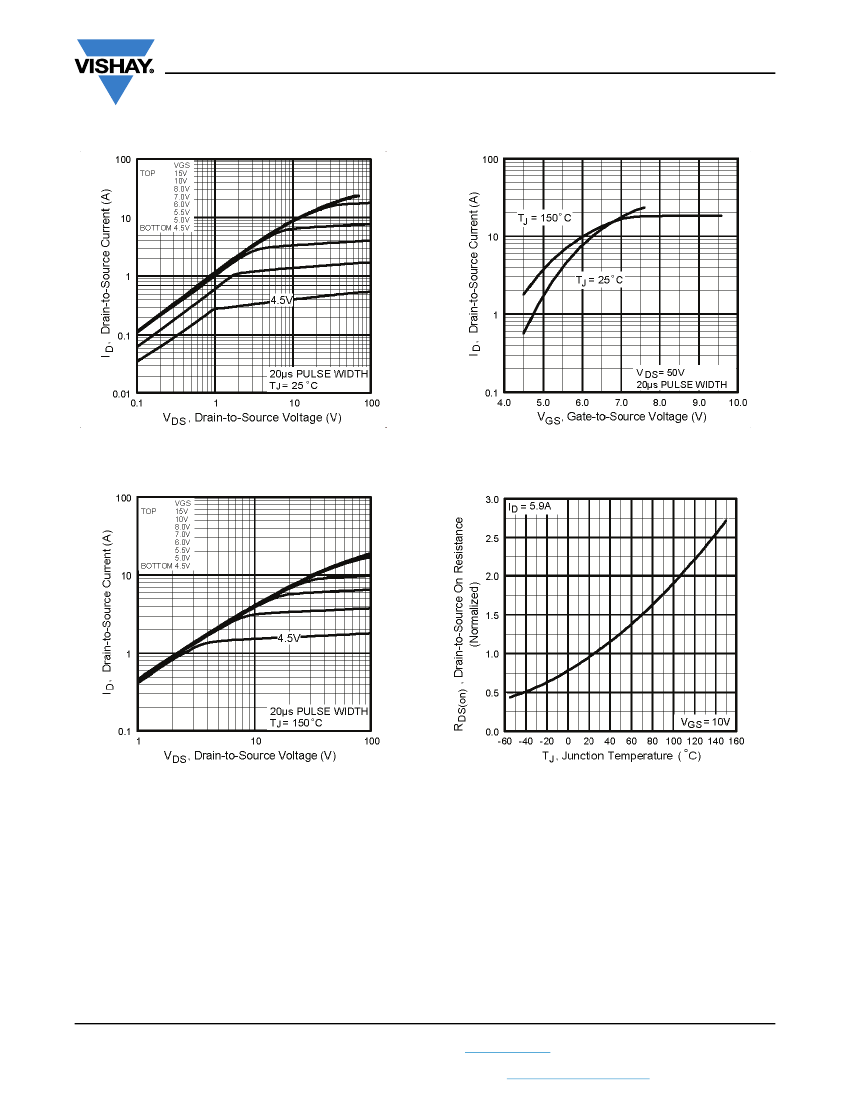

Fig. 1 - Typical Output Characteristics
Fig. 3 - Typical Transfer Characteristics
Fig. 2 - Typical Output Characteristics
Fig. 4 - Normalized On-Resistance vs. Temperature
S16-0763-Rev. D, 02-May-16
Document Number: 91113
3
For technical questions, contact:
hvm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
IRFBC40AS, SiHFBC40AS
www.vishay.com
Vishay Siliconix

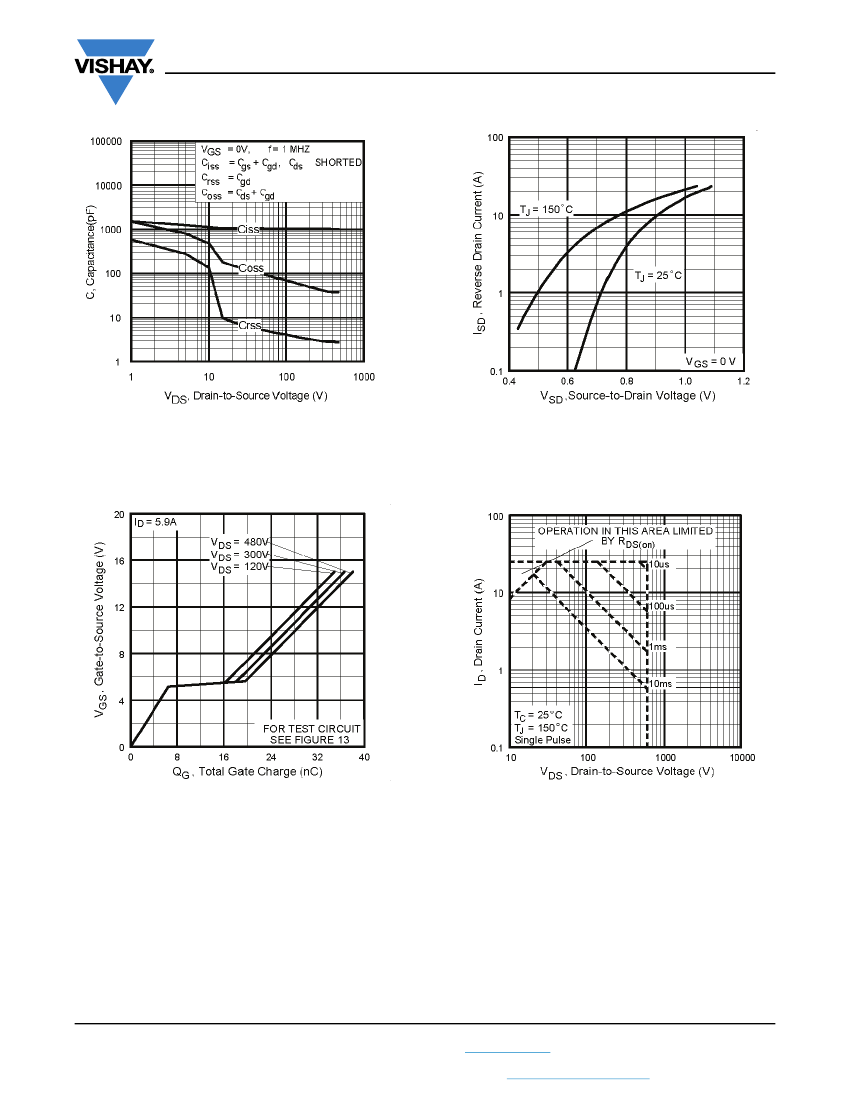

Fig. 5 - Typical Capacitance vs. Drain-to-Source Voltage
Fig. 7 - Typical Source-Drain Diode Forward Voltage
Fig. 6 - Typical Gate Charge vs. Gate-to-Source Voltage
Fig. 8 - Maximum Safe Operating Area
S16-0763-Rev. D, 02-May-16
Document Number: 91113
4
For technical questions, contact:
hvm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
IRFBC40AS, SiHFBC40AS
www.vishay.com
Vishay Siliconix
R
D
V
DS
V
GS
R
g
D.U.T.
+
-
V
DD
10 V
Pulse width
≤
1 µs
Duty factor
≤
0.1 %
Fig. 10a - Switching Time Test Circuit
V
DS
90 %
10 %
V
GS
t
d(on)
t
r
t
d(off)
t
f

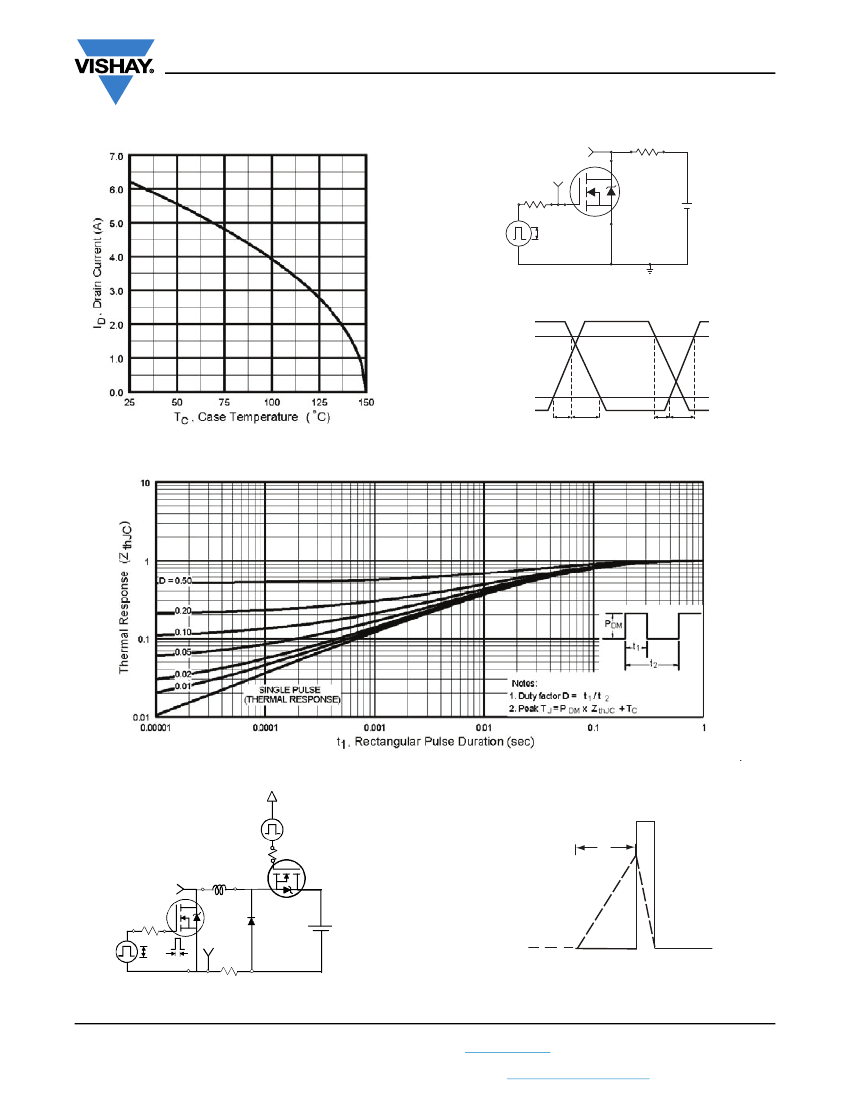

Fig. 9 - Maximum Drain Current vs. Case Temperature
Fig. 10b - Switching Time Waveforms
Fig. 11 - Maximum Effective Transient Thermal Impedance, Junction-to-Case
15 V
V
DS
t
p
V
DS
L
Driver
R
g
20 V
t
p
D.U.T
I
AS
0.01
Ω
+
A
- V
DD
I
AS
Fig. 12a - Unclamped Inductive Test Circuit
Fig. 12b - Unclamped Inductive Waveforms
S16-0763-Rev. D, 02-May-16
Document Number: 91113
5
For technical questions, contact:
hvm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
