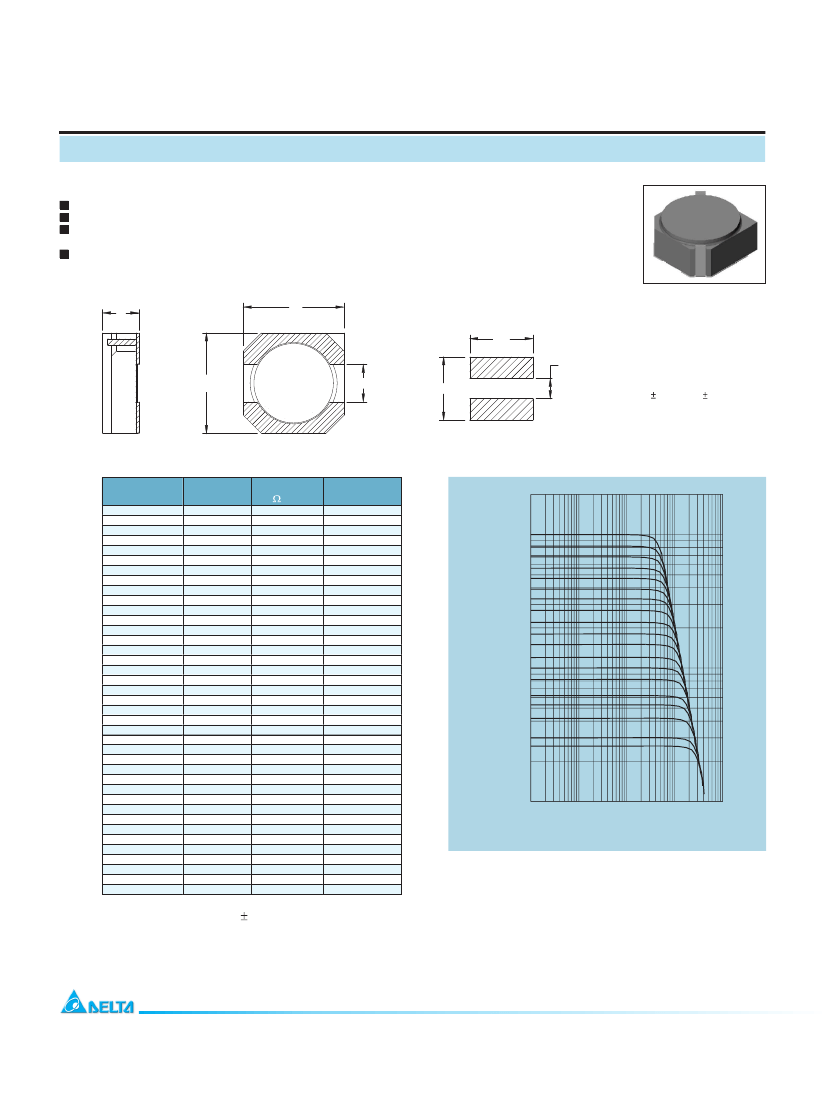

SMT Power Inductor

SIL630 Type

Features

RoHS compliant.

Magnetically shielded.

Ideal for power source circuits, DC-DC converter, DC-AC inverters

inductor application.

In addition to the standard versions shown here, customized inductors

are available to meet your exact requirements.

Mechanical Dimension:

RECOMMENDED PAD PA

TTERNS

6.3

1.5

6.3

UNIT:mm/inch

A = 6.0 / 0.236 Max.

B = 6.0 / 0.236 Max.

C = 3.0 / 0.118 Max.

D = 2.0 0.1 / 0.079 0.004

Electrical Characteristics:

25 C: 100KHz, 0.1V

PART NO.

SIL630 - 1R2

SIL630 - 1R5

SIL630A - 1R5

SIL630 - 2R2

SIL630A - 2R2

SIL630B - 2R2

SIL630 - 2R6

SIL630 - 3R0

SIL630B - 3R0

SIL630 - 3R3

SIL630 - 4R2

SIL630C - 4R2

SIL630 - 4R7

SIL630B - 4R7

SIL630A - 4R7

SIL630 - 5R3

SIL630 - 6R2

SIL630B - 6R8

SIL630B - 7R6

SIL630 - 8R2

SIL630A - 8R2

SIL630 - 100

SIL630A - 100

SIL630B - 100

SIL630 - 120

SIL630 - 150

SIL630B - 150

SIL630 - 180

SIL630 - 220

SIL630B - 220

SIL630 - 270

SIL630 - 330

SIL630 - 390

SIL630 - 470

SIL630 - 560

SIL630 - 680

SIL630 - 820

SIL630 - 101

SIL630 - 471

(uH)

1.2

1.5

2.2

2.6

3.0

3.3

4.2

4.7

5.3

6.2

6.8

7.6

8.2

10.0

12.0

15.0

18.0

22.0

27.0

33.0

39.0

47.0

56.0

68.0

82.0

100.0

470.0

DCR

( ) MAX

0.013

0.014

0.016

0.018

0.022

0.240

0.018

0.024

0.028

0.026

0.031

0.048

0.037

0.044

0.045

0.038

0.045

0.057

0.067

0.053

0.060

0.065

0.070

0.082

0.076

0.103

0.130

0.110

0.122

0.176

0.175

0.189

0.212

0.260

0.305

0.355

0.463

0.520

3.600

Irated

(Adc)

3.50

3.40

3.50

2.60

3.00

3.50

2.60

2.40

3.30

2.40

2.20

2.50

2.05

2.70

2.20

1.90

1.80

2.20

2.00

1.60

1.30

1.50

1.80

1.20

1.10

1.50

1.00

0.90

1.20

0.85

0.75

0.70

0.62

0.58

0.52

0.42

0.19

100.00

INDUCTANCE (uH)

101

820

680

560

470

390

330

270

220

180

150

120

100

8R2

6R2

5R3

4R2

3R0

2R6

10.00

1.00

0.00

0.01

0.10

CURRENT (A)

1.00

10.00

1. Tolerance of inductance : 30%.

2. Irated is the DC current which cause the inductance drop less than 35% of its nominal inductance without current

and the surface temperature of the part increase less than 45

3. Operating temperature: -20

C to 105

C (including self-temperature rise).

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com
