Series LED Street Light
for roadway and area illumination
Patent Pending
StreetSense
™
LED Street Light
Features and Benefits

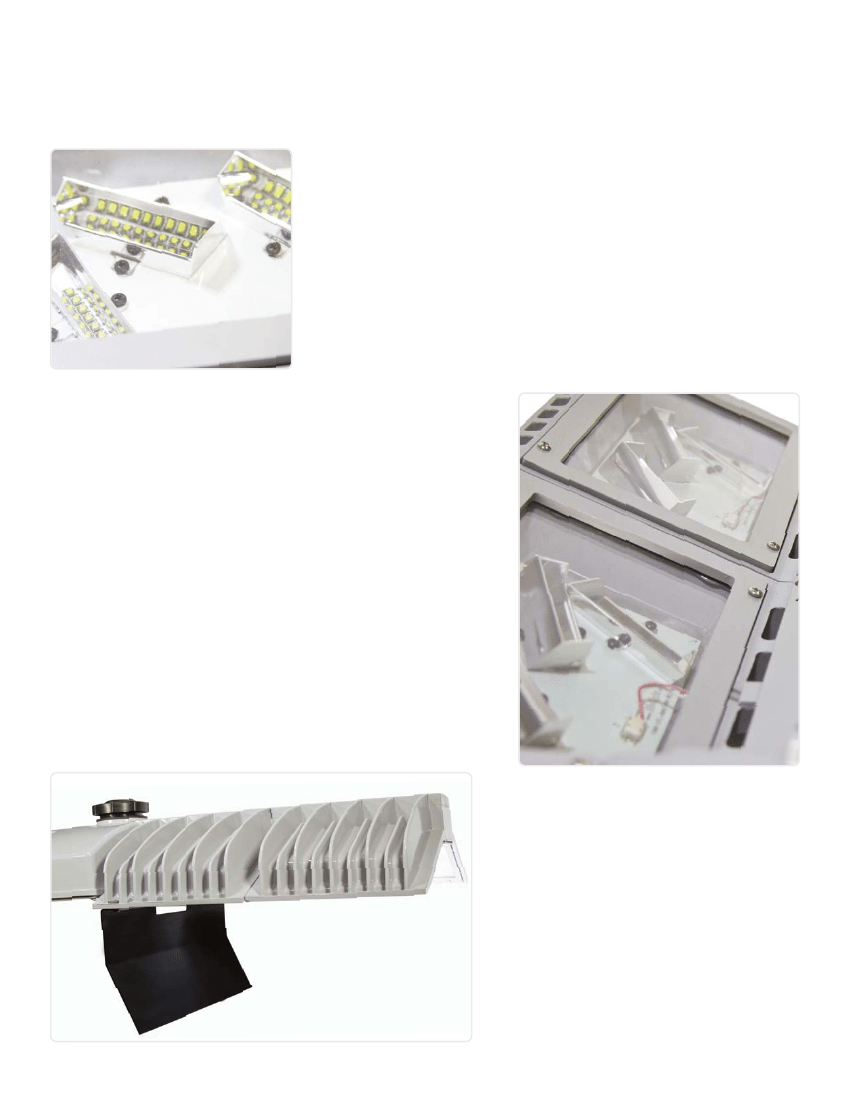

Patented Optics
Exclusive precision optics and unique angled mechanical design for precise light that provides minimal light while providing uniform illumination
•
Uniform light distribution while delivering sharp cut-off, zero up-light
•
Reflectors are precision manufactured via injection molding and coated
with a highly specular optical coating via vacuum-metalization
•
Precision engineered reflectors and LEDs are coupled to metal clad
printed circuit board. Light engine is sealed in an optically optimized
premium glass lens
•
Dedicated IP66 optical cavities for LED arrays maximizes the efficacy
and control of distribution from each light engine module
•
Optical light engines are optimally aimed to maximize light collection
and directional distribution onto the application area
•
High brightness output LEDs deliver exceptional fixture efficacy (up to
92 lm/W) in a choice of three superior quality color temperatures; Cool
(5000K ± 300), Neutral (4300K ± 300), Warm (3300K ± 300) with a
minimum CRI of 70
•
Scotopic to photopic (S/P ratio) of LED is 1:1.6 for 4000K
•
Lens also available in UV and abrasion resistant
polycarbonate clear and frosted lens
•
No UV or IR emissions
•
Optional house-side shield is available to
further reduce back-side light trespass in
residential areas
•
Anti-reflective coating on the house-side
shield prevents the introduction of
unwanted glair to the roadway
2
www.dialight.com
StreetSense
™
LED Street Light
Features and Benefits
Innovative Design
Designed for new construction and easily retrofits with existing HID fixtures.
•
High grade aluminum alloy A360 construction for superior
strength and durability
•

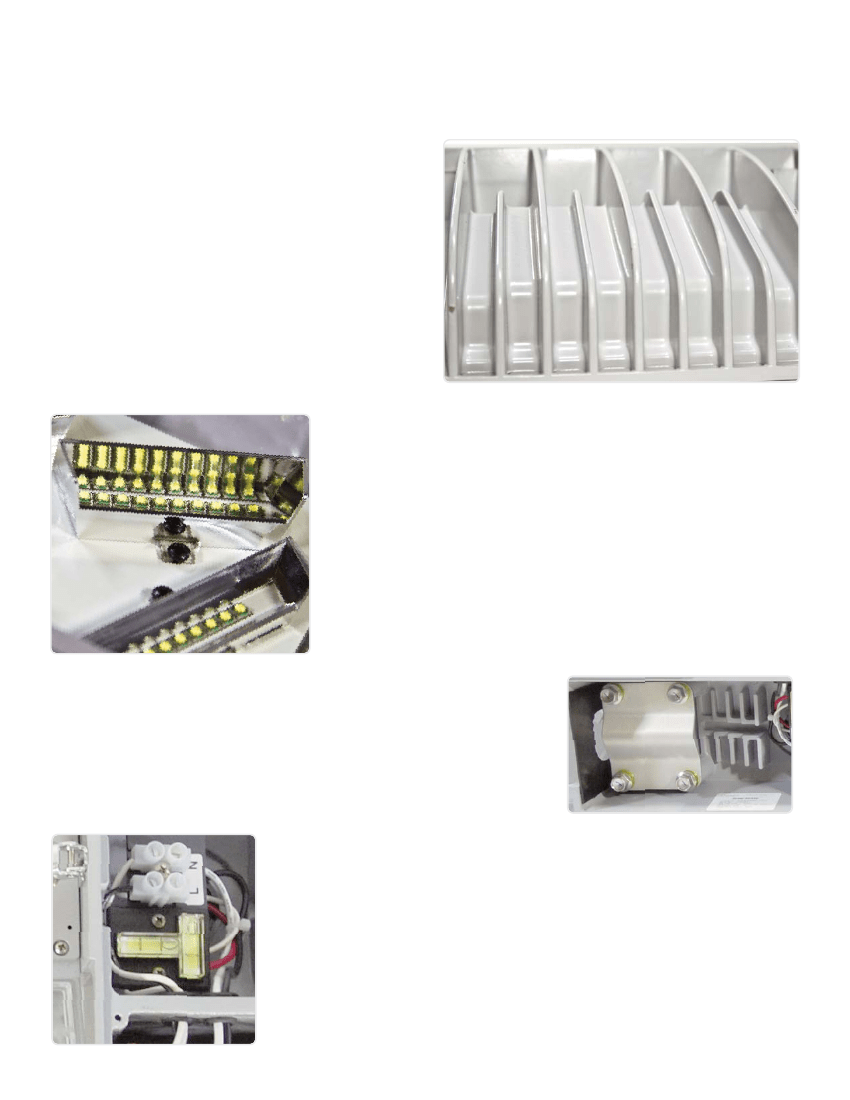

In contrast with horizontal or planer heat sinking systems,
the deep troughs between heat sink fins are wide and
angled to achieve a self-cleaning design and prevent
debris build-up
•
Exclusive physical design gives rise to an exceptional passive
thermal management system
•
Vent openings in light engine casting paired with fins are
optimized for increased air flow velocity and thermal
plume assureing a minimum operating temperature of the
LEDs and driver
•
Metal clad PCBs used in light engine are secured directly to the cast
aluminum housing for superior thermal transfer and low in-situ temperature
(board level temperature)
•
Thermal overload protection circuitry prevent internal temperatures from
reaching high levels thereby increasing long term reliability and allowing
operation up to 74°C
•
Rugged cast aluminum housing is subjected to a multistage (cleaning
and sealing) per process AAMA 2604 and top coated with a super
durable, polyester powder coated finish that is available in 5 standard colors
•
Finish is resistant to blistering, excessive fading or corrosion during warranty
period
•
Rugged heavy gauge, 4 bolt, aluminum clamp with stainless steel hardware
secures fixture to pole arm
•
Adjustable pole mount connection can accommodate a 2” IP (2.375” OD)
pipe with provision for adjustment of ± 5° at 2.5° increments
•
Unique hinged polycarbonate bottom cover provides tool-less access to terminal
blocks and pole arm via a single trigger-latch for quick and easy luminaire
mounting
•
Terminal block sized to allow for wire gauges from #14 AWG to #6 AWG and
is accessible from under side of fixture
•
Salt spray tested for corrosion - 3,000 hours per ASTM B117-97
•
Withstands shock & vibration to Caltrans 611 levels – 3.0G peak-to-peak, 2 million
cycles
•
Stainless steel, SAE, captive hardware
•
Large, easy to read two axis bubble level allow installer to quickly and efficiently
level fixture during installation
www.dialight.com
3
StreetSense
™
LED Street Light
Features and Benefits
Electrical
Ruggedized driver design and thermal management system ensure maximum energy efficiency and reliability
•
Dialight’s custom LED drivers are constant current sources well suited for the
load and the particular lighting application
•
Field replaceable, primary fused, output isolated drivers are fully potted and
encased in an aluminum extrusion for EMI noise immunity and thermal
protection
•
Offering high efficiency and power factor with ultra low THD, the LED
drivers incorporate overload and no load protection circuitry
•
Universal inputs 100-277V AC, 50/60Hz and 347-480V AC, 50/60Hz
•
LED Driver MTBF per Telcordia SR-332 – 5,10,040 hrs at 13.8C (average yearly
temperature of five major cities)
•

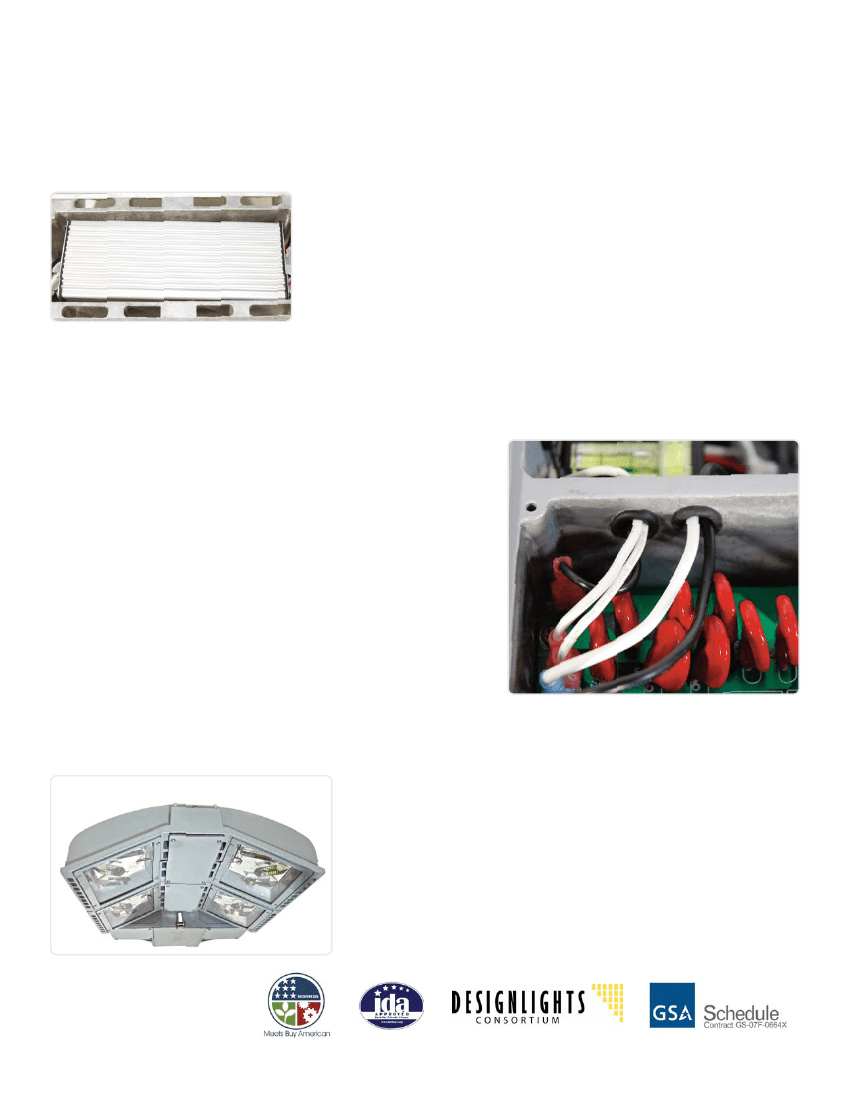

Safety grommets in casting through-holes prevent abrasions to
electrical wire insulation
•
Robust, integrated 6kV/6kVA or 10kV/10kVA surge protection circuitry
incorporate MOVs designed to actively clamp line voltages to safe
levels per ANSI/IEEE C62.41.2-2002 Cat C
•
IP65 rated LED drivers
Lifetime
L70 / TM-21 Lifetime Report at 500mA – Calculated lifetime = 914,000 hrs; Reported lifetime = 60,500 hrs
•
7 year full performance warranty with option for 10 years
•
Factory burn-in (24 hr to avoid infant fatality)
4
www.dialight.com

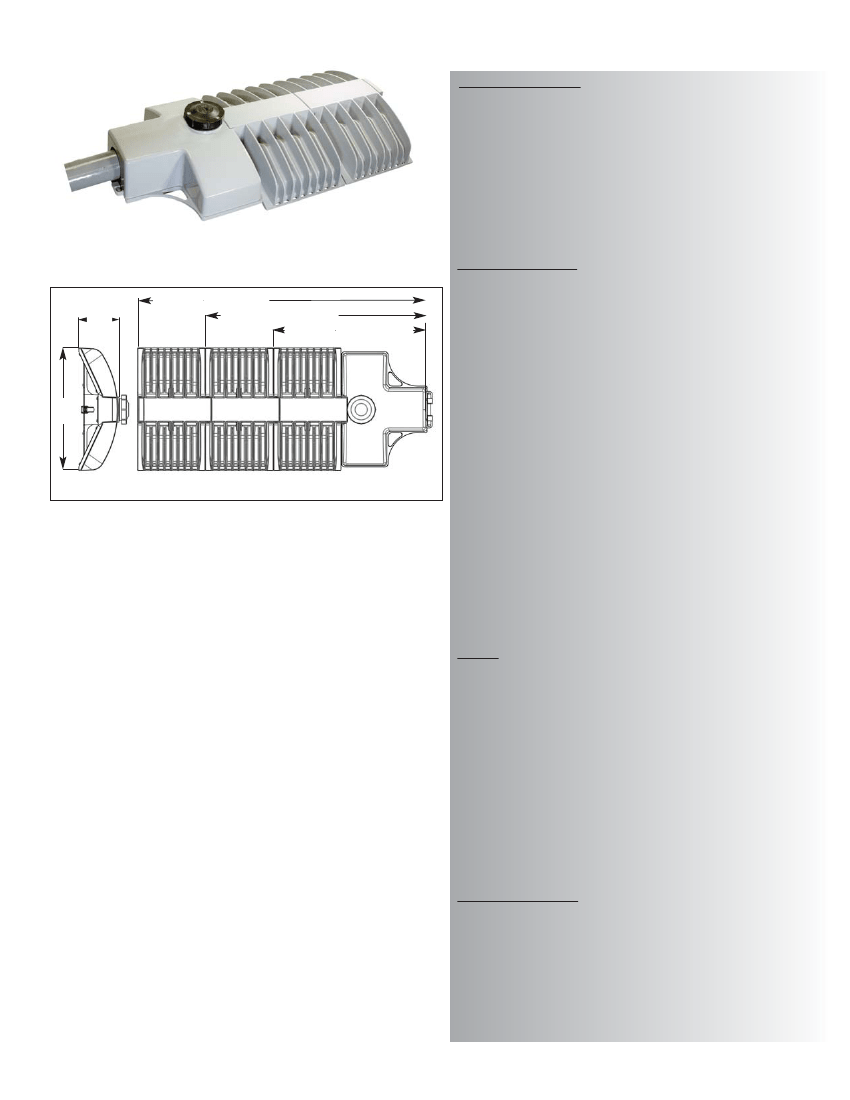

Mechanical Information
Fixture Weight:
16lbs (42W, 63W, 82W)
25lbs (126W, 164W)
34lbs (189W, 246W)
0.60 (42W, 63W, 82W)
0.87 (126W, 164W)
1.13 (189W, 246W)
Accommodates 1.25” (1.66” OD) - 2” (2.375” OD)
31.75mm (42.16mm OD) - 50.8mm (60.32mm OD)
pipe. Provision for adjustment of +/- 5° at 2.5°
increments
EPA (Sq. ft):
Mounting:
StreetSense™ Series LED Street Light
4.8
(122)
34.7 (880) 189W, 246W
26.5 (674) 126W, 164W
18.4 (467) 42W, 63W, 82W
Electrical Specifications
Operating Voltage:
Universal inputs
100-277VAC, 50/60Hz
347-480VAC 50/60Hz
See ordering info on pg. 6
-40°F to 165°F (-40°C to 74°C) ambient
#14 AWG (1.6mm) to #6 AWG (4.1mm) wire and
accessible via hinged tool less entry
FCC Title 47, Subpart B, Section 15, class A
device. RF Immunity; 10V/m, 80MHz-1GHz
Total System
Power Consumption:
Operating Temp:
14.7
(372)
Terminal Block:
Noise Requirements /
EMC:
Dimensions in inches (mm)
Certifications and Ratings:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
UL 1598 (Suitable for Wet Locations)
UL 8750
UL 1012
UL 1449
CE
CSA C22.2 No. 250.0-08
IP66
RP-8-00 (R2005)
IEC 60529 (IP 66)
ANSI 1012
ANSI C 136.15-2011
ANSI/IEEE C62.41.2-2002
ANSI/NEMA/ANSLG C78.377-2008
ANSI C136.2-2004 (R2009)
ANSI C136.3-2005
ANSI C136.10-2006
ANSI C136.21-2004
ANSI C136.25-2009/IEC 60529
ANSI C136.31-2001
ANSI C136.32-2006
ANSI C136.37-2011
ASTM B117-97
ASTM B117 - salt spray (3000 hours)
Conforms with CALTRANS vibration test 611 – 3G vibration (2,000,000 cycles)
Meets ARRA requirements (must be specified when ordering)
IDA Dark Sky
RoHS
LM-79
LM-80
RP-8-00
TM21
Photo Controller - part number - SL-PC01R
House side shield - part number - SL-SHIELD-KIT
LUMITROL™ Streetlight control module (consult factory)
ANSI Label (consult factory)
Transient Protection
100-277VAC, 50/60Hz:
Open circuit surge protection 6kV standard per
ANSI/IEEE C62.41. 2.2002 cat C low or
Open circuit surge protection 10kV standard per
ANSI/IEEE C62.41. 2.2002 cat C high
347-480VAC 50/60Hz:
Open circuit surge protection 10kV standard per
ANSI/IEEE C62.41. 2.2002 cat C high
THD:
<15% (100 - 240VAC)
<20% (277VAC)
<20% (347-480VAC)
>0.90
Compliances:
Power Factor:
Material
Housing:
Die cast aluminum alloy A360
Polymeric materials UL94 V0 flame retardant
materials
Polyester powder coat for superior corrosion resistance
Gray - RAL 7040
Bronze - RAL 7022
Green - RAL 6020
Black - RAL 9005
White - RAL 9010
Abrasion and UV resistant polycarbonate
Optically optimized, tempered glass
Standard NEMA three prong twist lock, socket
with shorting cap, as per ANSI C136.10
Finish:
Lens:
Photo controller
Socket:
Photometric Information
CRI:
CCT:
>70
5,000K (cool white)
4,300K (neutral white)
3,300K (warm white)
IES Type II, III, IV, V
Test Reports:
Accessories (ordered separately):
Optics:
All values typical unless otherwise stated
All lumen values are typical (tolerance +/- 10%)
www.dialight.com
5
