MS2MR-117SB-U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> MS2MR-117SB-U

MS2MR-117SB-U: DescriptionIC Socket, SIP17, 17 Contact(s), 2.0066mm Term Pitch, Surface Mount; CategoryThe connector socket; File Size287KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

MS2MR-117SB-U Overview

IC Socket, SIP17, 17 Contact(s), 2.0066mm Term Pitch, Surface Mount

MS2MR-117SB-U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.087 inch
subject depth	0.11 inch
body length	1.343 inch
Contact to complete cooperation	AU
Contact material	CU ALLOY
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	SIP17
Dielectric withstand voltage	1000VAC V
Shell material	POLYPHENYLENE SULPHIDE
Insulation resistance	1000000000 Ω
Manufacturer's serial number	MS2MR
Plug contact pitch	0.079 inch
Installation method	RIGHT ANGLE
Number of contacts	17
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT

Preview

Download Datasheet

View All

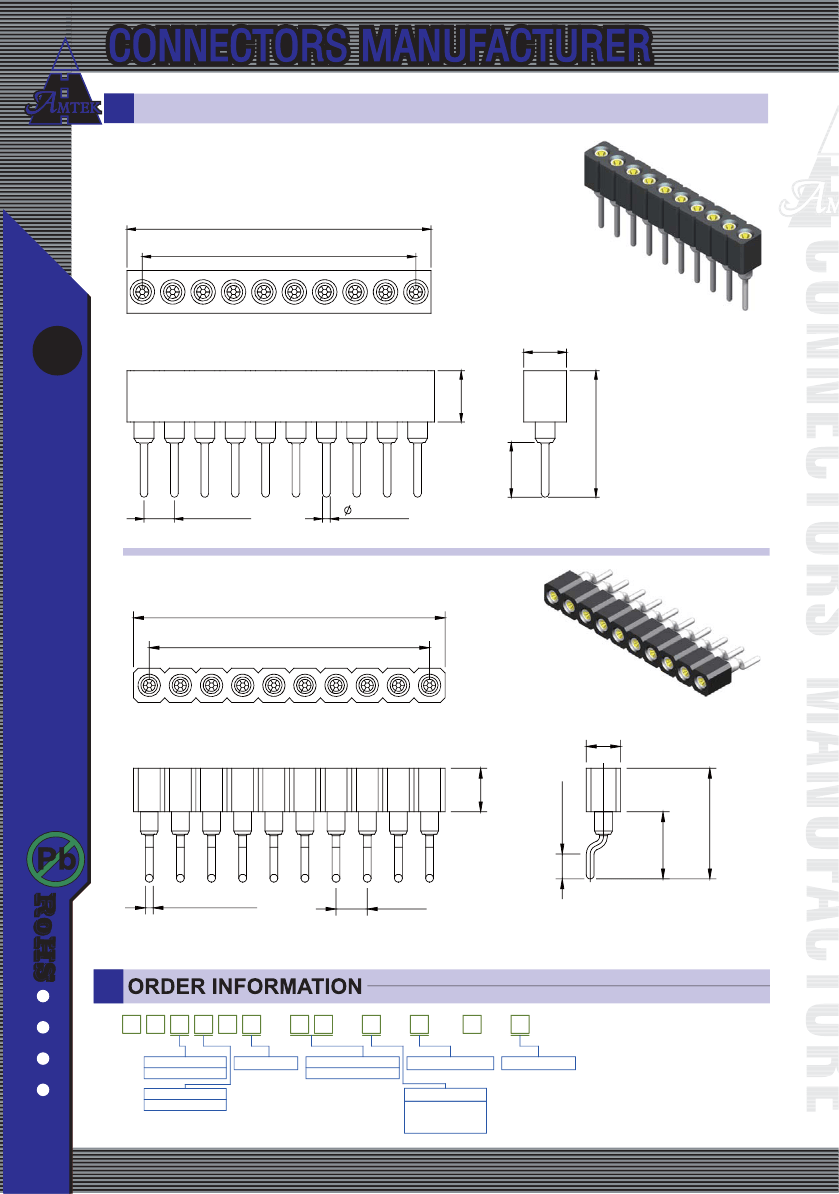

Machine Pin Socket Straight Type 1.778mm / SMT R/A Type 2.0mm

Specifications

Current Rate:3 AMP

Insulation Resistance:≥1000MΩ

at V=100V.

Contact Resistance:≤4mΩ/Contact.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:PPS

Terminal:Copper Alloy

Plated:Selective Gold

1.778 x No. of Position+0.20±0.40

1.778 x (No. of Contacts-1)±0.20

2.80

1.60

0.50±0.03

2.00

Part No.:MS2MR-1XX-U

M S X X -

7:1.778mm

2:2.0mm

1:Single row

X X

U:RoHS + PPS

Pitch=1.778mm (02~32)

Pitch=2.0mm (02~40)

B:Black Insulator

MR:SMT R/A Type

S:Straight Type

S:Selective

Remark

Finger:Gold plated

Sleeve:Tin plated

7-13

Standard Recommended

www.amtek-co.com.tw

4.30

7.10

achine Pin Socket

2.65

3.00

1.778±0.05

0.50±0.03

3.17

7.40

Part No.:MS7S-1XX-U

2.0 x No. of Positions±0.40

2.0 x (No. of Contacts-1)±0.20

2.20
