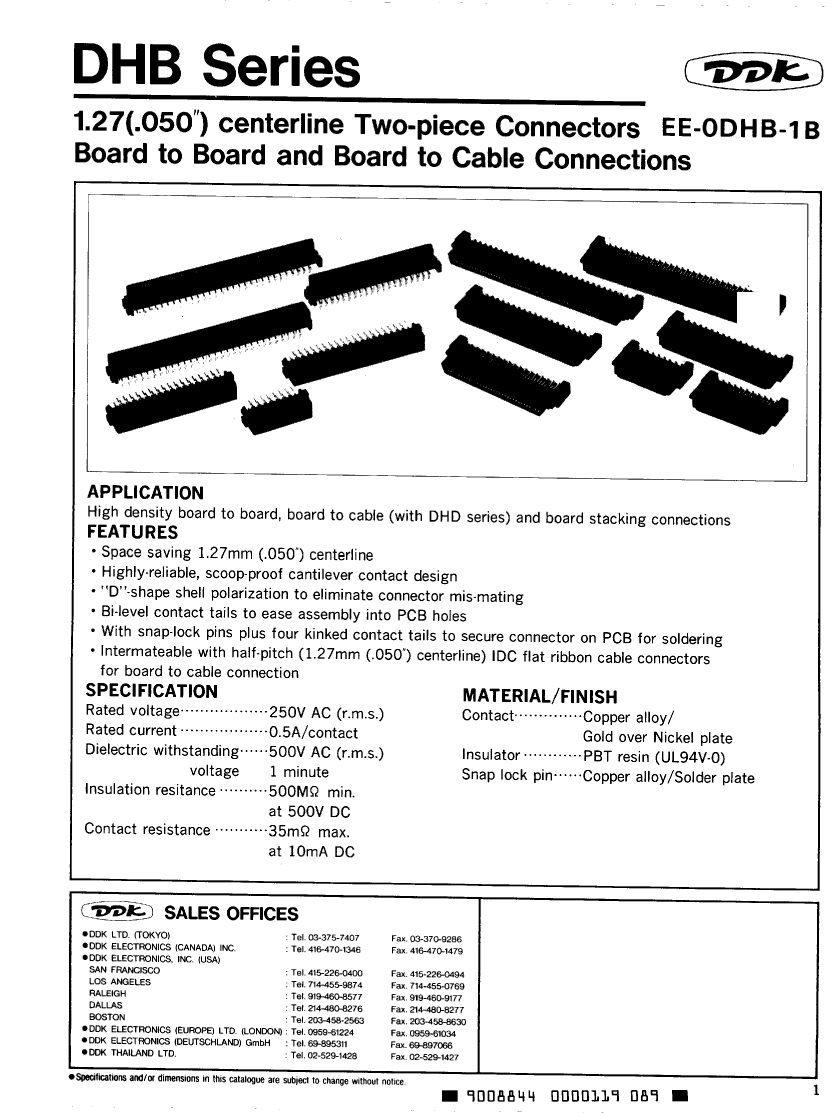

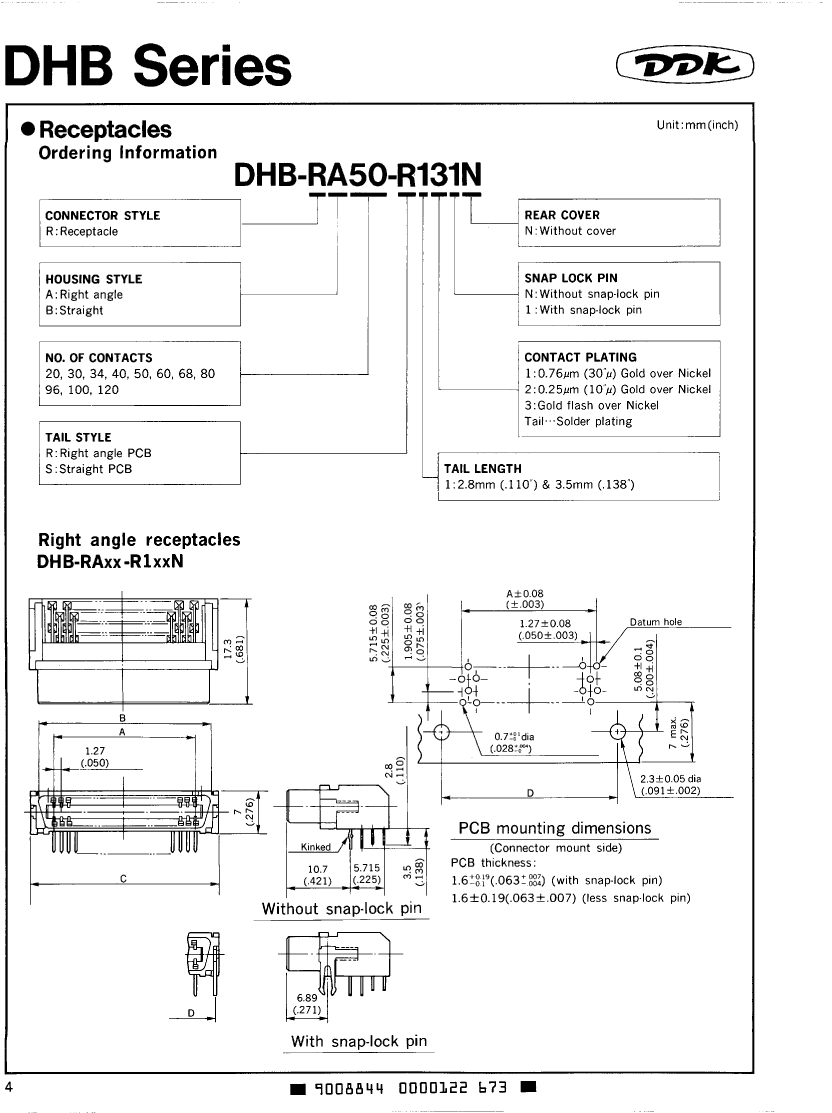

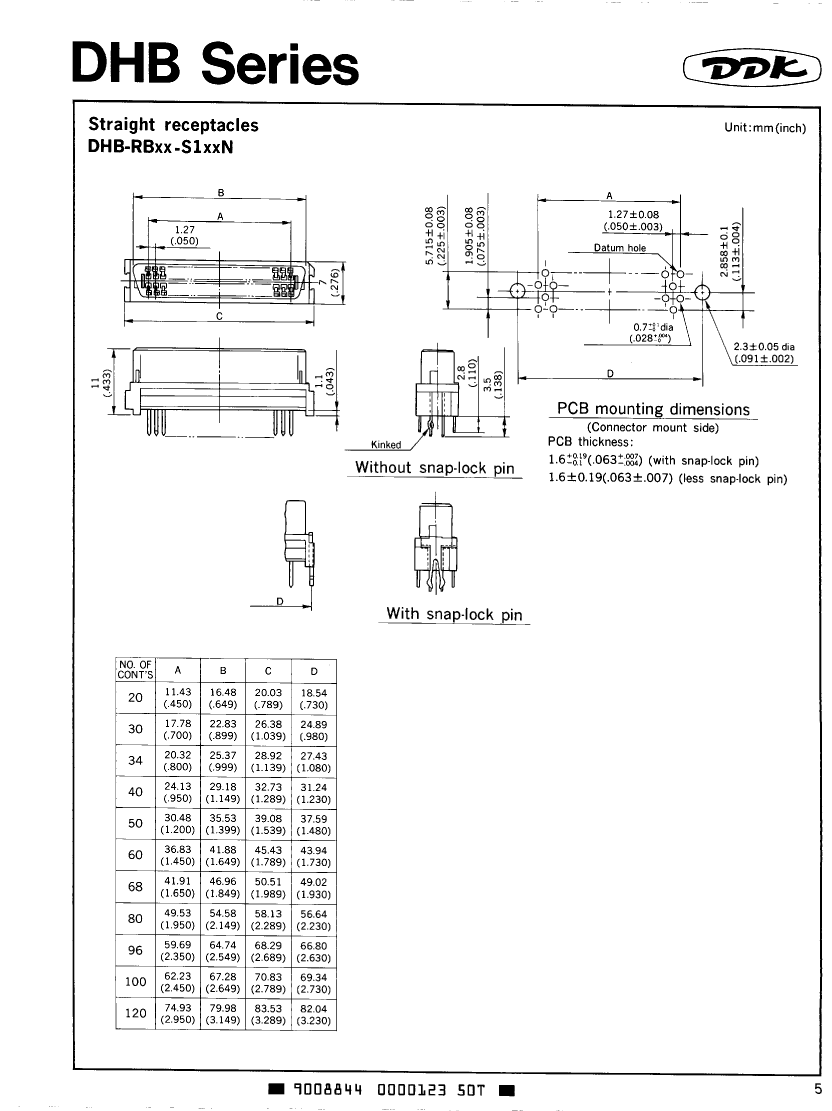

D Type Connector, 30 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Plug
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | WITHOUT REAR COVER |
| body width | 0.276 inch |
| body length | 1.039 inch |
| Body/casing type | PLUG |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | GOLD |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 35 mΩ |
| Contact style | BELLOWED TYPE |
| Dielectric withstand voltage | 500VAC V |
| Insulation resistance | 500000000 Ω |
| insulator material | POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | DHB |
| Plug contact pitch | 0.05 inch |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| PCB row number | 4 |
| Number of rows loaded | 2 |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 1.905 mm |
| Plating thickness | 10u inch |
| Rated current (signal) | 0.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.11 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 30 |
| DHB-RB30-S121N | DHB-RB80-S13NN | DHB-RB40-S121N | DHB-RB96-S111N | DHB-RB96-S121N | DHB-RB96-S131N | DHB-RB30-S111N | DHB-RB30-S131N | |
|---|---|---|---|---|---|---|---|---|
| Description | D Type Connector, 30 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Plug | D Type Connector, 80 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Plug | D Type Connector, 40 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Plug | D Type Connector, 96 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Plug | D Type Connector, 96 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Plug | D Type Connector, 96 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Plug | D Type Connector, 30 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Plug | D Type Connector, 30 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Plug |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | WITHOUT REAR COVER | WITHOUT REAR COVER | WITHOUT REAR COVER | WITHOUT REAR COVER | WITHOUT REAR COVER | WITHOUT REAR COVER | WITHOUT REAR COVER | WITHOUT REAR COVER |
| body width | 0.276 inch | 0.276 inch | 0.276 inch | 0.276 inch | 0.276 inch | 0.276 inch | 0.276 inch | 0.276 inch |
| body length | 1.039 inch | 2.289 inch | 1.289 inch | 2.689 inch | 2.689 inch | 2.689 inch | 1.039 inch | 1.039 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG |
| Contact to complete cooperation | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI |
| Contact completed and terminated | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 35 mΩ | 35 mΩ | 35 mΩ | 35 mΩ | 35 mΩ | 35 mΩ | 35 mΩ | 35 mΩ |
| Contact style | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V |
| Insulation resistance | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω |
| insulator material | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | DHB | DHB | DHB | DHB | DHB | DHB | DHB | DHB |
| Plug contact pitch | 0.05 inch | 0.05 inch | 0.05 inch | 0.05 inch | 0.05 inch | 0.05 inch | 0.05 inch | 0.05 inch |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| PCB row number | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | 1.905 mm | 1.905 mm | 1.905 mm | 1.905 mm | 1.905 mm | 1.905 mm | 1.905 mm | 1.905 mm |
| Plating thickness | 10u inch | FLASH inch | 10u inch | 30u inch | 10u inch | FLASH inch | 30u inch | FLASH inch |
| Rated current (signal) | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A |
| Guideline | UL | UL | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.11 inch | 0.11 inch | 0.11 inch | 0.11 inch | 0.11 inch | 0.11 inch | 0.11 inch | 0.11 inch |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 30 | 80 | 40 | 96 | 96 | 96 | 30 | 30 |
| ECCN code | EAR99 | - | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
