9686-G2-01-00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 9686-G2-01-00

9686-G2-01-00: DescriptionBoard Connector, 86 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size116KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

9686-G2-01-00 Overview

Board Connector, 86 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle

9686-G2-01-00 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
body width	0.134 inch
subject depth	0.19 inch
body length	2.15 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	9600
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	100u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	86

Preview

Download Datasheet

View All

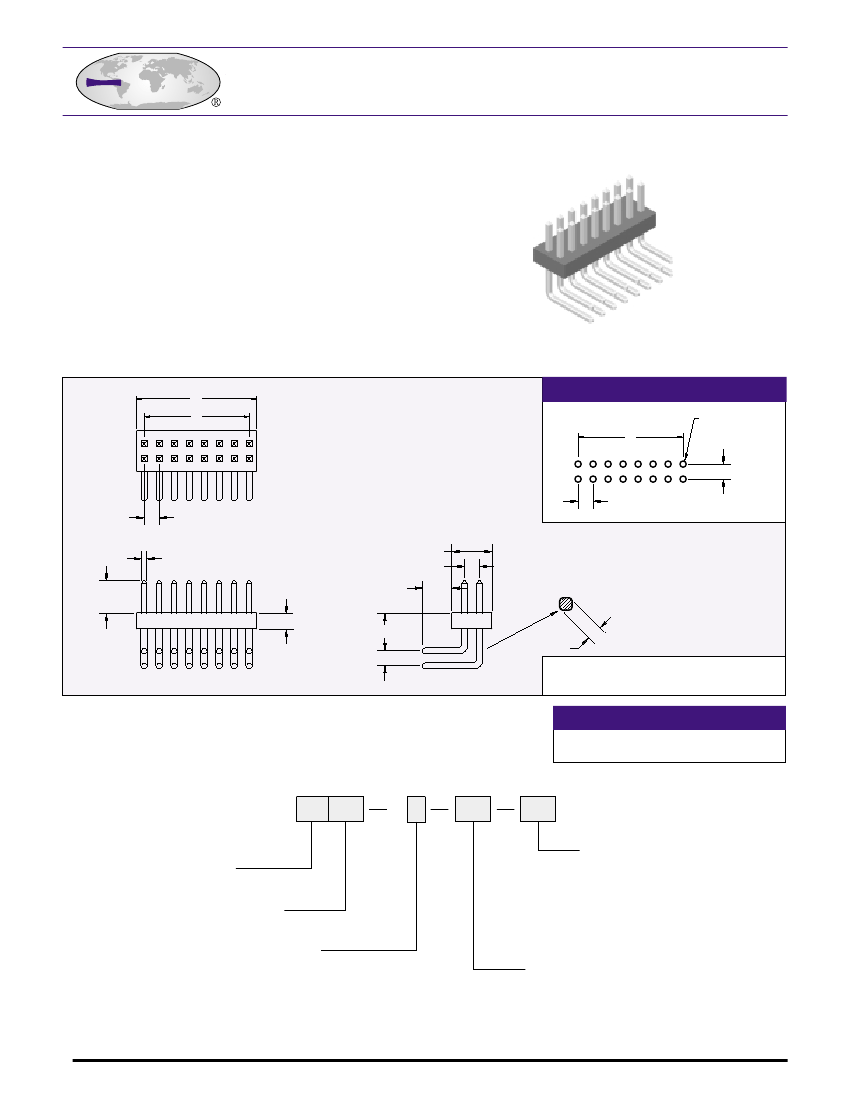

Specifications

9600 Series Headers

.050 x .050 Right Angle

Insulator Material: Glass filled polyester, Thermoplastic,

94V-O Nylon-6T, UL Recognized.

Contact Material: Copper Alloy

Contact Plating: Gold and/or Tin over .000050” Ni

(See contact plating options).

Insulation Resistance:

5000 M ohms min.

Dielectric Withstand Voltage: 500 VAC

Current Rating:

1 AMP

Operating Temperature:

-40°C To +105°C

Max Processing Temp.:

230°C for 60 seconds

UL File Numbers:

E146967 & E176234

PCB LAYOUT

Ø.030 +.002 [.75]

-.000

.050 [1.27]

.050 [1.27] TYP

.050 [1.27]

.016 [0.40] SQ.

.134 [3.40]

.050 [1.27]

TAIL

BODY HEIGHT

BASE HEIGHT

.050 [1.27]

.020 [.50±.03]

CONTACT

= .050 x No. of Pos. ±.020

= .050 x (No. of Cont./2 -1)

SUGGESTED MATING CONNECTORS

DIMENSIONS ARE IN INCHES & [MM]

96XXS-DX-XX-XX-XX (PAGE F-19)

96XXS-EX-XX-XX-XX (PAGE F-20)

PART NUMBERING

96 XX

SERIES CODE

.050 HEADERS

G X

CONTACT PLATING

.000050” Nickel underplate

CONTACT TAIL

= 100µ”Sn

100µ”Sn

= Au Flash

100µ”Sn

= Au Flash

Au Flash

= 10µ”Au

100µ”Sn

= 30µ”Au

100µ”Sn

NO. OF CONTACTS

06 - 98

100 =

BODY HEIGHT

= .106 [2.70] -

BASE HEIGHT

= .122 [3.1]

= .067 [1.70] -

BASE HEIGHT

= .130 [3.3]

CONTACT LENGTH

CONTACT

= .150 [3.80]

TAIL

.118 [3.00]

CONSULT FACTORY FOR OTHER CONTACT LENGTH OPTIONS

CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION

WWW.ECSCONN.COM
