LM2908N Overview

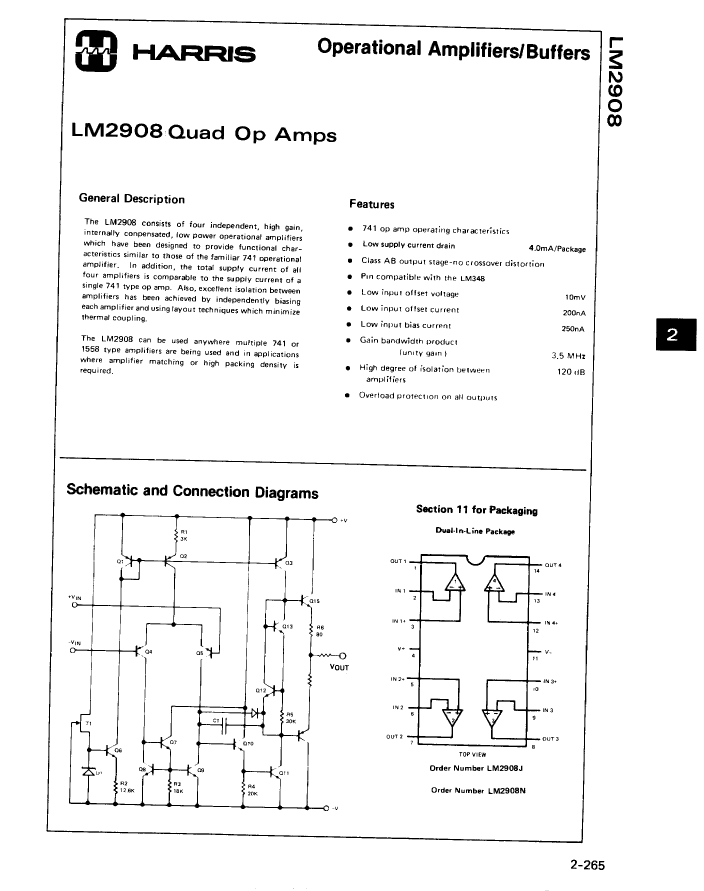

LM2908N

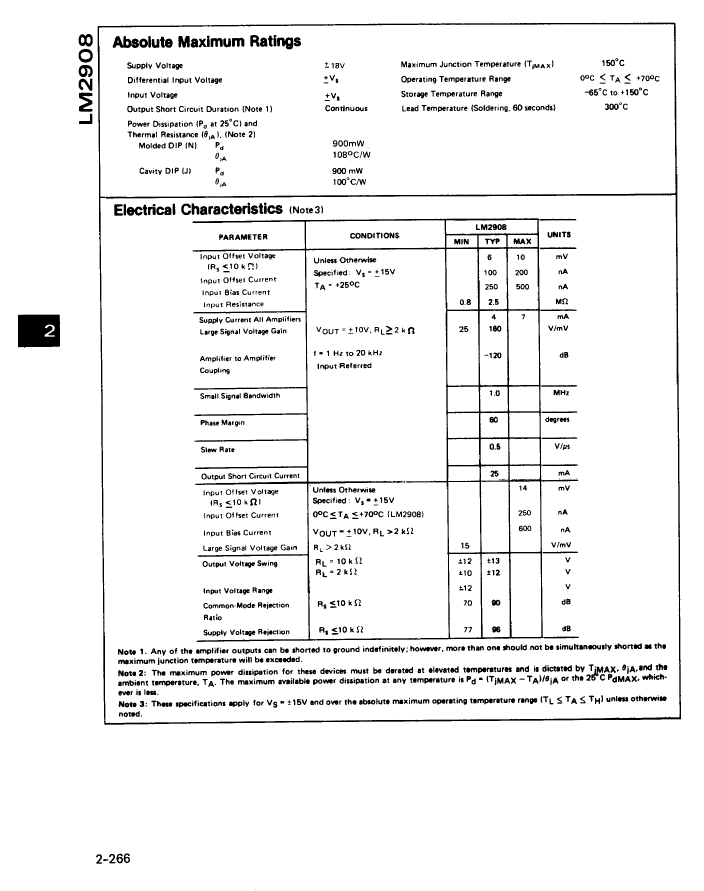

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP14,.3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.5 µA
frequency compensation	YES
Maximum input offset voltage	10000 µV
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Minimum voltage gain	15000

	LM2908N	LM2908J
Description	LM2908N	LM2908J
Is it Rohs certified?	incompatible	incompatible
package instruction	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	not_compliant	not_compliant
ECCN code	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.5 µA	0.5 µA
frequency compensation	YES	YES
Maximum input offset voltage	10000 µV	10000 µV
JESD-30 code	R-PDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0
low-dissonance	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	4	4
Number of terminals	14	14
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
Supply voltage upper limit	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Minimum voltage gain	15000	15000
