DLHA-D-38-TS-V0 datasheet, PDF

Datasheet> All Categories > The connector> The connector> DLHA-D-38-TS-V0

DLHA-D-38-TS-V0: DescriptionBoard Connector, 38 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerAdam Tech

Download Datasheet Parametric Compare View All

DLHA-D-38-TS-V0 Overview

Board Connector, 38 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator

DLHA-D-38-TS-V0 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.3 inch
subject depth	0.449 inch
body length	1.9 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON CU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	DLHA
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	38

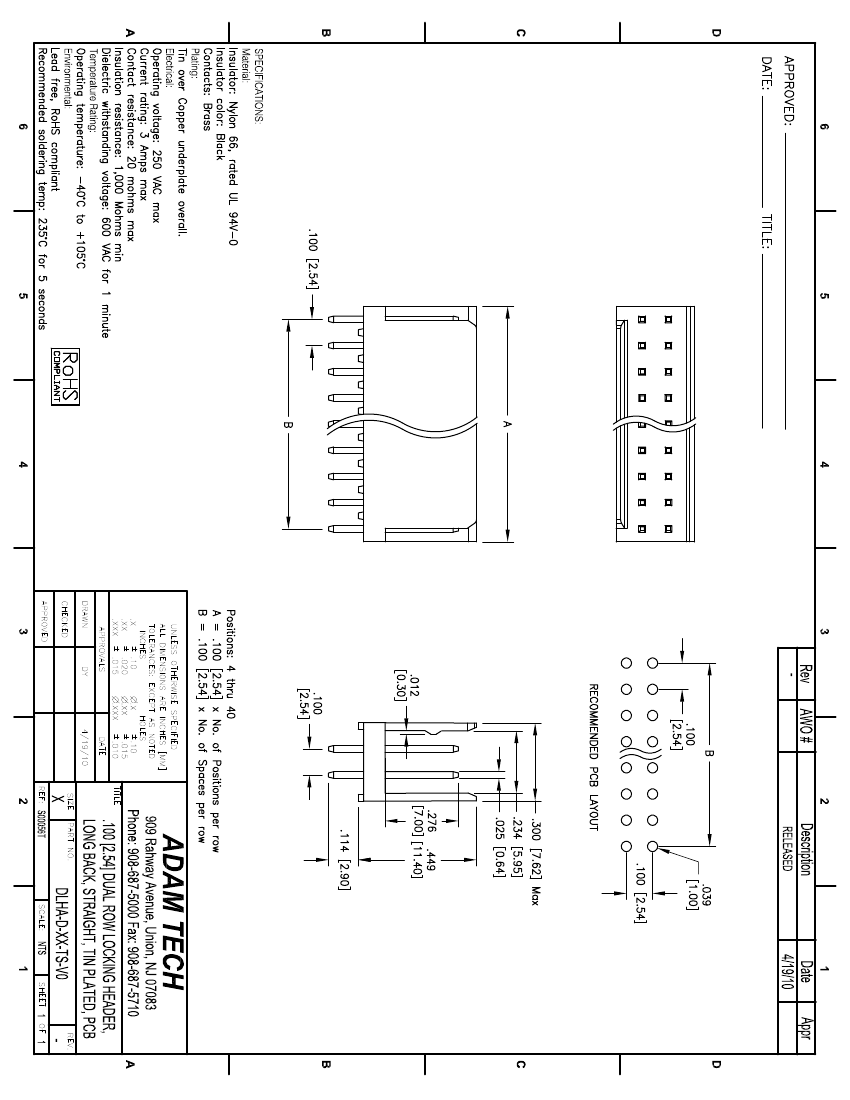

Preview
