SYNTON-TECH CORPORATION
CHIP RESISTOR
SYNTON-TECH’s
Corporation。
File No.:
Version:
Page:
Date:
RC-02
B
1/20
2010.02.25
1.SUBJECT
: This specification applies on the chip resistors made by
2.PART NUMBER
: Part number of the chip resistor is identified by the
Style,tolerance, resistance value
。
Example :
DESCRIPTION :
0402
5%
0402
10K
J
103
SYNTON CODE : RC
Product
CHIP
RESISTOR
Style
RC0201:1/20W
RC0402:1/16W
RC0603:1/10W
RC0805: 1/8W
RC1206: 1/4W
RC1210: 1/3W
RC1812: 1/2W
RC2010: 3/4W
RC1218: 1W
RC2512: 1W
RC2030: 2W
(Please see
detail of
Figure2)
Tolerance
F :
±1%
J :
±5%
Resistance
Value
E24 Series 5%
3 Digits :
2R2 : 2.2Ω
101 : 100Ω
103 : 10K
105 : 1M
E96 Series 1%
4 Digits :
2R20 : 2.2Ω
1000 : 100Ω
1002 : 10K
1004 : 1M
APPROVED
CHECKED
DESIGNED
REMARK
DOCUMENT NO.
Carol
May
Chen
02/25 RE:P3,10,11,SGS
0201010018
Confidential, Do Not Disseminate.
SYNTON-TECH CORPORATION
CHIP RESISTOR
File No.:
Version:
Page:
Date:
RC-02
B
2/20
2010.02.25
Marking:
(1) 5
%
tolerance:3
digits,first two digits are significant figures,
third digit is number of zeros. Letter R is decimal point.
(2) 1
%&0.5%
tolerance:4
digits,first three digits are significant figures,
fourth digit is number of zeros.Letter R is decimal point.
(3) Letter “ 0 “ ohm is 0 ohm.
(4) *RC0603±1%:E-24
marking first two digits are significant figures,
third digit is number.
*RC0603±1%:E-96
marking. (as the below list)
(5) RC0402 / RC0201 no marking.
103
5%marking
Value=10KΩ
RC0603±1%(E-24)
1002
1%marking
Value=10KΩ
10C
1%marking
Value=12.4KΩ
RC0603±1%(E-96)
no marking
RC0402/RC0201
E-96 MARKING
CodeR Value codeR Value codeR Value codeR Value codeR Value codeR Value codeR Value codeR Value
01 100
13 133
25 178
37 237
49 316
61 422
73 562
85 750
02 102
14 137
26 182
38 243
50 324
62 432
74 576
86 768
03 105
15 140
27 187
39 249
51 332
63 442
75 590
87 787
04 107
16 143
28 191
40 255
52 340
64 453
76 604
88 806
05 110
17 147.
29 196
41 261
53 348
65 464
77 619
89 825
06 113
18 150
30 200
42 267
54 357
66 475
78 634
90 845
07 115
19 154
31 205
43 274
55 365
67 487
79 649
91 866
08 118
20 158
32 210
44 280
56 374
68 499
80 665
92 887
09 121
21 162
33 215
45 287
57 383
69 511
81 681
93 909
10 124
22 165
34 221
46 294
58 392
70 523
82 698
94 931
11 127
23 169
35 226
47 301
59 402
71 536
83 715
95 953
12 130
24 174
36 232
48 309
60 412
72 549
84 732
96 976
This rable shows the first two digits for the three-digit EIA-96 part marking scheme.
The third character is a letter multiplier:Y=10
-2
X=10
-1
A=10
0
B=10
1
C=10
2
D=10
3
E=10
4
F=10
5
Figure 1
Confidential, Do Not Disseminate.
SYNTON-TECH CORPORATION
CHIP RESISTOR
3.ELECTRICAL CHARACTERISTICS
File No.:
Version:
Page:
Date:
RC-02
B
3/20
2010.02.25
RC0201 RC0402 RC0603 RC0805 RC1206 RC1210 RC1812 RC2010 RC1218 RC2512 RC2030
STYLE
POWER
1/20W 1/16W 1/10W 1/8W 1/4W 1/3W 1/2W 3/4W 1W
1W
2W
Maximum Working
25V 50V 50V 150V 200V 200V 200V 200V 200V 200V 200V
Voltage
Maximum Overload
50V 100V 100V 300V 400V 400V 400V 400V 400V 400V 400V
Voltage
Dielectric Withstand
50V 100V 100V 300V 500V 500V 500V 500V 500V 500V 500V
Voltage
Operating Temp.
—55℃½＋125℃
Range
±5%
±1%
standard
Resistance
1
Ω~10MΩ
10Ω~1MΩ
Range
Low to 0.01Ω
Low to 1Ω
special
High to 33M
High to 10M
±
200 PPM/℃
±
100 PPM/℃
standard
Temperature
Coefficient
(± PPM /
℃)
special
-
Special TCR on request
Figure 2
±50
PPM/℃
4. POWER RATING
(1)Power Derating
: The rated power at the temperature in excess of
70
℃
shall be derated in accordance with figure3
70
100
Rated
Power
(%)
80
60
40
20
0
0
20
40
60
80
100
120
140
125
Ambient Temperature (℃)
Figure3
Confidential, Do Not Disseminate.
SYNTON-TECH CORPORATION
CHIP RESISTOR
File No.:
Version:
Page:
Date:
RC-02
B
4/20
2010.02.25
(2)Rated Voltage :
The DC or AC(rms) continuous working voltage
corresponding to the rated power is determined
by the following formula:
V=
RxP
Where V : Continuous rated DC or AC (rms) working voltage (v)
P : Rated power (w)
R : Resistance value (
Ω
)

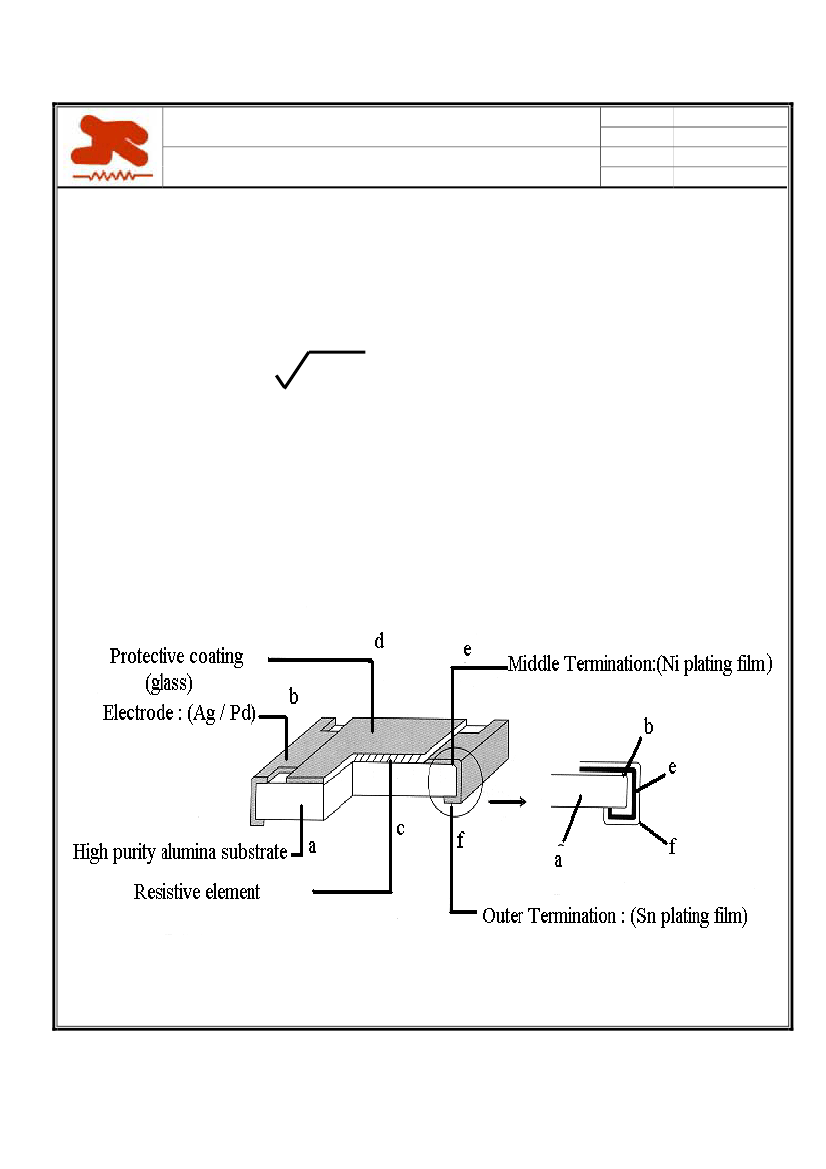

5.CONSTRUCTION AND MATERIALS
Confidential, Do Not Disseminate.
SYNTON-TECH CORPORATION
CHIP RESISTOR
File No.:
Version:
Page:
Date:
RC-02
B
5/20
2010.02.25

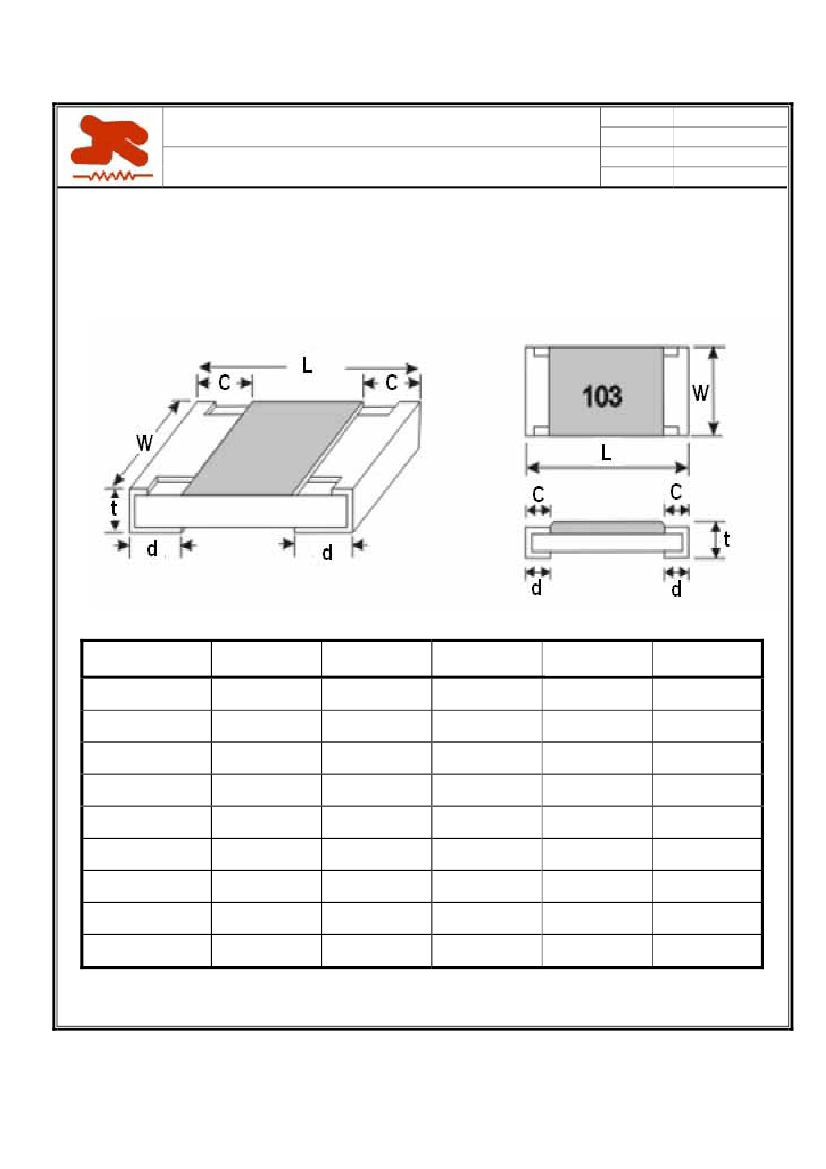

6. DIMENSIONS
RC0201 / RC0402 / RC0603 / RC0805 / RC1206 / RC1210
RC1812 / RC2010 / RC2512
Unit:mm
TYPE
RC0201
RC0402
RC0603
RC0805
RC1206
RC1210
RC1812
RC2010
RC2512
L
0.60
±0.10
1.00
±0.10
1.60
±0.10
2.00
±0.10
3.20
±0.20
3.20
±0.20
4.50
±0.10
5.00
±0.10
6.30
±0.20
W
0.30
±0.05
0.50
±0.05
0.80
±0.10
1.25
±0.10
1.60
±0.10
2.50
±0.15
3.00
±0.15
2.50
±0.15
3.20
±0.20
Figure4
Confidential, Do Not Disseminate.
t
0.25
±0.05
0.30
±0.10
0.40
±0.10
0.50
±0.15
0.55
±0.15
0.55
±0.15
0.55
±0.15
0.55
±0.15
0.55
±0.15
c
0.15
±0.10
0.20
±0.10
0.30
±0.20
0.35
±0.20
0.45
±0.20
0.50
±0.25
0.55
±0.25
0.60
±0.25
0.60
±0.25
d
0.15
±0.10
0.20
±0.10
0.30
±0.15
0.35
±0.15
0.45
±0.25
0.50
±0.25
0.80
±0.25
0.60
±0.25
0.60
±0.25
