Crystalfontz America, Incorporated
GRAPHIC LCD MODULE DATA SHEET
Part Number
Data Sheet
Product Pages
Pr

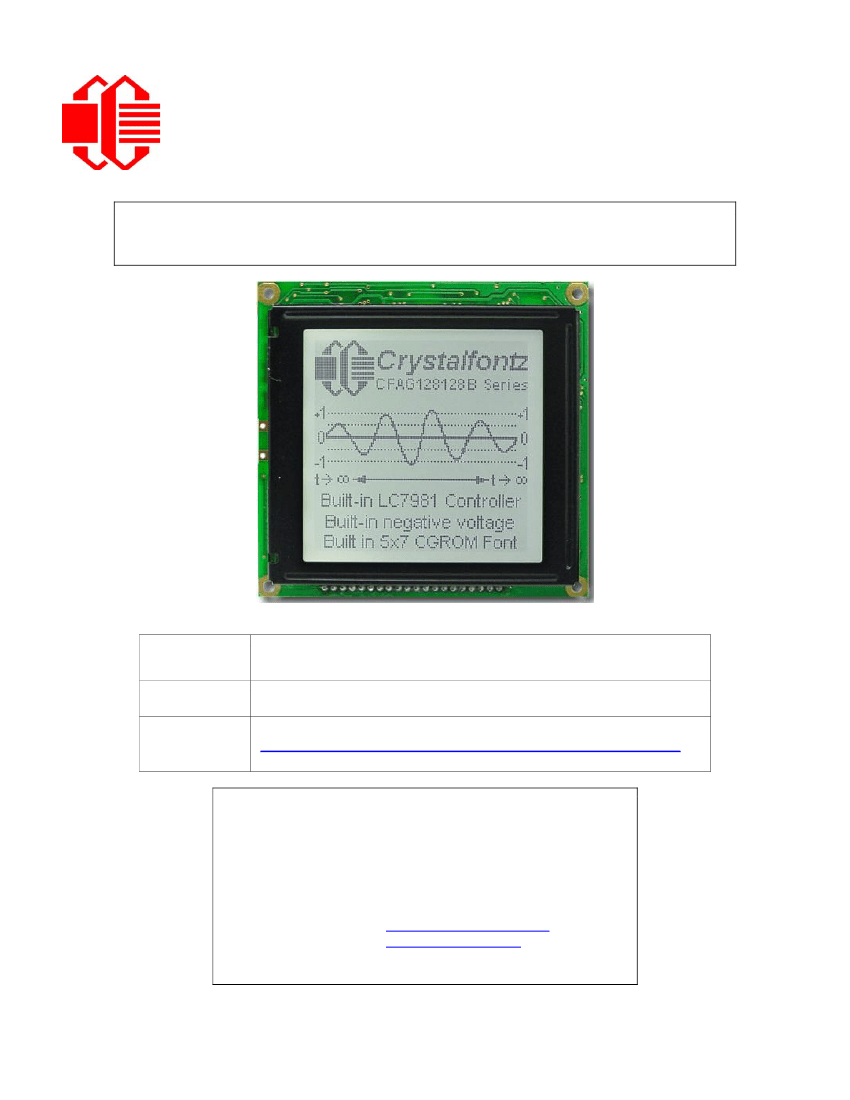

CFAG128128B-TFH-VZ
Release Date 2012-04-17, Preliminary
http://www.crystalfontz.com/product/CFAG128128BTFHVZ.html
el
Crystalfontz America, Inc.
12412 East Saltese Ave.
Spokane Valley, WA 99216-0357
Phone:
Fax:
Email:
URL:
888-206-9720
509-892-1203
techinfo@crystalfontz.com
www.crystalfontz.com
im
in
ar
y
CFAG128128B-TFH-VZ
DATA SHEET REVISION HISTORY
Data Sheet version: Preliminary Release Date 2012-04-17
In section 1, corrected part number from
"CFAG128128B-TFH-VN"
to " CFAG128128B-TFH-VZ".
In section 8, fixed description of pin 18 in table to "No
Connection".
Data Sheet version: not listed
New preliminary Data Sheet.
2012/04/17
2007/02/14
Certain applications using Crystalfontz America, Inc. products may involve potential risks of death, personal injury, or
severe property or environmental damage (“Critical Applications”). CRYSTALFONTZ AMERICA, INC. PRODUCTS ARE
NOT DESIGNED, INTENDED, AUTHORIZED, OR WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT
APPLICATIONS, DEVICES OR SYSTEMS OR OTHER CRITICAL APPLICATIONS. Inclusion of Crystalfontz America,
Inc. products in such applications is understood to be fully at the risk of the customer. In order to minimize risks
associated with customer applications, adequate design and operating safeguards should be provided by the customer to
minimize inherent or procedural hazard. Please contact us if you have any questions concerning potential risk
applications.
Crystalfontz America, Inc. assumes no liability for applications assistance, customer product design, software
performance, or infringements of patents or services described herein. Nor does Crystalfontz America, Inc. warrant or
represent that any license, either express or implied, is granted under any patent right, copyright, or other intellectual
property right of Crystalfontz America, Inc. covering or relating to any combination, machine, or process in which our
products or services might be or are used.
The information in this publication is deemed accurate but is not guaranteed.
Company and product names mentioned in this publication are trademarks or registered trademarks of their respective
owners.
Copyright © 2012 by Crystalfontz America, Inc., 12412 East Saltese Avenue, Spokane Valley, WA 99216-0357 U.S.A.
Pr
el
im
The Fine Print
in
ar
y
CONTENTS
1.
2.
3.
4.
5.
6.
7.
8.
MODULE CLASSIFICATION INFORMATION
PRECAUTIONS IN USE OF LCD MODULE
GENERAL SPECIFICATIONS
ABSOLUTE MAXIMUM RATINGS
ELECTRICAL CHARACTERISTICS
OPTICAL CHARACTERISTICS
POWER SUPPLY FOR LCD MODULE AND
CONTRAST ADJUST
INTERFACE DESCRIPTION
CONTOUR DRAWING AND BLOCK DIAGRAM
Pr
9.
10.
11.
12.
13.
RELIABILITY
(See Controller Datasheet)
BUILT-IN CHARACTER GENERATOR
BACKLIGHT INFORMATION
el
im
in
ar
y
1. MODULE CLASSIFICATION INFORMATION
CFA
Brand
Display Type
Number of Characters (Width)
Number of Lines (Height)
Model Identifier
Backlight Type & Color:
Fluid Type, Image (Positive or Negative), & LCD Glass
Color
LCD Polarize Type, Temperature Range, View Direction
G
128 128
B
-
T
F
H
- VZ
Crystalfontz America, Inc.
G→Graphic
128→ Pixels
128→Pixels
B
T→LED, white
F→FSTN positive, white
H→Transflective, Wide Temperature,
6:00 o'clock
V→Negative voltage
Z→Manufacturer code
Special Codes
2. PRECAUTIONS IN USE OF LCD MODULE
Avoid applying excessive shocks to the module.
Don’t make extra holes on the printed circuit board, modify its shape, or change module components.
Don’t disassemble the LCD module.
Don’t operate the module above its absolute maximum rating.
Don’t drop, bend, or twist the LCD module.
Solder only to the I/O terminals.
Please store in an antistatic container in a clean environment.
Pr
el
im
in
ar
y
3. GENERAL SPECIFICATIONS
RoHS compliant. Factories are ISO certified.
PHYSICAL CHARACTERISTICS
Number of Pixels
Pixel Size
Pixel Pitch
Viewing Area Width and Height
Active Area Width and Height
Overall Width, Height, and Depth
Weight
SPECIFICATION
128 pixels x 128 pixels
0.32 (W) x 0.32 (H) mm
0.35 (W) x 0.35 (H) mm
50.00 (W) x 49.00 (H) mm
44.77 (W) x 44.77 (H) mm
72.50 (W) x 69.90 (H) x 10.00 maximum (D) mm
Pr
el
im
in
ar
y
Embedded System
