RV16YNMH10RC203K datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RV16YNMH10RC203K

RV16YNMH10RC203K: DescriptionPotentiometer, Carbon Film, 0.05W, 20000ohm, 200V, 10% +/-Tol; CategoryPassive components The resistor; File Size663KB，6 Pages; ManufacturerTokyo Cosmos Electric Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

RV16YNMH10RC203K Overview

Potentiometer, Carbon Film, 0.05W, 20000ohm, 200V, 10% +/-Tol

RV16YNMH10RC203K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Single Turn
JESD-609 code	e3
Manufacturer's serial number	RV16YN
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
Package diameter	16.8 mm
Package length	8.9 mm
Package form	Panel Mount
Rated power dissipation(P)	0.05 W
resistance	20000 Ω
Resistor type	POTENTIOMETER
rotation angle	240 deg
series	RV16YN
technology	CARBON FILM
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Tolerance	10%
Operating Voltage	200 V

Preview

Download Datasheet

View All

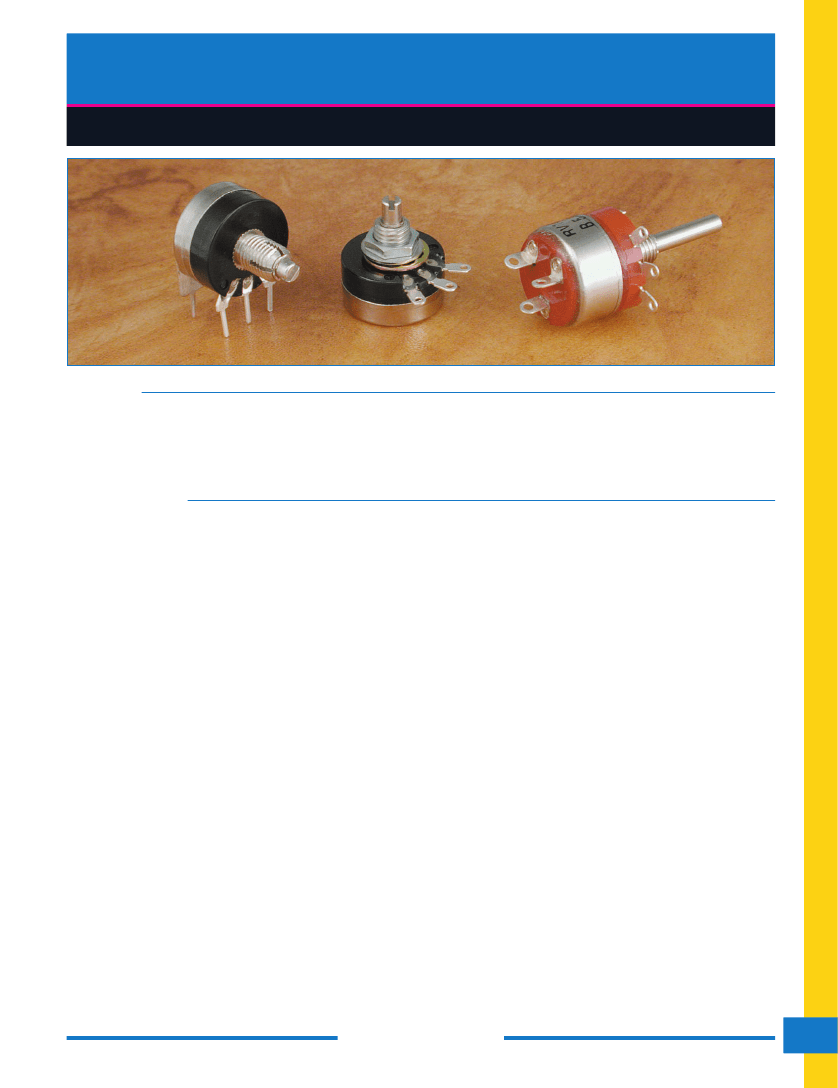

RV16

Series

TOCOS

PA N E L C O N T R O L S

16mm Diameter, Single-Turn, Carbon Industrial Panel Controls

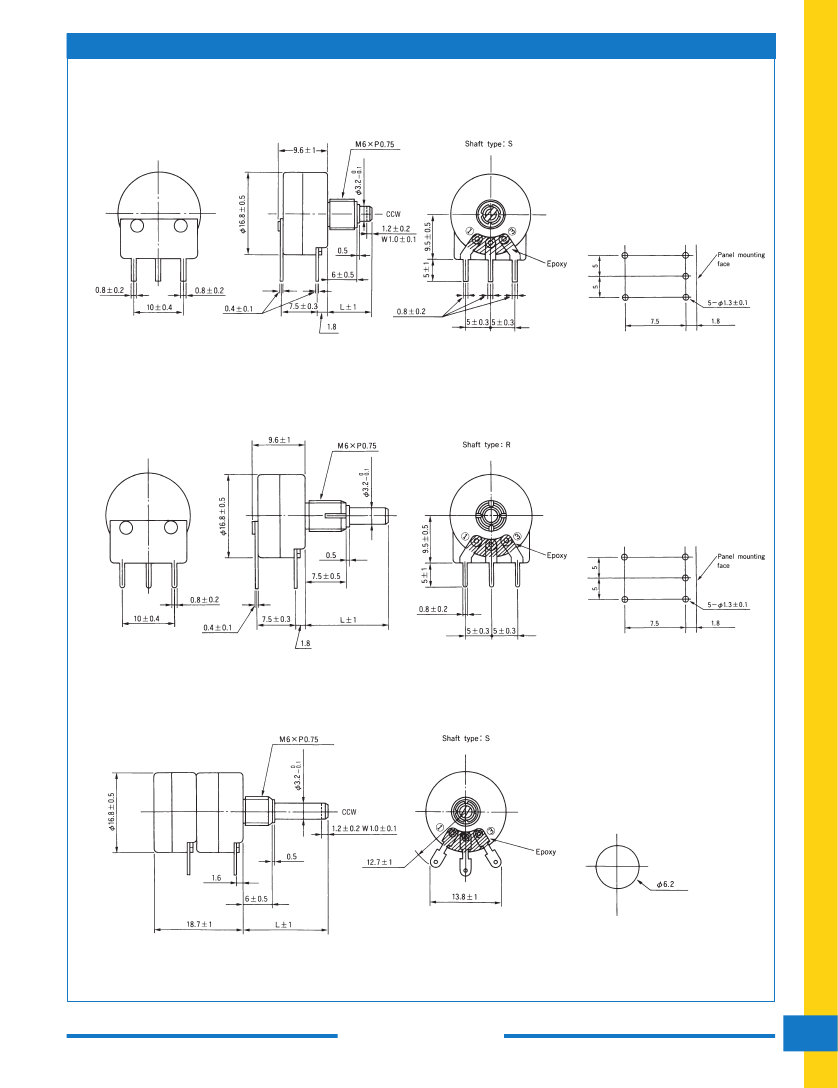

RV16YPL

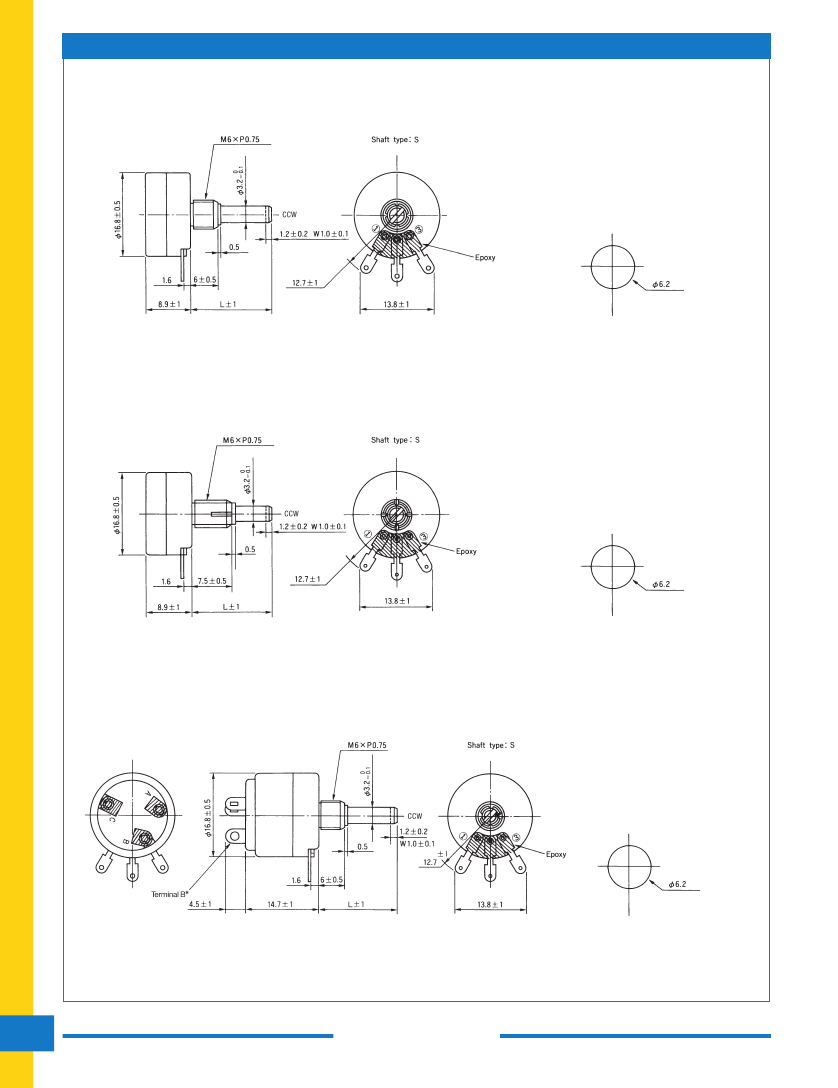

RV16YN

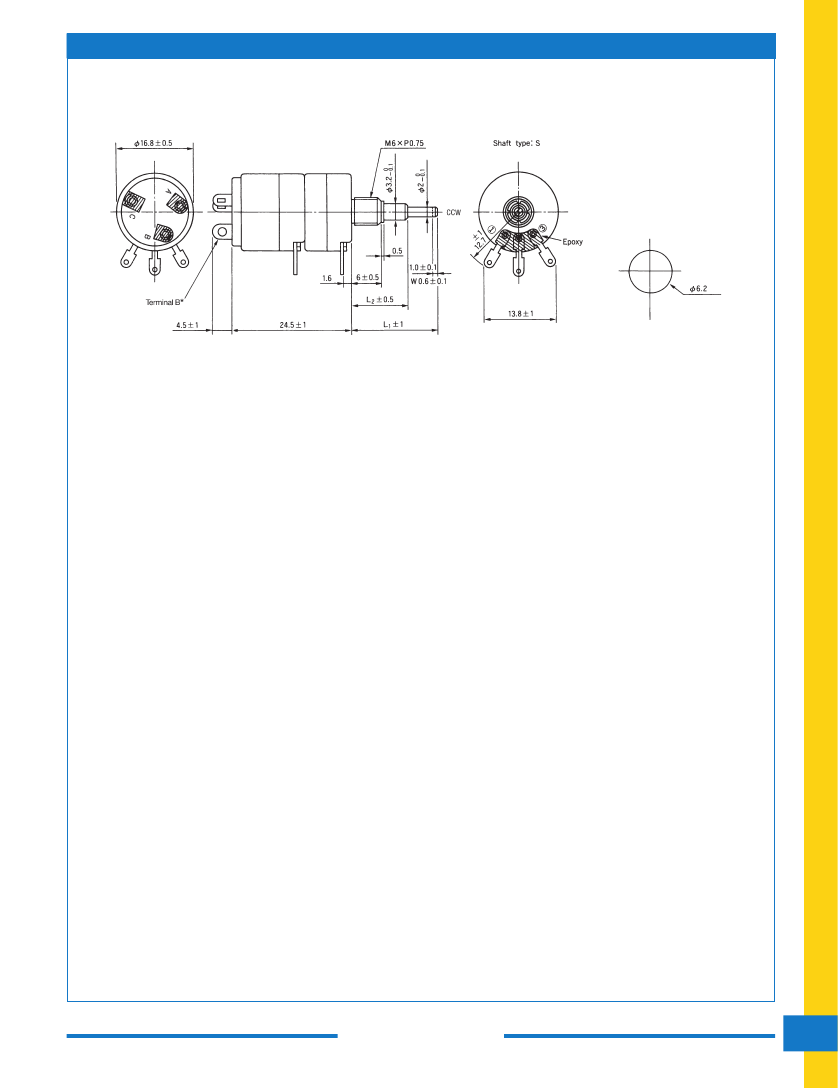

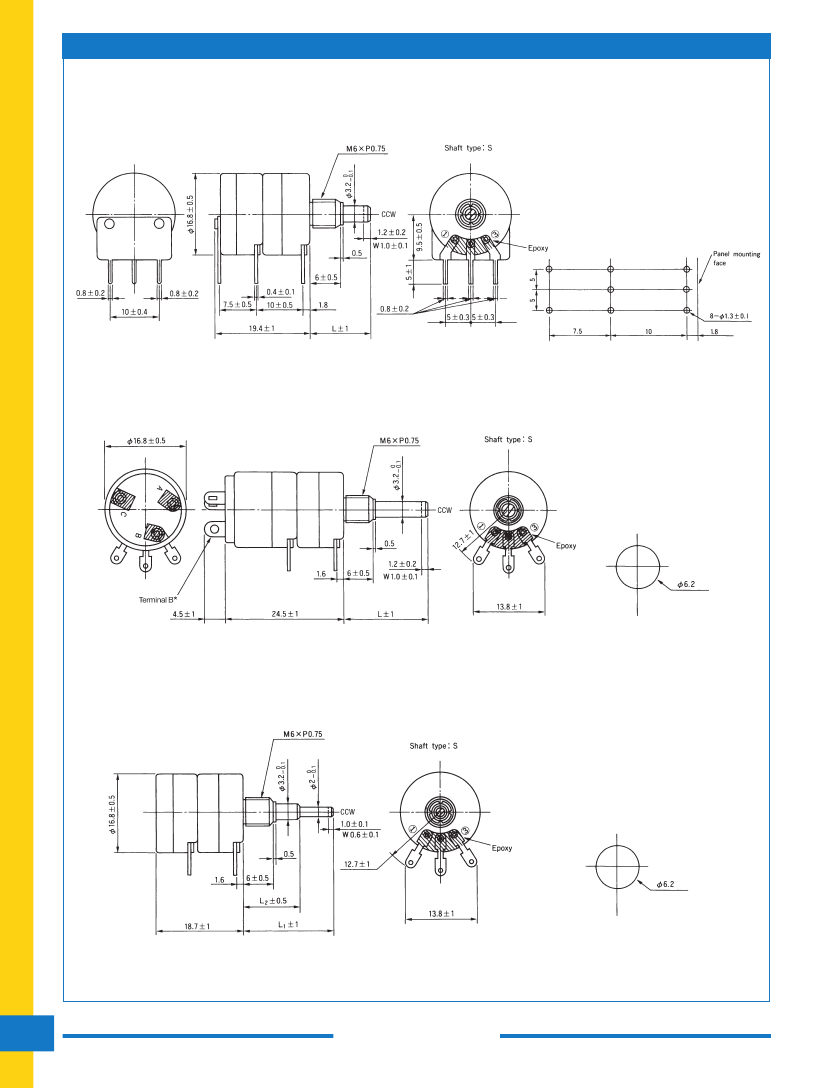

RV16YNME

Features

16mm diameter, single-turn industrial panel controls

Carbon film element

Linear or audio tapers

Single and tandem units, single shaft; dual unit, dual shaft

Optional switch, center detent, and shaft lock available

3.2mm diameter metal shafts in slot, flat or round end styles

Standard 10mm or 15mm shaft length

Panel or PC board mounting styles

Lug or pin terminals

Right angle mount pin configurations

Specifications

Electrical

Standard Resistance Range

. . . . . . . . . . B = 100Ω to 2MΩ

A,C = 2kΩ to 2MΩ

Resistance Tolerance

. . . . . . . . . . . . . . . . .

10% standard

End Resistance

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Ω max.

Resistance Taper

. . . . B = linear; A = CW audio (logarithm);

C = CCW audio (logarithm)

Peak Noise (C.R.V.)

. . . . . . . 3% or 3Ω, whichever is greater

Power Rating

. . . . . . . . . . . . . B = 0.1 watt; A,C = 0.05 watt

at 40 C, 0 watt at 85 C

Maximum Input Voltage

. . . . . . . . 200VDC or power rating,

whichever is smaller

Insulation Resistance

. . . . . . . 100MΩ minimum at 500VDC

Dielectric Strength

. . . . . . . . . . . . . . . . . . 500VAC, 1 minute

Adjustment Travel

. . . . . . . . . . . . . . . . . . . . . . . . . 240

Environmental

Temperature Range

. . . . . . . . . . . . . . . . . .

10 C to

85 C

Low Temperature Exposure

. . . 10 C, 1 hour without load

∆T/R

)

2.5%

Load Life

. . . . . . . . . .

40 C, 90 minutes on, 30 minutes off,

1,000 hours with rated load

∆T/R

)

15%

Moisture Resistance

. . . . . . . . . . . . . . . 40 C, 90-95%RH,

96 hours without load

∆T/R

)

10%

Thermal Shock

. . . . . . . . . . . . . . . . . . . . . . . 10 C ~ 85 C,

5 cycles without load

∆T/R

)

10%

Shock

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50G, 11 m /s

∆T/R

)

2.5%

Vibration

. . . . . . . . . . . . . . . . . . .10-55Hz, 1.5mm amplitude,

3 directions, 2 hours each

∆T/R

)

2.5%

Soldering Heat Resistance

. . . . . . . . . . . 350 C, 3 seconds;

260 C, 5 seconds (PCB units)

∆T/R

)

Rotational Life

. . . . 15,000 cycles (500 cycles for shaft lock

models only) without load

∆T/R

)

10%

Mechanical

Mechanical Travel

. . . . . . . . . . . . . . . . . . . . . . . . . 260

Shaft Torque

Single Unit . . . . . 20.4 to 204 gf

•

cm (0.283 to 2.828 oz

•

in)

Other Units . . . . 20.4 to 357 gf

•

cm (0.283 to 4.949 oz

•

in)

Stop Strength

. . . . . . . . . . . 3.06 kgf

•

cm (42.42 oz

•

in) max.

Mounting Nut Torque

. . . . . 10.2 kgf

•

cm (141.4 oz

•

in) max.

Solderability

. . . . . . . . . . . . . . . . . . . . . . . 235 C, 5 seconds

Marking

. . . . . . . . . . . . . Model type, taper, resistance code,

terminal identification, date code

Standard Rotary Switches

Switch Rating

. . . . . . . . . . . . . 110VAC, 0.5A, SPDT or SPST

Contact Resistance

. . . . . . . . . . . . . . . . . . . . . . 0.05Ω max.

Operating Torque

. . . . . . . . 1,530 gf

•

cm (21.21 oz

•

in) max.

Operating Life

. . . . . . . . . . . . . . . 10,000 cycles without load

∆T/R

= Total Resistance Change

TOCOS

AMERICA, INC.

1177 East Tower Road, Schaumburg, IL 60173

Tel: 847-884-6664

Fax: 847-884-6665

E-mail: sales@tocos.com

www.tocos.com
