EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet

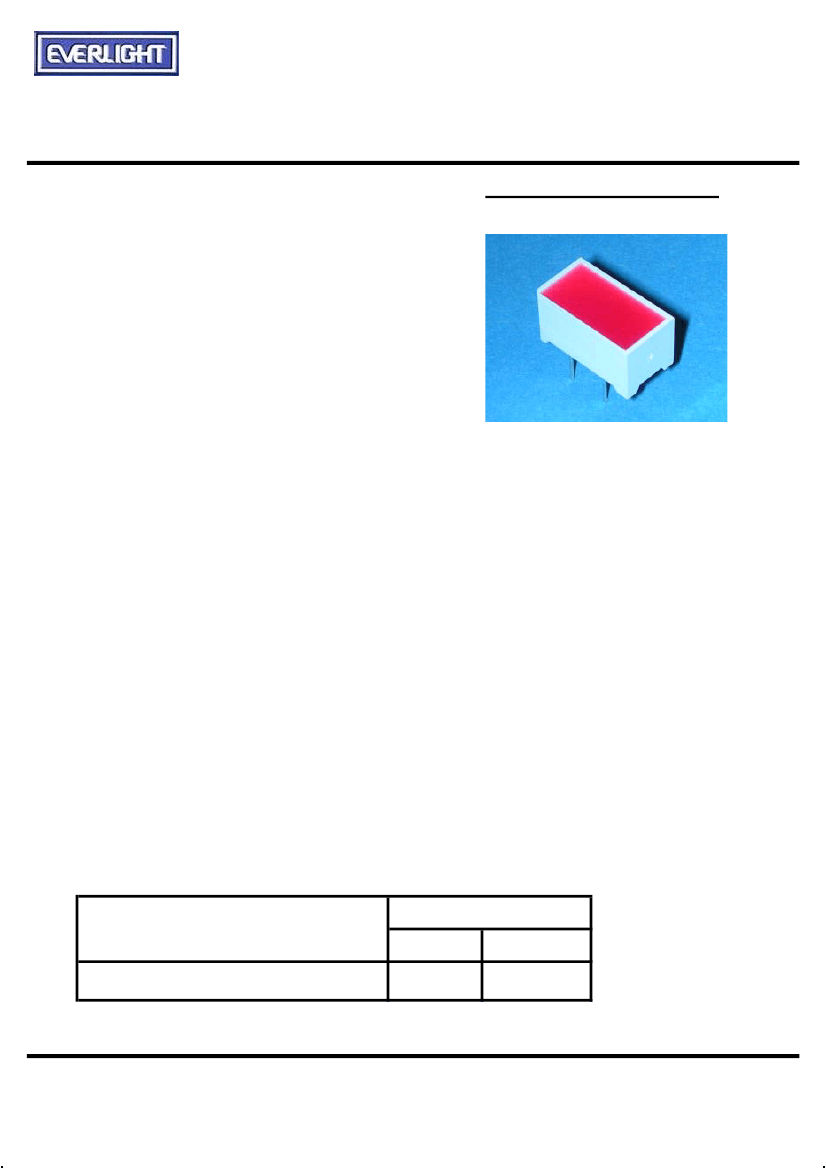

12.7*6.35mm Light Bars
ELB-1010SURD/S530-A6
█
Features :
●
Industrial standard size.
●
Low power consumption.
●
Categorized for luminous intensity.
●
Pb free
█
Descriptions :
●
The ELB-1010 series is 12.7*6.35mm
light bar display. designed for
viewing distances up to 7 meters.
●
There are separate anodes and
cathodes for each light segment and
choice of five colors is offered.
●
These device are available with red
offering a wide possibility in design.
█
Applications :
●
Audio equipment
●
Instrument panels
●
Digital read out display
PART NO.
ELB-1010SURD/S530-A6
Chip
Material
AlGaInP
Emitted Color
Hyper Red
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :CDDB-101-010
http : //www.everlight.com
Prepared date:2004/06/30
Rev. : 2
Page: 1 of 5
Prepared by: Yanfang Gao
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
12.7*6.35mm Light Bars
ELB-1010SURD/S530-A6

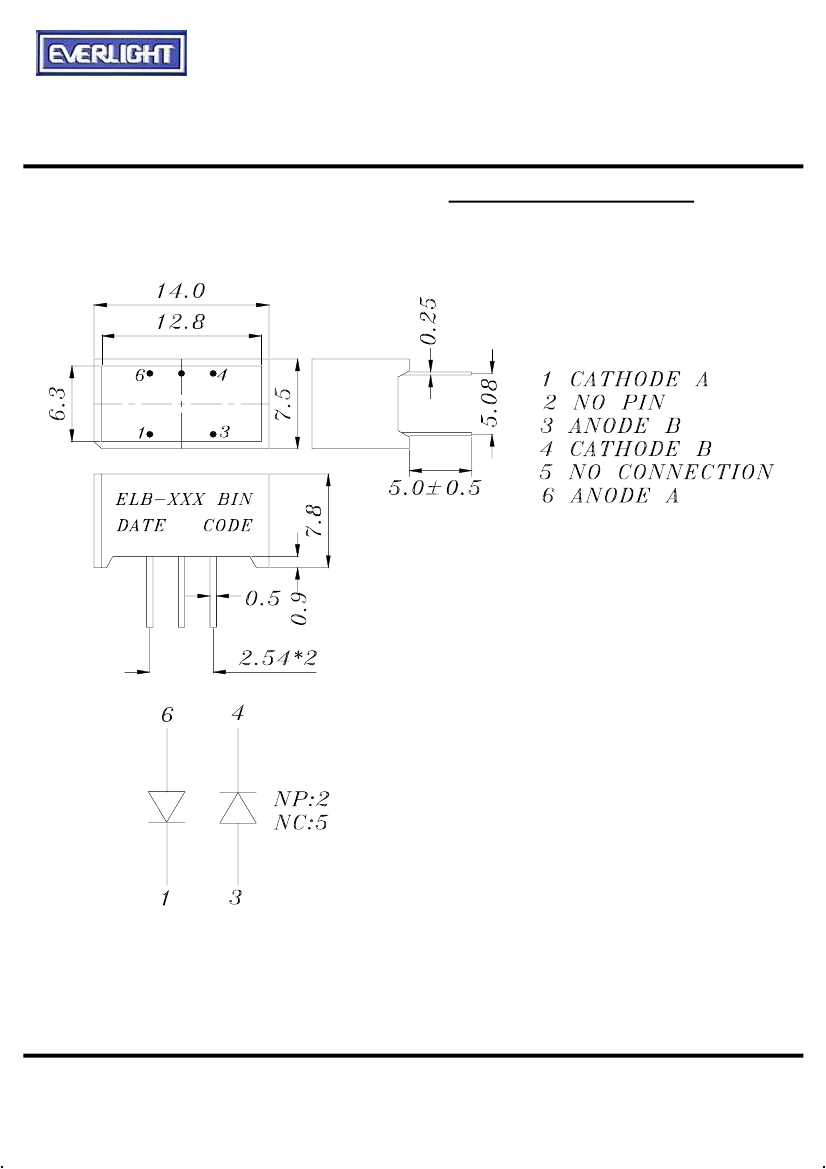

Package Dimensions
Notes:
1.All dimensions are in millimeters , tolerance is 0.25mm unless otherwise noted.
2.Above specification may be changed without notice.
Supplier will reserve authority on material change for above specification.
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :CDDB-101-010
http : //www.everlight.com
Prepared date:2004/06/30
Rev. : 2
Prepared by: Yanfang Gao
Page: 2 of 5
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
12.7*6.35mm Light Bars
ELB-1010SURD/S530-A6
█
Absolute maximum ratings at Ta = 25℃：
Parameter
Reverse Voltage
Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge
Power Dissipation
Symbol
V
R
I
F
Topr
Tstg
Tsol
ESD
Pd
Rating
5
25
-40 to +85
-40 to +100
260 ± 5
2000
60
160
Unit
V
mA
℃
℃
℃
V
mW
mA
Peak Forward Current(Duty 1/10
I
F
(Peak)
@ 1KH
Z
)
█
Electronic optical characteristics :
Parameter
Luminous
Intensity
Symbol
Min.
----
Typ.
6.0
30.0
632
624
20
2.0
----
Max.
----
----
----
----
----
2.4
100
Unit
mcd
mcd
nm
nm
nm
V
µA
Condition
I
F
=2mA
I
F
=10mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
R
=5V
Per segment
Iv
15.0
λp
λd
△λ
V
F
I
R
----
----
----
----
----
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :CDDB-101-010
http : //www.everlight.com
Prepared date:2004/06/30
Rev. : 2
Page: 3 of 5
Prepared by: Yanfang Gao
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
12.7*6.35mm Light Bars
ELB-1010SURD/S530-A6
█

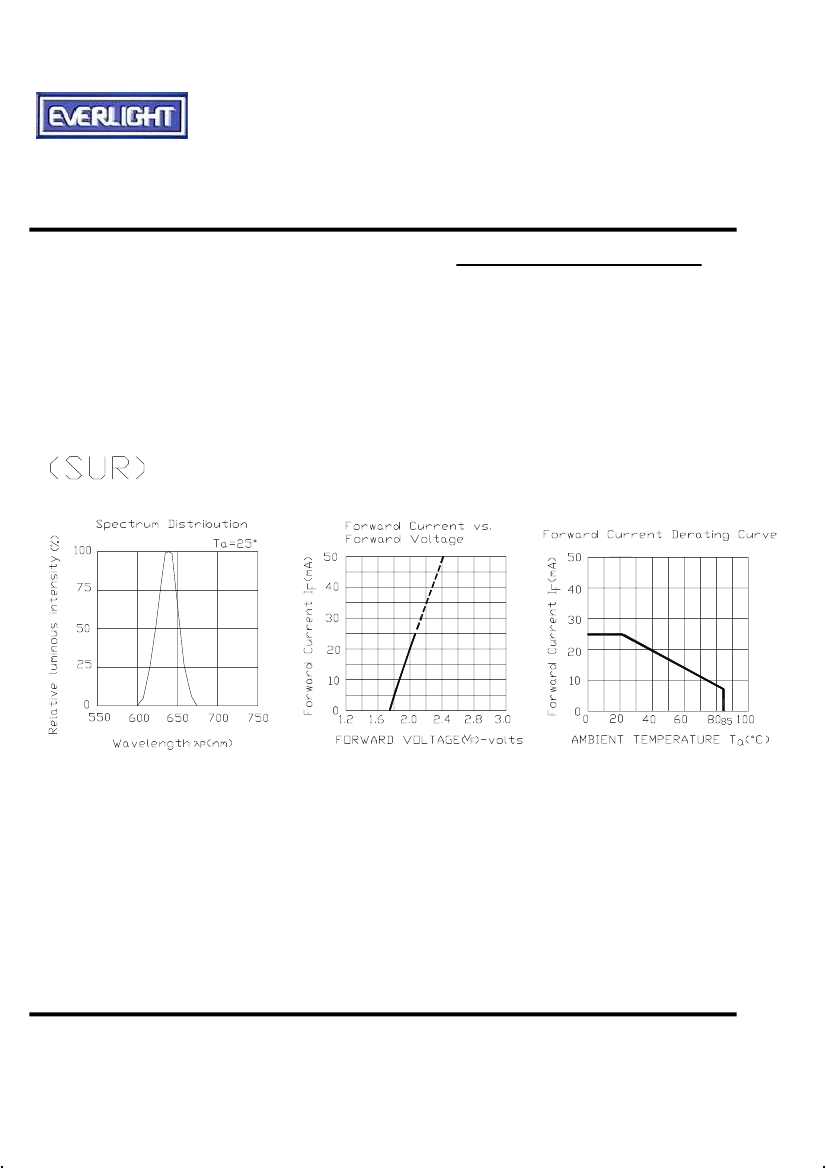

Typical Electro-Optical Characteristic Curves:
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :CDDB-101-010
http : //www.everlight.com
Prepared date:2004/06/30
Rev. : 2
Page: 4 of 5
Prepared by: Yanfang Gao
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
12.7*6.35mm Light Bars
ELB-1010SURD/S530-A6
█
Reliability test items and conditions:
NO
1
Item
Solder Heat
Test Conditions
TEMP : 260℃ ± 5
℃
H : +85℃ 30min
∫
5 min
L : -55℃ 30min
H : +100℃ 5min
∫
10 sec
L : -10℃ 5min
TEMP : 100℃
TEMP : -55℃
IF = 10 mA
85℃/85% RH
Test
Hours/Cycle
5 SEC
Sample Size
76 PCS
Ac/Re
0/1
2
Temperature Cycle
50 CYCLE
76 PCS
0/1
3
Thermal Shock
50 CYCLE
76 PCS
0/1
4
5
6
7
High Temperature Storage
Low Temperature Storage
DC Operating Life
High Temperature /
High Humidity
1000 HRS
1000 HRS
1000 HRS
1000 HRS
76 PCS
76 PCS
76 PCS
76 PCS
0/1
0/1
0/1
0/1
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :CDDB-101-010
http : //www.everlight.com
Prepared date:2004/06/30
Rev. : 2
Page: 5 of 5
Prepared by: Yanfang Gao
