LF353AJ datasheet, PDF - EEWORLD Datasheet

LF353AJ: DescriptionLF353AJ; CategoryAnalog mixed-signal IC Amplifier circuit; File Size467KB，9 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric Compare View All

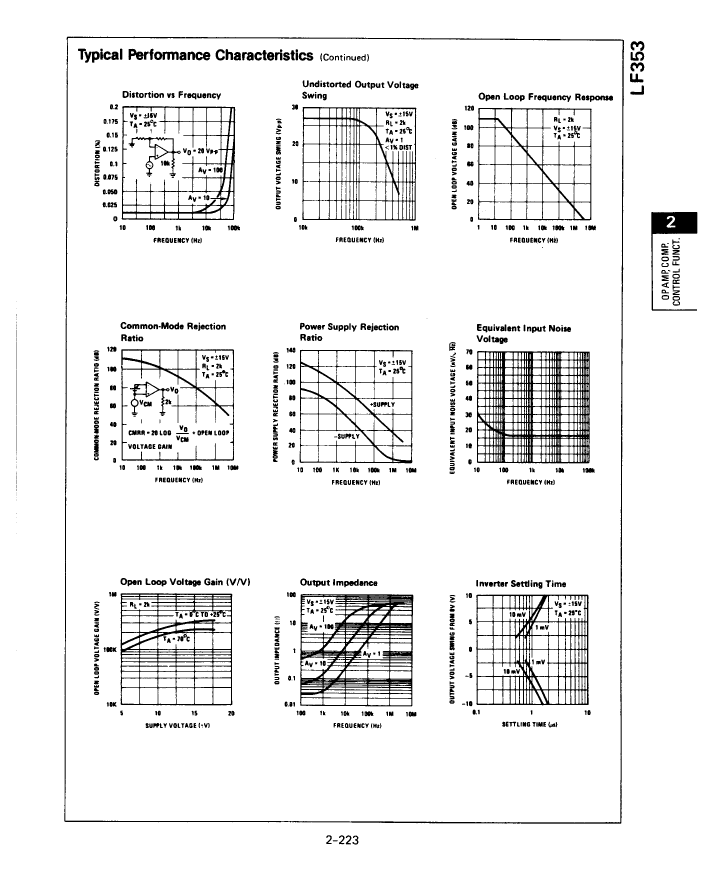

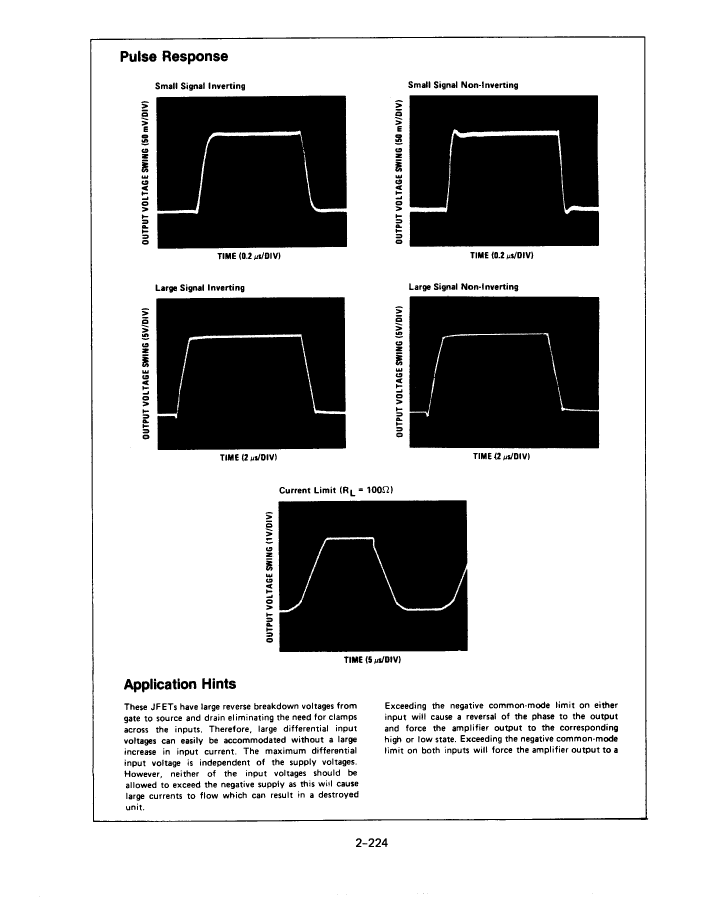

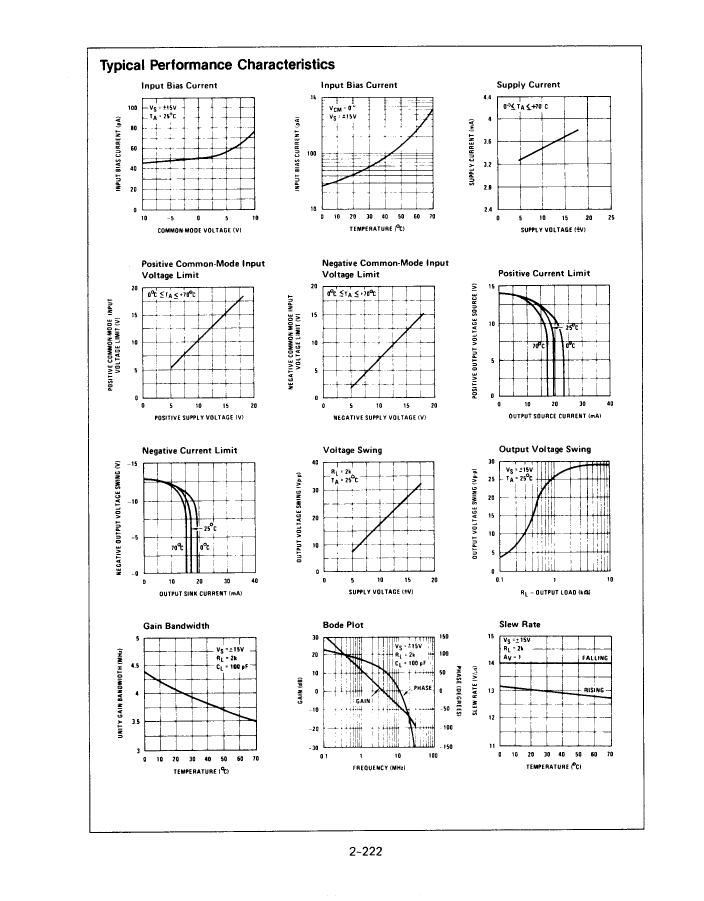

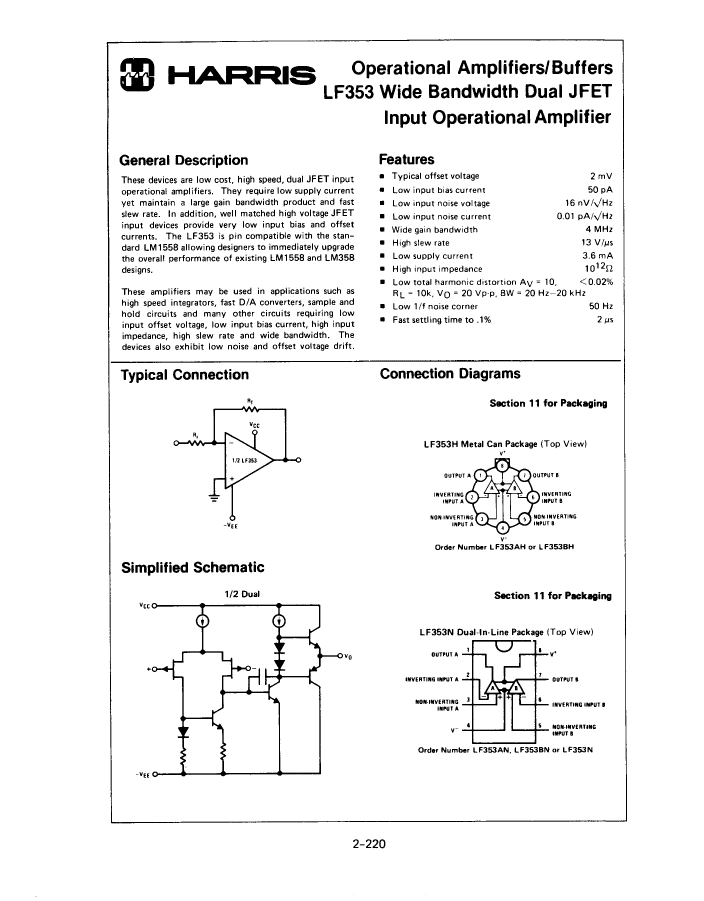

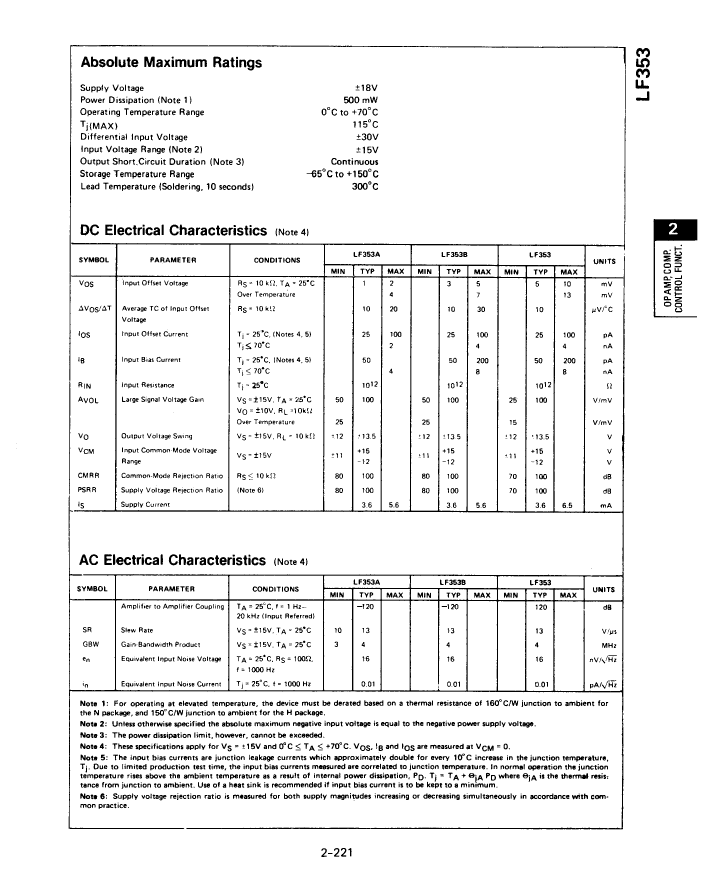

LF353AJ Overview

LF353AJ

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	not_compliant
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.0002 µA
frequency compensation	YES
Maximum input offset current (IIO)	0.002 µA
Maximum input offset voltage	4000 µV
JESD-30 code	R-XDIP-T8
JESD-609 code	e0
low-bias	YES
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	LF353AJ	LF353H	LF353BN
Description	LF353AJ	IC,OP-AMP,DUAL,BIPOLAR/JFET,CAN,8PIN,METAL	LF353BN
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	DIP	BCY	DIP
package instruction	DIP, DIP8,.3	, CAN8,.2	DIP, DIP8,.3
Contacts	8	8	8
Reach Compliance Code	not_compliant	not_compliant	not_compliant
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.0002 µA	0.0002 µA	0.0002 µA
frequency compensation	YES	YES	YES
Maximum input offset current (IIO)	0.002 µA	0.004 µA	0.004 µA
Maximum input offset voltage	4000 µV	13000 µV	7000 µV
JESD-30 code	R-XDIP-T8	O-MBCY-W8	R-PDIP-T8
JESD-609 code	e0	e0	e0
low-bias	YES	YES	YES
low-dissonance	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of functions	2	2	2
Number of terminals	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C
Package body material	CERAMIC	METAL	PLASTIC/EPOXY
Encapsulate equivalent code	DIP8,.3	CAN8,.2	DIP8,.3
Package shape	RECTANGULAR	ROUND	RECTANGULAR
Package form	IN-LINE	CYLINDRICAL	IN-LINE
power supply	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	WIRE	THROUGH-HOLE
Terminal location	DUAL	BOTTOM	DUAL
encapsulated code	DIP	-	DIP
surface mount	NO	-	NO
Terminal pitch	2.54 mm	-	2.54 mm
