LT1719CS6#TR: DescriptionBasic information of LT1719CS6#TR amplifier: LT1719CS6#TR is a COMPARATOR from Linear Technology. Commonly used packaging methods are VSSOP, TSOP6,.11,37 LT1719CS6#TR amplifier core information: The minimum operating temperature of LT1719CS6#TR is and the maximum operating temperature is 70 °C. Its peak reflow temperature is 235 and its maximum average bias current is When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. The LT1719CS6#TR only takes 7 ns to respond. The maximum slew rate of LT1719CS6#TR given by the manufacturer is 9 mA. The nominal supply voltage of the LT1719CS6#TR is 5 V. The power supply range is: 3/5 V. The input offset voltage of LT1719CS6#TR is 3500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).) Related dimensions of LT1719CS6#TR: The width of LT1719CS6#TR is: 1.625 mm and the length is 2.9 mm. LT1719CS6#TR has 6 terminals. Its terminal position type is: DUAL. Terminal pitch is 0.95 mm. Total pins: 6 LT1719CS6#TR amplifier additional information: Its temperature grade is: COMMERCIAL. And its humidity sensitivity level is: 1. LT1719CS6#TR is not Rohs certified. The corresponding JESD-30 code is: R-PDSO-G6. The corresponding JESD-609 code is: e0. The packaging code of LT1719CS6#TR is: VSSOP. The materials of LT1719CS6#TR package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LT1719CS6#TR package pin formats are: SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH. Its terminal forms are: GULL WING. The maximum seat height is 1 mm.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size206KB，22 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html; Related ProductsFound2parts with similar functions to LT1719CS6#TR; Alternative parts：LT1719CS6#TR

Download Datasheet Parametric View All

LT1719CS6#TR Overview

Basic information of LT1719CS6#TR amplifier:

LT1719CS6#TR is a COMPARATOR from Linear Technology. Commonly used packaging methods are VSSOP, TSOP6,.11,37

LT1719CS6#TR amplifier core information:

The minimum operating temperature of LT1719CS6#TR is and the maximum operating temperature is 70 °C. Its peak reflow temperature is 235 and its maximum average bias current is

When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. The LT1719CS6#TR only takes 7 ns to respond. The maximum slew rate of LT1719CS6#TR given by the manufacturer is 9 mA.

The nominal supply voltage of the LT1719CS6#TR is 5 V. The power supply range is: 3/5 V. The input offset voltage of LT1719CS6#TR is 3500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)

Related dimensions of LT1719CS6#TR:

The width of LT1719CS6#TR is: 1.625 mm and the length is 2.9 mm. LT1719CS6#TR has 6 terminals. Its terminal position type is: DUAL. Terminal pitch is 0.95 mm. Total pins: 6

LT1719CS6#TR amplifier additional information:

Its temperature grade is: COMMERCIAL. And its humidity sensitivity level is: 1. LT1719CS6#TR is not Rohs certified. The corresponding JESD-30 code is: R-PDSO-G6. The corresponding JESD-609 code is: e0.

The packaging code of LT1719CS6#TR is: VSSOP. The materials of LT1719CS6#TR package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LT1719CS6#TR package pin formats are: SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH. Its terminal forms are: GULL WING.

The maximum seat height is 1 mm.

LT1719CS6#TR Parametric

Parameter Name	Attribute value
Brand Name	Linear Technology
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	SOT
package instruction	VSSOP, TSOP6,.11,37
Contacts	6
Manufacturer packaging code	S6
Reach Compliance Code	_compli
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum average bias current (IIB)
Maximum input offset voltage	3500 µV
JESD-30 code	R-PDSO-G6
JESD-609 code	e0
length	2.9 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	6
Maximum operating temperature	70 °C
Minimum operating temperature
Output type	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
encapsulated code	VSSOP
Encapsulate equivalent code	TSOP6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	235
power supply	3/5 V
Certification status	Not Qualified
Nominal response time	7 ns
Maximum seat height	1 mm
Maximum slew rate	9 mA
Supply voltage upper limit	7 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	1.625 mm
Base Number Matches	1

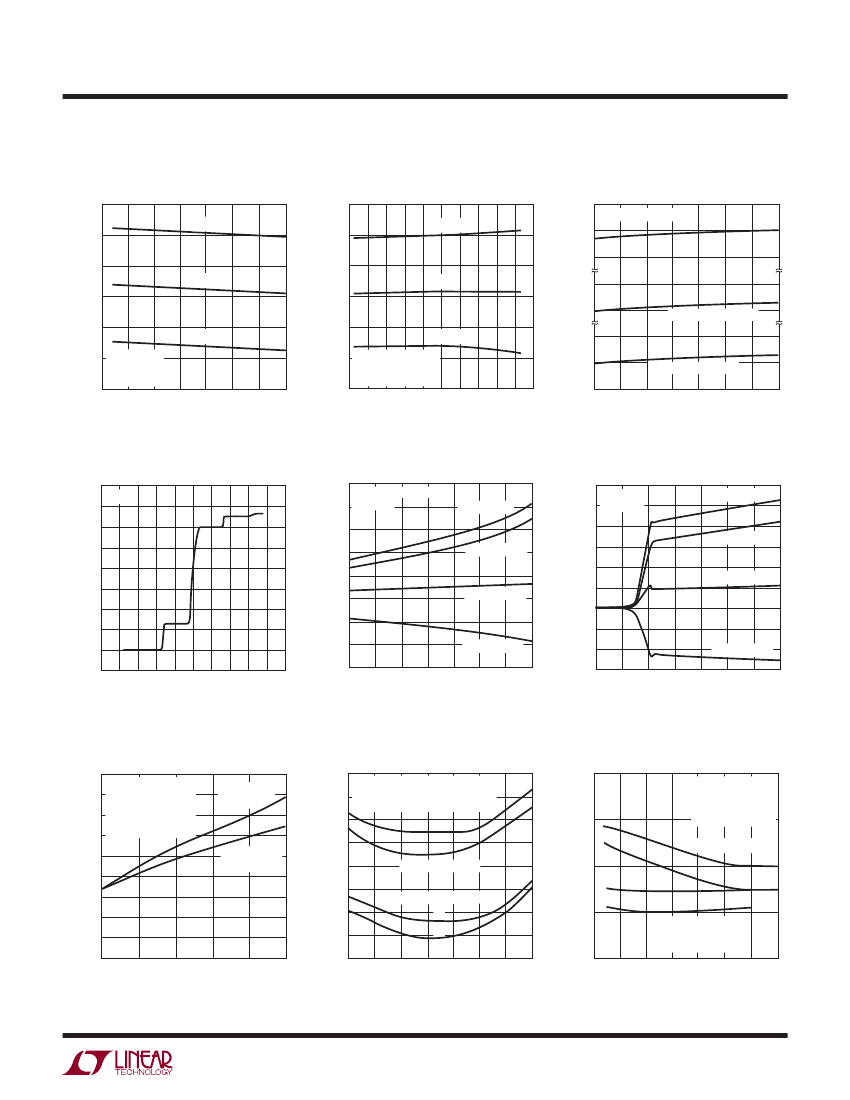

Preview

Download Datasheet

View All

FEATURES

LT1719

4.5ns Single/Dual Supply

3V/5V Comparator with

Rail-to-Rail Output

DESCRIPTION

The LT

1719 is an UltraFast™ comparator optimized for low

voltage operation. The input voltage range extends from

100mV below V

to 1.2V below V

. Internal hysteresis

makes the LT1719 easy to use even with slow moving input

signals. The rail-to-rail outputs directly interface to TTL

and CMOS. Alternatively the symmetric output drive can be

harnessed for analog applications or for easy translation to

other single supply logic levels. A shutdown control allows

for reduced power consumption and extended battery life

in portable applications.

The LT1719 is available in the SO-8 and 6-lead SOT-23

package. The SO-8 package has separate supplies which

allow ﬂexible operation, accomodating separate analog

input ranges and output logic levels.

For a dual/quad comparator with similar performance, see

the LT1720/LT1721.

LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear

Technology Corporation. UltraFast is a trademark of Linear Technology Corporation. All other

trademarks are the property of their respective owners.

UltraFast: 4.5ns at 20mV Overdrive

7ns at 5mV Overdrive

Low Power: 4.2mA at 3V

Separate Input and Output Power Supplies

(SO-8 Only)

Output Optimized for 3V and 5V Supplies

TTL/CMOS Compatible Rail-to-Rail Output

Low Power Shutdown Mode: 0.1μA

Low Proﬁle (1mm) SOT-23 (ThinSOT™) Package

APPLICATIONS

High Speed Differential Line Receiver

Crystal Oscillator Circuits

Level Translators

Threshold Detectors/Discriminators

Zero-Crossing Detectors

High Speed Sampling Circuits

Delay Lines

TYPICAL APPLICATION

2.7V to 6V Crystal Oscillator with TTL/CMOS Output

2.7V TO 6V

220Ω

FALLING EDGE

PDHL

)

Propagation Delay vs Overdrive

25°C

STEP

= 100mV

= 5V

LOAD

= 10pF

1MHz TO 10MHz

CRYSTAL (AT-CUT)

RISING EDGE

PDLH

)

–

GROUND

CASE

OUTPUT

LT1719

1719 TA01

DELAY (ns)

620Ω

OVERDRIVE (mV)

1719 TA02

0.1μF

1.8k

1719fa
