CTJ-8-04-H-D1-BK-P2-FS-FF datasheet, PDF

Datasheet> All Categories > The connector> The connector> CTJ-8-04-H-D1-BK-P2-FS-FF

CTJ-8-04-H-D1-BK-P2-FS-FF: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size104KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CTJ-8-04-H-D1-BK-P2-FS-FF Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

CTJ-8-04-H-D1-BK-P2-FS-FF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.537 inch
subject depth	0.843 inch
body length	0.63 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	CTJ
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	COPPER ALLOY
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

SHIELDED

SPECIFICATIONS

Contact material:

Contact plating:

Housing material:

Shield material:

Shield plating:

Phosphor bronze ø0.45mm or 0.35mm thick

Gold 15µ”

PBT with 15% glass fiber, UL94V-0

Copper alloy 0.25mm

Nickel

FERRITE FILTER

(1)

(2)

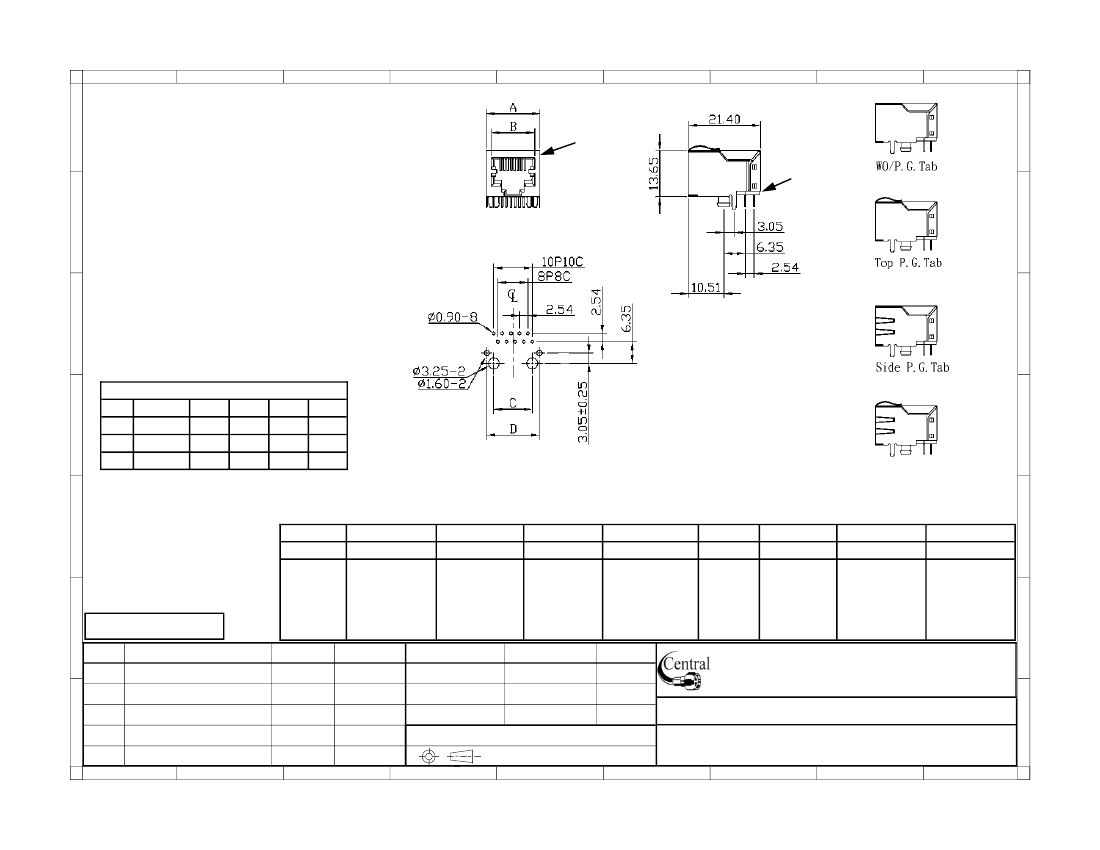

Dimensions

Pos. Contacts

6 2, 4, 6

14.00 9.00 10.16 13.50

8 4, 6, 8

16.00 11.93 11.43 15.49

10 10

16.00 11.93 11.43 15.49

(4)

PCB layout

Top view

Top & side panel

grounding tabs

(6)

Panel Gnds.

PG6

[blank]=None

2=Top

4=Sides

6=Top & sides

(See diagrams)

RoHS compliant

Rev.

Description

Series

Positions

Contacts

Body

Ground Tab

Color

Plating

Options

CTJ

Modular

6=6 positions

02=2 contacts H=Side entry, D1=3.05mm

BK=Black P1=15µ” gold FS=Full shield

phone jack 8=8 positions

04=4 contacts tab down

ground tab offset

P2=30µ” gold FF=Ferrite filter

10=10 positions 06=6 contacts

P3=50µ” gold

08=8 contacts

10=10 contacts

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

CTJ-X-XX-H-D1-BK-PX-FS-PGX-FF

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Modular jack, shielded, panel grounds, filter
