SSMB-SP-1.5QEW-CF datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> SSMB-SP-1.5QEW-CF

Preview

SSMB-SP-1.5QEW-CF: DescriptionRF SSMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size156KB，5 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric Compare View All

SSMB-SP-1.5QEW-CF Overview

RF SSMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Plug

SSMB-SP-1.5QEW-CF Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
subject depth	0.413 inch
Body diameter	0.217 inch
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SSMB CONNECTOR
Contact point gender	FEMALE
Contact resistance	7.5 mΩ
Contact style	COAX
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	2 GHz
Guideline	UL
Shell surface	GOLD
Shell material	COPPER ALLOY
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.3

SSMB-SP-1.5QEW-CF Preview

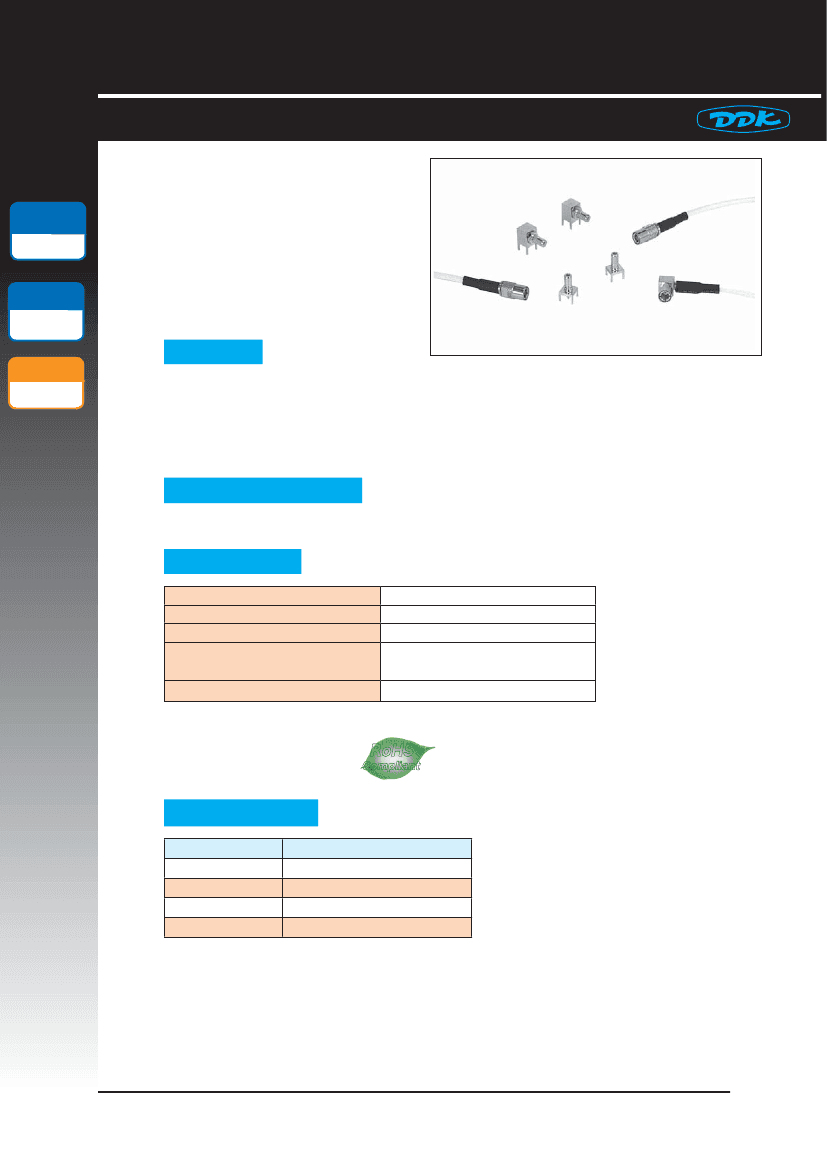

Low Proﬁle Push-On Coaxial Connector

SSMB Series

Frequency

Range

DC to 2GHz

Characteristic

Impedance

50 Ω

FEATURE

Lock Type

・ Low proﬁle coaxial connector with push on lock

coupling which is conforms to IEC Pub. 169-19.

・ Mating heights from PCB are available in

conbination SP and LR (6mm) and conbination

LP and SR(11mm).

CONFORMING STANDARD

IEC-Pub. 169-19

SPECIFICATIONS

Characteristic Impedance

50 Ω

Dielectric Withstanding Voltage 500V AC(r.m.s.)for1 minute

Insulation Resistance

1.000M Ω Mim. at 250V DC

Contact Resistance

V.S.W.R.

Center Conductor 7.5m Ω Max.

Outer Conductor 2.5m Ω Max.

1.3 max. at DC to 2GHz

Push On

＊ The speciﬁcations are typical but may not apply to all connectors. Please check

the speciﬁcations on each item with its drawing from us when you use.

RoHS

Compliant

MATERIAL/FINISH

Item

Shell (Body)

Contact (Male)

Insulator

Material / Finish

Copper Alloy / Au Plating

PTFE

Contact (Female) Copper Alloy / Au Plating

◎ Please acknowledge that the speciﬁcation etc. of this catalog might change by the improvement etc. without a previous notice.

Moreover, the characteristic and the speciﬁcation of the published product are the reference values.

Please conﬁrm the content with the latest delivery speciﬁcations when you use the product.

100201

http://www.ddknet.co.jp

SSMB Series

Unit：mm

○ Plug Connector

φA

Part Number

SSMB-SP-0.8DV-CR-CF

Applicable

Cable

0.8D-QEV

RG-196A/U

1.5D-QEW

Dimensions

φA

5.0

5.5

L

13.9

17.3

15.8

Outer

Au

Finish

Center

Conductor

Au

Assembly

Instruction

Crimp Tool

CR-H-13510

Conductor

L

SSMB-SP-196U-CF

SSMB-SP-1.5QEW-CF

1

2

CR-H-1164

CR-H-1133

Part Number

SSMB-SP-85-SO-CF

Applicable

Cable

FCCAVG1

Outer

Au

Finish

Center

Conductor

Au

φ5

Assembly

Instruction

Conductor

10.5

○ Right Angle Plug Connector

A

5.0

Part Number

C

Applicable

Cable

0.8D-QEV

RG-196A/U

1.5D-QEW

Dimensions

A

7.73

8.48

B

3.0

4.5

C

13.5

12.4

Finish

Outer

Center

Conductor Conductor

Au

Assembly

Crimp Tool

Instruction

1

2

CR-H-1164

CR-H-1133

SSMB-LP-0.8DQEV-CF

SSMB-LP-196U-CF

SSMB-LP-1.5QEW-CF

φB

5.0

Part Number

SSMB-LP-85-SO-CF

9.05

φ4

Applicable

Cable

FCCAVG1

Finish

Outer

Center

Conductor

Au

Conductor

Au

Assembly

Instruction

◎ Please acknowledge that the speciﬁcation etc. of this catalog might change by the improvement etc. without a previous notice.

Moreover, the characteristic and the speciﬁcation of the published product are the reference values.

Please conﬁrm the content with the latest delivery speciﬁcations when you use the product.

http://www.ddknet.co.jp

8

2

SSMB Series

Unit：mm

○ Receptacle Connector

Finish

Part Number

φ0.65

Outer

Conductor

Au

Center

Conductor

Au

4-0.6

□5

2.5

5.2

8.5

SSMB-SR-PC-CF

Part Number

φ0.65

4-□0.6

5

5.2

2.5

(11.73)

9.23

Outer

Au

Finish

Center

Conductor

Au

Conductor

SSMB-SR-PC-1-CF

5.7

Finish

Part Number

Outer

Conductor

SSMB-LR-PC-CF

φ0.65

Center

Conductor

Au

2.5

4-□0.6

□5

Au

11.5

0.05

4.4

5-φ1.2

0.05

2.2

4.4

0.05

PCB Mounting Dimensions

2−φ2.75

Part Number

SSMB-SR2-CF

Finish

Outer

Center

Conductor

Au

Conductor

Au

6

φ1

.8

φ2.15

φ0.65

12.2

2-φ2.75

0.1

6.1

0.05

5

7

1.5

6.7

(13.7)

φ2.4

0

PCB Mounting Dimensions

◎ Please acknowledge that the speciﬁcation etc. of this catalog might change by the improvement etc. without a previous notice.

Moreover, the characteristic and the speciﬁcation of the published product are the reference values.

Please conﬁrm the content with the latest delivery speciﬁcations when you use the product.

http://www.ddknet.co.jp

3

12.2

5.8

+0.1

0.05

SSMB Series

Unit：mm

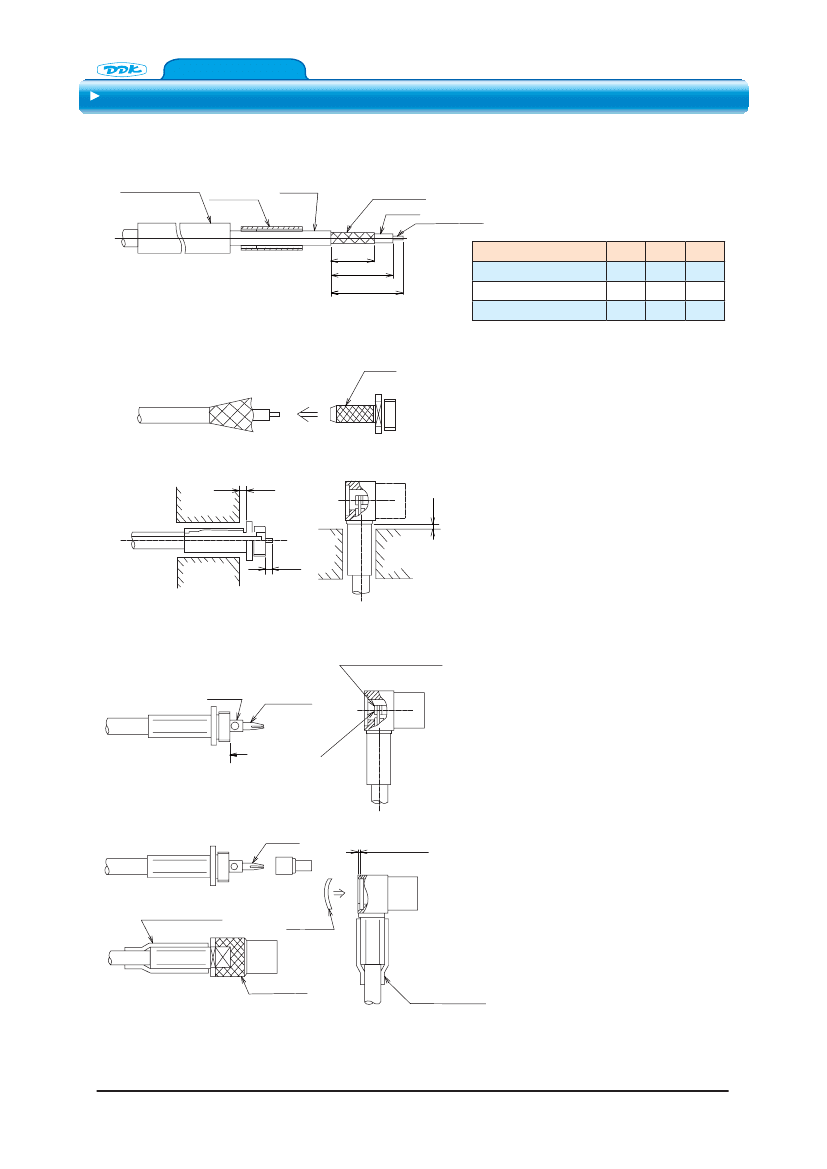

○ Assembly Instruction（1）

①

Heat-shrinkable Tube

RG-196A/U

① Cable cutting

Insert the heat-shrinkable tube and ferule into

Ferule

Outer Conductor

the cable and cut the cable as left ﬁgure.

Insulator

Center Conductor

A

B

C

Part Number

SSMB-SP-196U-CF

SSMB-LP-196U-CF

SSMB-LP-0.8DQEV-CF

A

6

B

8.5

C

10.5

9.5

②

Body

② Crimping outer conductor

Stretch the outer conductor of cable, insert

the body and crimp the ferule on the outer

conductor by dies.

（SP）

0∼1

（LP）

0∼1

Dies

0.5∼1

Center conductor must be

located between contact slit.

③ Soldering contact

Solder the contact with center conductor

of the cable.

③

Soldering

Contact

No gap

Soldering

④

（SP）

Contact

Press the plate more than 0.1.

（LP）

Insulator

④ Assemble connector

Insert the insulator and screw the shell.

（Recommended screw torque : 49N/㎝）.

Heat-shrinkable Tube

Plate

In case of LP style,

insert the plate and press it

into the connector.

Cover the root of connector with heat-shrinkable

Connector

tube and heat shrink.

Heat-shrinkable Tube

◎ Please acknowledge that the speciﬁcation etc. of this catalog might change by the improvement etc. without a previous notice.

Moreover, the characteristic and the speciﬁcation of the published product are the reference values.

Please conﬁrm the content with the latest delivery speciﬁcations when you use the product.

http://www.ddknet.co.jp

4

SSMB Series

Unit：mm

○ Assembly Instruction (2）

①

Outer Conductor

① Removing outer jacket

Removing outer jacket as left ﬁgure.

Outer Jacket

8

②

② Insert ferule and sleeve

Ferule

Insert ferule into the cable, stretch the outer

conductor of the cable and insert sleeve.

Cut oﬀ the outer conductor of the cable along

Insulator

Sleeve

the sleeve

③

Insulator

Center Conductor

③ Cutting cable

Cut the center conductor and insulator of the

cable as left ﬁgure.

A

B

Part Number

SSMB-SP-1.5QEW-CF

A

2.8

B

5.2

4.7

④

（SP）

Dies Surface

Body Surface

Dies

Center Conductor

（LP）

SSMB-LP-1.5QEW-CF

④ Crimping body

Insert the body and crimp it by dies.

Crimping body should be equal to body surface and

Dies

0.5∼1

DIes Surface

Body Surface

dies surface.

⑤

Soldering

Contact

Center Conductor must be

located between contact slit.

⑤ Soldering contact

Soldering the contact with center conductor

No gap

Soldering

of the cable

⑥

（SP）

Contact

（LP）

Press the plate more than 0.1

⑥ Assemble connector

Insulator

Insert the insulator and screw the connector.

（Recommended screw torque : 49N/㎝）

In case of LP style,

insert the plate and press it

Plate

into the connector.

Connector

◎ Please acknowledge that the speciﬁcation etc. of this catalog might change by the improvement etc. without a previous notice.

Moreover, the characteristic and the speciﬁcation of the published product are the reference values.

Please conﬁrm the content with the latest delivery speciﬁcations when you use the product.

http://www.ddknet.co.jp

5

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

SSMB-SP-1.5QEW-CF Related Products

	SSMB-SP-1.5QEW-CF	SSMB-LR-PC-CF	SSMB-SR2-CF
Description	RF SSMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Plug	RF SSMB Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle	RF SSMB Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle
Reach Compliance Code	unknown	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
subject depth	0.413 inch	0.453 inch	0.264 inch
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω	50 Ω
Connector type	RF SSMB CONNECTOR	RF SSMB CONNECTOR	RF SSMB CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE
Contact resistance	7.5 mΩ	7.5 mΩ	7.5 mΩ
Contact style	COAX	COAX	COAX
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	BOARD	BOARD
Number of ports	1	1	1
Maximum operating frequency	2 GHz	2 GHz	2 GHz
Shell surface	GOLD	GOLD	GOLD
Shell material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Termination type	CRIMP	SOLDER	SOLDER
Total number of contacts	1	1	1
voltage standing wave ratio	1.3	1.3	1.3
Maker	-	DDK	DDK
body width	-	0.224 inch	0.059 inch
Manufacturer's serial number	-	SSMB	SSMB
Terminal length	-	0.098 inch	0.079 inch
