8025-31S-0811-20 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 8025-31S-0811-20

Preview

8025-31S-0811-20: DescriptionD Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size129KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

8025-31S-0811-20 Overview

D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

8025-31S-0811-20 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
body width	0.492 inch
subject depth	0.35 inch
body length	2.091 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	8000
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	RIVET
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	15u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25

Preview

Download Datasheet

View All

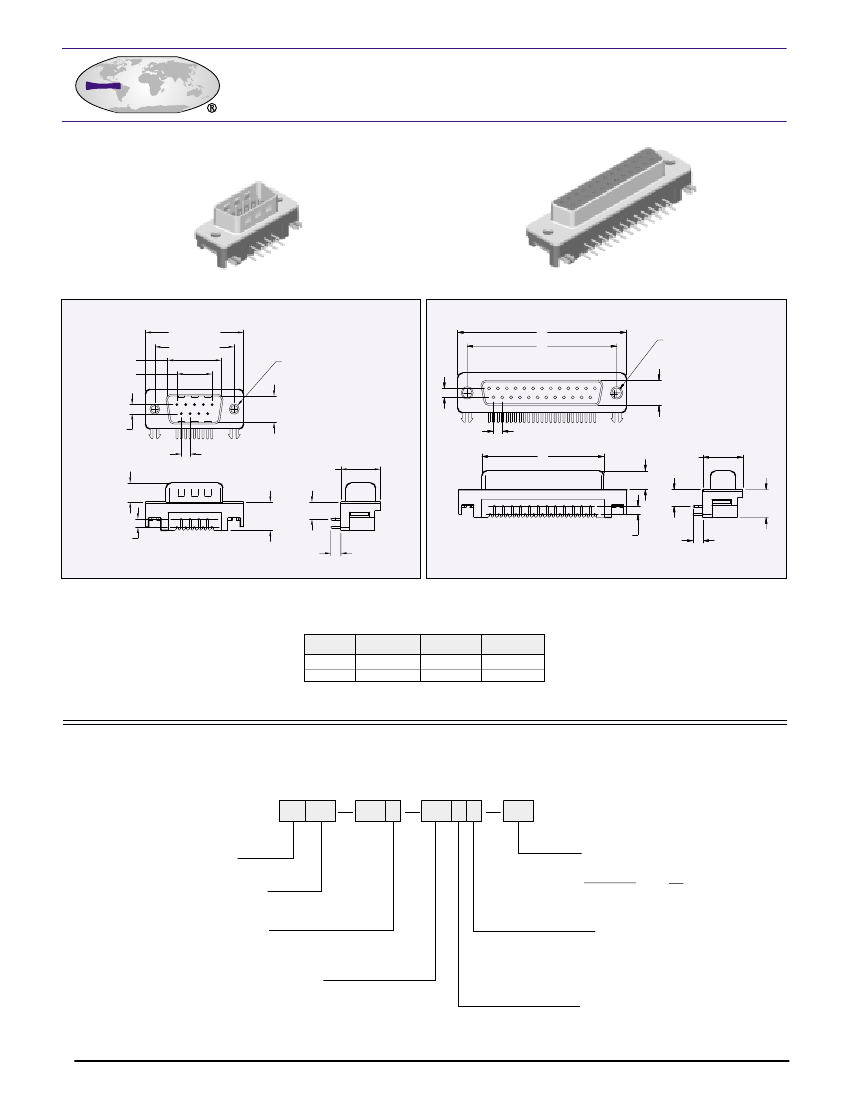

CC

S

8000 Series D-Subminiature

.210 Right Angle

PLUG

1.213 [30.8]

.984 [25.0]

.666 [16.92]

.436 [11.07]

SEE MOUNTING

STYLE OPTIONS

13

RECEPTACLE

B

A

SEE MOUNTING

STYLE OPTIONS

1

.311 [7.9]

1

5

6

9

25

14

.327 [8.3]

.112

[2.84]

.109 [2.77] TYP.

.112 [2.84]

.109 [2.77] TYP.

.492 [12.5]

C

.228 [5.8]

.492 [12.5]

.236 [6.0]

.350 [8.9]

.100 [2.54]

.126 [3.2]

.210 [5.33]

.100 [2.54]

.210 [5.33]

.350 [8.9]

.126 [3.2]

Receptacle

CONTACTS

A

B

C

09

25

0.984 [25.00] 1.213 [30.80] 0.642 [16.30]

1.852 [47.04] 2.091 [53.10] 1.508 [38.30]

Dimensions are in inches [mm]

80 XX

SERIES CODE

NO. OF CONTACTS

09

= Plug

09, 25

= Receptacle

P

= Plug

S

= Receptacle

PART NUMBERING

31 X

08 X X

XX

50µ” Nickel Underplate

Mating Area

Tail

100µ” Tin Lead

05

= Au Flash

100µ” Tin Lead

20

= 15µ” Gold

100µ” Tin Lead

30

= 30µ” Gold

50µ” Nickel Underplate

1

= Tin Plating (standard)

CONTACT PLATING

CONNECTOR TYPE

MOUNTING STYLE OPTIONS

Consult Factory for other Mounting Options

SHELL PLATING

See Page E-05 For Options

08

= Riveted Ground Hooks with #4-40 UNC Open

1

= Black

INSULATOR COLOR

WWW.ECSCONN.COM
