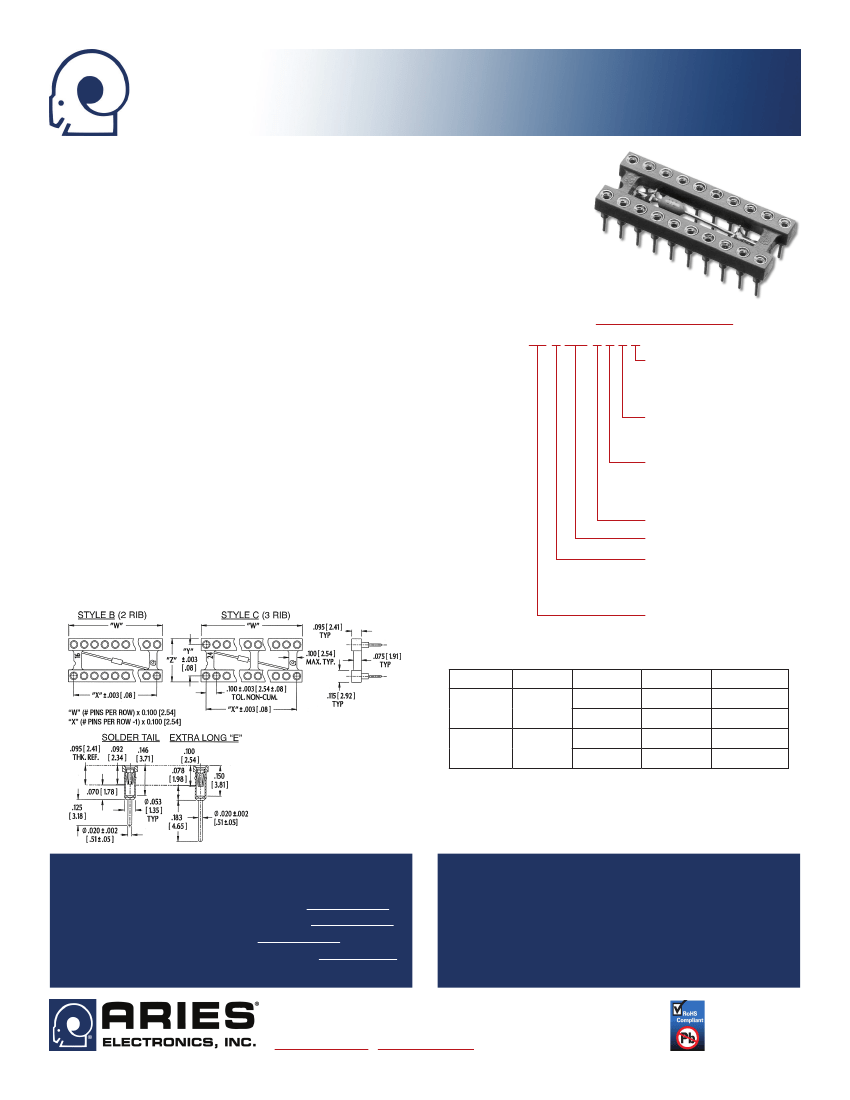

Series 518 Open Frame Capacitor Socket
w/Collet Contacts & Solder Pin Tails
FEATURES
• Capacitor bypasses unwanted electromagnetic noise
• Available with 0.1µF or 0.33µF Capacitor, 50V, Z5U temperature coefficient
• Open frame allows for more efficient utilization of board space and better cooling
• Compatible with Automatic Insertion Equipment
• Side-to-side and End-to-end Stackable
GENERAL SPECIFICATIONS
•
BODY MATERIAL: Blue UL 94V-0 Glass-filled Polyester Thermoplastic (PBT)
•
PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTMB16-85
ORDERING INFORMATION
•
PIN BODY PLATING: either 10µ [0.25µ] min. Au per MIL-G-45204 or 200µ [5.08µ]
min. 93/7 Sn/Pb per ASTM B545 or 200µ [5.08µ] min. Sn per ASTM B545 Type 1
XX-X 518-X X X X
over 100µ [2.54µ] min. Ni per SAE AMS-QQ-N-290
Additional Options
•
4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM-B194-92
H = Heavy Au on Collet
•
CONTACT PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 –OR– 150µ [3.81µ] min.
T = Sn on Collet
93/7 Sn/Pb per MIL-P-81728 over 50µ [1.27µ] min. Ni per QQ-N-290. Heavy 30µ
E = Extra Long Solder Tail
[0.76µ] Au plating also available
Capacitor
•
CONTACT CURRENT RATING: 3 amps
1 = 0.1µF
•
OPERATING TEMPERATURE: 221°F [105°C] for Sn plating, and 257°F [125°C] for Au
2 = 0.33µF
plating
Plating
•
INSERTION FORCE: 180g/pin
0 = Au Collet, Sn Shell
0TL = Au Collet, Sn/Ph Shell
•
WITHDRAWAL FORCE: 90g/pin
1 = Au Collet & Shell
•
NORMAL FORCE: 140g/pin; based on a 0.018 [0.46] dia. test lead
•
ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] in dia.
Solder Pin Tail
•
LEAD LENGTHS: from 0.100 [2.54] min.
Series
•
SUGGESTED PCB HOLE SIZE: 0.030 ±0.002 [0.76±0.05] dia.
Row-to-Row Spacing,
“Y” Dim.
3 = 0.300 [7.62]
4 = 0.400 [10.16]
6 = 0.600 [15.24]
No. of Pins
(See Table)
MOUNTING CONSIDERATIONS
Frame Style
B
C
No. of Ribs
2
3
Centers “Y”
0.300 [7.62]
0.400 [10.16]
0.300 [7.62]
0.600 [15.24]
Dim. “Z”
0.400 [10.16]
0.500 [12.70]
0.400 [10.16]
0.700 [17.78]
No. of Pins
14, 16, 18, 20
20, 22, 24
24, 28
24, 28, 32, 40
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
OPEN FRAME COLLET SOCKET w/WIRE WRAP PINS, SEE DATA SHEET 12016
OPEN FRAME COLLET SOCKET w/SOLDER PIN TAILS, SEE DATA SHEET 12017
OPEN FRAME SURFACE MOUNT SOCKET, SEE DATA SHEET 12018
OPEN FRAME COLLET CAPACITOR SOCKET w/WIRE WRAP, SEE DATA SHEET 12027
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12026
Rev. 1.3
1 of 1
