1-748394-4 datasheet, PDF - EEWORLD Datasheet

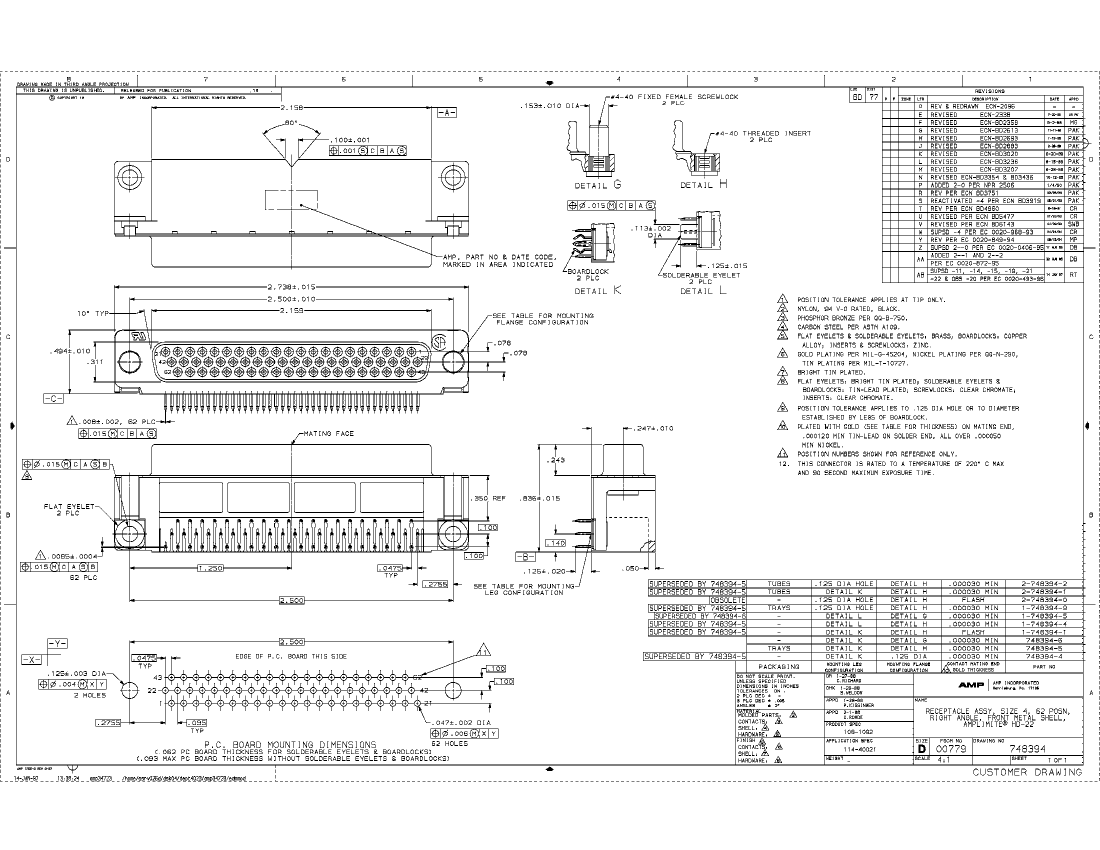

1-748394-4: DescriptionCONNECTOR,D-SHELL,PCB MNT,PLUG,62 CONTACTS,SKT,0.095 PITCH,PC TAIL TERMINAL,#4-40; CategoryThe connector The connector; File Size65KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-748394-4 Overview

CONNECTOR,D-SHELL,PCB MNT,PLUG,62 CONTACTS,SKT,0.095 PITCH,PC TAIL TERMINAL,#4-40

Parameter Name	Attribute value
Objectid	300067349
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.593 inch
body length	2.738 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
MIL compliance	YES
Plug contact pitch	0.095 inch
Match contact row spacing	0.078 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	MIL-C-24308
Shell surface	TIN
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.413 mm
Termination type	SOLDER
Total number of contacts	62

	1-748394-4	1-748394-9	1-748394-1	1-748394-5	2-748394-0	VI-RC1223-IVUVH1-CC	2-748394-1	2-748394-2
Description	CONNECTOR,D-SHELL,PCB MNT,PLUG,62 CONTACTS,SKT,0.095 PITCH,PC TAIL TERMINAL,#4-40	CONNECTOR,D-SHELL,PCB MNT,PLUG,62 CONTACTS,SKT,0.095 PITCH,PC TAIL TERMINAL,#4-40	CONNECTOR, 62 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR,D-SHELL,PCB MNT,PLUG,62 CONTACTS,SKT,0.095 PITCH,PC TAIL TERMINAL,#4-40	CONNECTOR, 62 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, PACKAGE-20	CONNECTOR, 62 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, 62 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE
Reach Compliance Code	compliant	unknown	unknow	unknown	unknown	not_compliant	unknown	unknown
Body/casing type	PLUG	PLUG	RECEPTACLE	PLUG	RECEPTACLE	-	RECEPTACLE	RECEPTACLE
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	-	FEMALE	FEMALE
insulator material	POLYETHYLENE	POLYETHYLENE	POLYAMIDE	POLYETHYLENE	POLYAMIDE	-	POLYAMIDE	POLYAMIDE
MIL compliance	YES	YES	NO	YES	NO	-	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	-	BOARD	BOARD
Shell surface	TIN	TIN	TIN	TIN	TIN	-	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	-	STEEL	STEEL
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	-	SOLDER	SOLDER
Total number of contacts	62	62	62	62	62	-	62	62
