ZPY3V9 to ZPY100
Vishay Semiconductors
Zener Diodes
Features
• Silicon Planar Power Zener Diodes
• For use in stabilizing and clipping circuits
e2
with high power rating
• The Zener voltages are graded according to the
international E 12 standard. Smaller voltage toler-
ances are available upon request
• These diodes are also available in the MELF case
with the type designation ZMY3V9 to ZMY100
• Lead (Pb)-free component
• Component in accordance to RoHS
2002/95/EC and WEEE 2002/96/EC
17173
Mechanical Data
Case:
DO41 Glass case
Weight:
approx. 310 mg
Cathode Band Color:
black
Packaging Codes/Options:
TR/5 k per 13" reel (52 mm tape), 25 k/box
TAP/5 k per Ammo mag. (52 mm tape), 25 k/box
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Zener current
(see Table "Characteristics")
Power dissipation
1)
Test condition
Symbol
Value
Unit
P
tot
1.3
1)
W
Valid provided that leads at a distance of 4 mm from case are kept at ambient temperature
Thermal Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Thermal resistance junction to ambient air
Maximum junction temperature
Storage temperature range
1)
Test condition
Symbol
R
thJA
T
j
T
stg
Value
110
1)
175
- 55 to + 175
Unit
K/W
°C
°C
Valid provided that leads at a distance of 4 mm from case are kept at ambient temperature
Document Number 85790
Rev. 1.6, 07-Aug-06
www.vishay.com
1
ZPY3V9 to ZPY100
Vishay Semiconductors
Typical Characteristics
T
amb
= 25 °C, unless otherwise specified
W
2
ZPY...
Ω
10
3
7
5
4
3
2
ZPY...
P
tot
r
zj
1
10
2
7
5
4
3
2
ZPY100
ZPY82
ZPY68
ZPY56
ZPY43
0
0
100
T
amb
200 °C
gzpy1_04
10
0.1
2
3 4 5
1
2
3 4 5
10 mA
gzpy1_07
I
Z

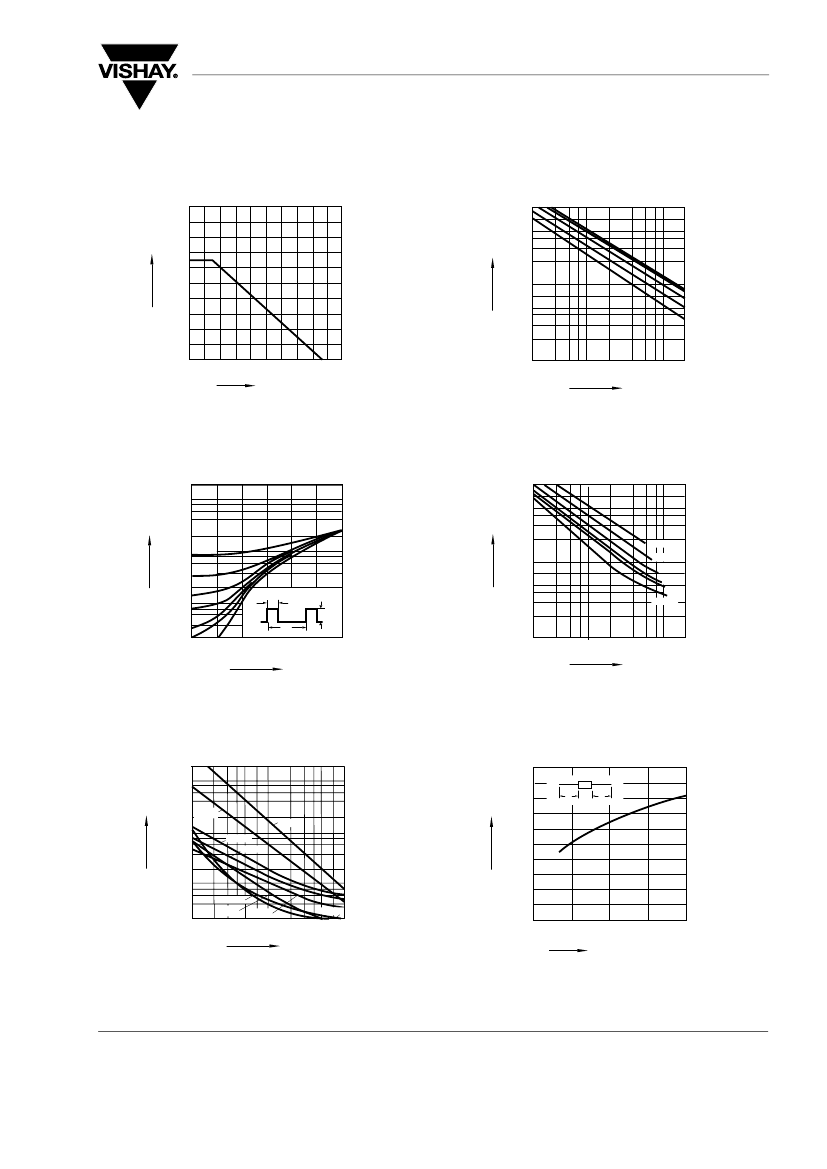

Figure 1. Admissible Power Dissipation vs. Ambient Temperature
Figure 4. Dynamic Resistance vs. Zener Current
°C/W
10
3
5
4
3
2
ZPY...
Ω
100
7
5
4
3
2
ZPY...
r
thA
10
2
5
4
3
2
0.5
r
zj
ZPY43
10
0.2
7
5
4
3
P
I
2
ZPY36
ZPY30
ZPY24
ZPY22
10
1
0.1
5 0.05
4
3 0.02
2
0.01
t
P
v
=
T
P
___
t
T
ZPY18
1
-4
10
-5
10
10
-3
10
-2
10
-1
1
10 s
1
2
3 4 5
10
2
3 4 5
100 mA
gzpy1_08
t
P
gzpy1_05
I
Z
Figure 2. Pulse Thermal Resistance vs. Pulse Duration
Figure 5. Dynamic Resistance vs. Zener Current
Ω
10
3
5
4
3
2
ZPY...
°C/W
200
l
l
ZPY...
r
zj
10
2
ZPY5.1
5
4
3
2
R
thA
ZPY4.3
ZPY18
ZPY12
100
10
5
4
3
2
1
ZPY6.2
ZPY1 ZPY10
ZPY7.5
2
3 4 5
7
0
0
5
10
15
20 mm
gzpy1_09
1
2
3 4 5 7
10
100 mA
I
Z
gzpy1_06
lead length l
Figure 3. Dynamic Resistance vs. Zener Current
Figure 6. Thermal Resistance vs. Lead Length
Document Number 85790
Rev. 1.6, 07-Aug-06
www.vishay.com
3
ZPY3V9 to ZPY100
Vishay Semiconductors
