B48-2T Overview

Single and Three Phase Circuits

B48-2T, B48-2 Series
Single and Three Phase Circuits

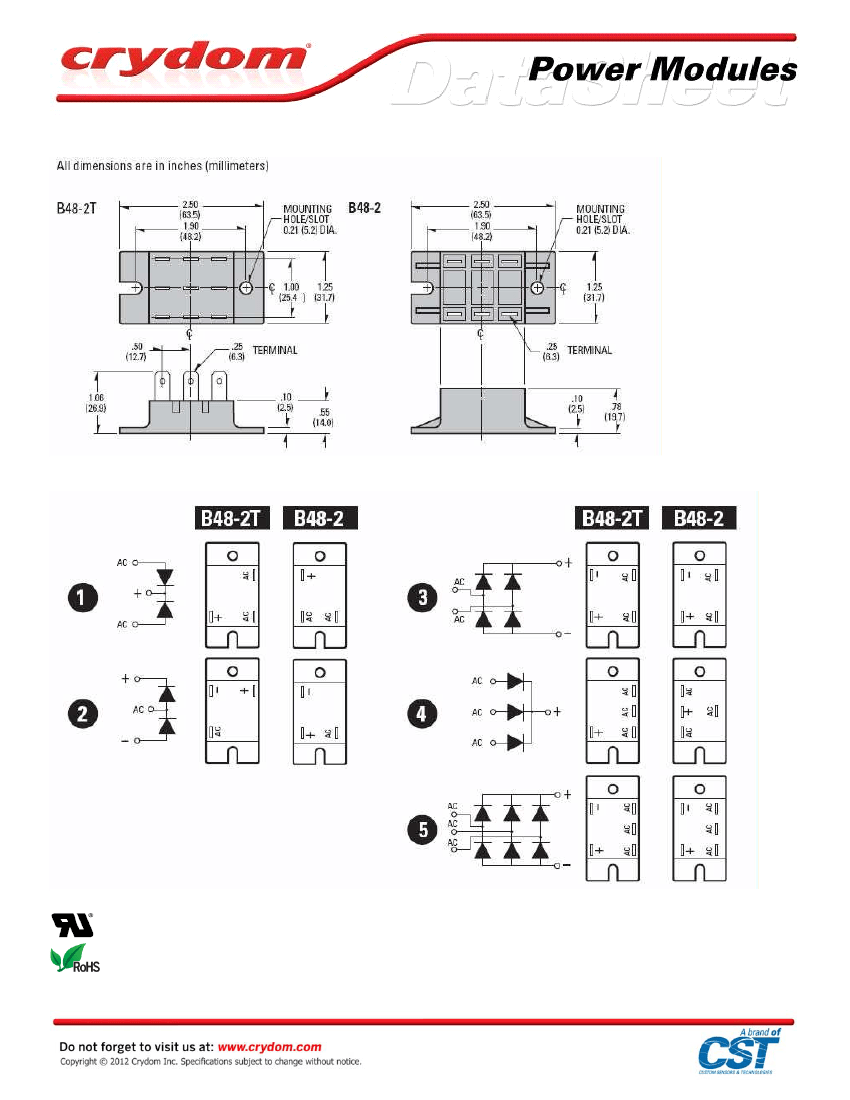

5 Different Circuits to Choose from
• Up to 1600 Volt Blocking Standard
• UL Recognized E72445
AVAILABLE OPTIONS
ELECTRICAL SPECIFICATIONS
Description
Maximum DC Output Current (Tc = 85°C)
Maximum Voltage Drop @ Amps Peak
Operating Junction Temperature Range
Symbol
I
D
V
F
T
J
Single Phase
35 A
1.25V @ 35A
-40 - 125°C
400 (120 VAC)
600 (240 VAC)
800 (280 VAC)
1200 (480 VAC)
1400 (530 VAC)
1600 (600 VAC)
Three Phase
50 A
1.35V @ 50 A
-40 - 125°C
Repetitive Peak Reverse Voltage (AC Line Nominal) [Vpk]
V
RRM
Maximum Non-Repetitive Surge Current (1/2 Cycle, 60 Hz) [A]
Maximum I²T for Fusing (t=8.3ms) [A²sec]
Maximum Thermal Resistance, Junction to Ceramic Base per Chip [°C/W]
Isolation Voltage [Vrms]
I
TSM
IT
R
JC
V
ISOL
2
600
1500
0.9°C/W
2500
600
1500
0.9°C/W
GENERAL SPECIFICATIONS
Description
Weight (typical)
1.5 oz (42.5g)
