255PMC700KEP1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 255PMC700KEP1

255PMC700KEP1: DescriptionFilm Capacitor,; CategoryPassive components capacitor; File Size530KB，4 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric Compare View All

255PMC700KEP1 Overview

Film Capacitor,

255PMC700KEP1 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Capacitor type	FILM CAPACITOR
Number of terminals	2

255PMC700KEP1 Preview

FEATURES

APPLICATIONS

High current

–

High dvdt

–

multiple lug styles

Power semiconductor module protection

–

Resonant

circuit

–

Switching power supplies

Operating Temperature Range

Capacitance Tolerance

Non-Recurrent SVDC

AC voltage (50/60 Hz)

Dissipation Factor (MAX)

25°C

Insulation Resistance

@25°C (<70% RH)for 1 minute at

100VDC applied

Self Inductance

Capacitance Drift Factor

Life Expectancy

Failure quota

WVDC

250

330

400

500

600

800

1000

VAC

WVDC

250

330

400

600

700

VAC

160

220

275

350

400

For T>+85°C , The voltage (DC/AC)must be decreased by (1.5/2.5)% per °C

Frequency

5<C<25uF

C>25uF

C<5uF

(kHz)

0.05%

0.08%

0.1%

Insulation Resistance

3000 MΩxuF

(not to exceed 30GΩ)

<1 nano-Henry per mm of lead spacing

<0.5% after 2 years at 40°C

100000 Hours @WVDC

30000 Hours @ VAC

Capacitance Change

<3% of initially measured value

300/ Billion component hours

56 days at40°C with 90 to 95%RH, +40°C and no voltage applied

Capacitance Change

<2% of initially measured value

Dissipation Factor

<0.001 at 1kHz and 25°C

Insulation Resistance

>50% of maximum specified value

<1 nano-Henry per mm of lead spacing

<0.5% after 2 years at 40°C

-200 ppm/°C, +100ppm/°C

Terminal to case

3kVAC @ 50/60 Hz applied between

160% of rated VDC or 150% VAC

terminals and case for 60 seconds at

applied for 2 Seconds and 25°C

25°C

Polypropylene

Metallized film

Flame Retardant plastic box with epoxy resin (UL94V-0)

Lead free tinned copper leads

Terminal to Terminal

-40°C to +100°C

+10% at 1 kHz, 25°C

+5% optional

400

600

700

Damp Heat test

Self Inductance

Capacitance Drift Factor

Capacitance Temperature

Coefficient

Dielectric Strength

Dielectric

Construction

Coating

Leads

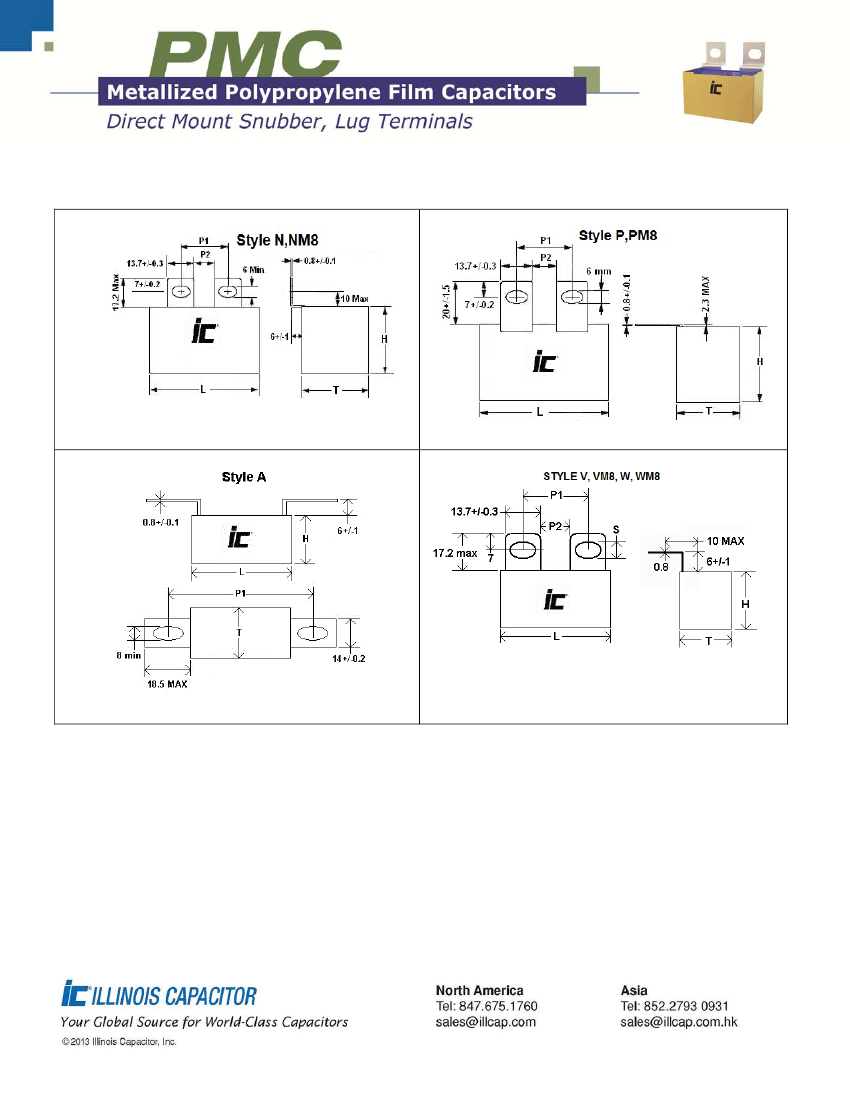

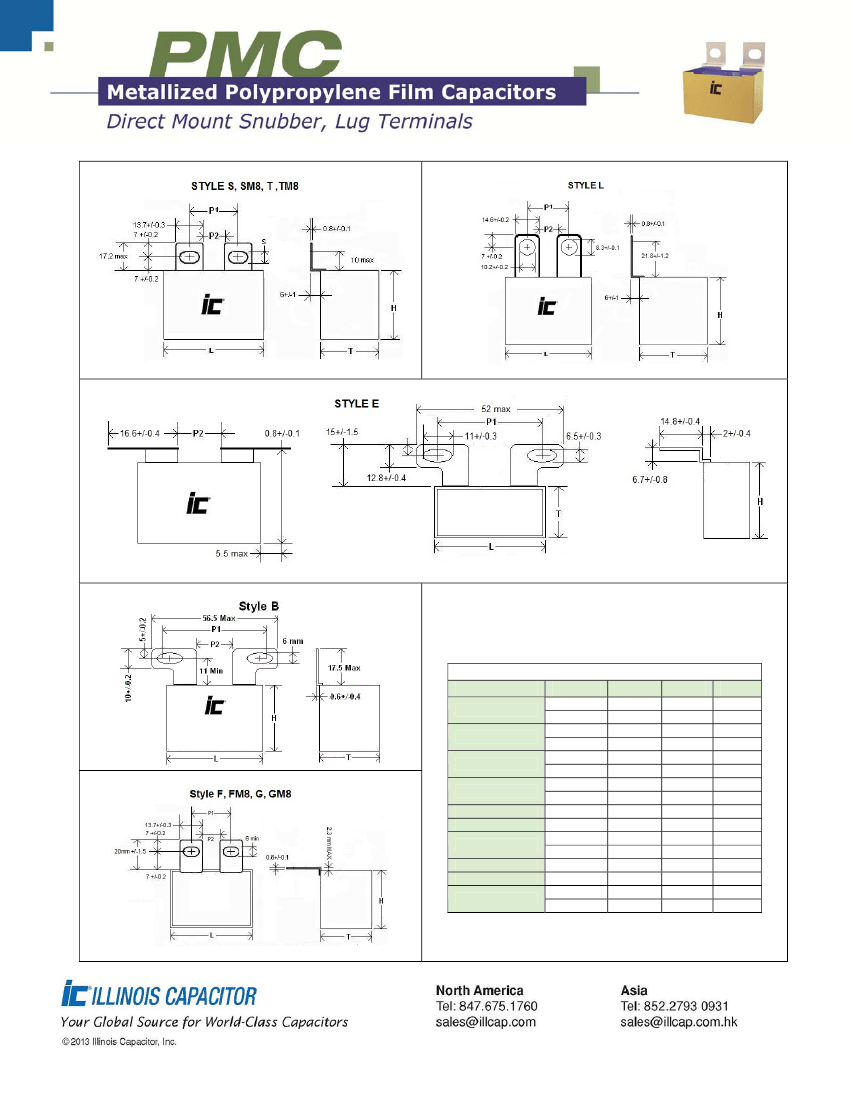

Fixing pitch and distance between lugs (mm)

Lugs

S,V,F

SM8,VM8, FM8

T,W,G

TM8,WM8,GM8

N,P

NM8, PM8

42 - 42.5

57.5

42 - 42.5

57.5

42 - 42.5

57.5

42 - 42.5

57.5

42 - 42.5

57.5

42 - 42.5

57.5

23 - 28

37 - 42

25 – 26

39 - 40

20 – 25

34 – 39

22 – 23

36 – 37

23 – 28

25 - 26

51 – 64

65 – 78

32 – 45

30 - 37

22 - 24

36 - 38

----

---

PMC

Capacitance

WVDC

(µF)

IC PART NUMBER

Maximum

Typical

RMS Ripple

dv/dt

ESR (mΩ)

Current (A)

(v/µ sec.)

100 kHz,

+25°C

+70°C

Dims LxHxT

(mm)

Metallized Polypropylene,

Power Semiconductor direct

mount Snubber Lug terminals

Capacitance

WVDC

(µF)

IC PART NUMBER

Maximum

Typical

RMS Ripple

dv/dt

ESR (mΩ)

Current (A)

(v/µ sec.)

100 kHz,

+25°C

+70°C

Dims LxHxT

(mm)

1.5

2.5

3.3

4.7

6.8

700

600

700

600

700

600

700

400

600

700

600

700

400

600

700

330

400

600

700

600

700

250

400

155PMC700K#P2

205PMC700K#P2

255PMC600K#P2

255PMC700K#P1

305PMC600K#P2

305PMC700K#P1

335PMC600K#

335PMC700K#

405PMC400K#P2

405PMC600K#P1

405PMC700K#P0

475PMC600K#

475PMC700K#

505PMC400K#P2

505PMC600K#P1

505PMC700K#P0

685PMC330K#

685PMC400K#P1

685PMC600K#P0

685PMC700K#

805PMC700K#

905PMC600K#P0

905PMC700K#

106PMC250K#P2

106PMC400K#P1

14.5

16.5

19.5

21.5

16.5

21.5

18.5

28.5

22.5

25.5

31.5

26.5

4.8

3.4

3.6

3.1

3.3

2.9

3.4

2.8

2.6

2.4

2.2

2.9

2.5

2.3

2.8

2.5

2.2

3.8

3.5

1.9

3.2

2.7

2.1

42.5x27.5x24.5

42.5x35.5x33.5

42.5x27.5x24.5

42.5x35.5x33.5

42.5x27.5x24.5

42.5x35.5x33.5

42.5x27.5x24.5

42.5x35.5x33.5

42.5x45x33

42.5x35.5x33.5

42.5x45x33

42.5x27.5x24.5

42.5x35.5x33.5

42.5x45x33

42.5x27.5x24.5

42.5x35.5x33.5

42.5x45x33

57.5x45x30

57.5x50x35

42.5x45x33

57.5x50x35

42.5x27.5x24.5

42.5x35.5x33.5

12.5

600

400

600

250

330

400

600

250

330

400

250

330

400

250

330

400

250

330

250

330

250

106PMC600K#

126PMC400K#P0

126PMC600K#

156PMC250K#P1

156PMC330K#

156PMC400K#P0

156PMC600K#

206PMC250K#P1

206PMC330K#

206PMC400K#

226PMC250K#

226PMC330K#

226PMC400K#

256PMC250K#P1

256PMC330K#

256PMC400K#

306PMC250K#P0

306PMC330K#

336PMC250K#

356PMC250K#P0

356PMC330K#

406PMC330K#

506PMC250K#

606PMC250K#

23.5

29.5

23.5

26.5

31.5

28.5

29.5

26.5

27.5

30.5

28.5

26.5

30.5

27.5

32.5

34.5

3.5

3.2

2.3

1.9

2.9

1.8

2.9

1.8

1.7

2.7

1.9

2.7

2.6

1.8

2.5

1.7

2.3

2.1

2.2

57.5x45x30

42.5x45x33

57.5x50x35

42.5x35.5x33.5

42.5x45x33

57.5x50x35

42.5x35.5x33.5

42.5x45x33

57.5x45x30

42.5x35.5x33.5

42.5x45x33

57.5x50x35

42.5x35.5x33.5

57.5x45x30

57.5x50x35

42.5x45x33

57.5x45x30

42.5x45x33

57.5x50x35
