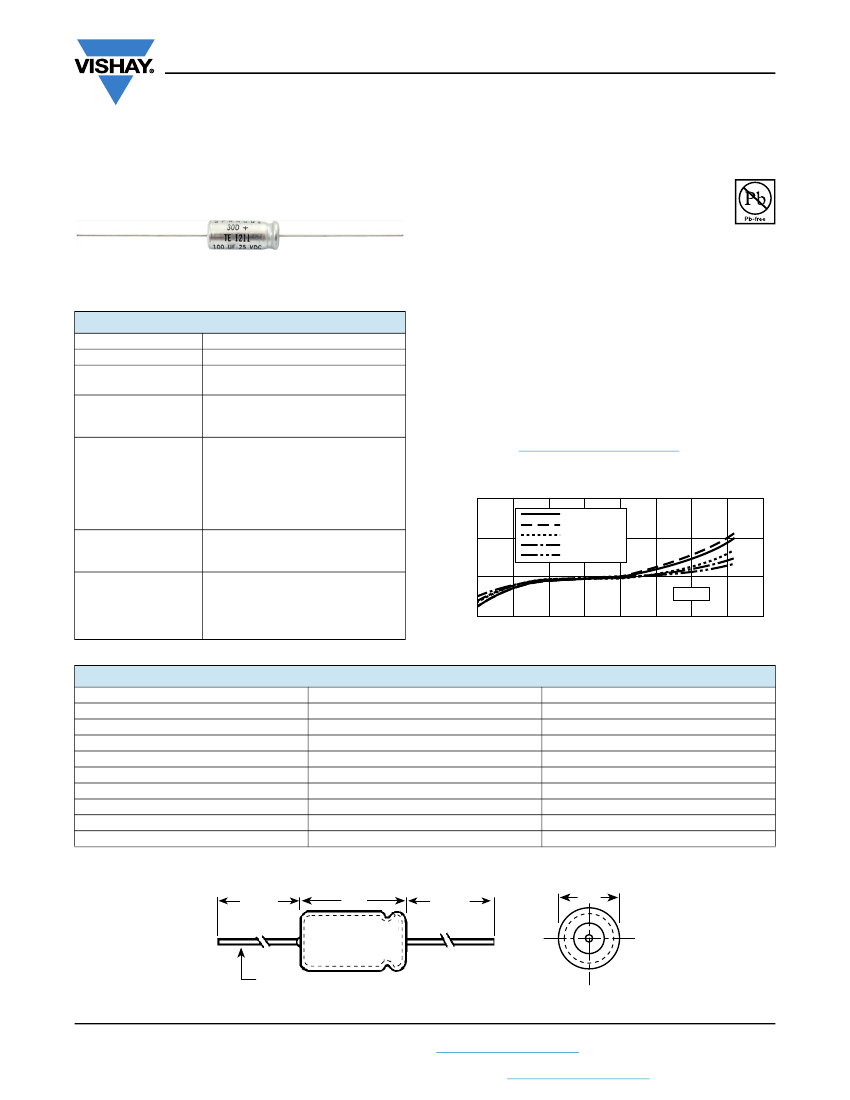

www.vishay.com

Vishay Sprague

Aluminum Capacitors

Little-Lytic™ Electrolytics

FEATURES

• Proven dependable performance in the industrial

and electronic equipment with either transistor or

modified electron-tube circuits

Available

• All terminal connections welded, eliminating

possibility of open or intermittent contacts occasionally

found in pressure joints of conventional capacitors

• Superior in size, performance characteristics, shelf life,

construction and reliability

• Metal-encased with clear plastic outer insulating sleeve

• Excellent circuit performance when used as coupling

capacitors

• Minimum drain and long battery life when used in battery

bypass applications

• Better performance under life test than most miniature

aluminum electrolytic capacitors

• Axial lead

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

QUICK REFERENCE DATA

DESCRIPTION

Operating temperature

Tolerance on C

Ripple current

VALUE

-40 °C to +105 °C

G = +75 %, -10 % and

F = +50 %, -10 %

10 mA to 600 mA max. at 120 Hz,

depending upon capacitance

and voltage.

After test, capacitance value shall

not have changed by more than ± 20 %,

the equivalent series resistance in ohms

shall not have exceeded 150 % of initial

requirement and the leakage current

shall not have exceeded the

initial requirement.

Maximum DC leakage current at +25 °C

for all capacitors is 15 μA, except units

in case code DD, which is 15.8 μA.

Capacitance Ratio at 120 Hz

Life validation test

2000 h at +85 °C

CAPACITANCE VS. TEMPERATURE

1.2

800 µF - 3 V

300 µF - 16 V

200 µF - 25 V

100 µF - 50 V

25 µF - 100 V

1.1

DC leakage current

The capacitance and equivalent series

resistance shall meet the initial

Shelf test

requirements and the DC leakage

250 h at +85 °C,

with no voltage applied current shall not exceed 300 % of the

initial requirement.

1.0

Typical

0.9

- 40

- 20

+ 20 + 40

+ 60

Temperature in °C

+ 80

+ 100 + 120

DIMENSIONS

in millimeters

CASE CODE

6.3 ± 0.7

8.0 ± 0.6

9.0 ± 0.7

13.0 ± 1.4

17.5 ± 1.7

20.5 ± 1.8

17.5 ± 1.7

20.5 ± 1.8

24.0 ± 1.5

32.0 ± 1.5

38.0 ± 1.8

DIMENSIONS AND AVAILABLE FORMS

1.500

[38.10]

min.

1.500

[38.10]

min.

0.032 [0.811] dia.

No. 20 AWG tinned copper leads

Revision: 20-Jul-16

Document Number: 42042

For technical questions, contact:

aluminumcaps4@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
