MVA160VC100MM17

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 7575, CHIP
CategoryPassive components    capacitor
File Size101KB,2 Pages
ManufacturerNIPPON CHEMI-CON
Websitehttp://www.chemi-con.co.jp
Download Datasheet Parametric Compare View All

MVA160VC100MM17 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 7575, CHIP

MVA160VC100MM17 Parametric

Parameter NameAttribute value
package instruction, 7575
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance100 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
leakage current0.64 mA
Installation featuresSURFACE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)160 V
ripple current590 mA
size code7575
surface mountYES
Delta tangent0.2
Terminal shapeFLAT

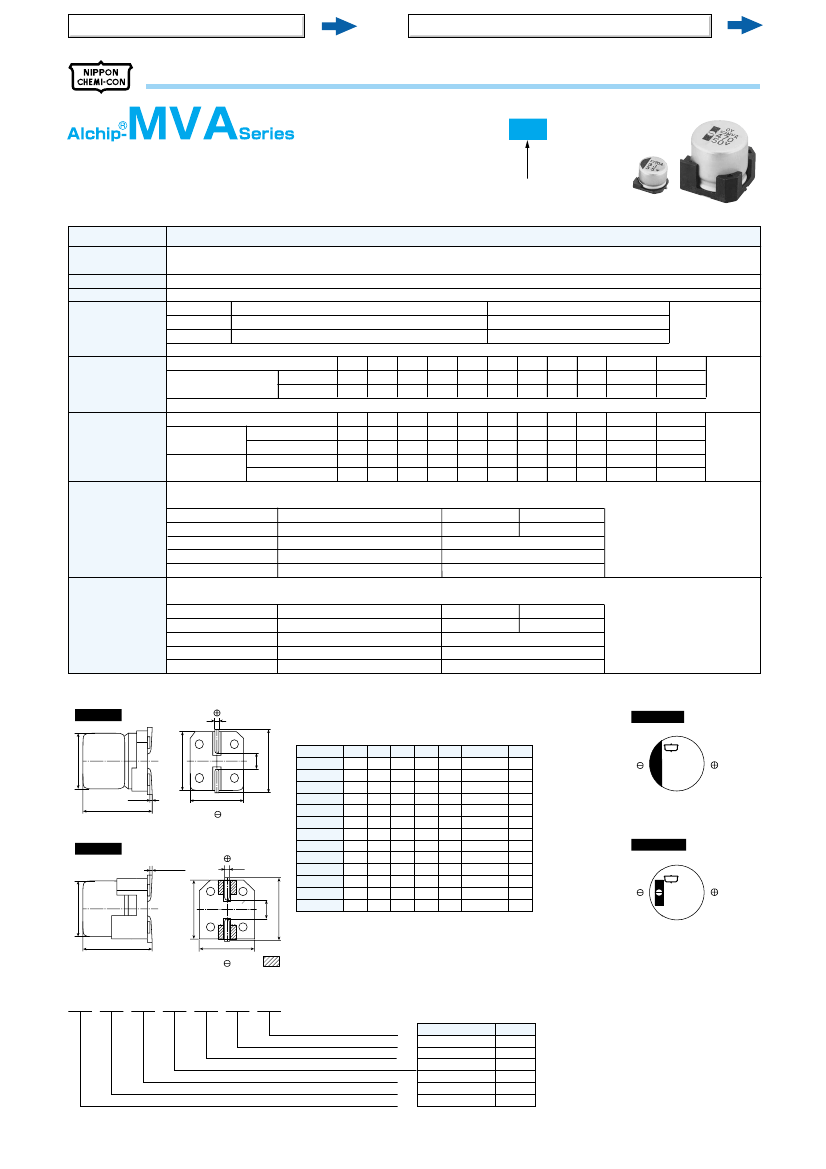

MF-Series
ALUMINUM ELECTROLYTIC CAPACITORS
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS
MVA
@F4
through
F18
case sizes are fully lined up
@Endurance
: 85C 2000 hours
@Suitable
to fit for downsized equipment
@Solvent-proof
type except 100 to 450V
dc
(see PRECAUTIONS AND GUIDELINES)
downsized
size extended
MV
Downsized, 85C
?SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
-40 to +85C
4 to 450V
dc
P20%
(M)
(at 20C, 120Hz)
Rated voltage (V
dc
)
4 to 100V
160 to 450V
D55 to J10
I=0.01CV or 3MA, whichever is greater.(after 2 minutes)
-
K14 to M22 I=0.03CV or 4MA, whichever is greater.(after 1 minute)
I=0.04CV+100MA max.(after 1 minute)
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)
(at 20C)
Rated voltage (V
dc
)
4V 6.3V 10V 16V 25V 35V 50V 63V 100V 160 to 250V 400 & 450V
D55 to J10 0.42 0.35 0.30 0.26 0.16 0.14 0.12 0.12 0.12
-
-
tanE (Max.)
K14 to M22
0.38 0.34 0.30 0.26 0.22 0.18 0.14 0.10
-
0.20
0.25
When nominal capacitance exceeds 1000MF, add 0.02 to the value above for each 1000MF increase.
(at 20C, 120Hz)
Rated voltage (V
dc
)
4V 6.3V 10V 16V 25V 35V 50V 63V 100V 160 to 250V 400 & 450V
Z(-25C)/Z(+20C)
3
2
2
2
2
2
4
3
7
-
-
D55 to J10
Z(-40C)/Z(+20C)
4
3
3
3
4
6
8
-
-
10
17
Z(-25C)/Z(+20C)
2
2
2
2
2
3
4
5
-
3
6
K14 to M22
Z(-40C)/Z(+20C)
(at 120Hz)
3
3
3
4
5
8
10
6
12
-
10
The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 2000 hours
at 85C.
Case code
D55 to J10
D55 to J10
K14 to M22
Rated voltage (V
dc
)
4V & 6.3V
10 to 100V
6.3 to 450V
Capacitance change
[P30%
of the initial value
[P20%
of the initial value
DF (tanE)
[200%
of the initial specified value
[200%
of the initial specified value
Leakage current
[The
initial specified value
[The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1000 hours at 85C
without voltage applied.
Case code
D55 to J10
D55 to J10
K14 to M22
Rated voltage
4V & 6.3V
10 to 100V
6.3 to 450V
Capacitance change
[P30%
of the initial value
[P20%
of the initial value
DF (tanE)
[200%
of the initial specified value
[200%
of the initial specified value
Leakage current
[The
initial specified value
[The
initial specified value
Characteristics
Dissipation Factor
(tane)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Shelf Life
?DIMENSIONS
(Terminal Type=VC or VE) [mm]
D55 to K16
(VC)
W
FDP0.5
Case code
D55
E55
F55
F60
F80
H10
J10
K14
K16
L17
L22
M17
M22
D
4
5
6.3
6.3
6.3
8
10
12.5
12.5
16
16
18
18
L
5.2
5.2
5.2
5.7
7.7
10.0
10.0
13.5
16.0
16.5
21.5
16.5
21.5
A
4.3
5.3
6.6
6.6
6.6
8.3
10.3
13.0
13.0
17.0
17.0
19.0
19.0
B
4.3
5.3
6.6
6.6
6.6
8.3
10.3
13.0
13.0
17.0
17.0
19.0
19.0
C
5.1
5.9
7.2
7.2
7.2
9.0
11.0
13.7
13.7
18.0
18.0
20.0
20.0
W
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.7 to 1.1
0.7 to 1.1
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
P
1.0
1.4
1.9
1.9
1.9
3.1
4.5
4.2
4.2
6.5
6.5
6.5
6.5
?MARKING
D55 to J10
EX) 16V47MF
P
CP0.2
BP0.2
7hA
47
16V
0.3max.
LP0.3(Note)
AP0.2
Note : LP0.5 for H10, J10, K14 and K16
L17 to M22
(VE : with dummy terminals)
0.3max.
W
K14 to H22
EX) 25V1000MF
0V
MVA
FDP0.5
BP0.2
LP0.5
AP0.2
P
CP0.2
1000
25V
: Dummy terminals
?PART
NUMBERING SYSTEM
MVA
16
VC
47
M
E55
Tray code (TR : If necessary)
Case code
Cap tolerance (P20%)
Nominal cap code
Terminal type (VC or VE)
Rated voltage in volts
Series name
Capacitance
0.1MF
1.0MF
4.7MF
10MF
100MF
1000MF
Code
R1
1
4R7
10
100
1000
(1/2)
CAT. No. E1001D

MVA160VC100MM17 Related Products

MVA160VC100MM17 MVA63VE3R3ME55
Description Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 7575, CHIP Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 3.3uF, Surface Mount, 2121, CHIP
package instruction , 7575 , 2121
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
capacitance 100 µF 3.3 µF
Capacitor type ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials ALUMINUM (WET) ALUMINUM (WET)
leakage current 0.64 mA 0.003 mA
Installation features SURFACE MOUNT SURFACE MOUNT
negative tolerance 20% 20%
Number of terminals 2 2
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
Package shape CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE
polarity POLARIZED POLARIZED
positive tolerance 20% 20%
Rated (DC) voltage (URdc) 160 V 63 V
ripple current 590 mA 17 mA
size code 7575 2121
surface mount YES YES
Delta tangent 0.2 0.12
Terminal shape FLAT FLAT
