USB-M04-003

Description
Mini USB - 90° Receptacle
File Size81KB,3 Pages
ManufacturerYamaichi Electronics Co., Ltd.
Websitehttp://www.yamaichi.com/
Download Datasheet Compare View All

USB-M04-003 Overview

Mini USB - 90° Receptacle

Series USB-M
Mini USB - 90° Receptacle (4 Pin, SMT)
Specifications
Insulation Resistance:
Current Rating:
Voltage Rating:
Withstanding Voltage:
Contact Resistance:
.
1000MΩ at 100 V DC for 1 minute
1A max. per contact
30V ACrms max.
500V AC (rms) for 1 minute
30mΩ max. (initial)
I/O
Connectors
Part Number
USB-M04-003
Materials and Finish
Housing:
Shell:
Contacts:
Contact Plating:
Thermoplastic, glass filled (UL94V-0)
Tin over Copper Alloy
Copper Alloy
Solder area - Solder over Nickel
Mating area - Au over Nickel

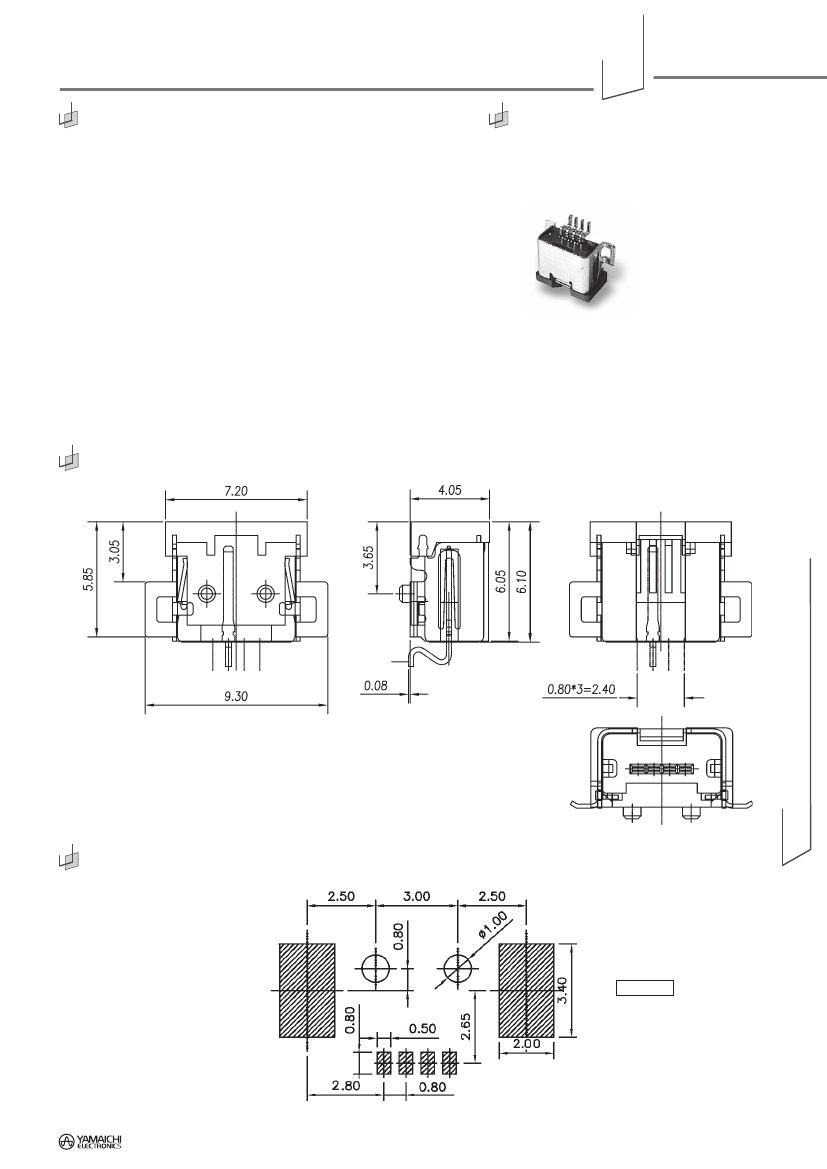

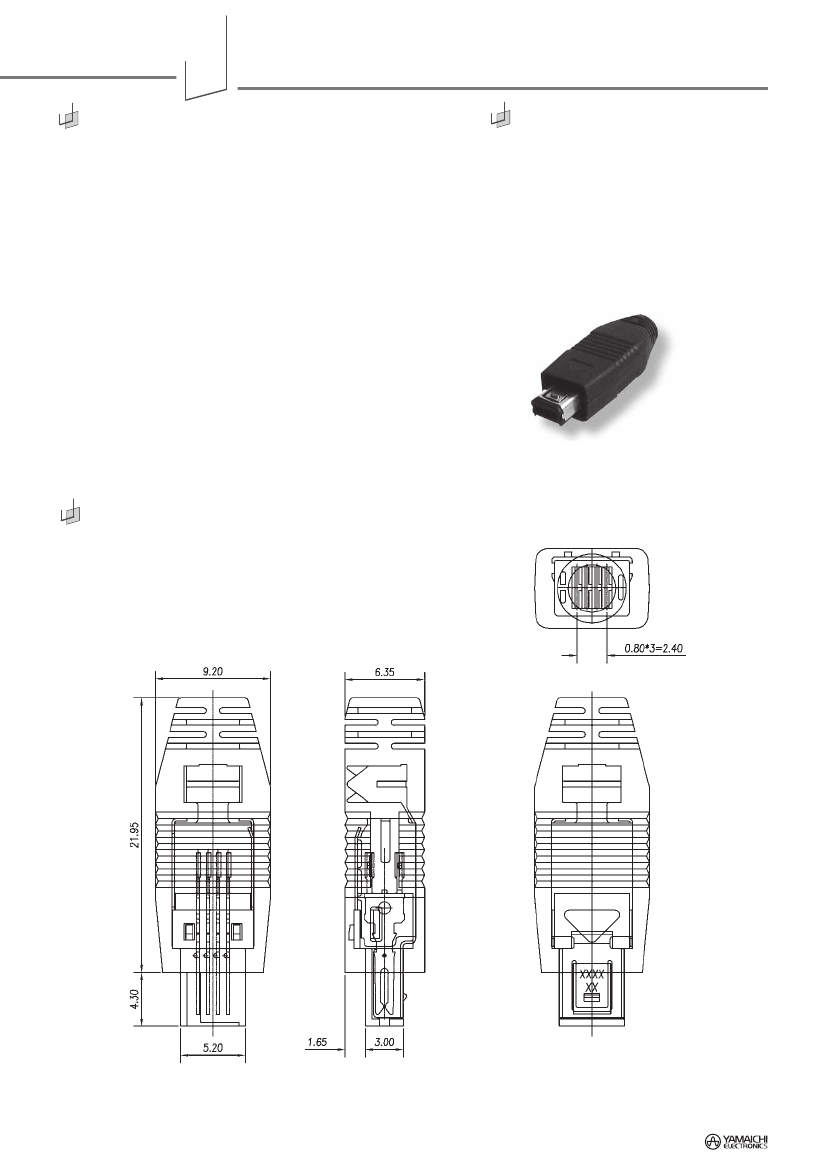

Outline Dimensions SMT Type
1 2
3
4
Recommended PCB Layout
Top View
4
3
2
1
Trading Division
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
Connectors
E-17
USB (Universal Serial Bus and IEEE1394
