SIDACtor Protection Thyristors
Description
(PXXX0EAL PXXX0EBL PXXX0ECL)

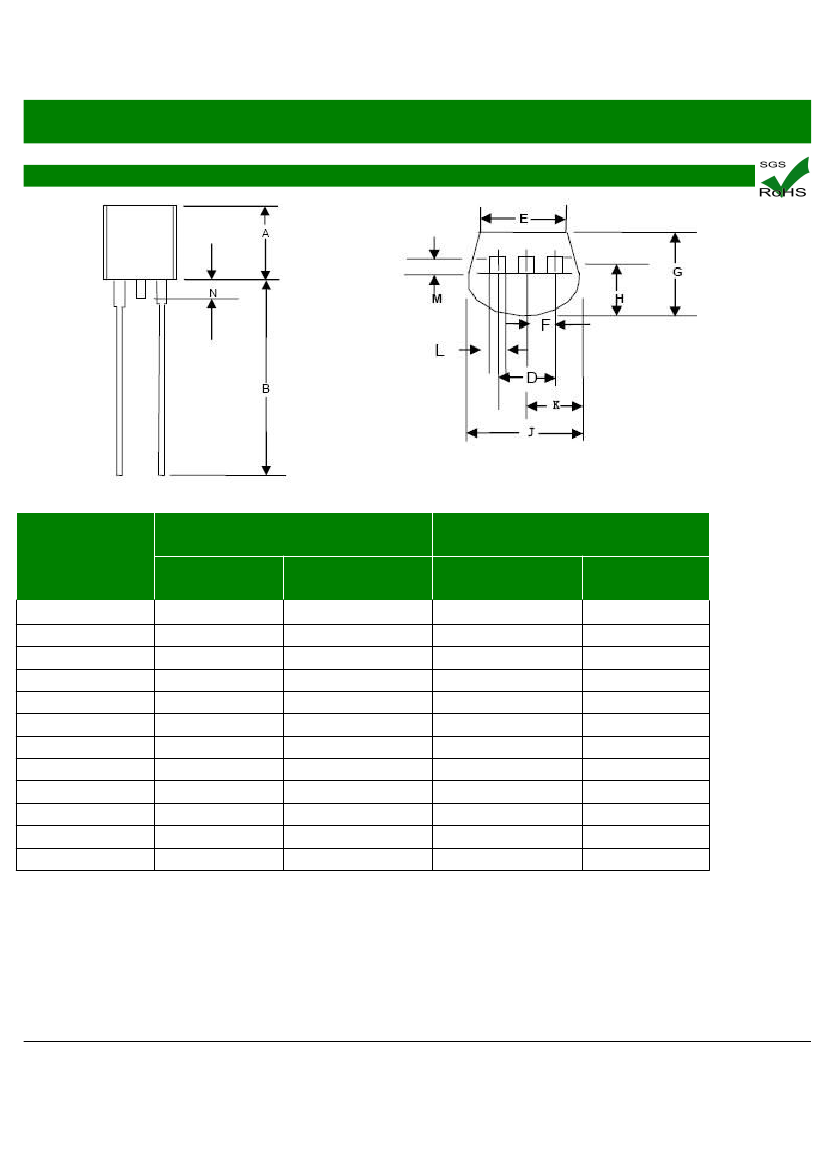

Package TO-92
Fast Delivery Time
Pxxx0EAL,PXXX0EBL,PXXX0ECL Series SIDACtor Protection Thyristor protect telecommunications
equipment such as ADSL Modems,Router, , Telephone, CCTV Camera,Digital Video Record,Video
Capture Card,Twisted-pair video transmitter,CATV Splitter.....Etc.
Pxxx0EAL,PXXX0EBL,PXXX0ECL Series SIDACtor Protection Thyristor are used to enable
equipment to meet various regulatory requirements including GR 1089, ITU K.20/21,IEC 61000-4-5,
YD/T 1082,YD/T 993,YD/T 950,TIA-968-A ,TIA-968-B
Features
Compared to surge suppression using other technologies, Pxxx0EAL,PXXX0EBL,PXXX0ECL Series devices offer absolute
surge protection regardless of the surge current available and the rate of applied voltage (dv/dt).
Pxxx0EAL,PXXX0EBL,PXXX0ECL Series devices:
•
100% Lead-Free(RoHs
Compliant )
•
Cannot be damaged by voltage
•
Eliminate hysteresis and heat dissipation typically found with clamping devices
•
Eliminate voltage overshoot caused by fast-rising transients
•
Are non-degenerative
•
Have low capacitance, making them ideal for high-speed transmission equipment
Electrical
Characteristics
Parameter
Definition
Peak Off-state Voltage
— maximum voltage that can be applied while maintaining off state
Switching Voltage
— maximum voltage prior to switching to on state
Holding Current
— minimum current required to maintain on state
Switching Current
— maximum current required to switch to on state
On-state Current
— maximum rated continuous on-state current
On-state Voltage
— maximum voltage measured at rated on-state current
Off-state Capacitance
— typical capacitance measured in off state
Leakage Current
— maximum peak off-state current measured at V
DRM
Peak Pulse Current
— maximum rated peak impulse current
Peak One-cycle Surge Current
— maximum rated one-cycle AC current
Rate of Rise of Current
— maximum rated value of the acceptable rate of rise in current over time
V
DRM
V
S
I
H
I
S
I
T
V
T
C
apacitance
I
DRM
I
PP
I
TSM
di/dt
1
