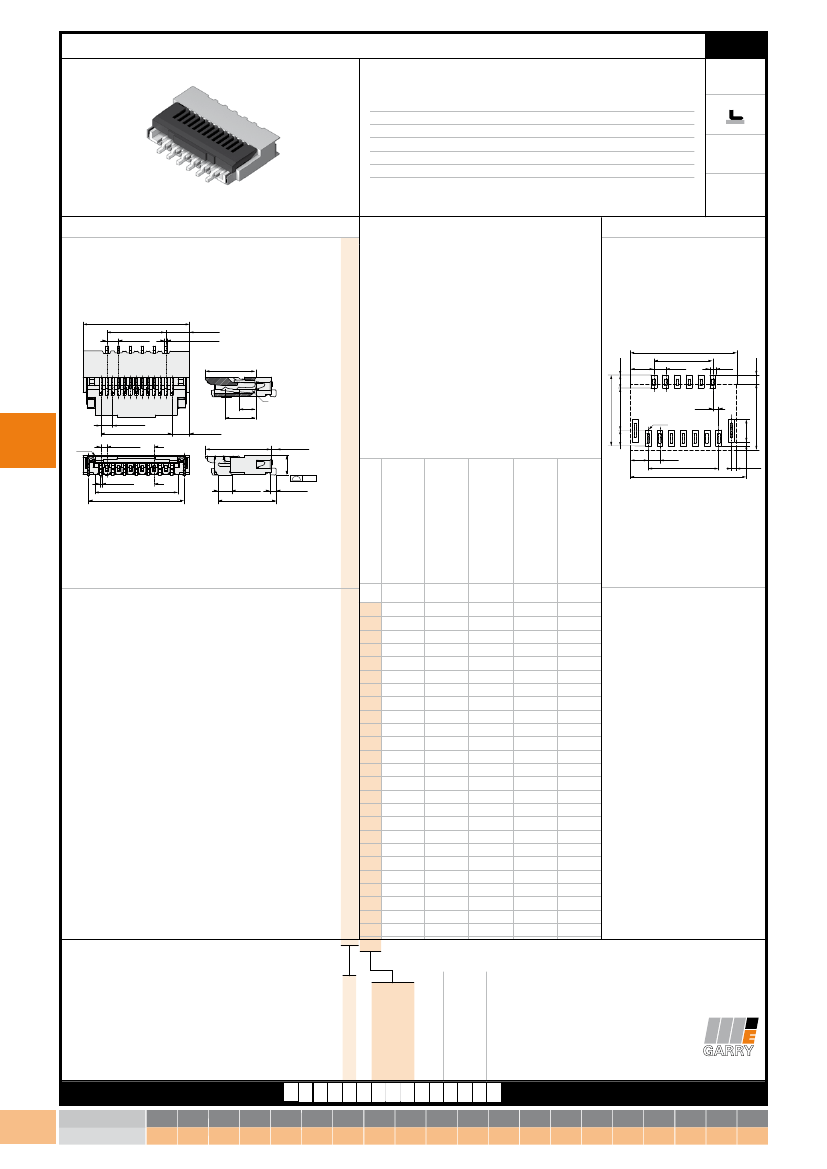

FFC/FPC Connector 0,30 mm
Rated current
0,2 A
Withstand voltage
100 V
RMS
for 1 minute
Material contact
Phosphor bronze
Material insulator
High temp. thermoplast UL94V-0
Operating temperature -25°C to +85°C
Max. processing temper. 260°C for 10 seconds
All dimensions in mm.
Series
402
pitch
termination
0,30
max.
pincount
071
Variation
PCB Layout
A ±0,15
B ±0,10
0,60 ± 0,05
1,20±0,10
0,12 ± 0,03
Insertion depth of FPC
(Section: X–X‘)
(2,55)
0,65
A
B
0,60
1,20
0,30
3,60
2,15
Product
group
0,1±0,1
7
0,90
0,08
0,60
see figure left (mm)
see figure left (mm)
see figure left (mm)
see figure left (mm)
2,95 ± 0,15
n
009
011
013
015
017
019
021
023
025
027
029
031
033
035
037
039
041
043
045
049
051
057
061
067
071
Plating:
F = Au
Packaging:
R = Reel
T = Tube
A
4,20
4,80
5,40
6,00
6,60
7,20
7,80
8,40
9,00
9,60
10,20
10,80
11,40
12,00
12,60
13,20
13,80
14,40
15,00
16,20
16,80
18,60
19,80
21,60
22,80
B
1,80
2,40
3,00
3,60
4,20
4,80
5,40
6,00
6,60
7,20
7,80
8,40
9,00
9,60
10,20
10,80
11,40
12,00
12,60
13,80
14,40
16,20
17,40
19,20
20,40
C
2,40
3,00
3,60
4,20
4,80
5,40
6,00
6,60
7,20
7,80
8,40
9,00
9,60
10,20
10,80
11,40
12,00
12,60
13,20
14,40
15,00
16,80
18,00
19,80
21,00
D
3,03
3,63
4,23
4,83
5,43
6,03
6,63
7,23
7,83
8,43
9,03
9,63
10,23
10,83
11,43
12,03
12,63
13,23
13,83
15,03
15,63
17,43
18,63
20,43
21,63
3,70
4,30
4,90
5,50
6,10
6,70
7,30
7,90
8,50
9,10
9,70
10,30
10,90
11,50
12,10
12,70
13,30
13,90
14,50
15,70
16,30
18,10
19,30
21,10
22,30
Packaging (R,T)
No. of contacts
Plating contact
Variation
see figure left (mm)
0,12 ± 0,03
D ± 0,05
E ± 0,10
C
E
0,20
PIN 1
0,30 ± 0,05
X
3,35 ± 0,15
0,25 ± 0,15
0,80
0,90 ± 0,10
1,15
0,60 ± 0,05
C ±0,10
(1,5)
Length to contact point (Even)
PIN 1
X‘
0,70±0,10
0,30±0,10
no. of contacts
E
www.mpe-connector.de
Order code:
402-1-???-F-B?0
409
8-2
7-2
Mating series
see page
3,35
0,25
(0,8)
Terminal (Even)
Length to contact point (Odd)
1
0,30
MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de
0,45
